StarTech.com SAT3510U3VP Manuel utilisateur

SATA Hard Drive Enclosure

3.5” SuperSpeed USB 3.0 to

SATA Hard Drive Enclosure

SAT3510U3V

SAT3510U3VGB

Instruction Manual

Manual Revision:07/26/2010

For the most up-to-date information, please visit www.startech.com

SAT3510U3VP

SAT3510U3PGB

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.

com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property

of their respective holders.

Table of Contents

Introduction.............................................................. 1

Packaging Contents............................................................. 1

System Requirements ......................................................... 1

Installation................................................................ 2

Hardware Installation........................................................... 2

Driver Installation................................................................. 4

PCIe USB 3.0 Card Installation (SAT3510U3VP/

SAT3510U3PGB only) ......................................................... 5

Driver Installation................................................................. 6

Verifying Installation............................................................. 6

Using the Enclosure ................................................ 7

Speciﬁcations........................................................... 9

Technical Support.................................................... 10

Warranty Information............................................... 10

Introduction

The StarTech.com USB 3.0 to SATA external hard drive enclosure allows

almost any standard 3.5-inch internal SATA Hard Disk Drive (HDD) to be

made into a cost-effective external SuperSpeed USB 3.0 hard drive. With

data transfer rates up to 5 Gbps (10 times faster than USB 2.0), speed is

no longer compromised for convenience, ease of use or portability. The

USB 3.0 HDD Enclosure is backward compatible with USB 2.0, making

it more than suitable for use with computers that don’t yet have USB

3.0 ports. Constructed of sturdy, light-weight aluminum and no fans,

the enclosure offers optimal and quiet cooling for even current, high-

capacity hard drives - an ideal external storage solution that is backed by

a StarTech.com 1 year warranty and free lifetime technical support. The

SAT3510U3VP/SAT3510U3PGB models include a PCI Express (PCIe)

based USB 3.0 card, for desktops not already equipped with USB 3.0.

Packaging Contents

• 1 x External Hard Drive Enclosure

• 1 x USB 3.0 cable

• 1 x PCI Express USB 3.0 card (SAT3510U3VP, SAT3510U3PGB only)

• 1 x Screw kit

• 1 x Power Adapter

• 1 x Software CD

• 1 x Instruction Manual

System Requirements

• USB enabled computer system with available USB port

• Available power outlet

• 3.5” SATA hard drive (SATA revision 1/2/3 compatible)

• Microsoft®Windows®XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit)

Installation

WARNING! Hard drives require careful handling, especially when being

transported. If you are not careful with your hard disk, lost data may result.

Always handle your hard drive and storage device with caution.

Hardware Installation

1. Remove the rear panel, to expose the internal SATA connections:

2. Position the hard drive you wish to install such that the SATA connection

is facing towards the SATA interface connector provided by the

Enclosure’s front panel:

3. With the hard drive connected to the front panel, turn the drive over to

expose it’s base. Fasten the hard drive to the front panel rails on both

sides, using the screws provided (2):

4. Fasten the front panel (with drive attached) to the body of the Enclosure;

be cautious that the drive and front panel are properly aligned with the

body of the Enclosure, to prevent damage to the LEDs.

5. Fasten both sides of the case to lock the hard drive in place:

6. Fasten the rear panel to the Drive Enclosure on both sides using the

screws (2) provided.

7. Once the drive has been secured within the Enclosure, connect the DC

power adapter to the DC power port. Connect the remaining end of the

power adapter to an available power outlet.

8. Connect the USB cable to the USB host port on the rear panel of the

Enclosure, then connect the remaining end of the cable to the host

computer.

9. With the host computer powered on, power on the Drive Enclosure using

the On/Off switch. The operating system will detect the presence of the

added drive, following which you will be able to properly format/partition

the installed drive from within the operating system.

Driver Installation

No driver installation is required for the compatible operating systems, as

this enclosure is natively supported, so the drivers are already installed.

PCIe USB 3.0 Card Installation (SAT3510U3VP/SAT3510U3PGB only)

WARNING! PCI Express cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening your

computer case or touching your PCI Express card. StarTech.com recommends that

you wear an anti-static strap when installing any computer component. If an anti-static

strap is unavailable, discharge yourself of any static electricity build-up by touching a

large grounded metal surface (such as the computer case) for several seconds. Also be

careful to handle the PCI Express card by its edges and not the gold connectors.

1. Turn your computer off and any peripherals connected to the computer

(i.e. printers, external hard drives, etc.). Unplug the power cable from the

rear of the power supply on the back of the computer.

2. Remove the cover from the computer case. See documentation for your

computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate

on the rear of the computer case. Note that this card will work in PCI

Express slots of additional lanes (i.e. x4, x8 or x16 slots)

4. Insert the card into the open PCI Express slot and fasten the bracket to

the rear of the case, per your computer’s documentation.

5. Connect an LP4 molex power connector from the computer’s power

supply to the LP4 connector on the card.

6. Place the cover back onto the computer.

7. Insert the power cable into the socket on the power supply.

*actual product may vary from photos

Driver Installation

Windows XP/Server 2003/Vista/7

1. Upon starting Windows, if the “Found New Hardware” wizard appears on

the screen, cancel/close the window and insert the included Driver CD

into the computer’s CD/DVD drive.

2. AutoPlay should automatically launch the Driver installation screen. If

not, open “My Computer” and right-click on the CD/DVD drive the disk is

inserted into and select “AutoPlay” or run the setup.exe ﬁle on the CD.

3. Complete the wizard and this should automatically install all necessary

drivers.

Verifying Installation

Windows XP/Server 2003/Vista/7

From the main desktop, right-click on “My Computer” (“Computer” in

Vista/7), then select Manage. In the new Computer Management window,

select Device Manager from the left window panel.

In the Device Manager, under the Universal Serial Bus Controllers

category, you should see the new entries for the USB controller card.

*actual names may vary

Using the Enclosure

Windows 2000/XP/Vista/7

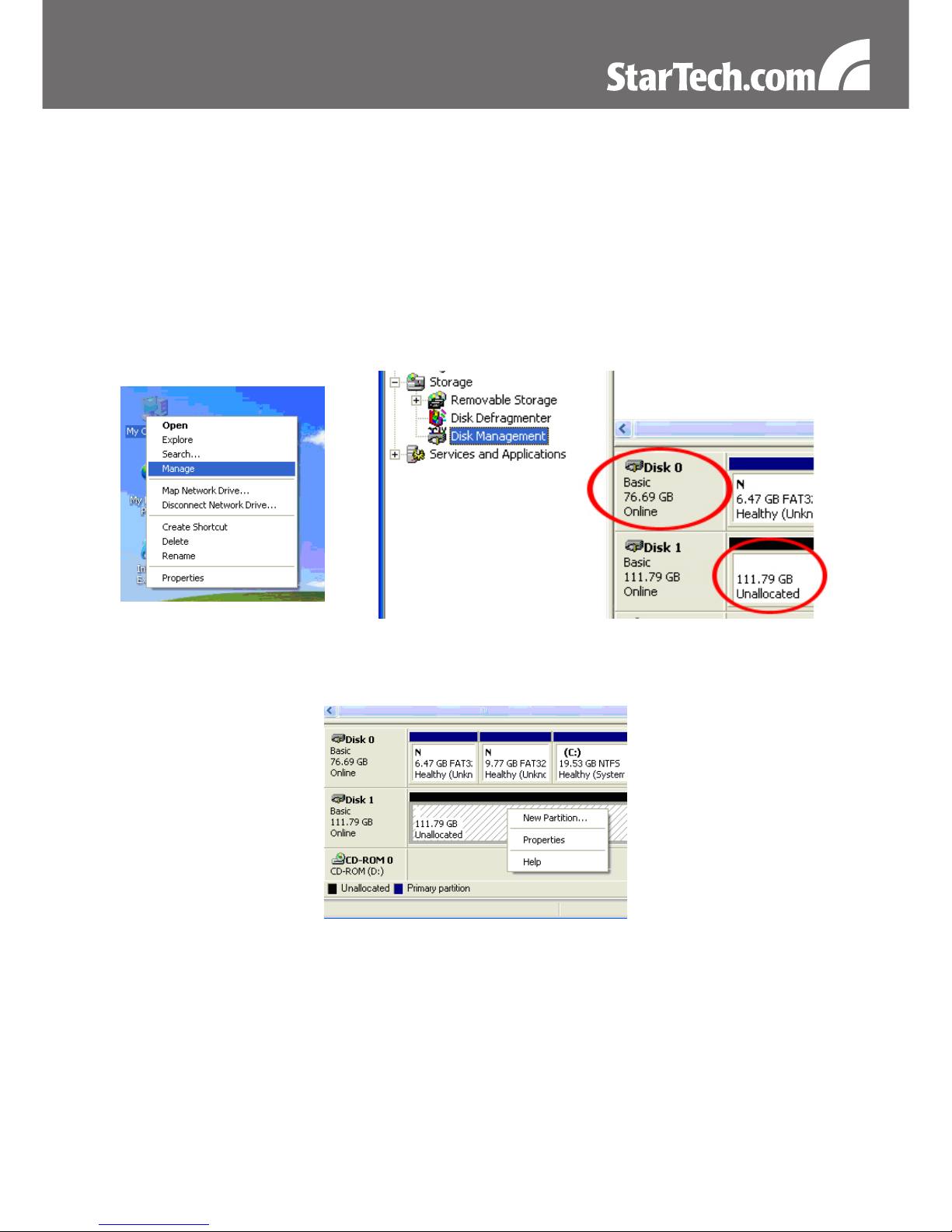

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the main

desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Disk

Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity to

conﬁrm it’s the correct hard drive) and then right-click in the section that

says “Unallocated” and select “New Partition”.
