CE IDE Hard Enclosure

IDE1810U2Z Instruction Manual

Actual product may vary from photo

1.8" USB 2.0 CE IDE Hard Drive Enclosure

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aannddootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other protected names

and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur

these references are for illustrative purposes only and do not represent an endorsement of a

product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Configuring the Drive Enclosure Frame . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting the Enclosure to a Computer . . . . . . . . . . . . . . . . . . . . . .5

Removing the Enclosure from the Computer . . . . . . . . . . . . . . . . . . . .5

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Thank you for purchasing a StarTech.com 1.8" USB 2.0 CE IDE Hard Drive Enclosure.

Ideal for convenient data offloads or additional storage for notebook computers while

traveling or working out of the office, this sturdy, yet lightweight drive enclosure uses the

CE-ATA (also known as ZIF style) interface for hard drive connection, allowing you to

harness the newest, fastest growing standard in small form factor storage.

IInnttrroodduuccttiioonn

•Rugged aluminum enclosure

Features

BBeeffoorreeyyoouubbeeggiinn

Package contents:

•1 x 1.8” Drive Enclosure

This package should contain:

•USB powered

•Supports USB 2.0 and backwards compatible with USB 1.1

•1 x USB Cable

•1 x Bracket

•1 x Leather pouch

•1 x Instruction Manual

•1 x Screw Kit

•1 x Toshiba compatible ZIF cable (pre-installed)

•1 x Hitachi compatible ZIF cable

Instruction Manual

IInnssttaallllaattiioonn

Please note: IDE1810U2Z includes two enclosure frames that can be used to

house the hard drive, depending on the physical size of the drive. Prior to

installation, please note which frame is suitable to accomodate the hard drive

you will be using, allowing enough room within the enclosure to safely contain

the hard drive and the necessary CE ATA connector.

If you find that the frame used in the pre-configured enclosure is not suitable (based on

size) to house the hard drive you will be using, please follow steps #1-7. If the hard drive

you will be using is small enough to fit within the enclosure as is, please skip to step #8.

To replace the enclosure frame (according to the size requirements of the hard drive)

1. Remove the screw located at the top of the enclosure frame.

2. Using the clear plastic tab, gently pull the front panel off of the enclosure frame.

3. a. Remove the circuit board from inside the enclosure. This can be done by gently

applying outward pressure to the enclosure from inside, while lifting the bottom

(closest to the center) of the circuit board out of the enclosure:

OOppttiioonnaall::CCoonnffiigguurriinnggtthheeDDrriivveeEEnncclloossuurreeFFrraammee

Gently apply

outward pressure

WARNING: Hard drives require careful handling, especially when being

transported. If you are not careful with your hard disk, lost data may result.

Always handle your hard drive and storage device with caution.

3. b. Optional: Please note: IDE1810U2Z is pre-configured for installation of Toshiba

hard drives. If you will be using an Hitachi hard drive, please replace the ZIF cable

accordingly:

Using your fingernails or a small

slot-headed screwdriver, gently

pull the interface tab (brown in

color) out from the interface

connector, in order to release the

tension holding the ZIF cable in

place. Remove the (pre-installed)

Toshiba cable from the connector.

Instruction Manual

5. Once the clips have been loosened, remove the rear panel from the enclosure:

6. Fasten the rear panel (removed in step 5) to the alternately-sized enclosure frame:

4. Using a small, slot-headed screwdriver, gently pry the internal clips away from the

enclosure frame. This may be required for all four clips, to ensure safe removal:

Insert the Hitachi ZIF cable into

the slot, ensuring the blue tab is

facing upward, in relation to the

ZIF connector. Once the cable has

been firmly placed, gently press

the tab (brown) back in place, in

order to secure the cable.

Once secured, advance to step #4.

Instruction Manual

9. Once the drive is connected, situate it in the enclosure so that the label is now facing

into the enclosure:

10.Place the front panel over the drive, by situating the bottom of the panel inside the

enclosure, then securing the remainder:

10.Replace the screw that was removed in step #1.

7. Insert the circuit board (removed in step #3) into the enclosure by aligning the USB

connector (provided by the circuit board) with the USB port (provided by the frame),

and gently applying pressure to the bottom of the circuit board until it is locked in

place:

8. Connect the CE IDE (zif) cable to the drive, such that the label of the hard drive

is facing upward***.

***Please note:

IDE1810U2Z is pre-configured

with a Toshiba compatible ZIF

cable. If you are using an Hitachi

hard drive, please refer to step

#3. b, for information on how to

replace the cable (included).

Instruction Manual

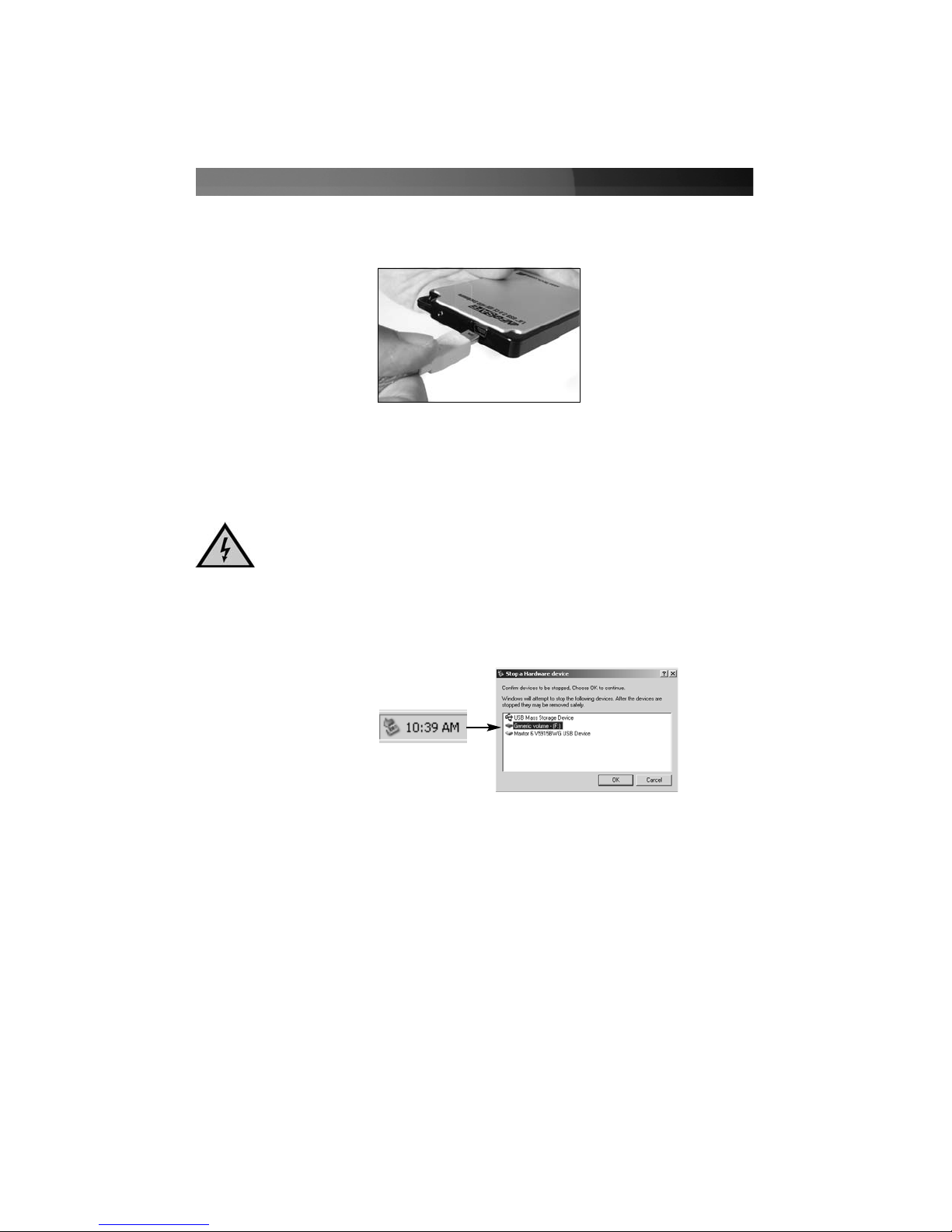

RReemmoovviinnggtthheeEEnncclloossuurreeffrroommtthheeCCoommppuutteerr

WARNING: Do not disconnect the enclosure while the hard drive is active. This

can result in data loss and possible damage to the hard drive. To ensure that the

drive is not operating, please use the Safely Remove Hardware feature as

outlined below.

1. Click on the Safe Remove icon located in the taskbar, and select the connected

enclosure from the menu provided, then click Stop. From the menu that appears next

(pictured below), select the device to disconnect, and click OK.

*Safe Remove

2. Once the connected hard drive activity has terminated, it is safe to power down and

remove the enclosure from the host computer, by disconnecting the USB cable from

the host computer.

CCoonnnneeccttiinnggtthheeEEnncclloossuurreettooaaCCoommppuutteerr

2. Windows will detect that the drive has been connected, and automatically install the

necessary driver files. Please follow any prompts to complete the installation,

following which the newly connected drive will appear in My Computer.

1. Insert the Type ‘A’ connector provided by the included USB cable to the (powered)

host computer. Connect the remaining end to the enclosure:

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

LLiimmiittaattiioonnooffLLiiaabbiilliittyy

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

SSppeecciiffiiccaattiioonnss

Regulatory Certifications ROHS, FCC, CE

Construction Aluminum

Dimensions (L x W x D) 86 x 62 x 10mm [3.4 x 2.4 x 0.4”]

Net Wgt. 20g (0.7 Oz.)

Bus Type IDE (CE-ATA)

Connectors 1 X USB MINI B (MALE)

Cables 1 x 1’ USB Mini ‘B’ (F) to USB Type A (M)

Maximum Data Transfer Rate 480 Mbps

Chipset Genesys G811S

OS Support Windows ME/2000/XP/Vista/Linux Kernel 2.4.0 or

above/Mac OS 9.2.21 and up

Operation Temperature 0 to 60° C (32° - 140°F)

Storage Temperature -20 to 85° C (-4° - 185°F)

Relative Humidity 5 to 90%

DC Supply from USB power +5V DC =/- 10%

10 July 2007 (Rev. A)
