StarTech.com PUSBADAP/LP Manuel utilisateur

Manual Revision: 11/16/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PUSBADAP/LP

PCI312PUSB/LP

PEX312PUSB/LP

2 Port 12V 24V PoweredUSB Adapter Card -

USB PlusPower

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

Hardware Guide .....................................................................................2

PCI312PUSB/LP, PEX312PUSB/LP ........................................................................................................ 2

Jumper Settings......................................................................................................................................... 2

PUSBADAP/PUSBADAPLP ...................................................................................................................... 3

Jumper Settings......................................................................................................................................... 4

Hardware Installation .............................................................................................................................. 4

PCI312PUSB/LP or PEX312PUSB/LP Only......................................................................................... 5

PUSBADAP/PUSBADAPLP Only............................................................................................................ 6

Software Installation .............................................................................6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Powered USB 2.0 Adapter Card (available in

both PCI and PCI Express formats as well as Standard and Low Prole). Now, adding

Powered USB capability to a computer has never been easier!

Fully compatible with USB1.1 OHCI and USB2.0 ECHI specications, the cards support

data speeds of up to 480 Mbps and provide power to Powered USB devices through

industrial standard Powered USB connectors.

Features

• Supplies power and data signals over hot-pluggable USB cable

• Mainboard can be linked to daughter board

• Daughter board and Main board can be used as stand alone devices

• Selectable power input

• Connectors oer cable locking mechanism

Package Contents

• PCI312PUSB/LP: 1 x Powered USB Mainboard Card

PEX312PUSB/LP: 1 x Powered USB Mainboard Card

PUSBADAP/LP: 1 x Powered USB Daughter Board

• Instruction Manual

• Driver CD (PCI312PUSB/LP and PEX312PUSB/LP only)

• 9-Pin USB Header Cable (PUSBADAP/LP Only)

Please note that the Powered USB ports are color coded based on voltage

capabilitythey support, as follows:

Yellow 5V

Green 12V

Red 24V

Instruction Manual

Hardware Guide

PCI312PUSB/LP, PEX312PUSB/LP

Jumper Settings

JP1 (+5V Selector) Settings

Default: The USB2.0 Bus Power is

supplied by the motherboard PCI slot

(DC+5V supplied from PCB)

The USB2.0 Bus Power is supplied by the

AUX power connector (J5).

This option provides more power for

Powered USB devices, but requires a

connection to the computer power

supply.

J1~J3:

External

Powered

USB Ports (x3)

J4:

USB Ports 4, 5

(for Expansion)

+5 +5

D- D-

D+ D+

G G

JP2:

+12V Selector

JP1:

+5V Selector

J5: AUX Power

Instruction Manual

JP1 (+5V Selector) Settings

Default: The 12V power source of the

Powered USB connectors are supplied

by the PCI slot into which the card is

installed

The 12V power source of the Powered

USB connectors are supplied by the AUX

power connector (J5). This will require

that a power cable be connected from

the computer power supply to J5. This

option provides more power for the

Powered USB devices over the USB2.0

cable.

PUSBADAP/PUSBADAPLP

J3: External

Input Power

DIN Connector*

*J3:

Power DIN

Connector Pin

Assignment

J5:

AUX Power

Connector

J4:

24V-keyed

Connector

J2:

12V-keyed

Connector

JP1: +24V Power

Source Selector

(from Regulator or

External Power DIN

connector)

J1:

USB Input Connector

(from Host USB port)

+5 +5

D- D-

D+ D+

G G

Instruction Manual

Jumper Settings

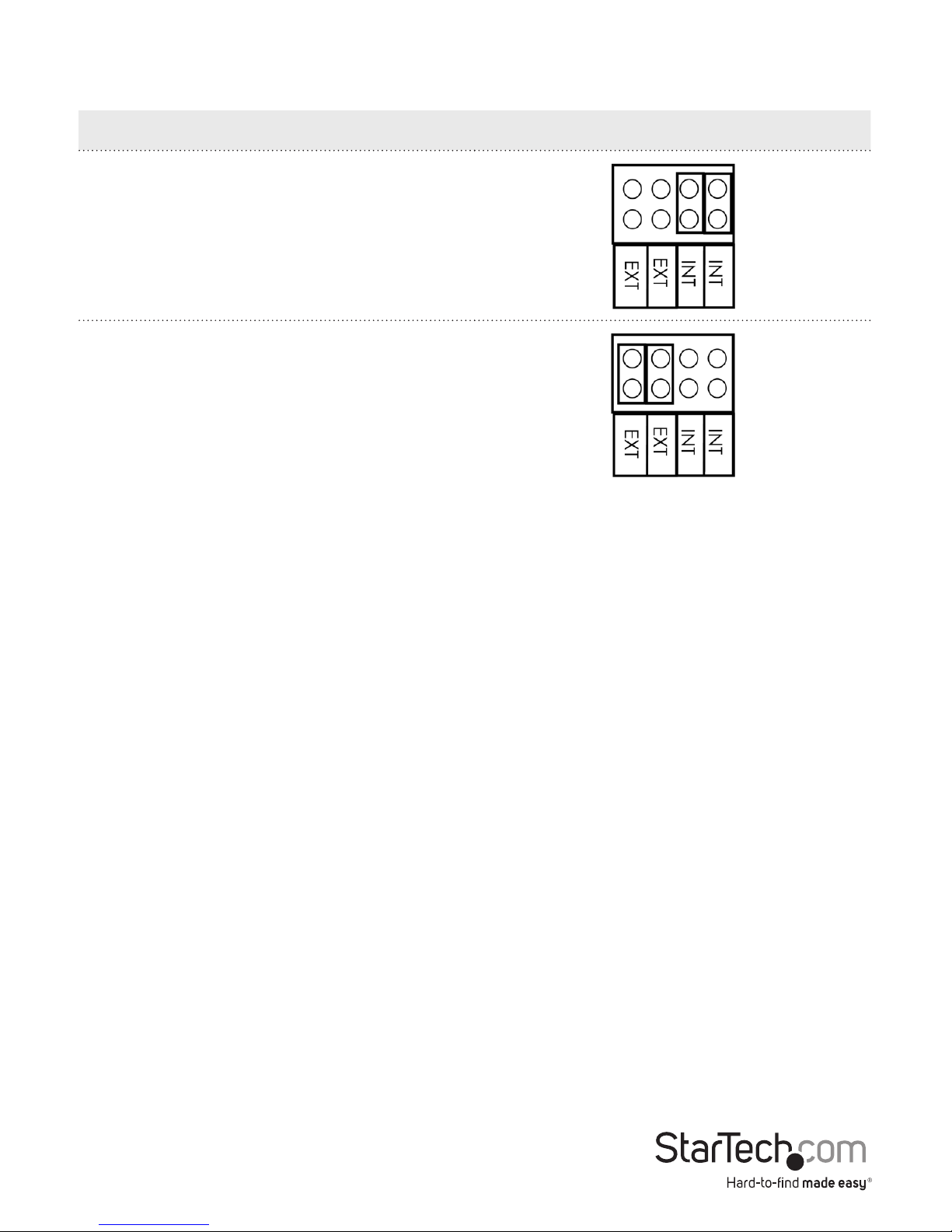

JP2 (24V Selector) Settings

Default: The power source of the

24V-keyed PoweredUSB connector

is supplied from the internal step-up

switching regulator (jumpers must be

set identically, both at INT or EXT.

The power source of the 24V-keyed

Powered USB connector is supplied

from the external Power DIN input

connector, in this case, a 24V AC adapter

will be required. Please see http://www.

startech.com for more information.

Hardware Installation

PCI312PUSB/LP, PEX312PUSB/LP & PUSBADAP/LP

1. Remove the computer cover. For more detailed instruction on how to perform this

step, please refer to the documentation that was included with your computer at

the time of purchase.

2. Locate an empty PCI/PCI Express slot and remove the metal bracket covering the

accompanying empty port/socket.

3. Connect one end of the 9-pin Header Cable (provided by PUSBAD/LP) to the

expansion port (depicted on pg. 2 as J4:USB Ports 4, 5).

4. Position the card above the open PCI/PCI Express slot, ensuring that the card is

properly aligned with the slot. Insert the card rmly into the slot, distributing

force evenly across the length of the board, then fasten the metal bracket to the

computer case (using the screw removed in step #2).

5. Remove a metal bracket that is adjacent to or near the one remove in step #2, and

fasten PUSBADAP/PUSBADAPLP directly to the metal rear panel of the computer

case.

6. Connect the remaining end of the 9-Pin USB Header Cable used in step #3, to the

USB IN connector, denoted as J1: USB Input Connector (from Host USB port) (see

diagram, pg.3) on the PUSBADAP board.

Instruction Manual

7. PCI312PUSB/PEX312PUSB: By default, JP2 (see pg. 3) is set to PCI. The card

will draw power via the PCI/PCI Express slot into which it is installed; as such, if

you’ve left the JP2 jumper in the default position, there will be no need to connect

PCI312PUSB to the computer power supply.

If JP2 has been switched to INT (Internal), you must connect PCI 312PUSB/

PEX312PUSB to the computer power supply, by inserting an available LP4 connector

into the AUX Power Connector.

PUSBADAP: By default, JP2 is set to INT, commanding the card to draw power from

the computer power supply. As such, insert an LP4 power connector from the power

supply, into the AUX Power Connector.

If JP2 has been set to EXT, the PUSBADAP will draw power through the External

Input Power DIN Connector, and will require an external power source (see http://

www.startech.com for accessories).

8. Once both cards have been properly positioned, and the necessary link has been

made between them, close the computer case and power on the computer.

PCI312PUSB/LP or PEX312PUSB/LP Only

This section details how to install PCI312PUSB/PEX312PUSB as a stand alone card.

1. Remove the computer cover. For more detailed instruction on how to perform this

step, please refer to the documentation that was included with your computer at

the time of purchase.

2. Locate an empty PCI/PCI Express slot and remove the metal bracket covering the

accompanying empty port/socket.

3. Position the card above the open PCI/PCI Express slot, ensuring that the card is

properly aligned with the slot. Insert the card rmly into the slot, distributing

force evenly across the length of the board, then fasten the metal bracket to the

computer case (using the screw removed in step #2, if necessary).

4. By default, JP2 (see pg. 3) is set to PCI, commanding the card to draw power via the

PCI slot into which it is installed. As such, if you’ve left the JP2 jumper in the default

position, there will be no need to connect PCI312PUSB to the computer power

supply.

If JP2 has been switched to INT (Internal), you must connect PCI312PUSB to the

computer power supply, by inserting an available LP4 connector into the AUX

Power Connector.

5. Once the card is properly seated, and secured to the computer case, close the

computer case and power on the computer.

Instruction Manual

PUSBADAP/PUSBADAPLP Only

This section details how to install PUSBADAP as a stand alone card.

1. Remove the computer cover. For more detailed instruction on how to perform this

step, please refer to the documentation that was included with your computer at

the time of purchase.

2. Connect one end of the 9-Pin USB Header Cable (provided) to the USB IN connector,

denoted as J1: USB Input Connector (from Host USB port) (see diagram, pg.3) on the

PUSBADAP board.

3. By default, JP2 is set to INT, commanding the card to draw power from the

computer power supply. As such, insert an LP4 power connector from the power

supply, into the AUX Power Connector.

If JP2 has been set to EXT, the PUSBADAP will draw power through the External

Input Power DIN Connector.

4. Connect the remaining end of the 9-Pin USB Header Cable (see step #2), to the

USB Header connector on the host motherboard. For further instructions on how

to locate the appropriate connection on the motherboard, please consult the

documentation that was included with your motherboard/computer at the time of

purchase.

Software Installation

PCI312PUSB/LP and PEX312PUSB/LP are natively supported by Windows® XP (SP2)

2000 (SP4) and Vista™. As such, no driver installation is required, as long as the

necessary updates have been made to the operating system(s).

For Windows 98SE or Windows ME installations, however, driver installation is required.

To install the drivers necessary for PCI312PUSB/LP or PEX312PUSB/LP to function

properly:

1. With the host computer powered on, insert the Driver CD that accompanied your

purchase of PCI312PUSB/PCI312PUSBLP into the CD/DVD-ROM drive.

2. On the Driver CD, browse to the 2. X:\USB 2.0\NEC folder, (where X de notes the

designated CD/DVD-ROM drive on the host computer) and locate the folder that

corresponds with the host computer operating system.

3. Open the appropriate folder and locate the 3. U2v2_1 application le. Execute the

le by double clicking on the icon/listing, to begin installation.

4. Follow the installation through until you are asked if you would like to reboot the

computer. Select Yes, I want to restart my computer now and click on Close.

Once the computer has rebooted, the operating system will detect the presence of

the card - installation is complete.

Instruction Manual

Specications

PCI312PUSB PEX312PUSB PUSBADAP

Connectors

3 x 12V Powered USB male

connectors

1 x LP4 Connector

1 x Internal USB (9 pin) Header

Connector for expansion

1x Jumper Connector

1x 12v Power USB Connector

1x 24v Power USB Connector

1x 4 pin Power Din Connector

1x Internal USB Connector

1x Jumper Connector

1x LP4 Connector

OS Support Windows 2000 / 2003 / XP / Vista

Dimensions

(LxW)

81.2mm x 66.7mm

(3.2in x 2.63in)

120mm x 66.7mm

(4.72in x 2.63in)

Regulatory

Certied CE, RoHS, FCC

Maximum

Data

Transfer

Rate

480Mbps

Chipset NEC

D720101GJ

NEC

D720101GJ +

TI XIO2000A

PCI Express

to PCI Bus

Translation

Bridge

N/A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Matériel informatique

StarTech.com

StarTech.com PCISATA2P4 Manuel utilisateur

StarTech.com

StarTech.com EC1394B2 Manuel utilisateur

StarTech.com

StarTech.com SATSASBAY3BK Manuel utilisateur

StarTech.com

StarTech.com 4P6G-PCIE-SATA-CARD Manuel utilisateur

StarTech.com

StarTech.com ST7300U3M Manuel utilisateur

StarTech.com

StarTech.com CARDBUS CB420USB Manuel utilisateur

StarTech.com

StarTech.com PEX2MPEX Manuel utilisateur

StarTech.com

StarTech.com DRW150SATBK Manuel utilisateur

StarTech.com

StarTech.com 2S232422485-PC-CARD Manuel utilisateur

StarTech.com

StarTech.com PEX40GQSFDPI Manuel utilisateur

StarTech.com

StarTech.com EC1U2F Manuel utilisateur

StarTech.com

StarTech.com CB1394B3 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB400 Manuel utilisateur

StarTech.com

StarTech.com PCISATA4R1 Manuel utilisateur

StarTech.com

StarTech.com ECESAT32 Manuel utilisateur

StarTech.com

StarTech.com UE1205CB Manuel

StarTech.com

StarTech.com PCI1PEX1 Manuel utilisateur

StarTech.com

StarTech.com PEXUSB312A2 Manuel utilisateur

StarTech.com

StarTech.com USBPS2PLATE Manuel utilisateur

StarTech.com

StarTech.com PCISOUND5CH Manuel utilisateur

StarTech.com

StarTech.com PEXUSB312A Manuel utilisateur

StarTech.com

StarTech.com ECESATA1 Manuel utilisateur

StarTech.com

StarTech.com PCI1S950DV Manuel utilisateur

StarTech.com

StarTech.com SDOCK1EU3P22 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
