StarTech.com DRW150SATBK Manuel utilisateur

Manual Revision: 02/23/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

DRW150SATBK

Black Aluminum 5.25in Rugged SATA

Hard Drive Mobile Rack Drawer

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Installing the Hard Drive......................................................................................................................... 2

Installing the Drive Bay in the PC ........................................................................................................ 2

Installing the Caddy in the Bay ............................................................................................................ 4

Removing the Drive Drawer.................................................................................................................. 4

Driver Installation...................................................................................................................................... 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The Mobile Rack Drawer consists of a bay portion that ts into your 5.25”drive bay

and a removable caddy that holds your hard drive. This allows you to quickly swap

3.5” Serial ATA (SATA) hard drives in and out of a computer without having to open the

computer case.

Packaging Contents

• 1 x DRW150SAT / DRW150SATBK mobile rack drawer

• 1 x SATA cable

• 1 x bag of mounting screws

• 2 x Keys

• 1 x Instruction Manual

System Requirements

• Available 5.25” bay opening

• SATA enabled computer system

Instruction Manual

Installation

This section will guide you through the installation of your Mobile Rack Drawer. Please

read through the instructions carefully and complete each step in the order listed.

Installing the Hard Drive

NOTE: Before installing the hard drive in the case, make sure that you have properly

congured your hard drive according to the hard drive manufacturer’s specications.

1. Remove the caddy from the bay by lifting the handle and sliding the caddy out of

the bay.

2. Remove the top panel from the caddy by pressing the cover release button and

slide the cover towards the back of the caddy.

3. Gently place the hard drive in the caddy, making sure that the screw holes on the

bottom of the hard drive line up with the holes in the caddy. Use the provided

screws to secure the hard drive.

4. Replace the top panel of the caddy.

Installing the Drive Bay in the PC

1. Make sure that your system is unplugged and you are grounded.

2. Remove the side covers from your PC and remove the front cover from an available

5.25” drive bay (see your computer’s user manual for details, if necessary).

Instruction Manual

3. By default, the DRW150SAT/DRW150SATBK is congured for use LED on it’s front

panel. If you wish to use a dierent LED indicator, move the switch on the rear panel

to the rightmost position (as illustrated below).

4. Insert the bay into the 5.25” bay slot, making sure that the screw holes on the side or

bottom of the bay line up with the holes in the bay slot.

5. Connect your computer’s SATA port to the connector on the back of the bay with

the included SATA cable.

6. Plug either an LP4 molex or SATA power connector from your computer’s power

supply into the power port on the back of the unit.

7. Using the supplied screws, securely mount the bay into the PC.

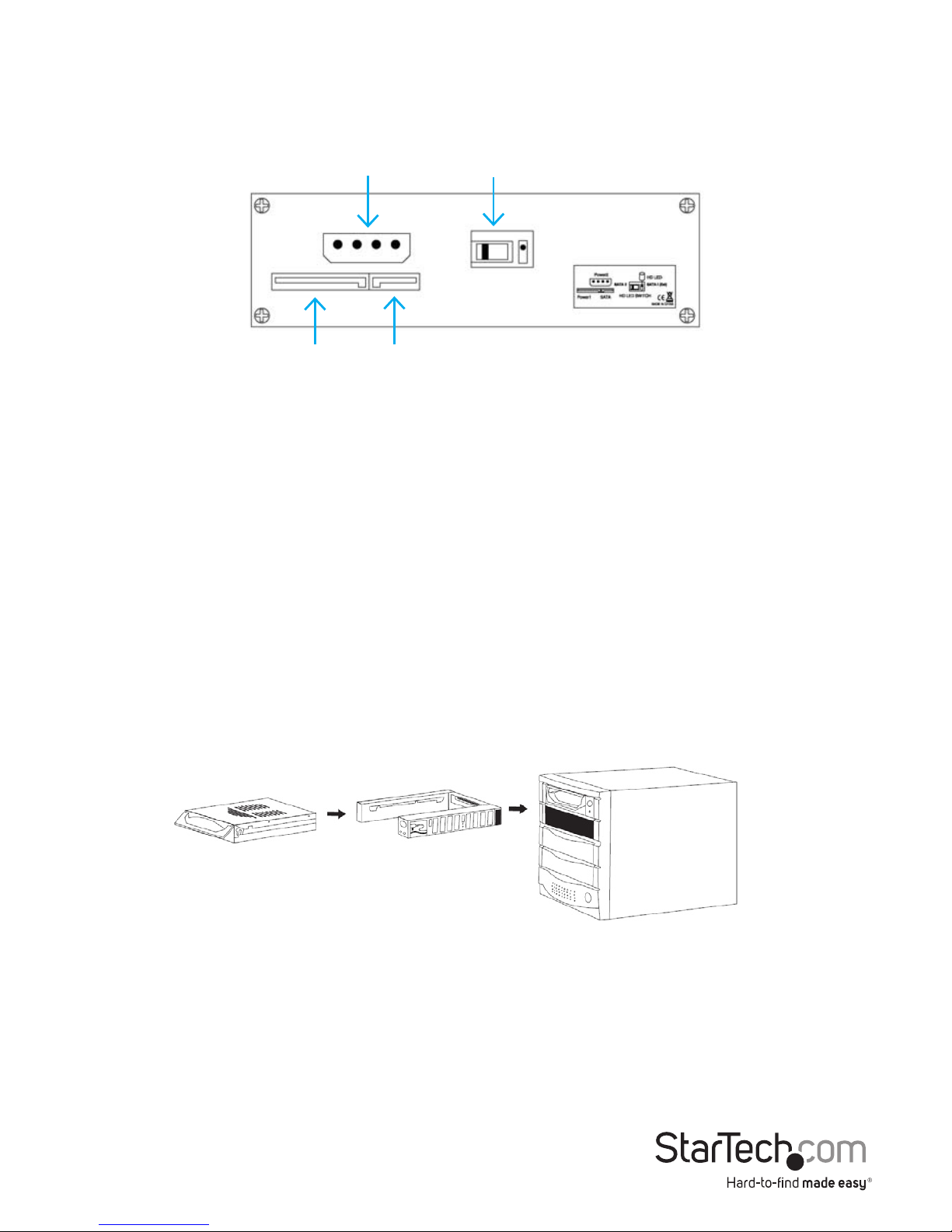

LP4 molex

LED on/o

switch

7-pin

SATA

15-pin

SATA

power

Instruction Manual

Installing the Caddy in the Bay

1. With the handle lifted, slide the caddy into the bay until it is rmly seated. Lower the

handle to click the caddy into its proper position.

2. Insert the key and turn clockwise to lock the drive into place and supply the drive

with power. The drive will not function if the drawer has not been locked.

Removing the Drive Drawer

3. Insert the key and turn counter-clockwise to unlock the drive drawer.

4. Lift the handle and gently pull the caddy out of the bay.

NOTE: Do not unlock the drawer while the hard drive is in use. Only power down the

drive when the hard drive is idle. Once you have powered down the hard drive, wait

about 15 seconds to let the hard drive “spin down” before removing the caddy from

the bay.

Driver Installation

No driver installation is required as this is a passive device. Only the hard drive itself is

visible to the computer system.

Instruction Manual

Specications

Bus Interface SATA 3

Connectors

7-pin SATA data,

15-pin SATA power,

4-pin LP4 molex

Fans 1 x 40 mm

LEDs Power, Activity

Hard Drive Compatibility 3.5” SATA 1.5 /3.0/6.0 Gbps

Dimensions 190.0 mm x 147.0 mm

x 41.0 mm

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
