USB31000S/USB31000SW

USB 3.0 to Gigabit Ethernet Adapter

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

USB31000S/USB31000SW Diagram....................................................................................................2

Installation ..............................................................................................3

Verify Installation....................................................................................................................................... 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The USB31000S/ USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single

RJ45 Ethernet port to a USB-enabled computer system, with support for connecting

to Gigabit networks at full bandwidth, unlike USB 2.0 adapters. The USB network

adapter is backward compatible with older USB 2.0/1.x computer systems (speed

limited by USB bus), making this compact and portable USB Gigabit LAN adapter an

ideal replacement network adapter or laptop accessory. With support for features such

as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter is suitable for

home and business users alike. The USB31000S/USB31000SW USB 3.0 Gigabit adapter

is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x USB 3.0 Gigabit Adapter

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• USB enabled computer system with available USB 3.0 port

• Microsoft® Windows® XP/ Vista/ Server 2003/ Server 2008 R2/ 7/ 8 (32/64-bit), or

Apple® Mac OS® 10.6/ 10.7/ 10.8

Instruction Manual

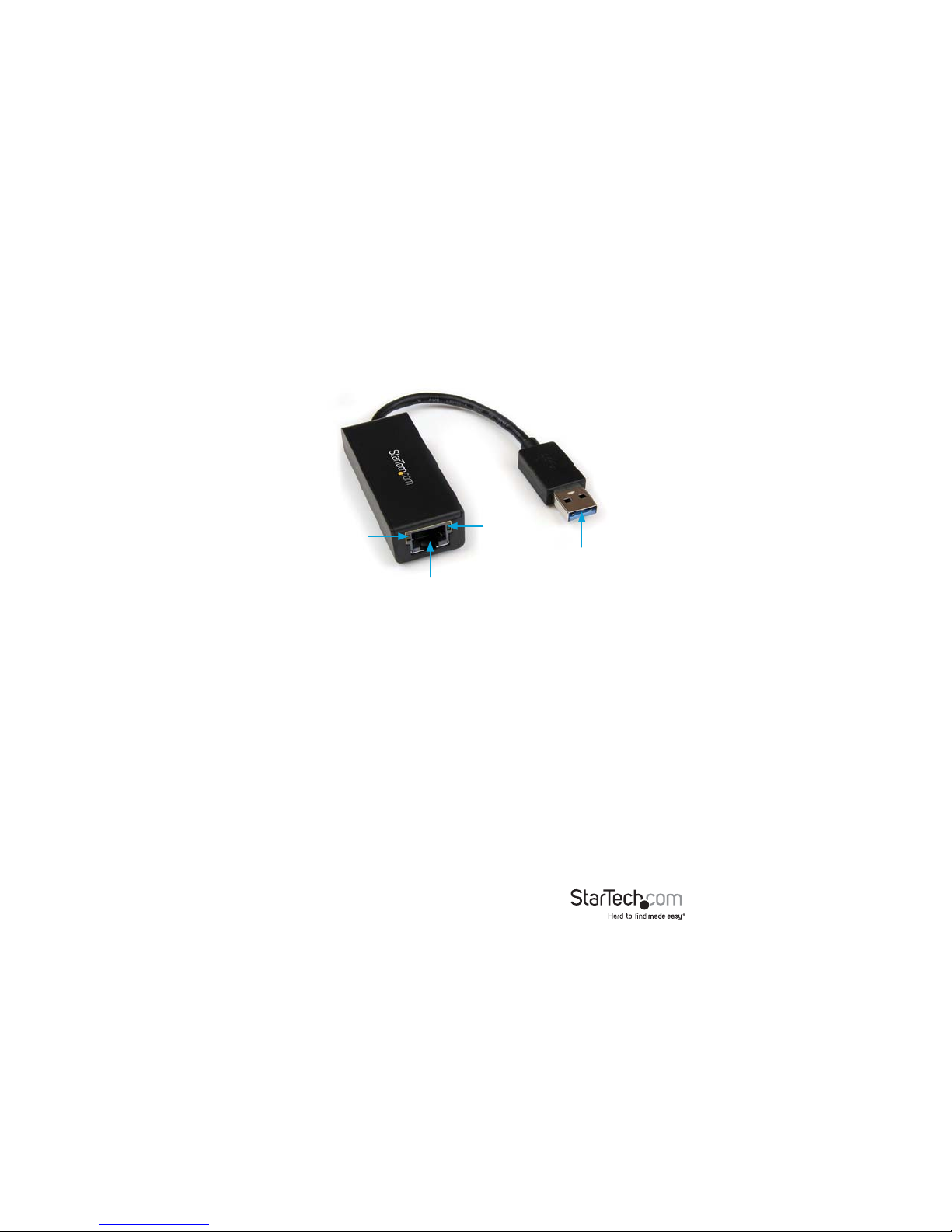

USB31000S/USB31000SW Diagram

RJ-45 Ethernet

Port

Link LED

USB 3.0

Type A

Activity LED

*Black model shown

Instruction Manual

Installation

Windows XP/ Server 2003

1. Connect the USB adapter to the computer.

2. When the Found New Hardware wizard appears on the screen, insert the Driver CD

into your CD/DVD drive. If you are prompted to connect to Windows Update, please

select the “No, not this time”option and click Next.

3. Select the option “Install Drivers Automatically (Recommended)” and then click the

Next button.

4. Windows will now start searching for the drivers and install them automatically.

Once this has completed, click the Finish button.

Windows Vista/ 7/ 8

1. Connect the USB adapter to the computer.

2. When the Found New Hardware window appears on the screen, click on the “Locate

and install drivers software (recommended)”option. If prompted to search online,

select the “Don’t search online” option.

3. When prompted to insert the disc, insert the Driver CD that came with the adapter,

into your CD/DVD drive and Windows will automatically proceed to search the CD.

4. If a Windows Security dialog window appears, click the “Install this driver software

anyway” option to proceed.

5. Once the driver is installed, click the Close button.

Instruction Manual

Verify Installation

Windows XP/ Server 2003/ Vista/ 7/ 8

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7/8), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

In the Device Manager, under the Network Adapters category, you should see a new

USB networking device listed.

Instruction Manual

Specications

Host Interface USB 3.0

Chipset ID ASIX AX88179

Connectors 1x RJ45 Ethernet female

1x USB 3.0 type A male

LEDs 1x Link

1x Activity

Supported Network

Standards IEEE 802.3i/802.3u/802.3ab

Compatible Networks 10/100/1000 Mbps

Auto MDIX Support Yes

Full Duplex Support Yes

Enclosure Material Plastic

Power Adapter USB powered

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Humidity < 80% RH

Dimensions 67.0mm x 26.0mm x 15.5mm

Weight 27g

Compatible Operating

System

Windows XP/ Vista/ Server 2003/ Server 2008 R2/

7/ 8 (32/64-bit), Mac OS 10.6/ 10.7/ 10.8

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
