StarTech.com USB32VGAPRO Manuel utilisateur

Manual Revision: 05/28/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB32VGAPRO / USB32HDPRO / USB32DVIPRO

USB 3.0 to VGA External Video Card

USB 3.0 to HDMI External Video Card

USB 3.0 to DVI External Video Card

Note: Computer systems running Windows® 7 or higher will install software and drivers

automatically upon connecting the USB Display Adapter. If your computer system is running

a previous versions of Windows or any version of Mac OSX®, please ensure the software has

been installed before the USB Display Adapter is connected (See Installation).

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Windows Installation ............................................................................................................................... 2

Mac OSX Installation................................................................................................................................ 3

Multiple USB Video Adapter Installation .......................................................................................... 4

Conguring the USB Video Adapter....................................................5

Windows®..................................................................................................................................................... 5

Mac OSX ....................................................................................................................................................... 8

Specications..........................................................................................10

Technical Support ..................................................................................11

Warranty Information............................................................................11

Instruction Manual

Introduction

Packaging Contents

• 1x USB 3.0 Video Adapter

• 1x Driver/Software CD

• 1x Instruction Manual

• 1x DVI-to-VGA Adapter (for USB32DVIPRO only)

System Requirements

• VGA-enabled display (e.g. Monitor, Projector, Television) (for USB2VGAPRO)

HDMI-enabled display (e.g. Projector, Television) (for USB2HDPRO)

DVI-enabled display (e.g. Monitor, Projector) (for USB2DVIPRO)

• USB-enabled computer system with available USB 3.0 or 2.0 port

Note: These USB Display Adapters perform best when using a USB 3.0 port.

• Microsoft® Windows 8/8.1 (32/64-bit), 7(32/64-bit), Vista(32/64-bit), or Mac OSX®

• CPU: Quad Core 2.4GHz or Higher (i5 recommended)

• RAM: 4GB or higher

Instruction Manual

Installation

Windows Installation

Computer systems running Windows® 7 or higher will install software and drivers

automatically upon connecting the USB Display Adapter. If your computer system is

running a previous versions of Windows please ensure the software and drivers have

been installed before the USB Display Adapter is connected (Installation steps below).

Note: If your computer system is running Windows 7 or higher please proceed to step

4, as steps 1 - 3 are not required.

1. Download the latest drivers from the StarTech.com website (recommended), or

insert the included Driver CD into your CD/DVD-ROM drive.

2. Locate the Setup application le (Setup.exe). This le will be located in the root

directory of the Driver CD (e.g. D:\) or downloaded le.

3. Executing the Setup.exe application will launch the installation wizard. Please

click armatively on each of the subsequent installation screens to complete the

installation. The Install wizard will vary for dierent versions of Windows. The set-up

program will install the device driver and software application once completed.

Note: The screen may ash or go black during installation. No additional message will

be displayed to alert that the installation has completed.

Instruction Manual

4. Once DisplayLink Core Software screen has disappeared Connect your USB Video

Adapter via the USB cable to your PC.

5. The system will initiate driver and software application (the DisplayLink Software

Conguration screen may ash or go black during the install).

Note: Some machines may require a system reboot for the USB Display Adapter

to initialize.

6. Connect the video cable from your VGA or HDMI display to the VGA (USB32VGAPRO) or

HDMI (USB32HDPRO) port on the USB Display Adapter.

The USB Video Adapter is now ready for use.

Mac OSX Installation

Note: Please ensure the software has been installed before the USB Display Adapter

is connected to your Mac (Installation steps below).

1. Insert the Driver CD (included) into the CD/DVD-ROM drive.

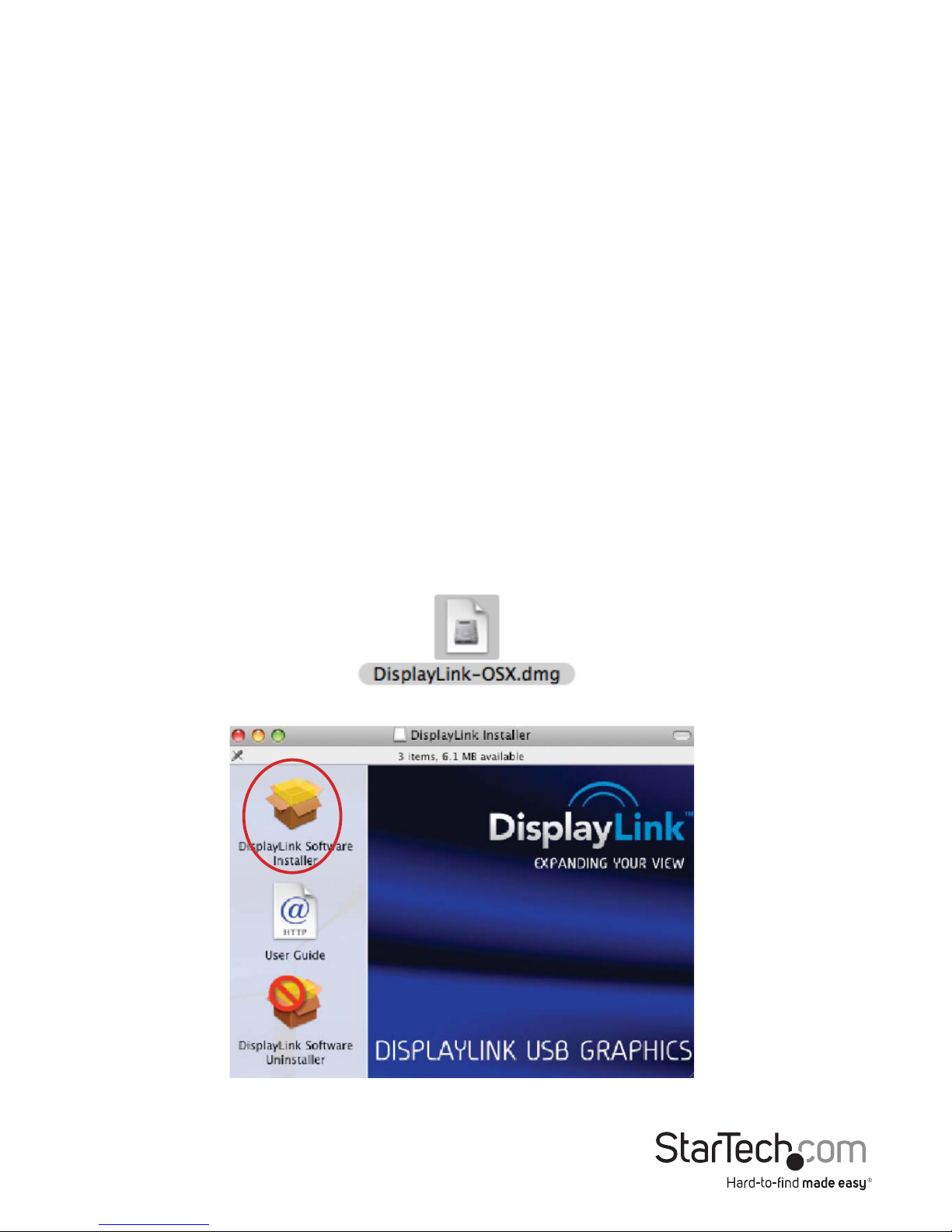

2. Browse through the Driver CD and locate the DisplayLink Installer le

(DisplayLink-OSX.dmg).

3. Double-click the DisplayLink Installer le (DisplayLink-OSX.dmg) to begin the

installation process.

Instruction Manual

4. Please ensure you have saved any unsaved les and click the “Restart” button.

5. After the computer has restarted, plug in the USB Display Adapter to an available

USB port. The adapter should now be ready to use.

Note: If you wish to add additional USB Display Adapters, simply plug them into

available USB ports. A maximum total of 4 USB Display Adapters can be used on a

computer.

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed; otherwise, please download

them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps up to the point of connecting the

rst USB Video Adapter.

2. Connect another monitor/display to the second USB Video Adapter, and turn on the display.

3. Connect the USB connector on the second USB Video Adapter to an available USB

port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all

USB Video Adapters are installed, reboot the computer. After rebooting, you may be

prompted to reboot one nal time; please do so.

Instruction Manual

Conguring the USB Video Adapter

Windows®

When devices are attached, an icon appears in the taskbar. This gives you access to the

DisplayLink manager menu.

1. From the taskbar, click the Show hidden icons arrow to show all available icons.

2. Click the DisplayLink icon to open the congurable options menu. A description for

each congurable option is listed below.

DisplayLink Manager

Instruction Manual

Extend

When“Extend”is selected, the monitor attached to the USB Display Adapter displays

an extension of the user’s active Windows desktop. The extra desktop area is a great

productivity aid, allowing more applications or documents to be visible simultaneously.

You can access applications on each monitor, by simply moving your curser, or dragging

applications from one screen to another.

Mirror

When “Mirror” is selected, the USB Display Adapter duplicates the primary display

on the attached monitor.

Note: The display settings will be duplicated for all attached monitors

(including resolution, color depth, and refresh rate); however, your system will

default all connected monitors to the display settings of the monitor with the

lowest specications.

USB Cable

USB Display

Adapter

Video Cable

PC / NB

LCD / Monitor

USB Cable

USB Display

Adapter

Video Cable

PC / NB

LCD / Monitor

Instruction Manual

Extend To

When selecting “Extend To,” you can dene the physical location of the monitor

attached to the USB Display Adapter in relation to your primary monitor. Once the

physical location has been dened, you can move your mouse curser from one screen

to another in the logical location that the monitors are physically positioned.

To adjust the layout of the connected monitor(s), select “Extend To” from the options

menu in the DisplayLink Manager. Next, select a direction (UP/DOWN/RIGHT/LEFT)

to change the orientation of the connected monitor(s) to your desired layout.

Screen Resolution

This option allows you to change the resolution on the monitor connected to the

USB Graphics Adapter. Simply select the desired option from the list of supported

resolutions displayed in the sub menu.

Screen Rotation

This option allows you to change orientation in which the screen is viewed. The two

most common types of orientation are portrait and landscape.

Set as Main Monitor

Selecting this option allows your computer to consider the monitor connected

through the USB Graphics Adapter as your primary monitor. Your primary monitor

displays all system notications, and takes priority with applications.

Notebook Monitor O

Selecting this option disables the onboard system monitor. Please note this will disable

the monitor on a desktop or notebook computer.

O

This option disables the monitor connected to the USB Graphics Adapter.
