StarTech.com USB2DVIMM6 Manuel utilisateur

USB to DVI Video Adapter

6ft. USB 2.0 to DVI External Multi

Monitor Video Adapter Cable -

Male/Male

USB2DVIMM6

Instruction Manual

*Please ensure that the driver

installation is complete prior to

the physical installation of the

USB 2.0 to DVI adapter

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Windows 2000/XP/Vista ..............................................................1

Mac OS X ....................................................................................3

Conﬁguration .................................................................. 4

Windows 2000/XP/Vista ..............................................................4

Mac OS X ....................................................................................6

Speciﬁcations.................................................................. 9

Supported Resolutions................................................... 9

Technical Support........................................................... 10

Warranty Information...................................................... 10

Introduction

Packaging Contents

1 x USB2DVIMM6 video adapter•

1 x Driver CD•

1 x User Manual•

System Requirements

Processor: 1.2GHz or higher clock speed•

RAM: 512MB or higher•

30MB of available disk space•

An available USB 2.0 port•

DVI capable monitor•

CD/DVD-ROM drive (driver installation)•

Microsoft Windows• ®2000/XP(32-bit)/Vista(32/64-bit) or

Mac OS®10.4/10.5

Installation

Please ensure that the driver installation is complete prior to*

the physical installation of the USB 2.0 to DVI adapter

Windows 2000/XP/Vista

Insert the Driver CD (included) into the CD/DVD-ROM drive.1.

Browse through the Driver CD and locate the “DisplayLink.exe” ﬁle.2.

Double-click on the “DisplayLink.exe” ﬁle to begin the installation

process:

DisplayLink.exe

When the End User License3.

Agreement appears, please

read and accept it to proceed

with the installation.

Please wait while the4.

installation package copies

the necessary ﬁles.

Once the installation is complete, click the Restart button. The5.

computer will automatically reboot, so please make sure to close/

save any ﬁles/programs you have opened before pressing the

button.

After Windows has loaded, plug in the USB2DVIMM6 adapter to the6.

computer. Windows should start to automatically load the drivers.

Once complete, you should see this icon in your System Tray:

To verify the installation, right-click on “My Computer” and select7.

Manage to open the Computer Management window. In the left

pane of the Computer Management window, click on Device

Manager. In the right pane of the Computer Management window,

click on Universal Serial Bus Controllers, and ensure that the

USB2DVIMM6 is listed underneath.

*actual device name may vary

If you wish to add additional USB2DVIMM6 adapters, simply8.

plug them into available USB 2.0 ports. A maximum total of 5

USB2DVIMM6 video adapters can be used on a computer.

Mac OS X (For Intel-based Mac computers only)

Insert the Driver CD (included) into the CD/DVD-ROM drive.1.

Browse through the Driver CD and locate the “DisplayLink-OSX”2.

.dmg ﬁle. Double-click on this ﬁle to begin the installation process:

Double Click the “DislpayLink3.

Software Installer.pkg” to install

the software.

Once the installation is complete,4.

click the “Restart” button. The

computer will automatically

reboot, so make sure to close/

save any ﬁles you have opened,

before pressing this button.

After the computer has restarted, plug in the USB2DVIMM6 adapter5.

to an available USB 2.0 port. The adapter should now be ready to

use.

If you wish to add additional USB2DVIMM6 adapters, simply6.

plug them into available USB 2.0 ports. A maximum total of 4

USB2DVIMM6 video adapters can be used on a computer.

Conguration

Windows 2000/XP/Vista

To conﬁgure the image being displayed by the monitor that is

connected to USB2DVIMM6, right-click on a blank section of the

desktop, select Properties, then click on the Settings tab to display

the following screen:

For Vista, right-click on a blank section of the desktop and select

Personalize, then select Screen Resolution on the next screen.

Conﬁgure the secondary display by selecting it from the dropdown

menu, then adjusting the desired settings:

Using the Second Display in Extended Mode

In Extended Mode, the monitor that is connected to USB2DVIMM6

creates an extension of the Windows Desktop displayed on the primary

monitor. To set the display to function in this mode (once selected

from the dropdown menu), check the box marked Extend my windows

desktop onto this monitor, then arrange its position (virtually) with

respect to the primary monitor by dragging the monitor icons (shown

above as Primary/Secondary orientation) to reﬂect the physical

orientation of the displays.

Using the Second Display in Clone Mode (default)

In Clone Mode, the monitor that is connected to USB2DVIMM6 simply

mirrors the image displayed on the primary monitor. To set the display

to function in this mode (once selected from the dropdown menu),

uncheck the box marked Extend my windows desktop onto this monitor.

Designating the Primary Display

To select which of the connected monitors will act as the primary

display, select the monitor that will be used as the Primary Display from

the Dropdown menu (referenced on page 4), and place a checkmark

next to Use this device as the primary monitor. On some displays it is

necessary to disable the main display (i.e. uncheck the box marked

Extend my Windows display onto this monitor for the main display).

Following this change, the monitor connected to USB2DVIMM6 will

remain set as the primary display even if the computer enters hibernate

mode or operation is suspended or powered down. If the monitor is

disconnected from USB2DVIMM6, or USB2DVIMM6 is removed from

the host computer, the original monitor will revert to being the primary

display.

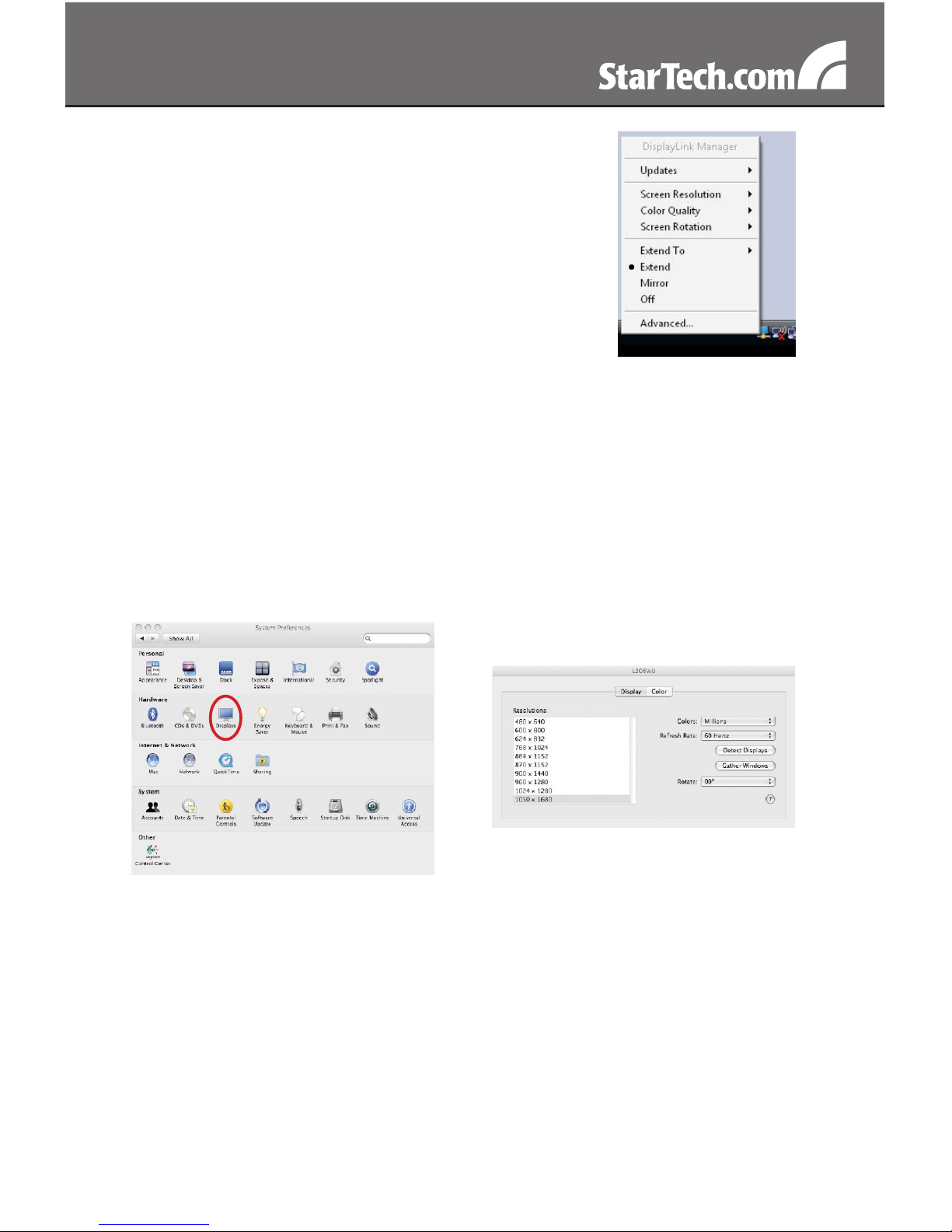

Alternate Conﬁguration

Following the software installation for USB2DVIMM6, you may have

noticed an icon in the taskbar as illustrated below. Clicking on this icon

will open a menu that offers conﬁguration of the display (connected to

USB2DVIMM6):

Here, you can set the secondary display to act

as an extension of the primary desktop, or as

a mirror image that duplicates the contents on

the primary display.

Similarly, the screen resolution, color quality,

position of the screen and rotation of the

screen can be adjusted from this menu.

To disable the secondary display, select Off.

Media Playback

Please note that while operating in Extended Mode, USB2DVIMM6 can

display media ﬁles and DVDs using a broad variety of media players,

however in Clone Mode, limited support is available for video playback.

Mac OS X

To conﬁgure the display settings and monitor positions, bring up the

Displays Preferences from the System Preferences menu:

The Display settings for each display will appear on the individual

monitors themselves. To conﬁgure them all from a single location,

press the “Gather Windows” button and each screen’s Displays

Preferences windows will appear on that display.

All supported video resolutions will appear in the list on the left side.

To change the positioning of each display, click on the “Arrangement“

button (found only on the primary display) and you can then virtually

reposition each display.

Using the Adapter in Extended or Mirror Mode

By default the USB2DVIMM6 will be setup as an extended display.

To change the display as a mirrored/cloned display, check the “Mirror

Display” box on the “Arrangement” page for that monitors Displays

settings window. To return the monitor to an extended display, uncheck

this option.

To use both extended and mirrored displays simultaneously, turn off

mirroring then in the “Arrangement” page press and hold the ‘cmd’ and

‘alt’ keys and drag and drop the display you wish to mirror over the

primary display (shown with the white bar).

Repeat this with each display you wish to mirror, all others will act as

an extended display.

Changing the Primary Display

You can change which display is the primary display by moving the

Menu Bar between displays. Changing the primary display affects

where new windows appear and the position of the Dock.

To move the Menu Bar, click the white menu bar and drag it to the

display you wish to become the primary.

Table des matières

Autres manuels StarTech.com Adaptateur

StarTech.com

StarTech.com DKT30CHVSCPD Manuel utilisateur

StarTech.com

StarTech.com Thunderbolt TB3DKM2DPL Manuel utilisateur

StarTech.com

StarTech.com 109B-USBC-HDMI Manuel utilisateur

StarTech.com

StarTech.com USB2105S Manuel utilisateur

StarTech.com

StarTech.com 115B-USBC-MULTIPORT Manuel utilisateur

StarTech.com

StarTech.com DKT31CVHPD3 Manuel utilisateur

StarTech.com

StarTech.com 103B-USBC-MULTIPORT Manuel utilisateur

StarTech.com

StarTech.com PEX4S553 Manuel utilisateur

StarTech.com

StarTech.com US1GC30SFP Manuel utilisateur

StarTech.com

StarTech.com 104B-USBC-MULTIPORT Manuel utilisateur

StarTech.com

StarTech.com DKT30CHVAUSP Manuel utilisateur

StarTech.com

StarTech.com EC1S232U Manuel utilisateur

StarTech.com

StarTech.com DP2VGDVHD Manuel utilisateur

StarTech.com

StarTech.com USB312SAT3 Manuel utilisateur

StarTech.com

StarTech.com USB100BT Manuel utilisateur

StarTech.com

StarTech.com 127B-USBC-MULTIPORT Manuel utilisateur

StarTech.com

StarTech.com MPEX2S952 Manuel utilisateur

StarTech.com

StarTech.com DVI2HD Manuel utilisateur

StarTech.com

StarTech.com US100A20SFP Manuel utilisateur

StarTech.com

StarTech.com ICUSB2321284 Manuel utilisateur

StarTech.com

StarTech.com MDP2HDMIUSBA Manuel utilisateur

StarTech.com

StarTech.com USB2DVI Manuel utilisateur

StarTech.com

StarTech.com CDP2HVGUASPD Manuel utilisateur

StarTech.com

StarTech.com DKT31CHPDL Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
