Star Micronics TSP200 Series Manuel utilisateur

THERMAL PRINTER

TSP200 Series

TECHNICAL MANUAL

[SECOND EDITION]

NOTICE

without STAR’s express permission, is strictly forbidden.

•The contents of this manual are subject to change without notice.

•Alleffortshavebeenmadetoensuretheaccuracyofthecontentsofthismanualatthetime

of printing. However, should any errors be found, STAR would greatly appreciate being

informed of them.

•The above notwithstanding, STAR can assume no responsibility for any errors in this

manual.

INTRODUCTION

This manual describes the thermal printer TSP200 series.

It is designed for use as a reference for periodic inspections and maintenance procedures to be executed by

servicepersonnel.Itisnotintendedforthegeneraluser.Usersofthismanualshouldhaveabasicknowledge

and understanding of the English language.

•This manual is comprised of the following chapters.

Chapter 1 Specifications and Operation

Chapter 2 Theory of Operation

Chapter 3 Parts Replacement and Related Adjustments

Chapter 4 Maintenance and Lubrication

Chapter 5 Parts Lists

•First edition : Mar. 1997

Second edition : Aug. 1999

■Model Name

TSP 2 1 2 — 120

Voltage

24 : 24VDC

120 : 120VAC

230 : 230VAC

Mechanism type

2: 48 columns

Printer type

1: Standard

4: With auto-cutter

TSP200-series thermal printer

CHAPTER 1

SPECIFICATIONS AND OPERATION

1. General Specifications..........................................................................................3

2. External Appearance.............................................................................................4

3. DIP-Switch Settings ..............................................................................................5

4. Using the control panel to adjust the sensors, select the head rank, and set

the memory switches............................................................................................6

5. Running a test print ..............................................................................................8

6. HEX dump mode....................................................................................................8

– 2 –

SPECIFICATIONS AND OPERATION

– 3 –

SPECIFICATIONS AND OPERATION

158mm

193mm

234mm(TSP242-120/230)

239mm(TSP242-24)

158mm

193mm

234mm(TSP212-120/230)

239mm(TSP212-24)

(TSP212) (TSP242)

Fig. 1-1 External Dimensions

1. General Specifications

Printing method Line thermal direct

Resolution 8 dots/mm (H) ×8 dots/mm (V)

Printable width 72 mm

Printing speeds 50 mm/sec (max.)

Printable characters ANK, International

Bar codes JAN, EAN, UPC, Code 39, ITF, Code 128, Code 93, NW-7

Character matrix 12 ×24 dots

Interfaces RS-232C, Parallel

Dimensions TSP212-120/230 : 158(W) ×234(D) ×193(H) mm

TSP242-120/230 : 158(W) ×234(D) ×193(H) mm

TSP212-24 : 158(W) ×239(D) ×193(H) mm

TSP242-24 : 158(W) ×239(D) ×193(H) mm

Weight TSP212-120/230 : 2.8kg

TSP242-120-230 : 3.0kg

TSP212-24 : 1.8kg

TSP242-24 : 2.0kg

AC adapter : 350g

AC cable : 150g

Power AC120V, AC230V, DC24V

Power consumption Max. 43 W Avg. 19W (During continuous printing of ASCII characters)

Operating environment +5˚C ~ +40˚C

25% ~ 85% RH

Storage environment –20˚C ~ +60˚C

10% ~ 90% RH

Automatic paper cutter

Life 300, 000 cuts

Min. cut length 25.4mm (1 inch)

– 4 –

SPECIFICATIONS AND OPERATION

Features two control

switches and two

indicators to indicate

printer status.

Control panel

Plugs into an outlet of

the specified voltage.

Shape of AC power plug

will vary according to

destinations.

AC power cord

Connects the printer

with host computer.

Interface connector Connects to peripheral units such

as cash drawers, etc.

Do not connect this to a telephone.

Peripheral unit drive circuit connector

Protects the printer from

dust and reduces noise.

Do not open the cover

while printing.

Printer cover

[ TSP200-120/230 ]

2. External Appearance

Fig. 1-2 External Appearance

For connection of the AC adapter.

Never unplug the AC adapter

while the printer is on.

AC adapter cable connector [ TSP200-24 ]

– 5 –

SPECIFICATIONS AND OPERATION

8141

OFF DIP switch 1

DIP switch

DIP switch 2

Power off

3. DIP-Switch Settings

Be sure to turn the power to both the printer and host computer off before changing the setting of the DIP

switches.

Fig.1-3 DIP switch array

DIP switch #1

The factory settings of DIP switch 1 are all on.

Switch Contents ON OFF

1-1 Baud Rate

1-2

1-3 Data Length 8 bit 7 bit

1-4 Parity Check Disabled Enabled

1-5 Parity Selection Odd Even

1-6 Handshake DTR/DSR XON/XOFF

1-7 Operating Mode Star ESC/POS

1-8 Interface RS232C Parallel

Baud Rate 1-1 1-2

2400BPS OFF OFF

4800BPS ON OFF

9600BPS ON ON

19200BPS OFF ON

DIP Switch #2

Factory settings: 2-1 and 2-2 are on; 2-3 and 2-4 are off.

Switch Contents ON OFF

2-1 Print Density

2-2

2-3 Serial I/F No. 6 Pin Reset Signal Enabled Disabled

2-4 Serial I/F No. 9 Pin Reset Signal Enabled Disabled

Print Density 2-1 2-2

Light OFF OFF

Standard ON ON

Somewhat Heavy ON OFF

Heavy OFF ON

– 6 –

SPECIFICATIONS AND OPERATION

Buzzer beeps 1 time.

Press both

switches.

Start

Buzzer beeps twice.

Buzzer beeps 3 times.

Buzzer beeps 4 times.

Buzzer beeps 5 times.

Release within 2 seconds.

Enters "Adjust Paper-Out Sensor" mode.

Release within 2 seconds.

Enters "Adjust Paper-Near-End Sensor"

mode.

Continue to

hold down.

Both switches Release within 2 seconds.

Enters "Set Head Rank" mode.

Continue to

hold down.

Both switches Release within 2 seconds.

Resets, then executes test print.

Continue to

hold down.

Both switches. Release within 2 seconds.

Enters "Set Memory Switches" mode.

Continue to

hold down.

Both switches

Continue to

hold down.

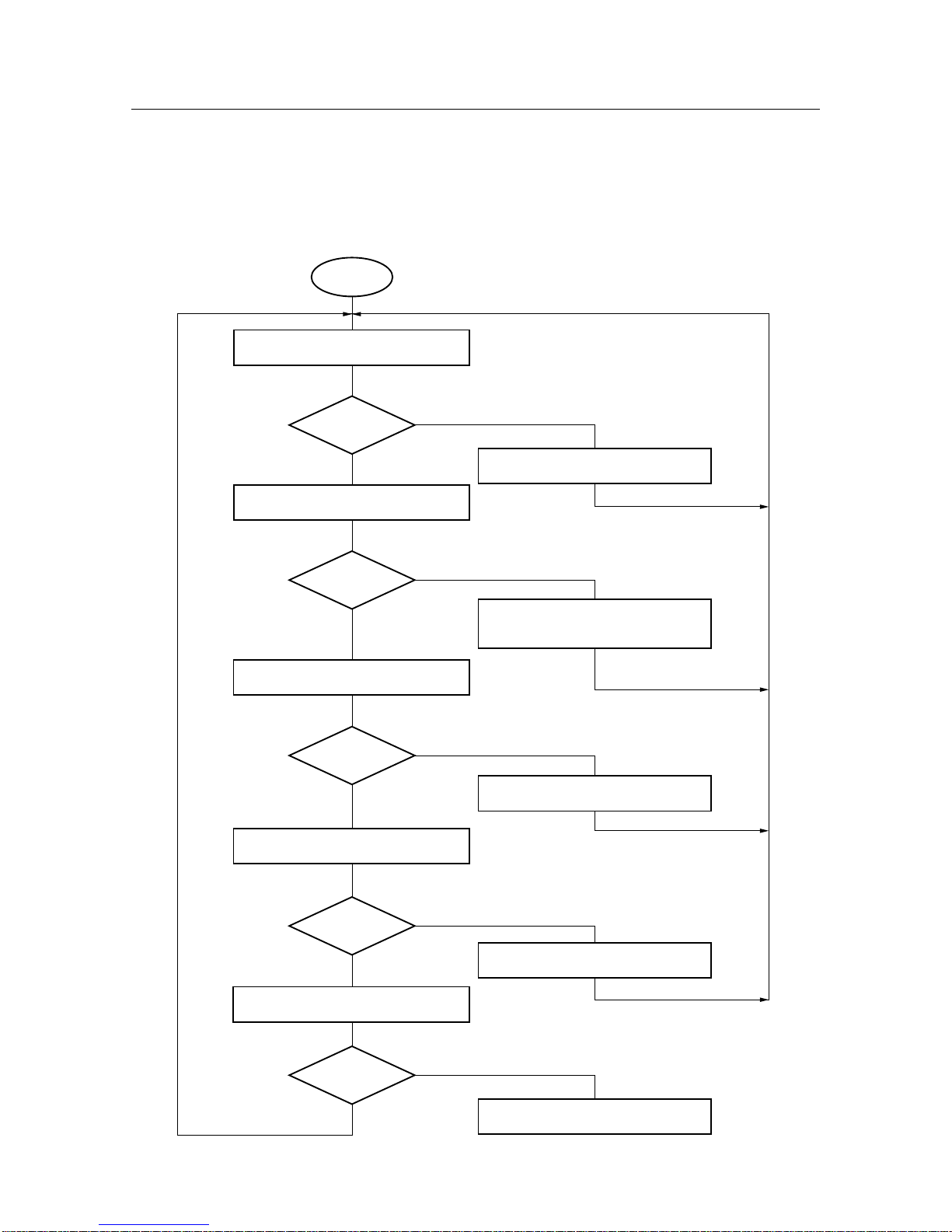

4. Using the control panel to adjust the sensors, select the head rank, and set the

memory switches.

HolddowntheFEEDandONLINEswitcheswhilesetting poweron,thencontinuetoholdtheswitchesdownforthetime

necessary to enter the required mode, as indicated below.
