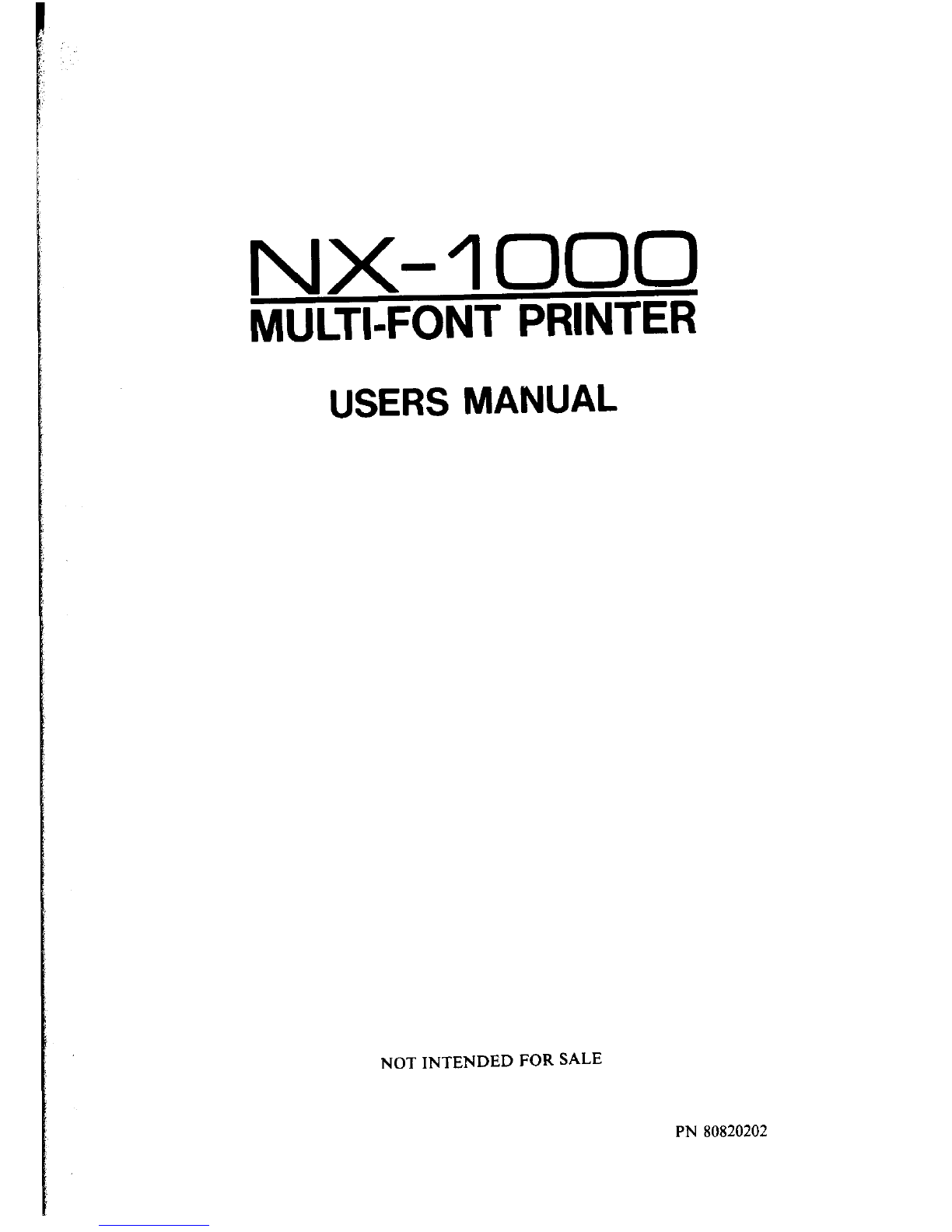

Star Micronics NX-1000 Manuel utilisateur

NOT INTENDED FOR SALE

PN 80820202

Federal Communications Commission

Radio Frequency Interference Statement

This equipment generates and uses radio frequency energy and ifnot installed and used properly,

that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio

and television reception. It has been type tested and found to comply with the limits for a Class

B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules,

which are designed to provide reasonable protection against such interference in a residential

installation. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

l Reorient the receiving antenna

l Relocate the computer or printer with respect to the receiver

l Move the computer or printer away from the receiver

l Plug the computer or printer into a different outlet so that it and the receiver are on

different branch circuits.

If necessary, the user should consult the dealer or an experienced redio/television technician

for additional suggestions. The user may find the following booklet, prepared by the Federal

Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference

Problems.” This booklet is available from the U.S. Government Printing Office, Washington,

D.C., 20402, Stock No. 004-000-00345-4.

For compliance with the Federal Noise Interference Standard, this equipment requires a shielded

cable.

The above statement applies only to printers marketed in the U.S.A.

Trademark Acknowledgements

NX-1000, NL-10, NP-10, NX-lO/lS, ND-IO/IS, NR-10/15: Star Micronics Co., Ltd

IBM PC, IBM Proprinter II, PC-DOS: International Business Machines Corp.

Microsoft BASIC, MS-DOS: Microsoft Corporation

LX-800, FX-%e, EX-800, LX-80/W Seiko Epson Corp.

NOTICE

without STAR’s express permission is forbidden.

l The contents of this manual are subject to change without notice.

l Ail efforts have been made to ensure the accuracy of the contents of this manual at the

time of press. However, should any errors be detected, STAR would greatly appreciate

being informed of them.

l The above notwithstanding, STAR can assume no responsibility for any errors in this

manual.

HOW TO USE THIS MANUAL

This manual is organized into five chapters and four appendixes. To

learn how to make the best use of your printer you are urged to read all

of chapters 1 through 5. The appendixes can be referred to as necessary.

Chapter 1 explains how to get the printer unpacked and set up. Read this

chapter before you do anything else.

Chapter 2 explains the control panel. After getting set up, read this chapter

and try out the procedures in it to find out how the printer works.

Chapter 3 gives tips on using word-processing programs and other com-

mercial software with this printer. Read this chapter in conjunction with

your software manual.

Chapter 4 is addressed to do-it-yourself programmers. It shows simple

programming examples using DOS commands and BASIC.

Chapter 5 covers maintenance and troubleshooting. Look through this

chapter to see what it contains, then refer to it as necessary later.

Appendix A lists the printer’s technical specifications.

Appendix B details the functions of escape sequences and other printer

commands.

Appendix C presents a BASIC program you can use to define and download

new characters.

Appendix D presents tables of the printer’s character sets.

FEATURES OF THE PRINTER

This printer is a compact, convenient, monochrome printer without frills

but with a full complement of features, making it an excellent partner for

a personal computer. It supports the IBM/Epson printer commands and

character sets, enabling it to print just about anything your computer can

generate, both text and graphics. Some of its main features are the following:

l Extensive software support

Since it is compatible with the Epson and IBM printers, it works with

any software that supports those printers. That includes most word-pro-

cessing and graphics programs, spreadsheets, and integrated software

packages.

l Easy operation

Clearly understandable lamp displays and beep tones provide immediate

feedback when you press the switches on the control panel. The four switches

can operate in combinations to perform a surprising variety of functions,

including margin setting and micro-alignment.

l Easy care and maintenance

The ribbon cartridge can be replaced in seconds; the print head in a few

minutes.

l Versatile paper handling

Single sheets, fanfold forms, and multi-copy forms (up to triple-ply)

are all accepted, and you can use either tractor or friction feed. A special

feature enables you to keep fanfold forms parked in readiness while printing

on other paper.

l High-resolution near-letter-quality printing

When you select an NLQ type style, the printer slows down and employs

._.

a dense matrix of up to 18 by 23 dots to print clear, well-formed characters.

l Large variety of type styles and sizes -

The printer has one draft style and four NLQ styles (Courier, Sanserif,

and Orator with small capitals or lower case), plus italics for all styles, plus

condensed print, bold print, double-sized print, quadruple-sized print - see

the samples on the next page:

Type styles are:

D!.-a.f:.kClI-,3.I'"FL,(-1,t$>]"(=,p

Courier characters,

Sanserif characters,

ORATOR WITH SMALL CAPITALS, OR

with lower case characters,

and J-TALICS for all ~+yt,p.j'a,~a

Print pitches are:

Pica pitch,

Elitepitch,

Condensedpica pitch,

Condensedelitepitch,

proportionalspacingfor allpitches,

Quad- sized.

Various line and character spacings:

THE SPACINGS ARE CHANGED

Other features:

Emphasized, Double-strike.

Underlininq Werlinlng.

BUPERSCRIPT' sUBeCRIPT0

Download ch:racters

: ~~~;~.,i:.!:,':~~i~,,~

Dot graphics:

TABLEOFCONTENTS

Chapter 1 SETTING UP THE PRINTER 1

Locating the printer 1

Unpacking and inspection 1

Check the carton contents

Setting up 3

Mount the platen knob

Remove the top cover

Install the ribbon cartridge

Replace the top cover

Connect the printer to the computer

Connect the printer’s power cord

Loading single sheets 6

Mount the paper guide

Semiautomatic loading

Manual loading

Loading and parking fanfold forms 9

Paper parking

Paper unparking

Test printing 12

Short self test

Long selft test

Interface test

Adjusting the printing gap 14

DIP switch settings 14

Chapter 2 CONTROL PANEL OPERATIONS 19

Switches and indicators 19

Power indicator

On Line switch

Paper Feed switch

Print Pitch switch

NLQ Type Style switch

Power-up functions 23

Short test pattern

Long test pattern

Stay in panel pitch

Stay in panel style

Hexadecimal dump

Switch combination functions 26

Paper parking

Page feed

Top of form

Forward micro-feed

Reverse micro-feed

Left margin

Right margin

Clearing the buffer

Chapter 3 USING THE PRINTER WITH

COMMERCIAL SOFTWARE 31

Installing your software 31

Printer menu

Printer command options

Type styles

Page width

Initialization sequence

Setting the DIP switches 33

Using your software 33

Page alignment

Type style and pitch selection

Other printer commands

Chapter 4 USING THE PRINTER

WITH DOS AND BASIC 37

Hard-copying the screen 31

Programming the printer with DOS commands 38

Programming the printer with BASIC 40

Chapter 5 MAINTENANCE AND TROUBLESHOOTING 47

Cleaning the printer 47

Replacing the ribbon 47

Replacing the print head 47

Troubleshooting 50

Appendix A TECHNICAL SPECIFICATIONS 53

Appendix B PRINTER CONTROL COMMANDS 59

Font control commands 59

Character set commands 63

Character size and pitch commands 66

Vertical position commands 70

Horizontal position commands 76

Graphics commands 80

Download character commands 82

Macro instruction commands 85

Other printer control commands 86

Appendix C DOWNLOAD CHARACTER GENERATOR 91

Draft character

NLQ character

Appendix D CHARACTER SETS 99

Standard character set 100

IBM character set #2 102

IBM character set #l 104

Additional character set 105

International character sets 106

INDEX 107

REFERENCE CARD Inside the cover

SETTING UP THE PRllVTER

Subjects covered in Chapter 1 include -

l Locating the printer

l Unpacking and inspection (names of parts)

l Setting up

l Loading single sheets

l Loading and parking fanfold forms

l Test printing

l Adjusting the printing gap

l Setting the DIP switches

LOCATING THE PRINTER

Give some thought to the best place to put the printer. Both the printer

and computer should be used in a normal indoor environment. For best

performance, we recommend:

l Place the printer on a flat surface.

l Keep it out of direct sunlight and away from heat-producing appliances.

l Use it only in temperatures where you are comfortable.

l Avoid locations with dust, grease, or high humidity.

l Supply it “clean” electricity. Don’t connect it to the same circuit as a large,

noise-producing appliance such as a refrigerator.

l Make sure the line voltage is within 10% of the voltage specified on the

identification plate.

l If you will be using fanfold forms, place the printer where the forms can

feed up to it from below, with at least a full page hanging free.

UNPACKING AND INSPECTION

Check the carton contents

Open the carton and check each item in the box against Figure l-l to

make sure that you have everything (there should be five items).

FIgwe 1-l. Check to make sure you have all five items: 1) Printer, 2) Paper guide, 3) Platen

knob, 4) Ribbon cartridge, and 5) User’s manual.

Make an external inspection of the printer. Note the locations of the

following parts:

Bail lever: opens and closes the paper bail which holds the paper

against the platen.

Autres manuels pour NX-1000

Table des matières

Autres manuels Star Micronics Imprimante

Star Micronics

Star Micronics BSC10 Series Manuel utilisateur

Star Micronics

Star Micronics TSP200 Series Manuel d'utilisation et d'entretien

Star Micronics

Star Micronics futurePRNT TSP100 Manuel

Star Micronics

Star Micronics LC24-200 Colour Manuel utilisateur

Star Micronics

Star Micronics LC-8211 Manuel utilisateur

Star Micronics

Star Micronics TSP2000 Series Manuel utilisateur

Star Micronics

Star Micronics Multi-Font NX-2415 Manuel utilisateur

Star Micronics

Star Micronics TCP300II Series Instructions d'installation

Star Micronics

Star Micronics LaserPrinter4 Manuel utilisateur

Star Micronics

Star Micronics MULTI-FONT NX-1000II Manuel utilisateur

Star Micronics

Star Micronics TUP592 Manuel utilisateur

Star Micronics

Star Micronics TSP600 Series Manuel utilisateur

Star Micronics

Star Micronics Star DP8340 Manuel utilisateur

Star Micronics

Star Micronics PW2000-24 Manuel utilisateur

Star Micronics

Star Micronics TUP500 series Instructions d'installation

Star Micronics

Star Micronics USB Manuel utilisateur

Star Micronics

Star Micronics TSP600 Series Manuel utilisateur

Star Micronics

Star Micronics SB-10 Manuel utilisateur

Star Micronics

Star Micronics TSP2000 Series Manuel d'utilisation et d'entretien

Star Micronics

Star Micronics SP500 Series Manuel utilisateur

Star Micronics

Star Micronics TUP592 Manuel utilisateur

Star Micronics

Star Micronics TSP2000 Series Manuel utilisateur

Star Micronics

Star Micronics AsuraCPRNT Manuel utilisateur

Star Micronics

Star Micronics SP300 Series Manuel d'utilisation et d'entretien

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
