Stanley Fatmax FMHT77446 Manuel utilisateur

FIN

FMHT77446, FMHT77449, FMHT77447, FMHT77448

Self-Leveling Rotary Laser

Red Beam: RL 600, RL 600L, RL 700L

Green Beam: RL 750L-G

www.2helpU.com

Please read these instructions before operating the product.

1. 2.

RL 600

RL 600L

RL 700L

RL 750L-G

+_+_

K L

+X –X

20 m 20 m

Contents

• User Safety

• Keypad and LEDs

• Battery Safety

• Batteries and Power

• Using the Accessories

• Turning the Laser On/Off

• Performing Accuracy Check and Calibration

• Operating the Laser

• Using the Remote Control

• Using the Detector

• Maintenance and Care

•

User Safety

DANGER:

Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING:

Indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

CAUTION:

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

NOTICE:

Indicates a practice not related to personal injury which,

if not avoided, may result in property damage.

If you have any questions or comments about this or any

Stanley tool, go to http://www.2helpU.com.

WARNING:

Read and understand all instructions

Failure to follow

the warnings and instructions in this manual may result in

serious personal injury.

SAVE THESE INSTRUCTIONS

WARNING:

Carefully read the

Safety Instructions

and

Product

Manual

before using this product. The person responsible

for the instrument must ensure that all users understand

and adhere to these instructions.

CAUTION:

While the laser tool is in operation, be careful not to

expose your eyes to the emitting laser beam. Exposure to

a laser beam for an extended time may be hazardous to

your eyes.

CAUTION:

Glasses are supplied in some of the laser tool kits.

are ONLY used to enhance the visibility of the beam in

brighter environments or at greater distances from laser

source.

SAVE THESE INSTRUCTIONS

WARNING:

The following labels are placed on the laser tools to

inform you of the laser class for your convenience and

safety.

WARNING

Laser Radiation Exposure. Do not disassemble or modify

the laser level. There are no user serviceable parts

inside. Serious eye injury could result.

• Do not operate the laser in explosive atmospheres, such as

may create sparks which may ignite the dust or fumes.

• Store an idle laser out of reach of children and other untrained

persons. Lasers are dangerous in the hands of untrained

users.

•

personnel may result in injury. To locate your nearest Stanley

service center go to http://www.2helpU.com.

• Do not use optical tools such as a telescope or transit to view

the laser beam. Serious eye injury could result.

• Do not place the laser in a position which may cause anyone

to intentionally or unintentionally stare into the laser beam.

Serious eye injury could result.

•

injury could result.

• Store an idle laser out of reach of children and other untrained

persons. Lasers are dangerous in the hands of untrained

users.

• Turn the laser off when it is not in use. Leaving the laser on

increases the risk of staring into the laser beam.

• Do not modify the laser in any way. Modifying the tool may

result in hazardous laser radiation exposure.

• Do not operate the laser around children or allow children to

operate the laser. Serious eye injury may result.

• Do not remove or deface warning labels. If labels are

removed, the user or others may inadvertently expose

themselves to radiation.

• Position the laser securely on a level surface. If the laser falls,

damage to the laser or serious injury could result.

Personal Safety

• Stay alert, watch what you are doing, and use common sense

when operating the laser. Do not use the laser when you are

A moment of inattention while operating the laser may result

in serious personal injury.

•

protection. Depending on the work conditions, wearing

shoes, hard hat, and hearing protection will reduce personal

injury.

Tool Use and Care

• Follow instructions in the Maintenance and Care section of

this manual. Use of unauthorized parts or failure to follow

Maintenance and Care instructions may create a risk of

electric shock or injury.

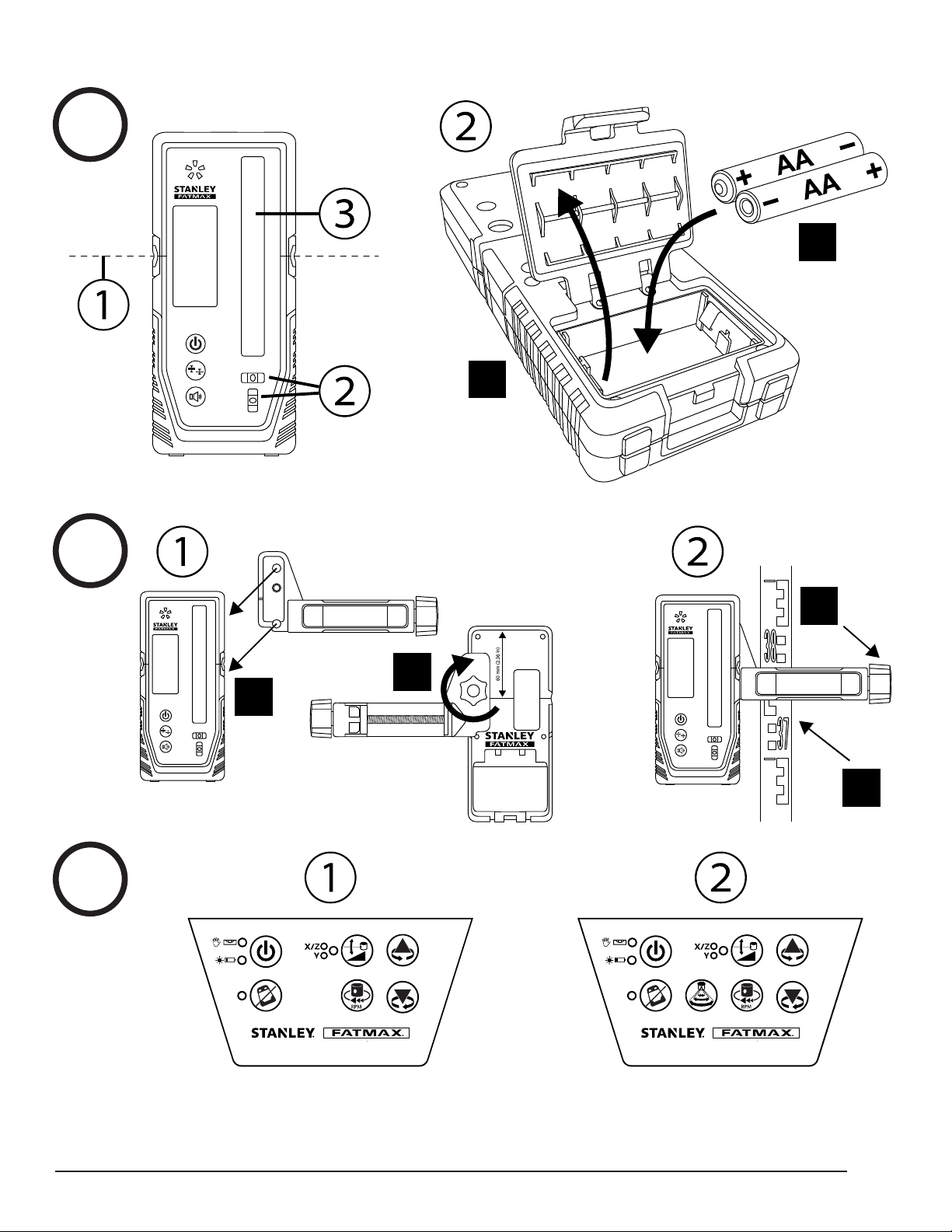

Keypad and LEDs

Keypad

To reference keypad and LED display, see Figure

(RL 600 and RL 600L) or Figure (RL 700L and

RL 750L-G).

Power ON/OFF Key

Tilt Warning ON/OFF Key

Scan Mode Key

Manual Slope Mode Key

Rotation Speed Key

Up Arrow Key (counterclockwise)

Down Arrow Key (clockwise)

LEDs

Power LED

•
