ST STM32H7B3I-DK Manuel utilisateur

Introduction

The STM32H7B3I-DK Discovery kit is a complete demonstration and development platform for STMicroelectronics' Arm®

Cortex®-M7 core-based STM32H7B3LIH6Q microcontroller. This microcontroller features four I2C interfaces, six SPIs with four

multiplexed full-duplex I2S interfaces, two SDMMC controllers, five USARTs, five UARTs, one ULPUART, one TTFD-CAN, one

CAN FD, two 16-bit ADCs, two 12-bit DACs, two SAIs, two Octo-SPI interfaces, two analog comparators, one SPDIF-RX,

DFSDM (8 channels / 8 filters), one USB HS OTG and one USB FS OTG, DCMI interface, FMC interface, TFT LCD controller

interface, JTAG, and SWD debugging support.

This STM32H7B3I-DK Discovery kit offers everything required for users to get started quickly and develop applications easily.

The hardware features on the board help to evaluate the following peripherals: USB HS OTG, microSD™ card, 8-bit camera

interface, audio DAC stereo with audio jack input and output, 128-Mbit SDRAM memory, 512-Mbit Octo-SPI Flash memory,

Wi‑Fi® module (802.11 b/g/n compliant), I2C extension connector, CAN FD, 20-pin microphone MEMS connector with DFSDM

interface, 4.3-inch TFT-LCD (480*272) using an RGB interface with a capacitive touch panel. The ARDUINO® Uno V3

compatible and STMod+ connectors allow easy connection of extension shields or daughterboards for specific applications.

The integrated STLINK-V3E provides an embedded in-circuit debugger and programmer for the STM32 MCU.

Figure 1. STM32H7B3I-DK top view Figure 2. STM32H7B3I-DK bottom view

Pictures are not contractual.

Discovery kit with STM32H7B3LI MCU

UM2569

User manual

UM2569 - Rev 6 - September 2021

For further information contact your local STMicroelectronics sales office. www.st.com

1Features

• STM32H7B3LIH6Q Arm®-based microcontroller featuring 2 Mbytes of Flash memory and 1.4 Mbyte of RAM

in BGA225 package

• 4.3" (480x272 pixels) TFT color LCD module including a capacitive touch panel with RGB interface

• Wi‑Fi® module compliant with 802.11 b/g/n

• USB OTG HS

• Audio codec

• 512-Mbit Octo-SPI NOR Flash memory

• 128-Mbit SDRAM

• 2 user LEDs

• User and Reset push-buttons

• Fanout daughterboard

• 1x FDCAN

• Board connectors:

– Camera (8 bit)

– USB with Micro-AB

– Stereo headset jack including analog microphone input

– Audio jack for external speakers

– microSD™ card

– TAG-Connect 10-pin footprint

– Arm® Cortex® 10-pin 1.27mm-pitch debug connector over STDC14 footprint

– ARDUINO® Uno V3 expansion connector

– STMod+ expansion connector

– Audio daughterboard expansion connector

– External I2C expansion connector

• Flexible power-supply options:

– ST-LINK USB VBUS, USB OTG HS connector, or external sources

• On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual

COM port, and debug port

• Comprehensive free software libraries and examples available with the STM32Cube MCU Package

• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded

Workbench®, MDK-ARM, and STM32CubeIDE

Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

UM2569

Features

UM2569 - Rev 6 page 2/53

2Ordering information

To order the STM32H7B3I-DK Discovery kit, refer to Table 1. Additional information is available from the

datasheet and reference manual of the target STM32.

Table 1. Ordering information

Order code Board references Target STM32

STM32H7B3I-DK

• MB1332

• MB1315(1)

• MB1280(2)

• MB1486(3)

STM32H7B3LIH6Q

1. LCD board.

2. Fanout board.

3. Wi-Fi® module.

2.1 Codification

The meaning of the codification is explained in Table 2. The order code is mentioned on a sticker placed on the

top or bottom side of the board.

Table 2. Codification explanation

STM32TTXXY-DK Description Example: STM32H7B3I-DK

STM32TT MCU series in STM32 Arm Cortex MCUs STM32H7 Series

XX MCU product line in the series STM32H7B3

YSTM32 Flash memory size:

• I for 2 Mbytes 2 Mbytes

UM2569

Ordering information

UM2569 - Rev 6 page 3/53

3Development environment

3.1 System requirements

• Multi‑OS support: Windows® 10, Linux® 64-bit, or macOS®

• USB Type-A or USB Type-C® to Micro-B cable

Note: macOS® is a trademark of Apple Inc. registered in the U.S. and other countries.

Linux® is a registered trademark of Linus Torvalds.

All other trademarks are the property of their respective owners.

3.2 Development toolchains

• IAR Systems® - IAR Embedded Workbench®(1)

• Keil® - MDK-ARM(1)

• STMicroelectronics - STM32CubeIDE

1. On Windows® only.

3.3 Demonstration software

The demonstration software, included in the STM32Cube MCU Package corresponding to the on-board

microcontroller, is preloaded in the STM32 Flash memory for easy demonstration of the device peripherals in

standalone mode. The latest versions of the demonstration source code and associated documentation can be

downloaded from www.st.com.

UM2569

Development environment

UM2569 - Rev 6 page 4/53

4Conventions

Table 3 provides the conventions used for the ON and OFF settings in the present document.

Table 3. ON/OFF convention

Convention Definition

Jumper JPx ON Jumper fitted

Jumper JPx OFF Jumper not fitted

Jumper JPx [1-2] Jumper fitted between Pin 1 and Pin 2

Solder bridge SBx ON SBx connections closed by 0 Ω resistor

Solder bridge SBx OFF SBx connections left open

Resistor Rx ON Resistor soldered

Resistor Rx OFF Resistor not soldered

UM2569

Conventions

UM2569 - Rev 6 page 5/53

5Delivery recommendations

Before the first use, make sure that no damage occurred to the board during shipment and no socketed

components are not firmly fixed in their sockets or loose in the plastic bag.

In particular, pay attention to the following component:

• MB1315 TFT display daughterboard in the CN1 connector

UM2569

Delivery recommendations

UM2569 - Rev 6 page 6/53

6Getting started

1. Ensure that the JP1 jumper is set to STLK.

2. Connect a Type-A to Micro-B USB cable from the STM32H7B3I-DK board (Connect USB STLINK CN14) to

a PC to power the board. Then LD5 (+5V) and LD4 (STLINK COM) light up.

3. Take advantage of three graphical stacks running on the same board with many featured applications for

each selected Sub-Demo:

– Menu launcher

– Audio player TGFX application (MP3 support)

– Clock and Weather with Alarm feature

– Video player TGFX application (enabled)

– TGFX Graphic demonstration

– STemWin Graphic demonstration

– EWZ Graphic demonstration

4. The demonstration application software as well as other software examples and applications for exploring

STM32H7 features are available from STM32H7B3I-DK.

Note: The audio and video player applications play audio and video files from the microSD™ card.

UM2569

Getting started

UM2569 - Rev 6 page 7/53

7Hardware layout and configuration

The STM32H7B3I-DK Discovery kit is designed around the STM32H7B3LIH6Q target microcontroller packaged in

TFBGA225. The hardware block diagram, shown in Figure 3, illustrates the STM32H7B3LIH6Q connections with

the peripheral components. Figure 4 shows the location of the main components on the top side of the Discovery

board and Figure 5 the location of the main components on the bottom side of the Discovery board.

Figure 3. STM32H7B3I-DK hardware block diagram

GPIO

FMC128-Mbit SDRAM

SWD LCD and touch panel

OCSPI

Camera connector

Audio codec and

amplifier

microSDTM card

connector

3V3 / 1V8 Power supply

EXT_I2C connector

SDIO1

PWR

USART2

SPI2

USART1

RGB

DCMI

DFSDM

RTC / HSE

I2C4

UART4

SAI1

USB OTG connector

STLINK-V3E

32 KHz and

24 MHz crystals

512-Mbit Octo-SPI Flash

OTG HS

ARDUINO® connector

STMod+

TAG connector

SWD connector

Reset button

Audio connector

(5 MEMs microphones)

User LED

RSTn

STM32H7B3I

TFBGA225

Stereo jack with

microphone

Wi-Fi®

I2S6

UM2569

Hardware layout and configuration

UM2569 - Rev 6 page 8/53

Figure 4. STM32H7B3I-DK PCB layout (top view)

Audio

connector

(CN3)

STLINK-V3E

COM LED (LD4)

Switch

(SW1)

User

button

(B2)

TAG

connector

(CN12)

TFT LCD

connector

(CN1)

Reset

button

(B1)

STMod+

connector

(P1)

Figure 5. STM32H7B3I-DK PCB layout (bottom view)

Audio in

jack

(CN5)

ARDUINO®

connectors

(CN19 and CN20)

EXT_I2C

connector

(CN16)

USB OTG HS

connector

(CN15)

microSD™

card

(CN4)

ARDUINO®

connectors

(CN10 and CN11)

Camera

connector

(CN7)

Wi-Fi®

module

STLINK-V3E

USB connector

(CN14)

CAN-FD

connector

(CN21)

STM32H7B3I

MCU

(U15)

Power

selector

(JP1)

Audio out

jack

(CN6)

UM2569

Hardware layout and configuration

UM2569 - Rev 6 page 9/53

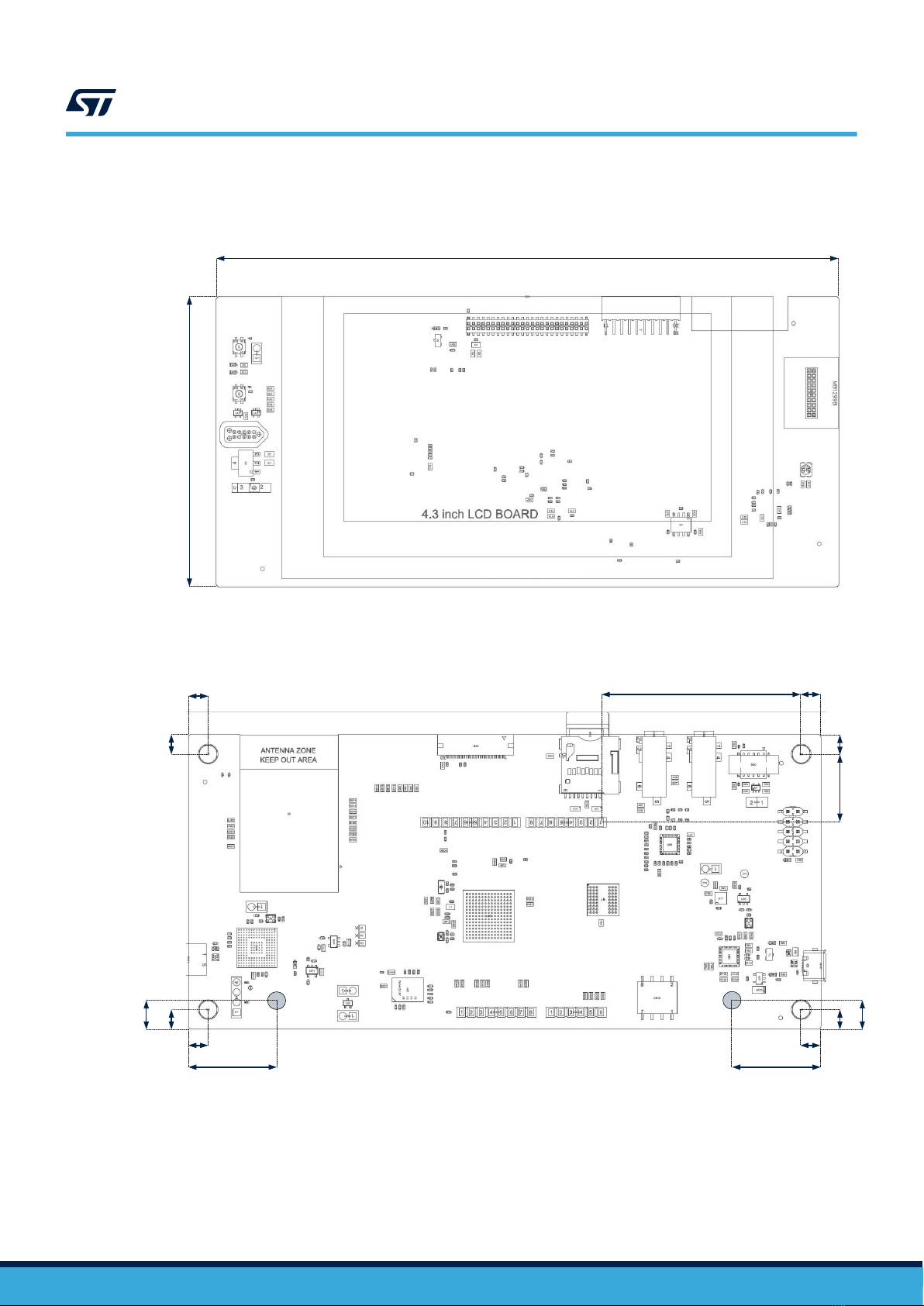

Figure 6 and Figure 7 provide the mechanical dimensions of the STM32H7B3I-DK board.

Figure 6. STM32H7B3I-DK board mechanical dimensions (top view, in millimeters)

75.00

161.00

Figure 7. STM32H7B3I-DK board mechanical dimensions (bottom view, in millimeters)

55.33

5.00

5.00 5.00

5.00

17.40

7.20

22.22

7.20

22.22

UM2569

Hardware layout and configuration

UM2569 - Rev 6 page 10/53
