Introduction

The STM32H5 Nucleo-144 board based on the MB1404 reference board (order code NUCLEO-H563ZI) provides an affordable

and flexible way for users to try out new concepts and build prototypes, by choosing from the various combinations of

performance and power consumption features provided by the STM32H5 series microcontroller.

The ST Zio connector, which extends the ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy

extension of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32H5 Nucleo-144 board does not require any separate probe as it integrates the STLINK-V3EC debugger/

programmer.

The STM32H5 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the

STM32CubeH5 MCU Package.

Figure 1. NUCLEO-H563ZI top view Figure 2. NUCLEO-H563ZI bottom view

Pictures are not contractual.

STM32H5 Nucleo-144 board (MB1404)

UM3115

User manual

UM3115 - Rev 1 - February 2023

For further information contact your local STMicroelectronics sales office. www.st.com

1Features

•NUCLEO-H563ZI microcontroller based on the Arm® Cortex®-M33 core, featuring 2 Mbytes of flash

memory and 640 Kbytes of SRAM in an LQFP144 package

• Ethernet compliant with IEEE-802.3-2002

• USB Type-C® (sink only)

• Three user LEDs

• Reset and user push-buttons

• 32.768 kHz LSE crystal oscillator

• Board connectors:

–USB Type-C®

–ST Zio connector including ARDUINO® Uno V3 expansion connector

– ST morpho extension pin headers for full access to all STM32 I/Os

• Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources

• On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual

COM port, and debug port

• Comprehensive free software libraries and examples available with the STM32CubeH5 MCU Package

• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded

Workbench®, MDK-ARM, and STM32CubeIDE

Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

UM3115

Features

UM3115 - Rev 1 page 2/43

2Ordering information

To order the STM32H5 Nucleo-144 board, refer to Table 1. Additional information is available from the datasheet

and reference manual of the target STM32.

Table 1. Ordering information

Order code Board reference Target STM32

NUCLEO-H563ZI MB1404 STM32H563ZIT6

2.1 Products and codification

The meaning of the codification is explained in Table 1.

Table 2. Codification explanation

NUCLEO-XXYYZT Description Example: NUCLEO-H563ZI

XX MCU series in STM32 32‑bit Arm Cortex MCUs STM32H5 series

YY MCU product line in the series STM32H563/573

Z STM32 package pin count 144 pins

TSTM32 flash memory size:

• I for 2 Mbytes 2 Mbytes

In this document, for any information that is common to all sales types, the references are noted as the STM32H5

Nucleo-144 board.

UM3115

Ordering information

UM3115 - Rev 1 page 3/43

3Development environment

3.1 System requirements

• Multi‑OS support: Windows® 10, Linux® 64-bit, or macOS®

• USB Type-A or USB Type-C® to USB Type-C® cable

Note: macOS® is a trademark of Apple Inc., registered in the U.S. and other countries and regions.

Linux® is a registered trademark of Linus Torvalds.

Windows is a trademark of the Microsoft group of companies.

3.2 Development toolchains

•IAR Systems® - IAR Embedded Workbench®(1)

•Keil® - MDK-ARM(1)

• STMicroelectronics - STM32CubeIDE

1. On Windows® only.

UM3115

Development environment

UM3115 - Rev 1 page 4/43

4Conventions

Table 3 provides the conventions used for the ON and OFF settings in the present document.

Table 3. ON/OFF convention

Convention Definition

Jumper JPx ON Jumper fitted

Jumper JPx OFF Jumper not fitted

Jumper JPx [1-2] Jumper fitted between Pin 1 and Pin 2

Solder bridge SBx ON SBx connections closed by 0 Ω resistor

Solder bridge SBx OFF SBx connections left open

Resistor Rx ON Resistor soldered

Resistor Rx OFF Resistor not soldered

Capacitor Cx ON Capacitor soldered

Capacitor Cx OFF Capacitor not soldered

UM3115

Conventions

UM3115 - Rev 1 page 5/43

5Quick start

The STM32H5 Nucleo-144 board is a low-cost and easy-to-use development kit, to evaluate and start

development quickly with an STM32H5 series microcontroller in an LQFP 144-pin package.

Before installing and using the product, accept the Evaluation Product License Agreement from the www.st.com/

epla webpage. For more information on the STM32H5 Nucleo-144 board and demonstration software, visit the

www.st.com/stm32nucleo webpage.

5.1 Getting started

Follow the sequence below to configure the STM32H5 Nucleo-144 board and launch the demonstration

application (refer to Figure 4 and Figure 5 for component location):

1. Check the jumper position on the board as described in Table 4.

Table 4. Default jumper configuration

Jumper Definition Position Comment

JP1 External debug OFF -

JP2 Power source selection [1-2] STLK (5V_STLK from ST-LINK)

JP3 STLK_RST OFF -

JP4 VDD_MCU power selection [1-2] (default) VDD_MCU supplied with 3V3_VDD

[2-3] (optional) VDD_MCU supplied with 1V8_VDD

JP5 IDD measurement ON MCU current measurement

JP6 Ethernet transmit data1 ON RMII_TXD1

2. For the correct identification of the device interfaces from the host PC and before connecting the board,

install the Nucleo USB driver available on the www.st.com/stm32nucleo website.

3. Power the board by connecting the STM32H5 Nucleo-144 board to a PC with a USB Type-A or USB Type-

C® cable through the USB connector (CN1). As a result, the PWR green LED (LD5), the COM LED (LD4),

and the PWR LED (LD6) light up, while the three user LEDs (LD1 to LD3) blink.

4. Press the user blue button (B1).

5. Observe how the blinking frequency of the three LEDs (LD1 to LD3) changes, according to the clicks on

the user button (B1).

6. The software demonstration and the several software examples that allow the user to exercise the Nucleo

features, are available at the www.st.com website.

7. Develop your application using the available examples.

UM3115

Quick start

UM3115 - Rev 1 page 6/43

6Hardware layout and configuration

The STM32H5 Nucleo-144 board is designed around an STM32H5 series microcontroller in a 144-pin LQFP

package.

Figure 3 shows the connections between the STM32H5 and its peripherals (STLINK-V3EC, push-buttons, LEDs,

USB, Ethernet, ST Zio connectors, and ST morpho headers).

Figure 4 and Figure 5 show the location of these features on the STM32H5 Nucleo-144 board.

The mechanical dimensions of the board are shown in Figure 6.

Figure 3. Hardware block diagram

DT59060V1

Embedded

STLINK-V3EC

STM32

microcontroller

ST morpho extension header

I/O

VCP

UART

Reset

button

(B2)

User

button

(B1)

I/O

Zio connector

ST-LINK part

MCU part

LED1

LED2

LED3

USB Type-C®

connector

Zio connector

RJ45

connector

USB Type-C®

connector

SWD

SWD VCP

UART

USB RMII

Note: VCP: Virtual COM port

SWD: Serial Wire Debug

UM3115

Hardware layout and configuration

UM3115 - Rev 1 page 7/43

6.1 STM32H5 Nucleo-144 board layout

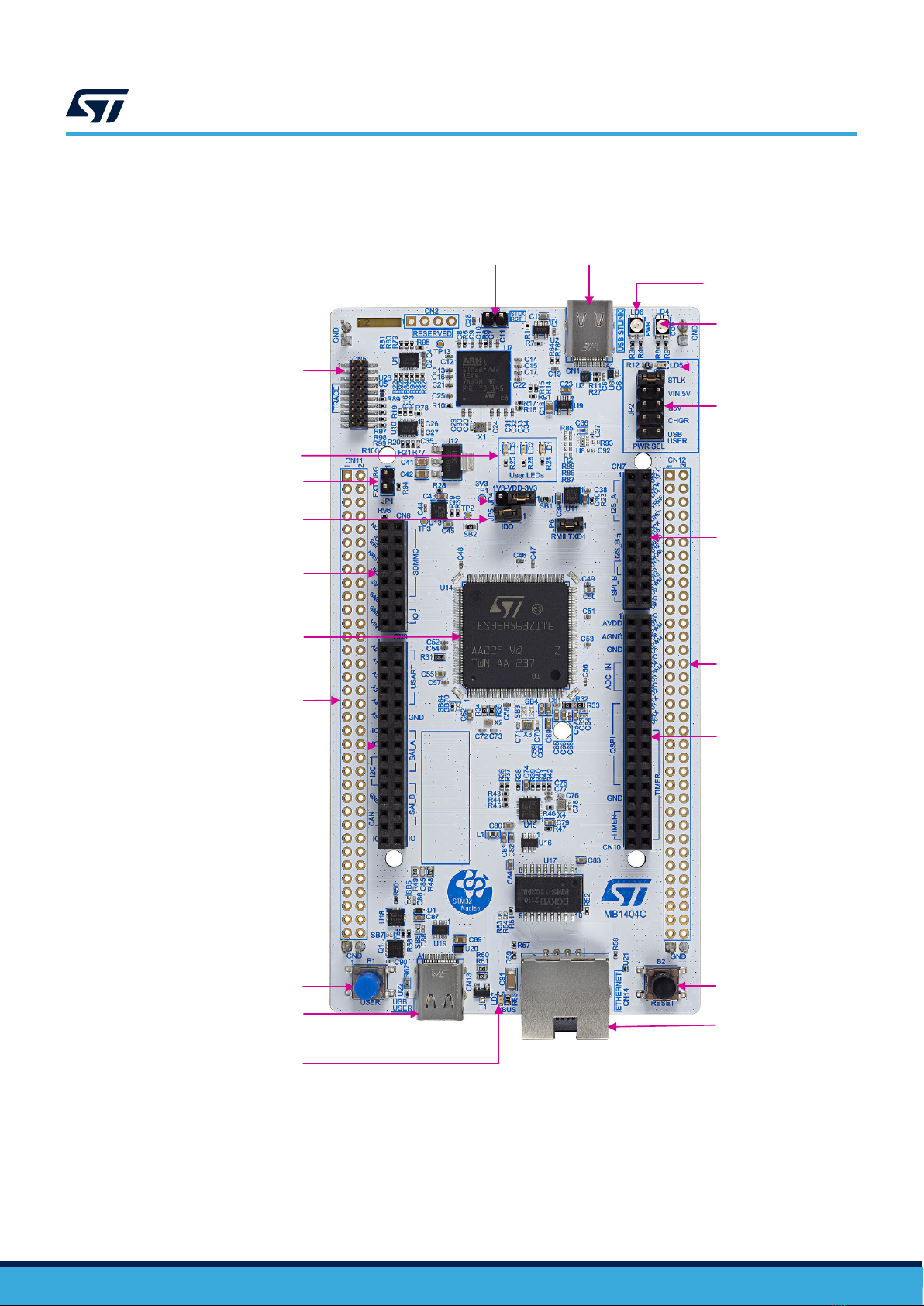

Figure 4. STM32H5 Nucleo-144 board top layout

DT59061V1

ST-LINK RST (JP3)

User USB connector (CN13)

ST-LINK USB Type-C® connector (CN1)

ST-LINK COM LED (LD4)

ST-LINK power status LED (LD6)

Power LED (LD5) (green)

Power source selection (JP2)

ZIO connector (CN7)

ST morpho pin header (CN12)

ZIO connector (CN10)

Reset button (B2)

Ethernet RJ45 connector

(CN14)

User button (B1)

USB VBUS LED (LD7)

ZIO connector (CN9)

ST morpho pin header (CN11)

STM32 microcontroller (U14)

ZIO connector (CN8)

VDD_MCU power selection (JP4)

IDD measurement (JP5)

External debug (JP1)

User LEDs (LD1-LD3)

MIPI20 connector (CN5)

UM3115

STM32H5 Nucleo-144 board layout

UM3115 - Rev 1 page 8/43

Figure 5. STM32H5 Nucleo-144 board bottom layout

DT59062V1

IOREF power

selection

(SB16, SB25)

UM3115

STM32H5 Nucleo-144 board layout

UM3115 - Rev 1 page 9/43

6.2 Mechanical drawing

Figure 6. STM32H5 Nucleo-144 board mechanical drawing (in millimeters)

DT59087V1

133.34 mm

70.00 mm

UM3115

Mechanical drawing

UM3115 - Rev 1 page 10/43
