Spirit XT275 Manuel utilisateur

SPT0004 – XT275 SPT0006 – XT175

ALWAYS CONSULT A DOCTOR BEFORE STARTING AN EXERCISE

PROGRAM

PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE

OPERATING YOUR NEW TREADMILL!

OWNER’S MANUAL

XT175 / XT275

Important Safety Instructions…………………………………………………………….. 3

Important Electrical Information………………………………………………………….. 4

Important Operation Instructions………………………………………………………….5

Assembly Instructions………………………………………………………………………6

Folding & Transport Instructions…………..………………………………………………9

Operation of Your New Treadmill………………………………………………………….10

Target Heart Rate…………………………………………………………………………..20

Using a Heart Rate Transmitter……………………………………………………………21

Heart Rate Control Operation……………………………………………………………..22

General Maintenance.……………….……………………………………………………..23

Service Checklist - Diagnosis Guide…………………………………………………….. 26

Manufacturer’s Limited Warranty………………………………………………………….27

Table of Contents

XT175 / XT275

Thank you for your purchase of this quality elliptical trainer. Your new elliptical was

manufactured by one of the leading fitness manufacturers in the world and is backed by

one of the most comprehensive warranties available.

Please take a moment at this time to record the name of the dealer and the date of

purchase below to make any future, needed contact easy. We appreciate your support

and we will always remember that you are the reason that we are in business.

Yours in Health,

Action Fitness Equipment Pty Ltd.

Name of Dealer______________________________________

Purchase Date_______________________________________

CONGRATULATIONS ON YOUR

NEW TREADMILL AND WELCOME

TO THE SPIRIT FAMILY!

XT175 / XT275

WARNING - Read all instructions before using this appliance.

DANGER - To reduce the risk of electric shock disconnect your Spirit treadmill from the

electrical outlet prior to cleaning and/or service work.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install

the treadmill on a flat level surface with access to a 240-volt, 15-amp grounded outlet.

DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY

ONE OUTLET ON THE END. DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. The treadmill

should be the only appliance in the circuit in which it is connected. A serious shock or

fire hazard may result along with computer malfunctions. See Grounding Instructions,

page 3.

■Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both

carpet and treadmill may result.

■Do not block the rear of the treadmill. Provide a minimum of 105cm clearance

between the rear of the treadmill and any fixed object.

■Keep children away from the treadmill.

■Keep hands away from all moving parts.

■Never operate the treadmill if it has a damaged cord or plug. If the treadmill is not working

properly, call your dealer.

■Keep the cord away from heated surfaces.

■Do not operate where aerosol spray products are being used or where oxygen is

being administered. Sparks from the motor may ignite a highly gaseous environment.

■Never drop or insert any object into any openings.

■Do not use outdoors.

■To disconnect, turn all controls to the off position, remove tether cord, then remove the plug

from the outlet.

■Do not attempt to use your treadmill for any purpose other than for the purpose it is

intended.

■The pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are

intended only as exercise aids in determining heart rate trends in general.

■Use handrails provided; they are for your safety.

■Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable

for use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

Remove tether cord after use to prevent unauthorized treadmill operation.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Safety Instructions

XT175 / XT275

WARNING!

●NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Large

switching currents of the drive motor will trip GFCI type outlets, as will any appliance with a

large motor. Route the power cord away from any moving part of the treadmill including the

elevation mechanism and transport wheels.

●NEVER remove any cover without first disconnecting AC power.

●If voltage varies by ten percent (10%) or more, the performance of your treadmill may be

affected. Such conditions are not covered under your warranty. If you suspect the voltage

is low, contact your local power company or a licensed electrician for proper testing. See

Diagnosis Guide, page 27.

●NEVER expose this treadmill to rain or moisture. This product is NOT designed for use

outdoors, near a pool or spa, or in any other high humidity environment. The temperature

specification is 4 to 48 degrees Celsius, and humidity limit is 95%, non-condensing (no water

drops forming on surfaces).

This product must be grounded. If the treadmill should malfunction or breakdown, grounding

provides a path of least resistance for electric current, reducing the risk of electric shock. This

product is equipped with a cord having an equipment-grounding plug. The plug must be

plugged into an appropriate outlet that is properly installed and grounded in accordance with

all local codes and ordinances.

DANGER - Improper connection of the equipment-grounding conductor can result in a

risk of electric shock. Check with a qualified electrician or serviceman if you are in

doubt as to whether the product is properly grounded. Do not modify the plug provided

with the product if it will not fit the outlet; have a proper outlet installed by a qualified

electrician.

This product is for use on a nominal 240-volt circuit, and has a grounding plug that looks like

the plug illustrated below. A temporary adapter that looks like the adapter illustrated below

may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded

outlet is not available. The temporary adapter should be used only until a properly grounded

outlet, (below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the

like, extending from the adapter, must be connected to a permanent ground such as a properly

grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal

screw.

Important Electrical Information

Grounding Instructions

Grounded Outlet

Grounding Pin Grounded Outlet Box

Metal Screw

Adapter

Tab of

Grounding

Screw

XT175 / XT275

●NEVER operate this treadmill without reading and completely understanding the results of any

operational change you request from the computer.

●Understand that changes in speed and incline do not occur immediately. Set your desired

speed on the computer console and release the adjustment key. The computer will obey the

command gradually.

●NEVER use your treadmill during an electrical storm. Surges may occur in your household

power supply that could damage treadmill components.

●Use caution while participating in other activities while walking on your treadmill; such as

watching television, reading, etc. These distractions may cause you to lose balance or stray

from walking in the center of the belt, which may result in serious injury.

●NEVER mount or dismount the treadmill while the belt is moving. Spirit treadmills start with at a

very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the

belt during slow acceleration is proper after you have learned to operate the unit.

●Always hold on to a handrail or hand bar while making control changes (incline, speed, etc.).

Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure. Pushing harder is not going to make the unit go faster or slower. If you

feel the buttons are not functioning properly with normal pressure contact your Spirit dealer.

A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at

all times. It is for your safety should you fall or move too far back on the tread-belt.

Pulling this safety tether cord will stop tread-belt movement.

To Use:

1. Place the magnet into position on the round metal portion of the console control head. Your

treadmill will not start and operate without this. Removing the magnet also secures the treadmill

from unauthorized use.

2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The

magnet has strong enough power to minimize accidental, unexpected stopping. The clip should be

attached securely to make certain it does not come off. Be familiar with its function and limitations.

The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is

pulled off the console. Use the red Stop / Pause switch in normal operation.

Safety Tether Cord

Important Operating Instructions

XT175 / XT275

Assembly Pack Check List (XT175 / XT275)

5/16” x15m/m

Button Head Socket Bolt (14 pcs)

Safety Key (1pc) Lubricant (1pc)

M6 Allen Wrench (1pc)

Combination M5Allen Wrench

& Phillips Head Screwdriver (1 pc)

M5 x 15 m/m

Phillips Head Screw (6 pcs)

5/16” x 19 x 1.5T

Curved Washer (4 pcs)

XT175 / XT275

!!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS. PLEASE

READ BEFORE UNPACKING YOUR FOLDING TREADMILL!!

Serious injury could occur if this folding treadmill is not unpacked properly.

There is a Velcro strap installed around the treadmill base that prevents the treadmill from

unfolding accidentally during shipping. If this strap is not removed properly the treadmill could

spring open unexpectedly and cause injury if someone is standing near the treadmill when the

strap is removed.

To ensure your personal safety during removal of the shipping strap please make sure the

treadmill is positioned flat on the ground, in the orientation it would be in if you were using the

treadmill. Do not turn the treadmill up on it’s side while removing the shipping strap. This could

cause the treadmill’s folding mechanism to spring open. If the end of the Velcro strap (that you

need to grab to remove it) happens to be under the treadmill deck, reach under the deck to grab it,

but do not tilt the treadmill up to gain access to the strap end.

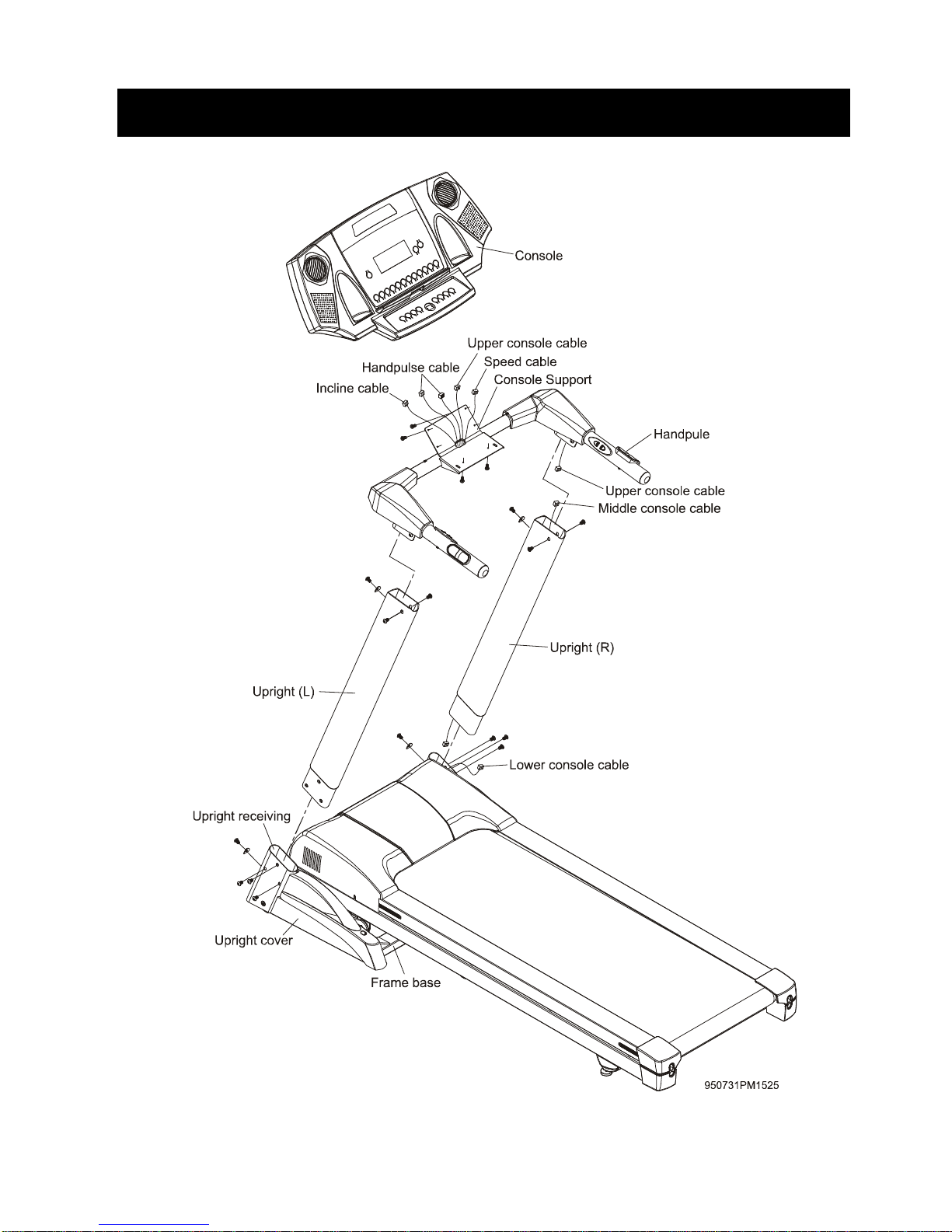

Assembly

■STEP 1

Remove all parts from the carton.

■STEP 2

Connect Lower computer cable with Middle computer cable.

■STEP 3

Hand tighten Right and Left uprights into the upright receiving of frame base with eight

5/16”x 15m/m Button Head Socket bolts and two 5/16” x 19 x 1.5T Curved Washers by

using the Combination M5 Allen wrench & Phillips head screwdriver.

■STEP 4

Connect Middle computer cable with Upper computer cable.

■STEP 5

Install the Console Support into the Right and Left uprights with six 5/16” x 15m/m Button

Head Socket bolts and 2pcs of 5/16” x 19 x 1.5T Curved Washers.

Install Upper computer cable into the console.

Install Speed cable and Incline cable into the console.

Install two hand pulse cables into the console.

■STEP 6

Slide the Console onto console support plate and attach with six M5 x 15 m/m Phillips

head screws. Note that the console support plate should be inside the console housing

and the mounting screws are installed through the plastic housing and into the mounting

plate.

■PLEASE LOCK DOWN ALL HARDWARE AFTER THE ACCESSSORIES HAVE BEEN

ASSEMBLED.

Assembly Instructions (XT175 / XT275)

XT175 / XT275

Assembly Instructions (XT175 / XT275)

XT175 / XT275

Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power

cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired

position.

■To Fold The Treadmill:

Make certain the treadmill is at minimum incline. Lift the treadmill running deck until it

is secured by the locking telescoping tube assembly in center back of base.

■To Unfold The Treadmill:

Apply slight forward pressure* on the treadmill running deck with one hand. Pull down on the

unlocking lever and slowly lower the running deck to the floor. The deck will lower unassisted

when it reaches about waist high.

*At the rear roller area to relieve pressure on the locking system.

The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded.

After folding simply roll the treadmill away.

Folding Instructions

Transport

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Spirit tapis roulant

Spirit

Spirit XT 600 Manuel utilisateur

Spirit

Spirit XT385 Manuel utilisateur

Spirit

Spirit XT375 Manuel utilisateur

Spirit

Spirit Z100-A81 Manuel utilisateur

Spirit

Spirit 16007602850 Manuel utilisateur

Spirit

Spirit inspire IN300T Manuel utilisateur

Spirit

Spirit F7500 Mode d’emploi

Spirit

Spirit 16007604850 Manuel utilisateur

Spirit

Spirit CT900 Manuel utilisateur

Spirit

Spirit XT285 Manuel utilisateur

Spirit

Spirit XT185 Manuel utilisateur

Spirit

Spirit SL188 Manuel utilisateur

Spirit

Spirit CT850 Manuel utilisateur

Spirit

Spirit XT485ENT Manuel utilisateur

Spirit

Spirit XT385 Manuel utilisateur

Spirit

Spirit XT485 Manuel utilisateur

Spirit

Spirit inspire IN839 Manuel utilisateur

Spirit

Spirit XT385 Manuel utilisateur

Spirit

Spirit XT800_A82-1 Manuel utilisateur

Spirit

Spirit XT685 Manuel utilisateur

Spirit

Spirit XT175 Manuel utilisateur

Spirit

Spirit XT685 Manuel utilisateur

Spirit

Spirit CT 800 Manuel utilisateur

Spirit

Spirit CT800ENT Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur

Master

Master F22 Manuel utilisateur
