OWNER’S MANUAL

All manuals and user guides at all-guides.com

all-guides.com

XT385/XT485

Product Registration…………………………………………………………………………. ..2

Important Safety Instructions………………………………………………………………….3

Important Electrical Information……………………………………………………………….4

Important Operation Instructions………………………………………………………………5

ssembly instructions…………………………………………………………………………..6

Folding & Transport Instructions…………..………………………………………………….13

Operation of Your New Treadmill……………………………………………………………..14

Programmable Features……………………………………………………………………….17

Target Heart Rate………………………………………………………………………………19

Using a Heart Rate Transmitter……………………………………………………………….20

Heart Rate Control Operation………………………………………………………………….22

General Maintenance.……………….………………………………………………………….23

Service Checklist - Diagnosis Guide…………………………………………………………..26

Manufacturer’s Limited Warranty………………………………………………………………28

Table of Content

All manuals and user guides at all-guides.com

XT385/XT485

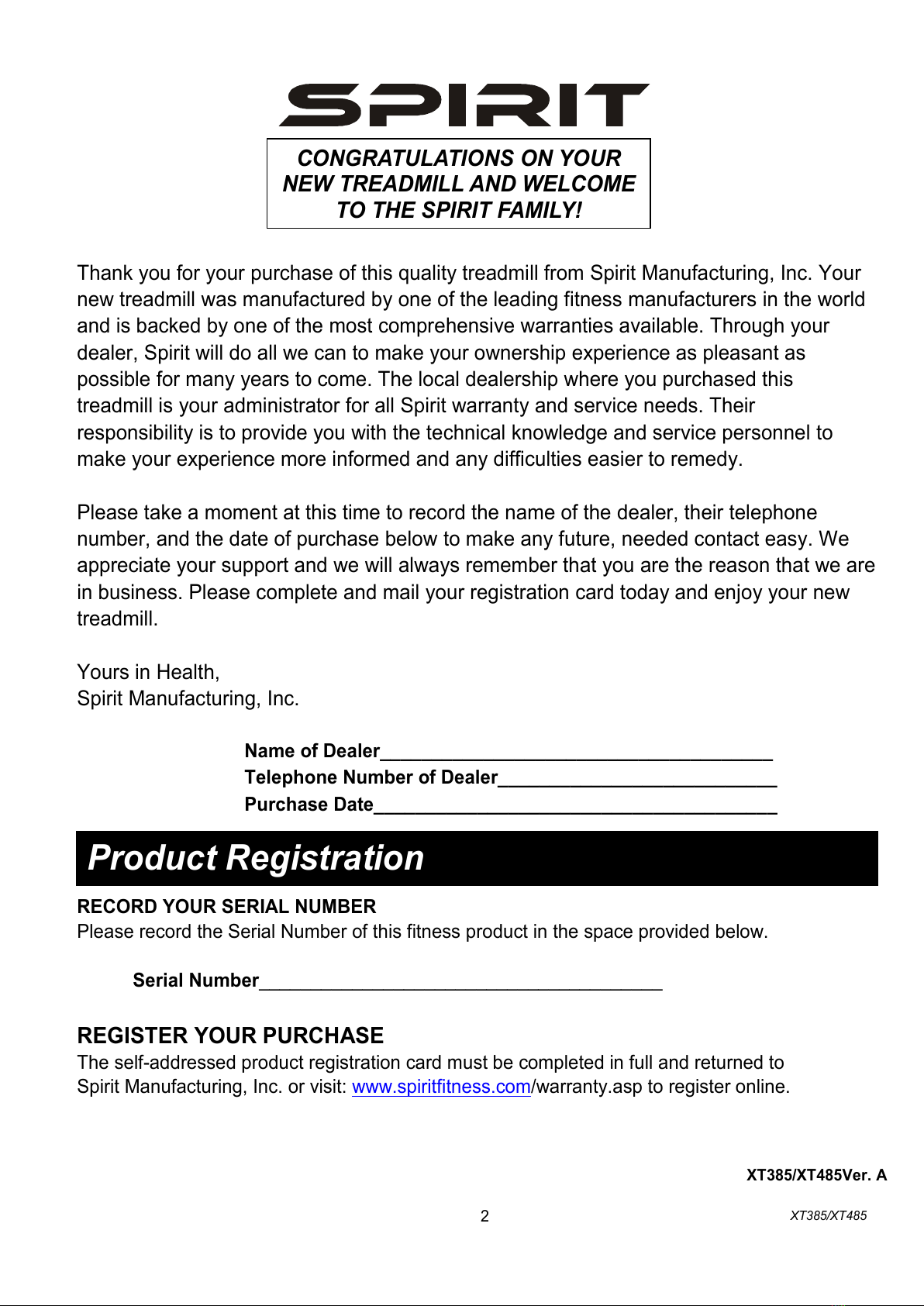

Thank you for your purchase of this quality treadmill from Spirit Manufacturing, Inc. Your

new treadmill was manufactured by one of the leading fitness manufacturers in the world

and is backed by one of the most comprehensive warranties available. Through your

dealer, Spirit will do all we can to make your ownership experience as pleasant as

possible for many years to come. The local dealership where you purchased this

treadmill is your administrator for all Spirit warranty and service needs. Their

responsibility is to provide you with the technical knowledge and service personnel to

make your experience more informed and any difficulties easier to remedy.

Please take a moment at this time to record the name of the dealer, their telephone

number, and the date of purchase below to make any future, needed contact easy. We

appreciate your support and we will always remember that you are the reason that we are

in business. Please complete and mail your registration card today and enjoy your new

treadmill.

Yours in Health,

Spirit Manufacturing, Inc.

Name of Dealer______________________________________

Telephone Number of Dealer___________________________

Purchase Date_______________________________________

RECORD YOUR SERIAL NU BER

Please record the Serial Number of this fitness product in the space provided below.

Serial Number_______________________________________

The self-addressed product registration card must be completed in full and returned to

Spirit Manufacturing, Inc. or visit: www.spiritfitness.com/warranty.asp to register online.

XT385/XT485Ver. A

CONGRATULATIONS ON YOUR

NEW TREADMILL AND WELCOME

TO THE SPIRIT FAMILY!

Product Regi tration

All manuals and user guides at all-guides.com

XT385/XT485

WARNING - Read all instructions before using this appliance.

DANGER - To reduce the risk of electric shock disconnect your Spirit treadmill from the

electrical outlet prior to cleaning and/or service work.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install

the treadmill on a flat level surface with access to a 120-volt, 20-amp grounded outlet.

DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE

OUTLET ON THE END. The treadmill should be the only appliance in the circuit in which it

is connected. DO NOT ATTE PT TO DISABLE THE GROUNDED PLUG BY USING

I PROPER ADAPTERS, OR IN ANY WAY ODIFY THE CORD SET. A serious shock or fire

hazard may result along with computer malfunctions. See Grounding Instructions, page 3.

1. Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both

carpet and treadmill may result.

2. Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance

between the rear of the treadmill and any fixed object.

3. Keep children away from the treadmill. There are obvious pinch points and other

caution areas that can cause harm.

4. Keep hands away from all moving parts.

5. Never operate the treadmill if it has a damaged cord or plug. If the treadmill is not working

properly, call your dealer.

6. Keep the cord away from heated surfaces.

7. Do not operate where aerosol spray products are being used or where oxygen is

being administered. Sparks from the motor may ignite a highly gaseous environment.

8. Never drop or insert any object into any openings.

9. Do not use outdoors.

10. To disconnect, turn all controls to the off position, remove tether cord, then remove the plug

from the outlet.

11. Do not attempt to use your treadmill for any purpose other than for the purpose it is

intended.

12. The pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are

intended only as exercise aids in determining heart rate trends in general.

13. Use handrails provided; they are for your safety.

14. Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable

for use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

Remove tether cord after use to prevent unauthorized treadmill operation.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Safety In truction

All manuals and user guides at all-guides.com

XT385/XT485

WARNING!

●

NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Large

switching currents of the drive motor will trip GFCI type outlets, as will any appliance with a

large motor. Route the power cord away from any moving part of the treadmill including the

elevation mechanism and transport wheels.

●

NEVER remove any cover without first disconnecting C power.

●

If voltage varies by ten percent (10%) or more, the performance of your treadmill may

be affected. Such conditions are not covered under your warranty. If you suspect

the voltage is low, contact your local power company or a licensed electrician for proper

testing. See Diagnosis Guide, page 27.

●

NEVER expose this treadmill to rain or moisture. This product is NOT designed for use

outdoors, near a pool or spa, or in any other high humidity environment. The temperature

specification is 40 to 120 degrees Fahrenheit, and humidity limit is 95%, non-condensing (no

water drops forming on surfaces).

This product must be grounded. If the treadmill should malfunction or breakdown, grounding

provides a path of least resistance for electric current, reducing the risk of electric shock. This

product is equipped with a cord having an equipment-grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed and grounded in accordance with all local

codes and ordinances.

DANGER - Improper connection of the equipment-grounding conductor can result in a

risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt

as to whether the product is properly grounded. Do not modify the plug provided with the

product if it will not fit the outlet. Have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the

plug illustrated below. temporary adapter that looks like the adapter illustrated below may be

used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is

not available. The temporary adapter should be used only until a properly grounded outlet,

(below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the like,

extending from the adapter, must be connected to a permanent ground such as a properly

grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal

screw.

Important Electrical Information

Grounding In truction

Grounded Outlet

Grounding Pin Grounded Outlet Box

Metal Screw

dapter

Tab of

Grounding

Screw

All manuals and user guides at all-guides.com

XT385/XT485

●

NEVER operate this treadmill without reading and completely understanding the results of

any operational change you request from the computer.

●

Understand that changes in speed and incline do not occur immediately. Set your desired

speed on the computer console and release the adjustment key. The computer will obey the

command gradually.

●

NEVER use your treadmill during an electrical storm. Surges may occur in your household

power supply that could damage treadmill components.

●

Use caution while participating in other activities while walking on your treadmill; such as

watching television, reading, etc. These distractions may cause you to lose balance or stray

from walking in the center of the belt; which may result in serious injury.

●

NEVER mount or dismount the treadmill while the belt is moving. Spirit treadmills start with at

a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on

the belt during slow acceleration is proper after you have learned to operate the unit.

●

lways hold on to a handrail or hand bar while making control changes (incline, speed, etc.).

Do not use excessive pressure on console control keys. They are precision set to function

properly with little finger pressure. Pushing harder is not going to make the unit go faster or

slower. If you feel the buttons are not functioning properly with normal pressure contact your

Spirit dealer.

safety tether cord is provided with this unit. It is a simple magnetic design that should be used

at all times. It is for your safety should you fall or move too far back on the tread-belt.

Pulling this safety tether cord will stop tread-belt movement.

To Use:

1. Place the magnet into position on the round metal portion of the console control head. Your

treadmill will not start and operate without this. Removing the magnet also secures the treadmill

from unauthorized use.

2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The

magnet has strong enough power to minimize accidental, unexpected stopping. The clip should

be attached securely to make certain it does not come off. Be familiar with its function and

limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime

the magnet is pulled off the console. Use the red Stop / Pause switch in normal operation.

Safety Tether Cord

Important Operation In truction

All manuals and user guides at all-guides.com

all-guides.com

XT385/XT485

!!ATTENTION: I PORTANT UNPACKING INSTRUCTIONS. PLEASE

READ BEFORE UNPACKING YOUR FOLDING TREAD ILL!!

Serious injury could occur if this folding treadmill is not unpacked properly.

There is a Velcro strap installed around the treadmill base that prevents the treadmill from

unfolding accidentally during shipping. If this strap is not removed properly the treadmill could

spring open unexpectedly and cause injury if someone is standing near the treadmill when the

strap is removed.

To ensure your personal safety during removal of the shipping strap please make sure the treadmill

is positioned flat on the ground, in the orientation it would be in if you were using the treadmill. Do

not turn the treadmill up on its side while removing the shipping strap. This could cause the

treadmill’s folding mechanism to spring open. If the end of the Velcro strap (that you need to grab

to remove it) happens to be under the treadmill deck, reach under the deck to grab it, but do not tilt

the treadmill up to gain access to the strap end.

Unpack the treadmill and locate the hardware pack. The hardware pack is separated into five

sections; one section containing tools and four sections labeled steps 1-4 which contain the

hardware needed for assembly of each step. The assembly steps below are numbered one

through four and correspond to the hardware in the numbered sections of the hardware pack.

Remove only the hardware for the step you are currently assembling to avoid confusion and

mix-ups.

A embly In truction (XT385 / XT485)

All manuals and user guides at all-guides.com

XT385/XT485

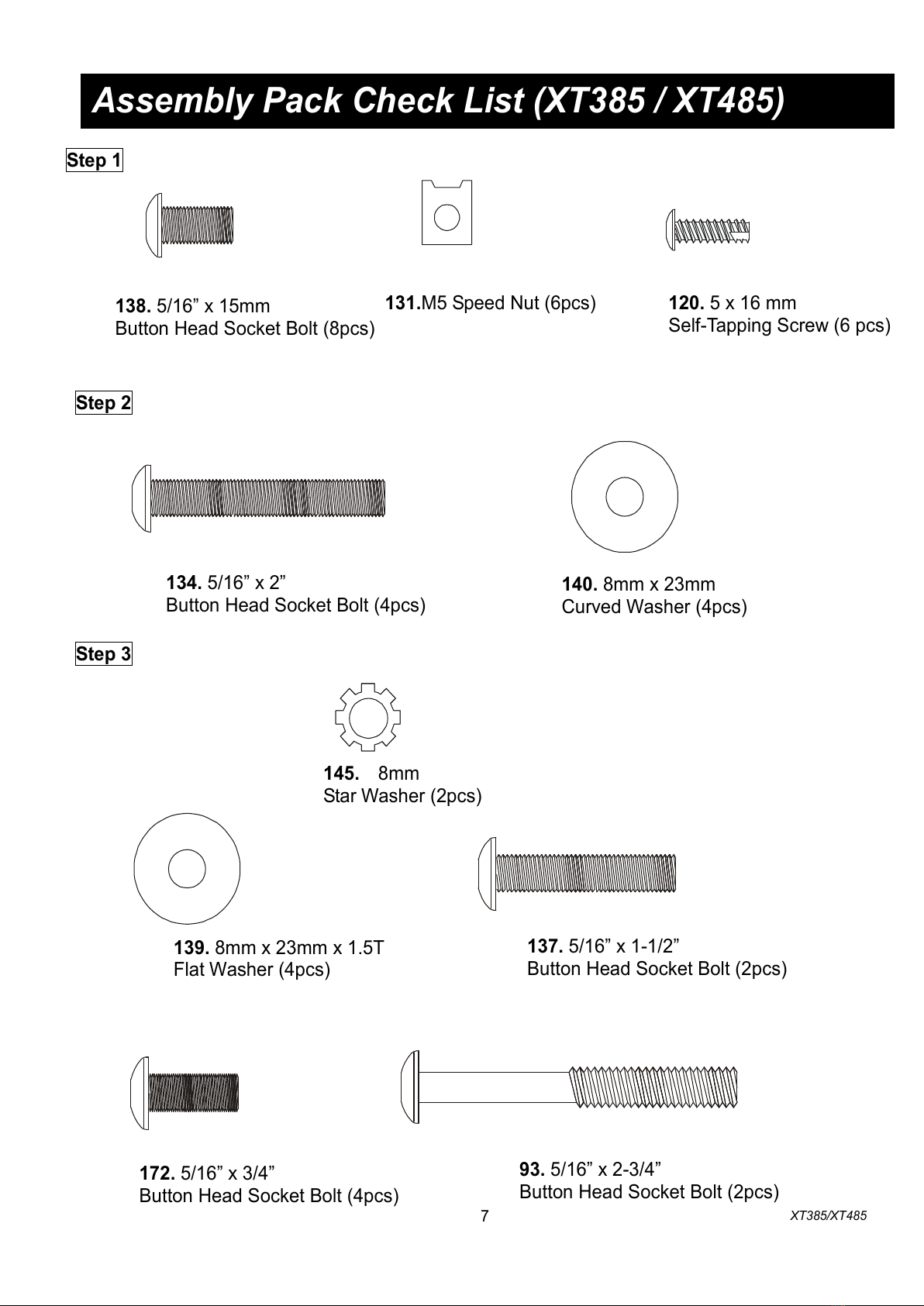

A embly Pack Check Li t (XT385 / XT485)

Step 1

Step 3

93. 5/16” x 2-3/4”

Button Head Socket Bolt (2pcs)

145. 8mm

Star Washer (2pcs)

139. 8mm x 23mm x 1.5T

Flat Washer (4pcs)

137. 5/16” x 1-1/2”

Button Head Socket Bolt (2pcs)

Step 2

134. 5/16” x 2”

Button Head Socket Bolt (4pcs)

140. 8mm x 23mm

Curved Washer (4pcs)

120. 5 x 16 mm

Self-Tapping Screw (6 pcs)

138. 5/16” x 15mm

Button Head Socket Bolt (8pcs)

131.M5 Speed Nut (6pcs)

172. 5/16” x 3/4”

Button Head Socket Bolt (4pcs)

All manuals and user guides at all-guides.com

XT385/XT485

Tools

Step 4

135. 3.5 x 40mm

Sheet Metal Screw (6pcs)

81. Safety Key (1pc) 30. Deck / Belt

Lubricant (1pc)

142. M6 llen Wrench (1pc)

141. Combination M5 llen Wrench

& Phillips Head Screw Driver (1 pc)

All manuals and user guides at all-guides.com

XT385/XT485

STEP 1

1. Take the Left and Right upright tubes (part numbers 4 & 5) and slip the upright covers (63 left,

64 right) onto the tubes (observe the cover orientation is correct). Connect the Middle

Console Cable (50) that exits from the bottom of the right upright tube with the lower Console

Cable (49). Install the Left and Right (L & R) Uprights into the Left and Right Receiving Tubes.

Be careful not to pinch the wire when installing the upright.

2. Install and tighten the eight 5/16”x 15mm Button Head Socket Bolts (138).

138

All manuals and user guides at all-guides.com

Autres manuels pour XT385

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Spirit tapis roulant

Spirit

Spirit XT175 Manuel utilisateur

Spirit

Spirit Z8 Manuel utilisateur

Spirit

Spirit Esprit CT80 Manuel utilisateur

Spirit

Spirit 1622778 Manuel utilisateur

Spirit

Spirit 1611800-1 Manuel utilisateur

Spirit

Spirit XT375 Manuel utilisateur

Spirit

Spirit XT675 Manuel utilisateur

Spirit

Spirit XT385 Manuel utilisateur

Spirit

Spirit XT485 Manuel utilisateur

Spirit

Spirit 16807008500 Manuel utilisateur

Spirit

Spirit 16117701 Manuel utilisateur

Spirit

Spirit inspire IN839 Manuel utilisateur

Spirit

Spirit 1613685US XT685 Manuel utilisateur

Spirit

Spirit XT285 Manuel utilisateur

Spirit

Spirit 1611385 Manuel utilisateur

Spirit

Spirit CT850 Manuel utilisateur

Spirit

Spirit SPT0063 Manuel utilisateur

Spirit

Spirit CT800ENT Manuel utilisateur

Spirit

Spirit XT685 Manuel utilisateur

Spirit

Spirit F7500 Mode d’emploi

Spirit

Spirit XT385 Manuel utilisateur

Spirit

Spirit XT285 Manuel utilisateur

Spirit

Spirit CT 800 Manuel utilisateur

Spirit

Spirit CT 900 LED Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur

Master

Master F22 Manuel utilisateur
