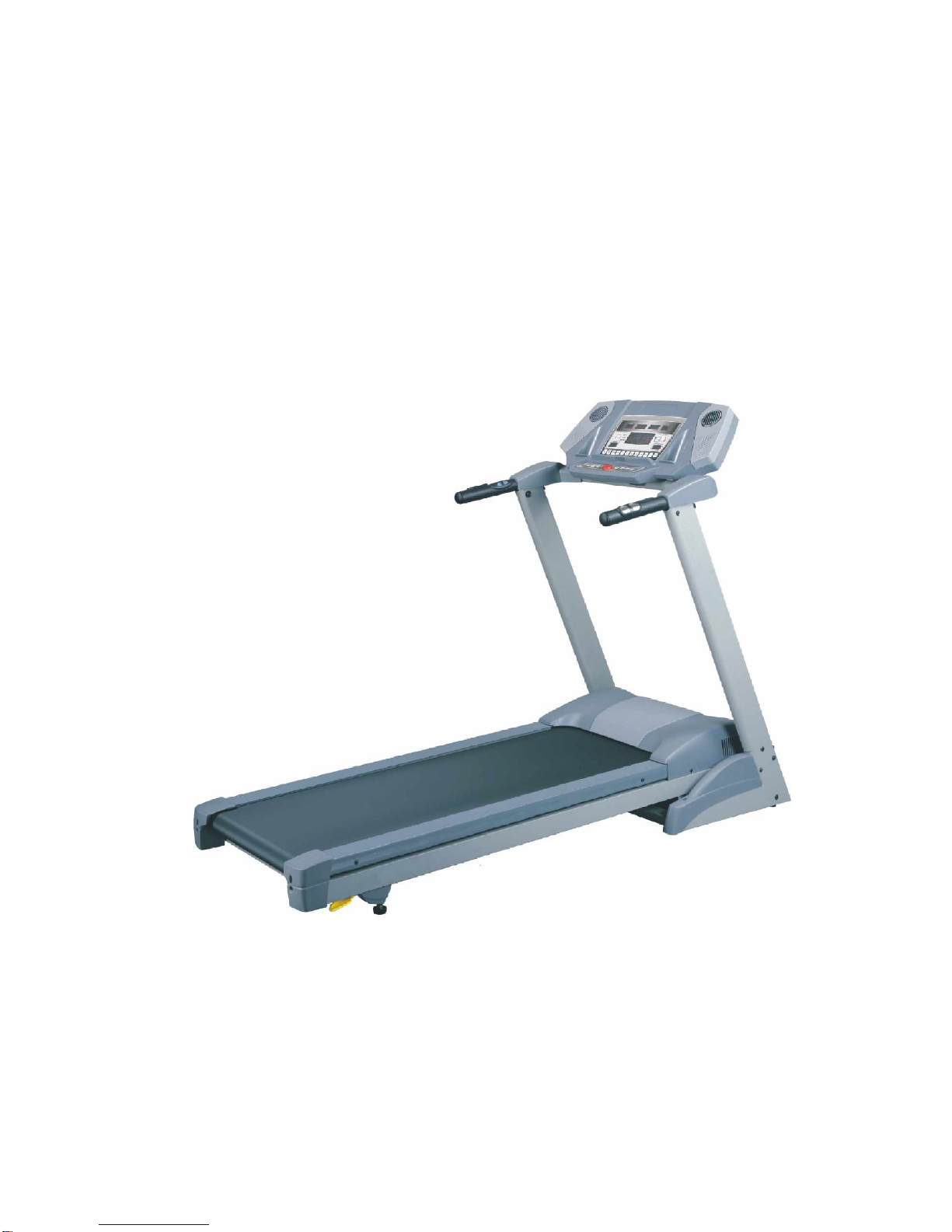

Spirit XT 9 Manuel utilisateur

WARNING:

ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL

OUTLET BEFORE SERVICING THE UNIT.

TABLE OF CONTENTS

Table of Contents....................................................................1

Table of Figures......................................................................3

Description .............................................................................4

A ELECTRICAL CONFIGURATION......................................4

1. 1622770 Treadmill components...................................4

B GENERAL INFORMATION ...............................................5

1. Console.......................................................................5

2. Main controller............................................................5

3. Treadmill motor ..........................................................5

Operation................................................................................7

A WINDOW DISPLAY MODE..............................................7

1. OFF Mode...................................................................7

2. READY Mode.............................................................7

3. SLEEP Mode ..............................................................7

4. RUN Mode..................................................................8

B FUNCTION......................................................................9

1. SPEED........................................................................9

2. TIME..........................................................................9

3. DISTANCE.................................................................9

4. CALORIES...............................................................10

5. PULSE......................................................................10

6. LAPS ........................................................................10

7. SCAN .......................................................................10

C FUNCTION BUTTON INMAIN MODE ............................11

1. READY MODE........................................................11

2. SLEEP MODE..........................................................12

3. RUN MODE .............................................................12

D CALIBRATION PROCEDURE..........................................13

1. Calibration ................................................................13

Troubleshooting....................................................................14

1. General......................................................................14

2. Troubleshooting Matrix.............................................15

3. controller debugging form.........................................20

Diagrams and Schematics.....................................................21

APPENDIX A......................................................................25

1. TREADBELT ADJUSTMENT.................................25

APPENDIX B ......................................................................27

1. TREADMILL LUBRICATION................................27

APPENDIX C ......................................................................28

1. RESET SWITCH RESETTING................................ 28

APPENDIX D......................................................................29

1. FUSE REPLACEMENT........................................... 29

APPENDIX E.......................................................................30

1. SPEED SENSOR ADJUSTMENT............................30

2. SERVICE QUESTIONS...........................................30

TABLE OF FIGURES

Figure 1 Operational Flowchart..............................................6

Figure 2 Console Layout......................................................21

Figure 3 Mechanical Layout.................................................21

Figure 4 Main Controller information & voltages.................22

Figure 5 Function JK1 connector on Main Controller...........22

Figure 6 Wiring Diagram.....................................................23

Figure 7 Schematic Diagram................................................24

Figure 8 If Treadbelt slips....................................................25

Figure 9 If tread belt shifts too far to the Right.....................25

Figure 10 If tread belt shifts too far to the Left.....................26

Figure 11 Resetting Reset switch .........................................28

Figure 12 Fuse replacement .................................................29

DESCRIPTION

A ELECTRICAL CONFIGURATION

Note: Electrical servicing of this treadmill is limited to board

level replacement.

1. 1622770 TREADMILL COMPONENTS

a) Emergency button:

In dangerous condition, please pull safety key away which is

red. At the some time, the treadmill will be stop.

b) Console:

Interface that control all functions of the treadmill.

c) Main controller:

A circuit board that incorporates the DC power supply and

takes input from the console and sends out appropriate

voltages that control the treadmill functions.

d) Treadmill motor:

This is a variable speed, to control D.C. motor 90

voltage that powers the main running belt.

B GENERAL INFORMATION

1. CONSOLE

a) Contains 6 windows which are twenty rows of Tri-color “dots”

(8high) indicate each segment of a workout.

2. MAIN CONTROLLER

a) Contains power supply and control circuits

3. TREADMILL MOTOR

a) Variable speed reversing 0 - 90 volt DC motor.

b) Have three wires red, black and green.

c) If there is DC voltage on the Red wire (M+) the treadmill

motor will turn clockwise.

d) If there is DC voltage on the Black wire (M-) the treadmill

motor will turn counter-clockwise

e) The green wire is ground.

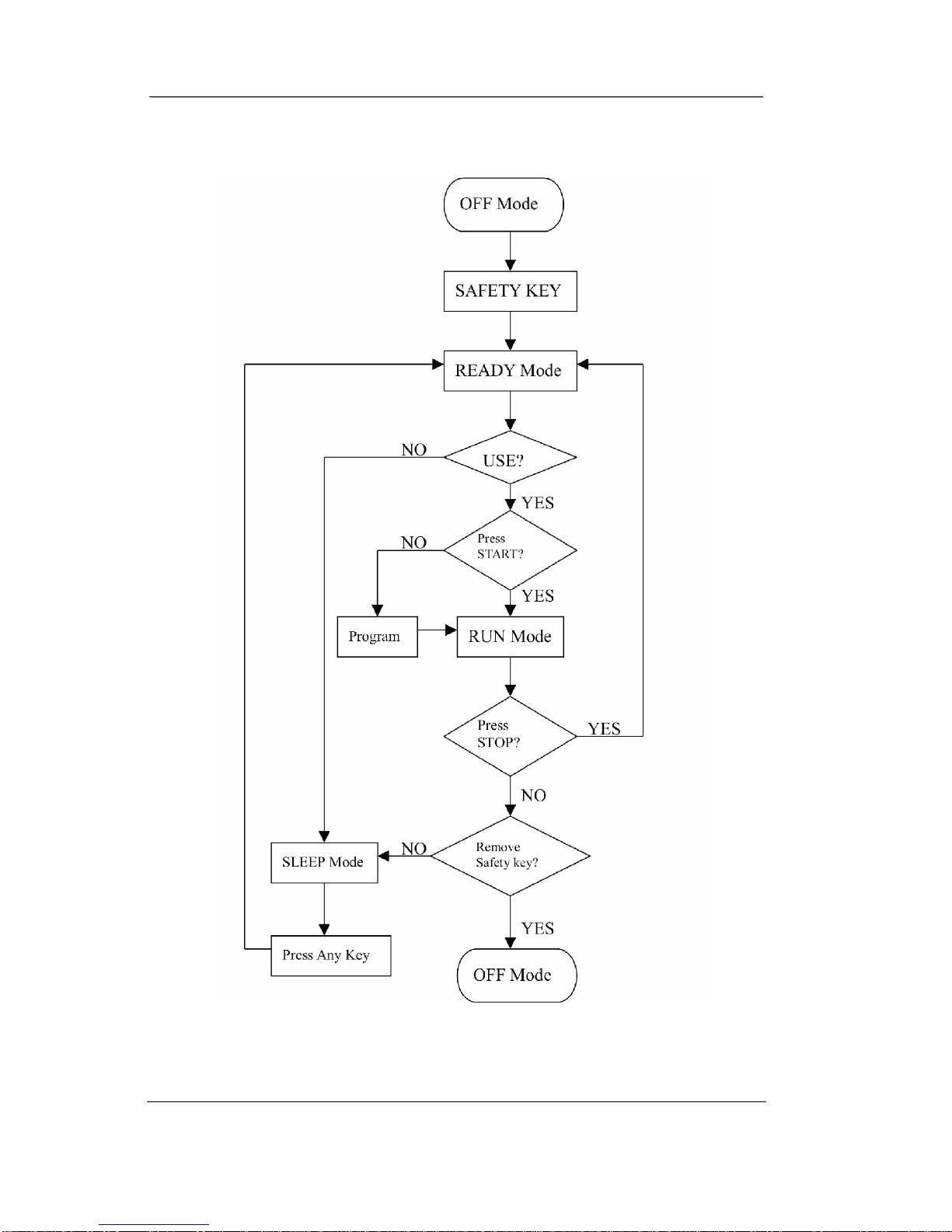

Figure 1 Operational Flowchart

OPERATION

A WINDOW DISPLAY MODE

1. OFF MODE

a) When users pull away safety key on the console, the treadmill

enters the OFF Mode and all windows will appear blank.

2. READY MODE

a) When the treadmill has been power on and set the safety key on

the console, all light will be to light.

b) Console will display current software version in dot matrix

window; DISTANCE window displays total accumulated

working distance; TIME window displays total accumulated

working time.

c) In READY Mode, if user doesn’t press any button for 30

minutes it will automatically turn off (blank out).

d) TIME, DISTANCE and CALORIES Values will all be saved

when RUN Mode enters READY Mode.

e) Incline will be calibrated to zero automatically. If incline is

faulty, INCLINE window will display ERR. (At this time,

incline is non-function but other functions are normal.)

3. SLEEP MODE

a) When nobody to use the treadmill, the console will into SLEEP

Mode. If any buttons are pressed, the treadmill enters READY

Mode.

4. RUN MODE

a) In RUN Mode, pressing the “STOP” button or pull away the

safety key that will cause the treadmill stop instantly and enter

OFF Mode.

b) Display will automatically shift every 5 seconds.

c) Press “SELECT” button to exchange the displaying of LED

which includes laps of Track, Incline profile and Speed profile.
