FTC62 and FTS62

Ball Float Steam Traps

Installation and Maintenance Instructions

IM-P179-15

CMGT Issue 3

IM-P179-15 CMGT Issue 3

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

Safe operation of these products can only be guaranteed if they are properly installed, commissioned,

used and maintained by qualified personnel (see Section 1.11) in compliance with the operating

instructions. General installation and safety instructions for pipeline and plant construction, as well

as the proper use of tools and safety equipment must also be complied with.

1.1 Intended use

Referring to the Installation and Maintenance Instructions, product markings and Technical

Information Sheet, check that the product is suitable for the intended use/application. The FTC62

and FTS62 comply with the requirements of the Pressure Equipment Directive (PED).

It should be noted that products within this category are required by the Directive to carry the mark.

Product Group 2

Gases

Group 2

Liquids

FTC62 and FTS62 DN15, DN20 and DN25 2SEP

i) These products have been specifically designed for use on steam, air or condensate/water, which

is in Group 2 of the above mentioned Pressure Equipment Directive (PED). The products' use on

other fluids may be possible but, if this is contemplated, Spirax Sarco should be contacted to

confirm the suitability of the product for the application being considered.

ii) Check material suitability, pressure and temperature and their maximum and minimum values.

If the maximum operating limits of the product are lower than those of the system in which it

is being fitted, or if malfunction of the product could result in a dangerous overpressure or

overtemperature occurrence, ensure a safety device is included in the system to prevent such

over-limit situations.

iii) Determine the correct installation situation and direction of fluid flow.

iv) Spirax Sarco products are not intended to withstand external stresses that may be induced

by any system to which they are fitted. It is the responsibility of the installer to consider these

stresses and take adequate precautions to minimise them.

v) Remove protection covers from all connections and protective film from all name-plates, where

appropriate, before installation on steam or other high temperature applications.

1.2 Access

Ensure safe access and if necessary a safe working platform (suitably guarded) before attempting

to work on the product. Arrange suitable lifting gear if required.

1.3 Lighting

Ensure adequate lighting, particularly where detailed or intricate work is required.

1.4 Hazardous liquids or gases in the pipeline

Consider what is in the pipeline or what may have been in the pipeline at some previous time. Consider:

flammable materials, substances hazardous to health, extremes of temperature.

1. Safety information

IM-P179-15 CMGT Issue 3 3

1.5 Hazardous environment around the product

Consider: explosion risk areas, lack of oxygen (e.g. tanks, pits), dangerous gases, extremes of

temperature, hot surfaces, fire hazard (e.g. during welding), excessive noise, moving machinery.

1.6 The system

Consider the effect on the complete system of the work proposed. Will any proposed action (e.g.

closing isolation valves, electrical isolation) put any other part of the system or any personnel at risk?

Dangers might include isolation of vents or protective devices or the rendering ineffective of controls

or alarms. Ensure isolation valves are opened and closed progressively to avoid system shocks.

1.7 Pressure systems

Ensure that any pressure is isolated and safely vented to atmospheric pressure. Consider double

isolation (double block and bleed) and the locking or labelling of closed valves. Do not assume that

the system has depressurised even when the pressure gauge indicates zero.

1.8 Temperature

Allow time for temperature to normalise after isolation to avoid the danger of burns.

1.9 Tools and consumables

Before starting work ensure that you have suitable tools and/or consumables available. Use only

genuine Spirax Sarco replacement parts.

1.10 Protective clothing

Consider whether you and/or others in the vicinity require any protective clothing to protect against

the hazards of, for example, chemicals, high/low temperature, radiation, noise, falling objects, and

dangers to eyes and face.

1.11 Permits to work

All work must be carried out or be supervised by a suitably competent person.Installation and

operating personnel should be trained in the correct use of the product according to the Installation

and Maintenance Instructions.

Where a formal 'permit to work' system is in force it must be complied with. Where there is no such

system, it is recommended that a responsible person should know what work is going on and, where

necessary, arrange to have an assistant whose primary responsibility is safety.

Post 'warning notices' if necessary.

1.12 Handling

Manual handling of large and/or heavy products may present a risk of injury. Lifting, pushing, pulling,

carrying or supporting a load by bodily force can cause injury particularly to the back. You are advised

to assess the risks taking into account the task, the individual, the load and the working environment

and use the appropriate handling method depending on the circumstances of the work being done.

1.13 Residual hazards

In normal use the external surface of the product may be very hot. If used at the maximum permitted

operating conditions the surface temperature may reach temperatures in excess of 425 °C (797 °F).

Many products are not self-draining. Take due care when dismantling or removing the product from

an installation (refer to 'Maintenance instructions').

IM-P179-15 CMGT Issue 3

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

1.14 Freezing

Provision must be made to protect products which are not self-draining against frost damage in

environments where they may be exposed to temperatures below freezing point.

1.15 Disposal

Unless otherwise stated in the Installation and Maintenance Instructions, this product is recyclable

and no ecological hazard is anticipated with its disposal providing due care is taken.

1.16 Returning products

Customers and stockists are reminded that under EC Health, Safety and Environment Law, when

returning products to Spirax Sarco they must provide information on any hazards and the precautions

to be taken due to contamination residues or mechanical damage which may present a health, safety

or environmental risk. This information must be provided in writing including Health and Safety data

sheets relating to any substances identified as hazardous or potentially hazardous.

1.17 Working safely with cast iron products on steam

Cast iron products are commonly found on steam and condensate systems. If installed correctly

using good steam engineering practices, it is perfectly safe. However, because of its mechanical

properties, it is less forgiving compared to other materials such as SG iron or carbon steel. The

following are the good engineering practices required to prevent waterhammer and ensure safe

working conditions on a steam system.

Safe Handling

Cast Iron is a brittle material. If the product is dropped

during installation and there is any risk of damage the

product should not be used unless it is fully inspected

and pressure tested by the manufacturer.

IM-P179-15 CMGT Issue 3 5

Prevention of water hammer

Steam trapping on steam mains:

Steam Mains - Do's and Don'ts

Steam Steam

Flow Flow

30 - 50 metre intervals

Gradient 1:100

Trap set

Condensate

Steam

IM-P179-15 CMGT Issue 3

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

Prevention of tensile stressing

Pipe misalignment:

Installing products or re-assembling after maintenance:

Thermal expansion:

Do not over tighten.

Use correct torque gures.

4 2

Flange bolts should be gradually tightened across

diameters to ensure even load and alignment.

Guides

Limit

rods

Limit rods

Fixing point

Medium

distance

Small lateral

movement

Small lateral

movement Large lateral

movement

Small lateral

movement

Short

distance Fixing point

Axial

movement

Axial movement

Guides



IM-P179-15 CMGT Issue 3 7

2.1 General description

The FT_62 range of ball float steam traps have an automatic built-in air venting facility.

FT_62 range:

Available types

Model Body and cover Optional extra

FTC62 Carbon steel body with

stainless steel internals

On request the cover (2) may have been

drilled and tapped for the purpose of fitting

a balance line - This option will only be

supplied if requested at the time of order

placement.

FTS62 Stainless steel body with

stainless steel internals

Flow options

when facing

the body

L-R Has a flow direction of Left-to-Right

R-L Has a flow direction of Right-to-Left

Standards

These products fully comply with the requirements of the Pressure Equipment Directive (PED) and carries

the mark.

Certification

These products are available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at the time of order placement.

Note: For additional product information see the following Technical Information sheets:

FTC62 TI-P179-13

and

FTS62 TI-P179-14

2.2 Sizes and pipe connections

½", ¾" and 1" Screwed BSP or NPT

½", ¾" and 1" Socket weld ends to BS 3799 and Class 3000 lbs

Standard flanges:

DN15, DN20 and DN25 Flanged

EN 1092-1 PN100

Please note: For the PN100 variant the material used for the weld on ange

is carbon steel 1.0460 for the FTC62 and stainless steel 1.4301 upon the

FTS62.

The material used for the studs and nuts upon all versions is Studs = ASTM

A193 B7

Nuts = ASTM A194 Gr. 4 to EN 10269

½", ¾" and 1" Flanged

ASME B 16.5 Class 600

2. General product information

IM-P179-15 CMGT Issue 3

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

Fig. 1 FT_62 R-L flanged with flow from right to left 2

2.3 Pressure/temperature limits (ISO 6552)

FTC62

Screwed

see Section 2.4, page 9

Socket weld

Flanged ASME Class 600

Flanged EN 1092 PN100 see Section 2.5, pages 10

FTS62

Screwed

see Section 2.6, page 11

Socket weld

Flanged ASME Class 600

Flanged EN 1092 PN100 see Section 2.7, pages 12

IM-P179-15 CMGT Issue 3 9

0 20 40 60 80 102.1

0 200 400 600 800 1000 1200 1400

700

600

500

400

300

200

100

200

300

400

425

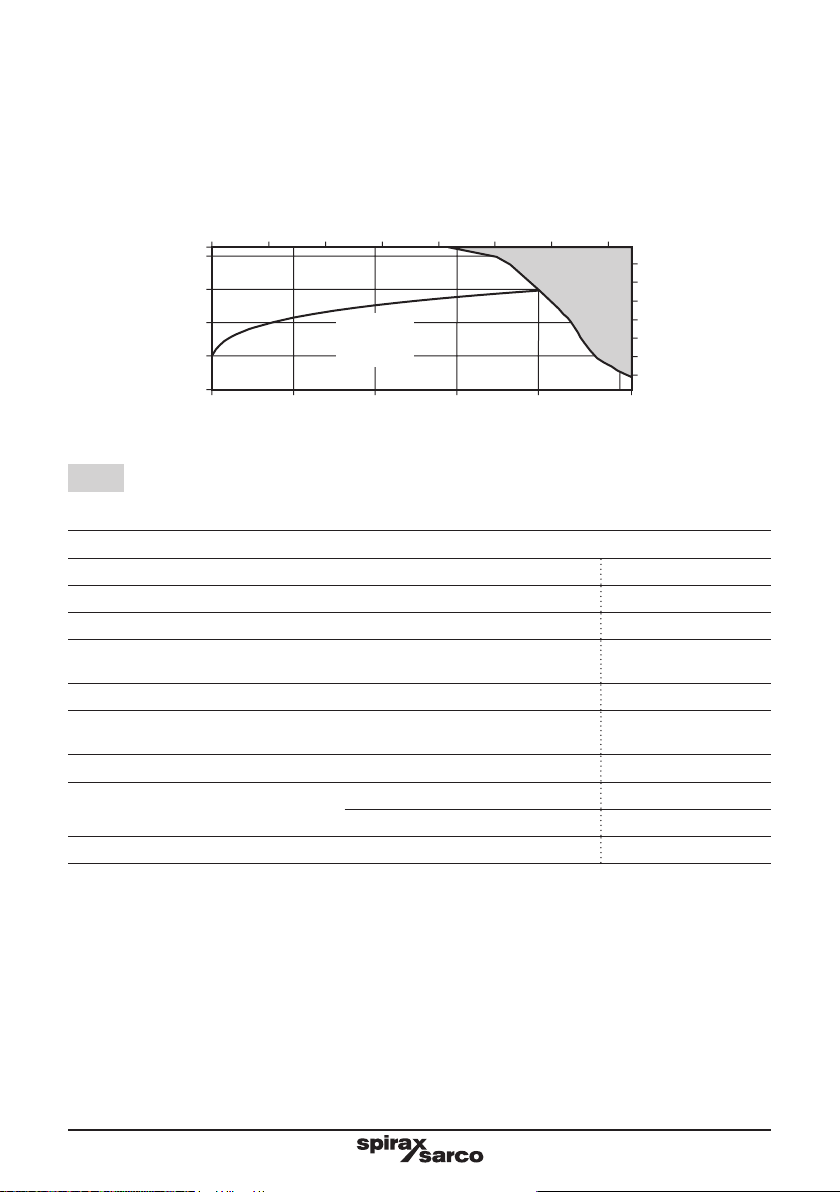

2.4 FTC62 Pressure/temperature limits (ISO 6552)

Screwed,Socket weld and Flanged ASME Class 600

Temperature °C

Pressure bar g

Pressure psi g

Temperature °F

The product must not be used in this region or beyond the parameter of the PMA or TMA of the

relative end connection.

Body design condition ASME Class 600

PMA Maximum allowable pressure 102.1 bar g @ 38 °C 1480 psi g @ 100 °F

TMA Maximum allowable temperature 425 °C @ 57.5 bar g 797 °F @ 834 psi g

Minimum allowable temperature -29 °C -20 °F

PMO Maximum operating pressure for

saturated steam service 80 bar g @ 296 °C 1160 psi g @ 565 °F

TMO Maximum operating temperature 425 °C @ 57.5 bar g 797 °F @ 834 psi g

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco 0°C 32 °F

Minimum operating differential pressure 0.1 bar g 1.45 psi g

PMX Maximum differential pressure

FTC62-46 46 bar 667 psi g

FTC62-62 62 bar 899 psi g

Designed for a maximum cold hydraulic test pressure of: 153.2 bar g 2222 psi g

Steam

saturation

curve

IM-P179-15 CMGT Issue 3

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

100

200

300

400

20 40 60 80 100

2.5 FTC62 Pressure/temperature limits (ISO 6552)

Flanged EN 1092 PN100

Temperature °C

Pressure bar g

The product must not be used in this region or beyond the parameter of the PMA or TMA of the

relative end connection.

Body design condition PN100

PMA Maximum allowable pressure 100 bar g @ 50 °C

TMA Maximum allowable temperature 400 °C @ 59.5 bar g

Minimum allowable temperature -10 °C

PMO Maximum operating pressure for saturated steam service 70.8 bar g @ 287 °C

TMO Maximum operating temperature 400 °C @ 59.5 bar g

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco 0°C

Minimum operating differential pressure 0.1 bar g

PMX Maximum differential pressure

FTC62-46 46 bar

FTC62-62 62 bar

Designed for a maximum cold hydraulic test pressure of: 150 bar g

Steam

saturation

curve

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Spirax Sarco Unité de contrôle

Spirax Sarco

Spirax Sarco SRV66HC Manuel utilisateur

Spirax Sarco

Spirax Sarco HL 17 Manuel utilisateur

Spirax Sarco

Spirax Sarco SRV66 Manuel utilisateur

Spirax Sarco

Spirax Sarco SX100e Fiche technique

Spirax Sarco

Spirax Sarco SRV2S Manuel utilisateur

Spirax Sarco

Spirax Sarco BSA3HP Manuel utilisateur

Spirax Sarco

Spirax Sarco 25BP Manuel utilisateur

Spirax Sarco

Spirax Sarco C Series Manuel utilisateur

Spirax Sarco

Spirax Sarco SafeBloc DBB3 Manuel utilisateur

Spirax Sarco

Spirax Sarco ADV Series Manuel utilisateur

Spirax Sarco

Spirax Sarco 25E Manuel utilisateur

Spirax Sarco

Spirax Sarco DN15 Manuel utilisateur

Spirax Sarco

Spirax Sarco UFT32 Manuel utilisateur

Spirax Sarco

Spirax Sarco HV3 Manuel utilisateur

Spirax Sarco

Spirax Sarco WAV1 Manuel utilisateur

Spirax Sarco

Spirax Sarco DP27 Manuel utilisateur

Spirax Sarco

Spirax Sarco DP27S Manuel utilisateur

Spirax Sarco

Spirax Sarco FTC80 Manuel utilisateur

Spirax Sarco

Spirax Sarco BSA3-BD Manuel utilisateur

Spirax Sarco

Spirax Sarco M10Si Automation Manuel utilisateur

Spirax Sarco

Spirax Sarco M10Hi Manuel utilisateur

Spirax Sarco

Spirax Sarco M15 Series Manuel utilisateur

Spirax Sarco

Spirax Sarco DP27T Manuel utilisateur

Spirax Sarco

Spirax Sarco M33 ISO Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
