M10S Ball Valve DN¼" to DN2½"

Screwed, SW, BW and Flanged versions

Installation and Maintenance Instructions

IM-P133-16

CMGT Issue 5

IM-P133-16 CMGT Issue 5

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

Safe operation of this product can only be guaranteed if it is properly installed, commissioned,

used and maintained by qualified personnel (see Section 1.11) in compliance with the operating

instructions. General installation and safety instructions for pipeline and plant construction, as

well as the proper use of tools and safety equipment must also be complied with.

1.1 Intended use

Referring to the Installation and Maintenance Instructions, name-plate and Technical Information

Sheet, check that the product is suitable for the intended use/application.

The product listed below complies with the requirements of the Pressure Equipment Directive

(PED) and carries the mark when so required.

The product falls within the following Pressure Equipment Directive categories:

Product Group 1

Gases

Group 2

Gases

Group 1

Liquids

Group 2

Liquids

M10S

PDR 0.8 seats

(Carbon/graphite

reinforced PTFE)

DN¼" SEP SEP SEP SEP

DN3/8" SEP SEP SEP SEP

DN½" SEP SEP SEP SEP

DN1¾" SEP SEP SEP SEP

DN1" SEP SEP SEP SEP

DN1¼" 2SEP 2SEP

DN½" 212SEP

DN2" 212SEP

DN2½" 212SEP

i) The product has been specifically designed for use on steam, compressed air, water/condensate

and other industrial fluids that are in Group 2 of the above mentioned Pressure Equipment

Directive.

ii) Determine the correct installation situation and direction of fluid flow.

iii) Spirax Sarco products are not intended to withstand external stresses that may be induced

by any system to which they are fitted. It is the responsibility of the installer to consider these

stresses and take adequate precautions to minimise them.

iv) Remove protection covers from all connections and protective film from all name-plates, where

appropriate, before installation on steam or other high temperature applications.

1.2 Access

Ensure safe access and if necessary a safe working platform (suitably guarded) before attempting

to work on the product. Arrange suitable lifting gear if required.

1.3 Lighting

Ensure adequate lighting, particularly where detailed or intricate work is required.

1. Safety information

IM-P133-16 CMGT Issue 5

1.4 Hazardous liquids or gases in the pipeline

Consider what is in the pipeline or what may have been in the pipeline at some previous time.

Consider: flammable materials, substances hazardous to health, extremes of temperature.

1.5 Hazardous environment around the product

Consider: explosion risk areas, lack of oxygen (e.g. tanks, pits), dangerous gases, extremes of

temperature, hot surfaces, fire hazard (e.g. during welding), excessive noise, moving machinery.

1.6 The system

Consider the effect on the complete system of the work proposed. Will any proposed action (e.g.

closing isolation valves, electrical isolation) put any other part of the system or any personnel

at risk?

Dangers might include isolation of vents or protective devices or the rendering ineffective of

controls or alarms. Ensure isolation valves are turned on and off in a gradual way to avoid system

shocks.

1.7 Pressure systems

Ensure that any pressure is isolated and safely vented to atmospheric pressure. Consider double

isolation (double block and bleed) and the locking or labelling of closed valves. Do not assume

that the system has depressurised even when the pressure gauge indicates zero.

1.8 Temperature

Allow time for temperature to normalise after isolation to avoid danger of burns.

If parts made from PTFE have been subjected to a temperature approaching 260 °C (500 °F) or

higher, they will give off toxic fumes, which if inhaled are likely to cause temporary discomfort.

It is essential for a no smoking role to be enforced in all areas where PTFE is stored, handled or

processed as persons inhaling the fumes from burning tabacco contaminated with PTFE particles

can develop 'polymer fume fever'.

1.9 Tools and consumables

Before starting work ensure that you have suitable tools and/or consumables available. Use only

genuine Spirax Sarco replacement parts.

1.10 Protective clothing

Consider whether you and/or others in the vicinity require any protective clothing to protect against

the hazards of, for example, chemicals, high/low temperature, radiation, noise, falling objects, and

dangers to eyes and face.

1.11 Permits to work

All work must be carried out or be supervised by a suitably competent person.

Installation and operating personnel should be trained in the correct use of the product according

to the Installation and Maintenance Instructions.

Where a formal 'permit to work' system is in force it must be complied with. Where there is no such

system, it is recommended that a responsible person should know what work is going on and, where

necessary, arrange to have an assistant whose primary responsibility is safety.

Post 'warning notices' if necessary.

IM-P133-16 CMGT Issue 5

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

1.12 Handling

Manual handling of large and/or heavy products may present a risk of injury. Lifting, pushing,

pulling, carrying or supporting a load by bodily force can cause injury particularly to the back.

You are advised to assess the risks taking into account the task, the individual, the load and the

working environment and use the appropriate handling method depending on the circumstances

of the work being done.

1.13 Residual hazards

In normal use the external surface of the product may be very hot. If used at the maximum permitted

operating conditions the surface temperature of this product may reach temperatures of 260 °C (500 °F).

This product is not self-draining. Take due care when dismantling or removing the product from

an installation (refer to 'Maintenance instructions').

1.14 Freezing

Provision must be made to protect products which are not self-draining against frost damage in

environments where they may be exposed to temperatures below freezing point.

1.15 Safety information - Product specific

Hydraulic locking

Ball valves are prone to lock-up when used on certain heating/cooling applications where both

steam and liquid will pass through the valve. This is caused by liquid trapped in the ball during

closure being heated to create a high hydraulic pressure inside the ball cavity. To prevent this,

during manufacture, a minute hole is drilled in the ball, so, that in the closed position, any excess

pressure will be relieved. Spirax Sarco ball valves for these applications are clearly marked to allow

the valve to be correctly installed, such that, when closed, the hole is facing the steam source.

Seat

If the 'O' rings have been subjected to a temperature approaching 260 °C (500 °F) or higher, they

may have decomposed and formed hydrofluric acid. Avoid skin contact and inhalation of any fumes

as the acid can cause skin burns and damage to the respiratory system.

1.16 Disposal

Unless otherwise stated in the Installation and Maintenance Instructions, this product is recyclable

and no ecological hazard is anticipated with its disposal providing due care is taken, with the

exception of PTFE.

PTFE:

- Can only be disposed of by approved methods, not incineration.

- Keep PTFE waste in a separate container, do not mix it with other rubbish, and consign it to

a landfill site.

1.17 Returning products

Customers and stockists are reminded that under EC Health, Safety and Environment Law,

when returning products to Spirax Sarco they must provide information on any hazards and the

precautions to be taken due to contamination residues or mechanical damage which may present a

health, safety or environmental risk. This information must be provided in writing including Health

and Safety data sheets relating to any substances identified as hazardous or potentially hazardous.

IM-P133-16 CMGT Issue 5

Fig. 1 M10S flanged version shown

2.1 General description

The M10S three-piece body ball valve has been designed for use as an isolating valve, not a control valve, and

can be serviced without removal from the pipeline (screwed and welded versions only). It can be used with

the majority of industrial fluids for services ranging from vacuum to the higher temperatures and pressures.

Available types

M10S2 Zinc plated carbon steel body, PDR 0.8 seats

Note: The nomenclature will be followed with

either FB (full bore) or RB (reduced bore).

M10S3 Stainless steel body, PDR 0.8 seats

M10S4 Complete stainless steel, PDR 0.8 seats

Standards

This product fully complies with the requirements of the Pressure Equipment Directive (PED) and carries

the mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at the time of order placement.

Note: For further information on this product see Technical Information sheet TI-P167-03-EN-ISS1.

2.2 Sizes and pipe connections

Full bore

¼", 3/8", ½", ¾", 1", 1¼", 1½" and 2"

Screwed and welded

BSP, BSPT, API/NPT, BW, SW

Flanged

DN15 to DN50

ASME (ANSI) Class 150, ASME (ANSI) Class 300

and EN 1092 PN40

Reduced bore

¼", 3/8", ½", ¾", 1", 1¼", 1½", 2" and 2½"

Screwed and welded

BSP, BSPT, API/NPT, BW, SW

Flanged

DN15 to DN65

ASME (ANSI) Class 150, ASME (ANSI) Class 300

and EN 1092 PN40

End cap

Body

2. General product information

IM-P133-16 CMGT Issue 5

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

260

200

150

100

-29

500

400

300

200

100

-20

0 20 40 62 80 100

0 200 400 600 800 1000 1200 1400

2.3 Pressure/temperature limits

The product must not be used in this region.

A - BScrewed, BW and SW ¼" - 1½" FB, RB and 2" RB.

A - CScrewed, BW and SW 2" FB and 2½" RB only.

A - DFlanged ASME (ANSI) 300.

A - EFlanged EN 1092 PN40.

A - EFlanged ASME (ANSI) 150.

Note 1: On the 2" FB and 2½" RB a PTFE gasket is fitted between the body and cap.

Note 2: The flange standard may restrict the maximum operating pressure. Please check with Spirax Sarco.

Body design conditions PN100

PMA Maximum allowable pressure 100 bar g @ 60 °C (1 450 psi g @ 140 °F)

TMA Maximum allowable temperature 260 °C @ 0 bar g (500 °F @ 0 psi g)

Minimum allowable temperature -29 °C (-20 °F)

PMO Maximum operating pressure for saturated steam service 17.5 bar g (254 psi g)

TMO Maximum operating temperature 260 °C @ 0 bar g (500 °F @ 0 psi g)

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco -29 °C (-20 °F)

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of: 150 bar g (2175 psi g)

Temperature °C

Pressure bar g

Steam

saturation

curve

F E D

Pressure psi g

Temperature °F

IM-P133-16 CMGT Issue 5

Note: Before actioning any installation observe the 'Safety information' in Section 1.

Although the valve has great structural integrity, severe misalignment and/or the pulling effect of incorrect

pipe length will have a detrimental effect on the valve and must be avoided. Particular attention should be

paid to correct pipe alignment such that the inlet pipework and valve are all on the same axis.

Valves are for on/off applications and may be operated manually.

Wherever practicable, valves should be installed where there is adequate space available so that they can

be conveniently operated and maintained.

Before installing a valve, check to ensure that size, pressure rating, materials of construction, end connections,

etc. are suitable for the service conditions of the particular application.

Care must be taken to ensure that all dirt which may have accumulated in the valve during storage is removed

before installation, maintain cleanliness during installation since the introduction of dirt can result in damage

to the valve seats and operating mechanism.

To minimise the danger of abrasive particles damaging the seats, pipeline strainers should be fitted upstream

of the valves.

Install the valve with the handle in a suitable position. The preferred position is with the spindle vertical. The

valve can be installed in any position for gas service (see Figure 3 below).

When used on steam services:

1. Fit a trapped drain pocket upstream of the valve.

2. Open valve slowly to prevent the risk of waterhammer damage.

Fig. 3 Correct installation for gas service

Do not mount the valve upside down for liquid

service (Figure 2).

Valves should be installed into the pipeline in the fully

closed position. Prior to welding socket and butt weld

valves into the pipeline, it will be necessary to:

1. Dismantle the end caps from the body.

2. Remove the seats and body gasket.

3. Weld each end cap to the pipeline.

4. Replace the seats and body gasket.

5. Reassemble.

Always open valves slowly to avoid system shocks.

Fig. 2 Incorrect installation for liquid service

3. Installation

IM-P133-16 CMGT Issue 5

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

Note: Before actioning any maintenance programme observe the 'Safety information' in Section 1.

6.1 General information

As with all mechanical devices, regular maintenance is the most efficient means of ensuring continued

operational efficiency.

Regular scheduled inspection of all valves is essential especially on valves which are operated only

occasionally.

6.2 General maintenance

Maintenance work can be carried out without removing the complete ball valve from the pipeline. Remove the

two upper bolts and nuts (15 and 16) and and then loosen the two lower bolts. The complete body assembly

can then be removed and any new parts fitted.

Flanged valve maintenance only - Remove the complete flanged valve from the pipeline. Remove the eight

nuts (16) and withdraw the four studs (15). The complete body assembly

can then be removed and new parts fitted.

6.3 To replace seats (5):

-Remove the body as described in Section 6.2.

-With the body removed, remove the seats (5).

-Fit new seats (5) pushing them into the body chamber.

6.4 To replace stem seals (6):

-Remove the body as described in Section 6.2.

-Remove the nuts (9 and 11) and the spring washers (8).

-Replace the stem seals (6).

6.5 Reassembly

Reassemble in reverse order to instructions given above. The studs and nuts (15 and 16) should be tightened

to the recommmended torques shown in Table 1 opposite.

After 24 hours in service, retighten the body studs and nuts.

After installation or maintenance ensure that the system is fully functioning. Carry out tests on any alarms

or protective devices.

The valve is operated manually by a handle, or automatically by an actuator. Special care must be taken to

ensure that the movement is made in the correct direction.

The valve can be used as an on/off control valve, and can be operated fully open or fully closed.

4. Commissioning

5. Operation

6. Maintenance

IM-P133-16 CMGT Issue 5

Table 1 Recommended tightening torques

Item no. Part Size N m (lbf ft)

Studs

Nuts

¼", 3/8", ½" RB 15 11

½" FB ¾" RB 15 11

¾" FB 1" RB 25 19.0

1" FB 1¼" RB 25 19.0

1¼" FB 1½" RB 40 30.0

1½" FB 2" RB 57 42.0

2" FB 2½" RB 75 55.0

9 and 11 Stem nuts

¼", 3/8", ½" RB 5.4 - 8.1 4 - 6

½" FB ¾" RB 5.4 - 8.1 4 - 6

¾" FB 1" RB 10.8 - 13.5 8 - 10

1" FB 1¼" RB 17.5 - 20.3 13 - 15

1¼" FB 1½" RB 17.5 - 20.3 13 - 15

1½" FB 2" RB 34 - 40 25 - 30

2" FB 2½" RB 40 - 47 30 - 35

Fig. 4

IM-P133-16 CMGT Issue 5

start of text under grey section header box

start of text continuing from previous page

TRANSLATION RUN OVER

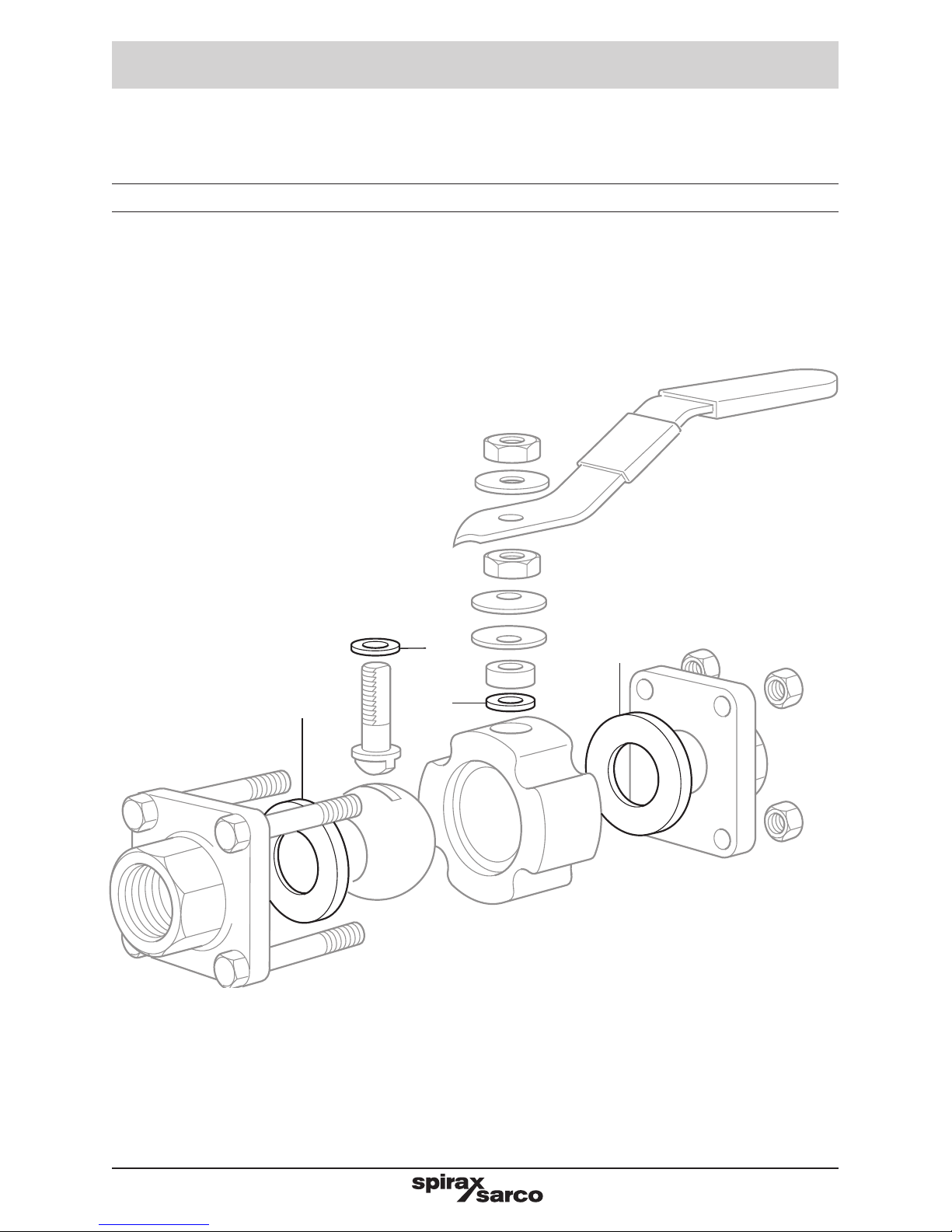

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spare

Seat and stem seal set 5, 6

How to order spares

Always order spares by using the description given in the column headed 'Available spare' and state the

size and type of ball valve required.

Example: 1 - Seat and stem seal set for a Spirax Sarco ½" M10S2FB ball valve.

Fig. 5 M10S screwed version shown

7. Spare parts

Table des matières

Autres manuels Spirax Sarco Unité de contrôle

Spirax Sarco

Spirax Sarco 25P Manuel utilisateur

Spirax Sarco

Spirax Sarco Colima FLU Series Manuel utilisateur

Spirax Sarco

Spirax Sarco FTC62 Manuel utilisateur

Spirax Sarco

Spirax Sarco Spira-trol KE73 Manuel utilisateur

Spirax Sarco

Spirax Sarco K Series Manuel utilisateur

Spirax Sarco

Spirax Sarco PV4 Manuel utilisateur

Spirax Sarco

Spirax Sarco TD120 Manuel utilisateur

Spirax Sarco

Spirax Sarco PM6 Manuel utilisateur

Spirax Sarco

Spirax Sarco FTS14 Manuel utilisateur

Spirax Sarco

Spirax Sarco 25E Manuel utilisateur

Spirax Sarco

Spirax Sarco PF5 Series Manuel utilisateur

Spirax Sarco

Spirax Sarco M10Si Automation Manuel utilisateur

Spirax Sarco

Spirax Sarco 25BP Manuel utilisateur

Spirax Sarco

Spirax Sarco M15 Series Manuel utilisateur

Spirax Sarco

Spirax Sarco ABV21i Manuel utilisateur

Spirax Sarco

Spirax Sarco M80i ISO Manuel utilisateur

Spirax Sarco

Spirax Sarco WAV1 Manuel utilisateur

Spirax Sarco

Spirax Sarco DP27 Manuel utilisateur

Spirax Sarco

Spirax Sarco DP17 Manuel utilisateur

Spirax Sarco

Spirax Sarco 25P Manuel utilisateur

Spirax Sarco

Spirax Sarco M10HPi ISO Series Manuel utilisateur

Spirax Sarco

Spirax Sarco FT 43 Series Manuel utilisateur

Spirax Sarco

Spirax Sarco SRV2S Manuel utilisateur

Spirax Sarco

Spirax Sarco 600 Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
