SY-K7VMP Quick Start Guide

Introduction

Congratulations on your purchase of the

SY-K7VMP

motherboard. This Quick Start

Guide illustrates the steps for installing and setting up your new motherboard.

This guide provides all users with the basic steps of motherboard setting and operation.

For further information, please refer to the SY-K7VMP motherboard User’s Manual that

came with your motherboard.

Unpacking

When unpacking the motherboard, check for the following

items:



The SY-K7VMP AGP/PCI Motherboard



The user manual



The Installation CD-ROM



One IDE Device ATA 133 Flat Cable



One Floppy Disk Drive Flat Cable



One Heat Sink Compound



One 1394 Bracket



One Back Panel

1394

SY-K7VMP

Quick Start Guide

Introduction

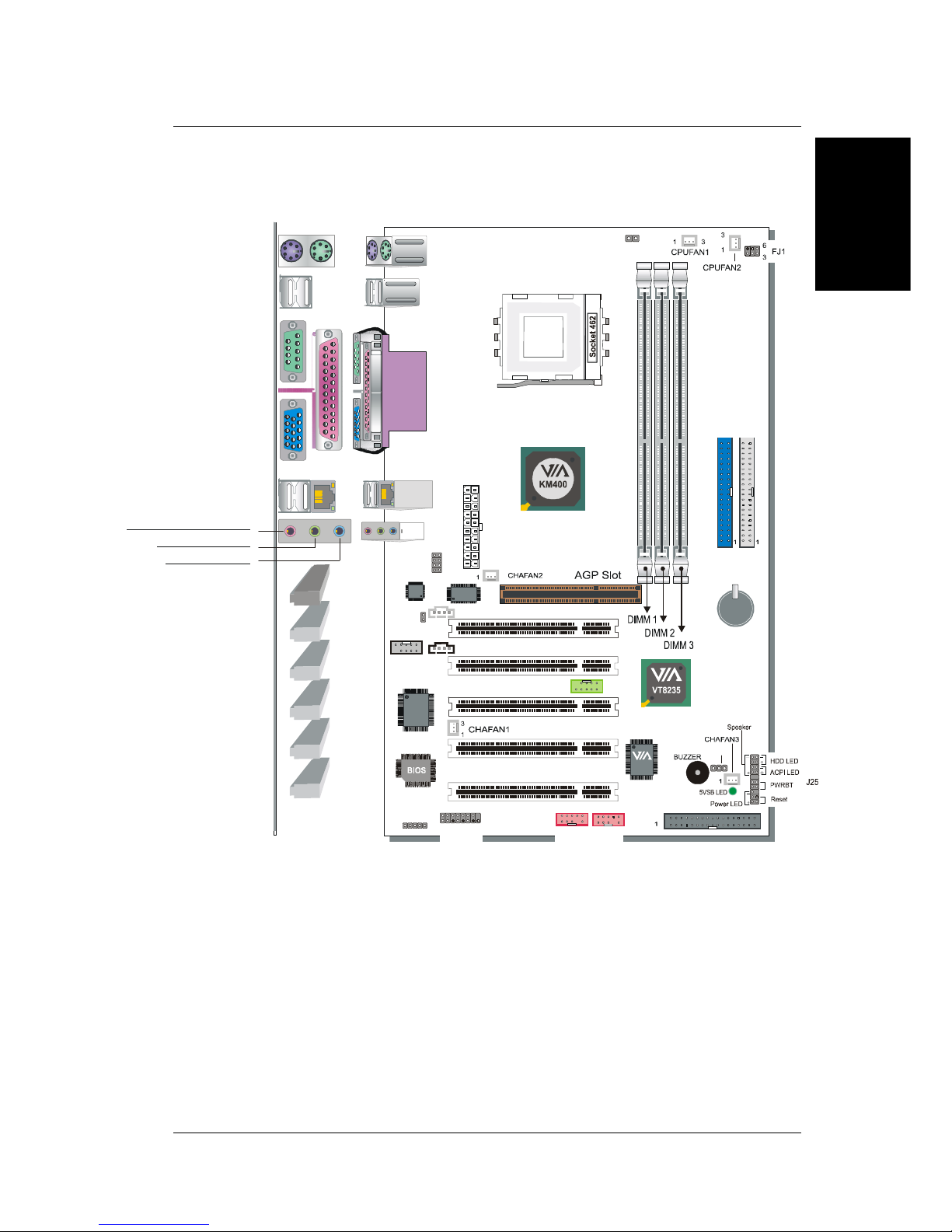

SY-K7VMP Layout

PS/2 KB

Connector

PS/2 MousePS/2 Mouse

Connector

Lithium

Battery

ATX Power

PRT

COM A

VGA out

I/O

CHIP

115

GAME1

JP5

Audio out / Front out

Audio in / Rear out

MIC IN / Center & Bass out

SIRCON

PCI Slot #5

PCI Slot #1

PCI Slot #4

PCI Slot #3

PCI Slot #2

USB20_1

COM2

CDIN1

AUXIN1

USBLAN

USB 1/USB 2

LAN Connector

J30

CDSPDO

AC97

code c

LAN Chip

FLP

IDE 1 IDE 2

ABR

FW1

FW2

T6307

SY-K7VMP Quick Start Guide

Introduction

Key Features

CPU

Supports AMD 462 pins Socket A processors :



Athlon XP (Palomino/Thoroughbred/Barton)

(200/266/333 MHz FSB)



Duron/Morgan



SOYO COMBO Setup CMOS setup menu for

complete and easy changing of your CPU settings

in CMOS setup, making jumpers obsolete.

Chipset

VIA® KM400/ 8235 Chipset

VGA

UniChrome™ 2D/3D Graphics with motion

compensation

Memory



Supports PC2100 and PC2700 DDR

(non-registered and non-ECC) memory modules.



SOYO COMBO Setup menu, to fully configure your

memory settings.

AGP

1x AGP master 4x/8x slot (1.5v only)

PCI

5x 32-bit bus master PCI slots

Super I/O

ITE IT8705F Super I/O controller supporting :



Floppy disk controller



Parallel port (SPP, EPP and ECP compliant)



2x 16550A compatible RS232 serial ports ( 1x rear,

1x motherboard connector)



IrDA compatible infrared port



Gameport header



PS/2 Keyboard and mouse



Hardware monitor for monitoring temperatures,

voltages and fan speeds in the system.

Storage

8235 Integrated Parallel ATA controller supporting up to

4x UDMA 33/66/100/133 Parallel ATA devices.

USB 2.0

6x USB 2.0 compliant ports (4x on rear IO panel, 2x

motherboard connectors.

IEEE 1394

Onboard VIA VT6307 IEEE1394 Firewire controller with

2x motherboard connectors

SY-K7VMP

Quick Start Guide

Introduction

Sound

Onboard VIA VT1616 6 channel Audio Codec

Network

10/100 MBps 100Base-T Ethernet controller, supporting

Wake-On-Lan (WOL)

BIOS



Power Failure resume function to allow the system

to turn on or off after a power failure, which is

indispensable for server systems.



Wake On Ring and Power On by Alarm to allow

your system to wake up from suspend or power on

through the modem or RTC alarm.



Multiple boot, allowing your system to boot from for

example CD-ROM

Software



SOYO Hardware Doctor allowing you to fully

monitor and control your system



SOYO Bonus Pack CD-ROM containing free bonus

software.

Industry standards

This motherboard is compliant with the following industry

standards :



Microsoft PC99



FCC



ACPI

SY-K7VMP Quick Start Guide

Installation

To avoid damage to your motherboard, please follow these simple rules

while handling this equipment:



Before handling the motherboard, ground yourself by touching on to an unpainted

portion of the system's metal chassis.



Remove the motherboard from its anti-static packaging. Hold the motherboard by

the edges and avoid touching its components.



Check the motherboard for damage. If any chip appears to be loose, press

carefully to seat it firmly in its socket.

Follow the directions in this section, which is designed to guide you through a quick and

correct method to install your new

SY-K7VMP

motherboard. For detailed information,

please refer to the SY-K7VMP motherboard User's Manual and Technical Reference

online manual on the CD-ROM package that came with your motherboard.

Gather and prepare all necessary components to complete the installation successfully:



Socket A processor with CPU cooling fan (boxed type)



DDR SDRAM module(s)



Computer case with adequate power supply unit



Monitor



PS/2 or USB Keyboard



Pointing Device (PS/2 or USB Mouse)



Speaker(s) (optional)



Disk Drives: HDD, CD-ROM, Floppy drive…



External Peripherals: Printer and Modem (optional)



Internal Peripherals: Modem and LAN cards (optional)

Note:

If you want to use an external speaker connected to "Line-out" port, please make

sure to use an "amplified speaker" that can generate proper output sound volume.

SY-K7VMP

Quick Start Guide

Installation

Install the Motherboard

We will now begin the installation process. Please follow the

step-by-step procedure designed to lead you to a complete and correct

installation.

Step 1

- Install the Central Processing Unit (CPU)

Step 2

- Install memory modules

Step 3

- Install expansion cards

Step 4

- Connect cables, case wires, and power supply

Step 1. Install the CPU

CPU Mount Procedure:

To mount the AMD

K7 Athlon

, Athlon

XP & Duron

processor that you have purchased separately, follow these instructions.

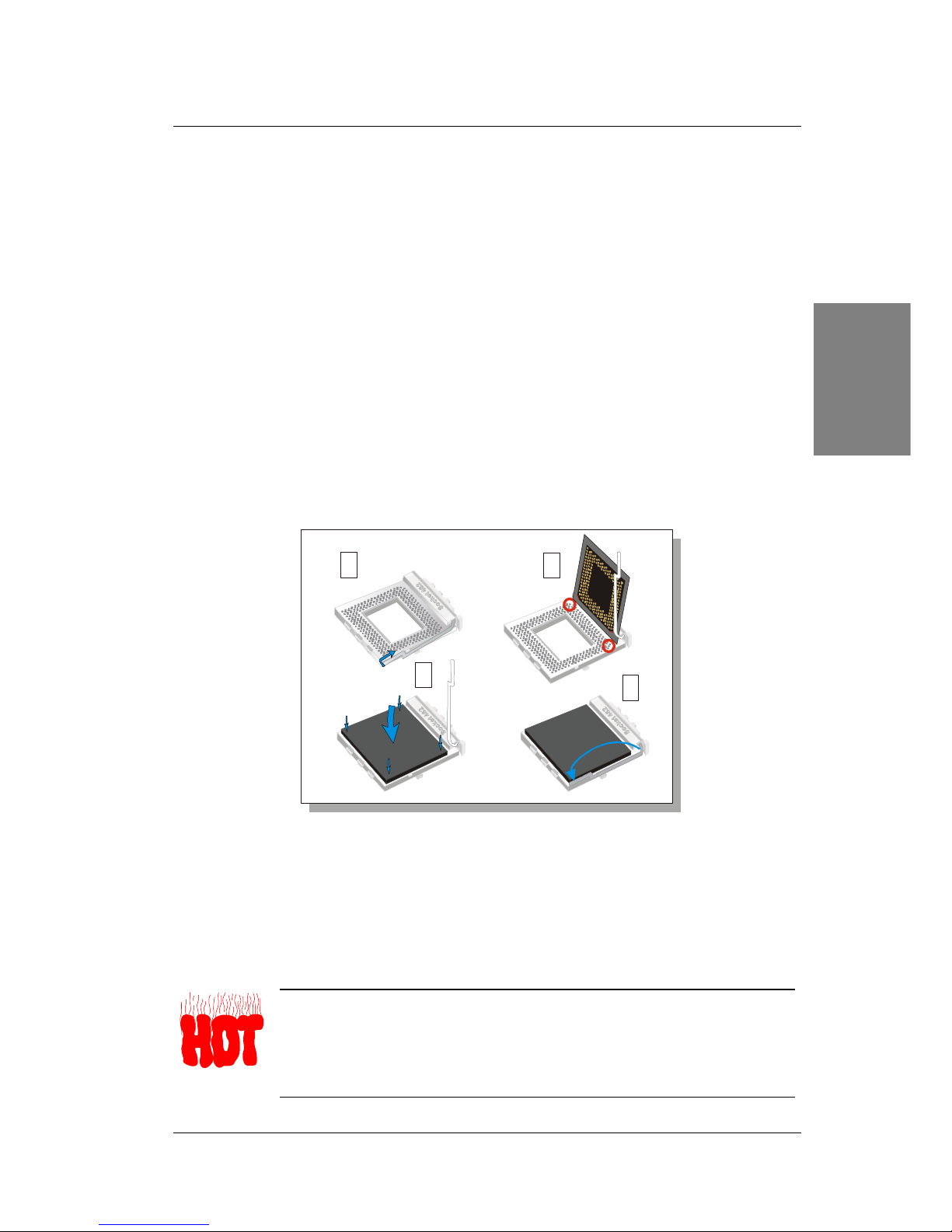

1. Lift the socket handle up to a vertical position.

2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.

3. Seat the processor in the socket completely and without forcing.

4. Then close the socket handle to secure the CPU in place.

Remember to connect the CPU Cooling Fan to the appropriate power

connector on the motherboard. The fan is a key component that stabilizes

the system. It prevents the equipment from overheating and prolongs the

life of your CPU. If your FAN is not connected or connected improperly

your CPU can be permanently damaged.

SY-K7VMP Quick Start Guide

Installation

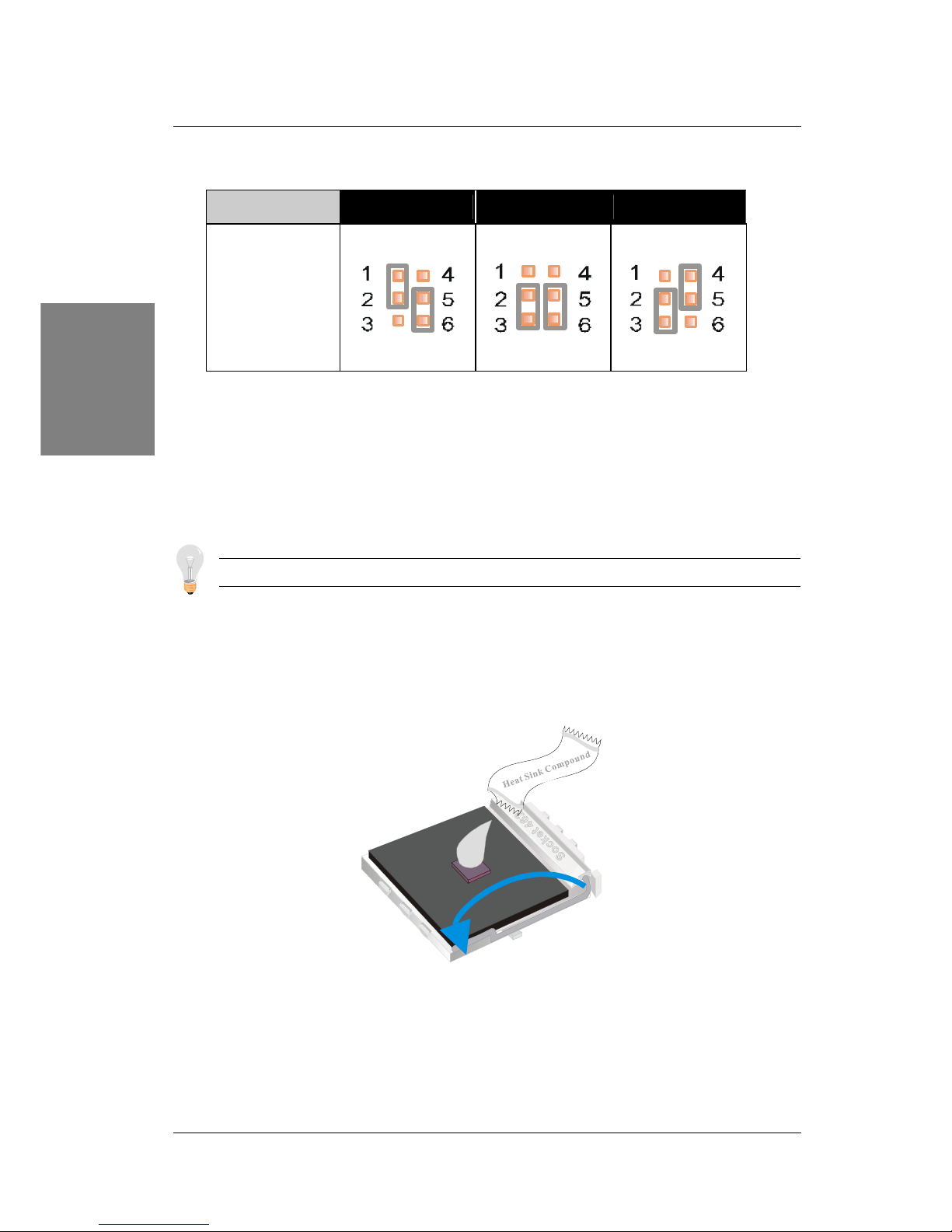

5. Set the jumpers on the FJ1 jumper block to the correct FSB for your CPU.

FJ1 100 MHz 133 MHz 166 MHz

FSB Clock Select

CPU Fan Installation

Your Socket A processor kit comes with a cooling fan. Mount the fan on the processor according to the

instructions provided by the manufacturer. The fan is a key component that will ensure system stability.

The fan prevents overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

CPU Fan Mount Procedure:

To prevent scratch or damage on the motherboard,

please follow the instructions on how to mount the CPU fan properly.

1. Apply thermal paste to the die of the CPU.
