SOYO SY-K7ADA Manuel utilisateur

SY-K7ADA

Motherboard

****************************************************

AMD®

Athlon/Duron

Processor supported

ALI MAGIK1 AGP/PCI Motherboard

266/200 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

SOYO™SY-K7ADA

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: March 2001

Version 1.0

K7ADA SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-K7ADA

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION...............................1

1-1 INTRODUCTION............................................................1

1-2 KEY FEATURES.............................................................1

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS .........4

1-4 SY-K7ADA MOTHERBOARD LAYOUT .......................5

1-5 SY-K7ADAMOTHERBOARD COMPONENTS........................6

1-6 MICROPROCESSOR.......................................................8

1-7 CHIPSET.........................................................................9

1-8 HARDWARE MONITOR...............................................12

1-9 WAKE ON LAN TECHNOLOGY..................................13

CHAPTER 2 HARDWARE INSTALLTION......................................14

2-1 PREPARATIONS...........................................................14

2-2 UNPACKING THE MOTHERBOARD..........................15

2-3 INSTALLATION GUIDE...............................................16

2-3.1 CPU Installation...................................................17

2-3.2 DDR SDRAM Memory Module Installation ...........20

2-3.3 Motherboard Connector........................................22

2-3.4 Jumper Setting......................................................36

2-3.5 The synchronous/asynchronous clock mode between

CPU and memory interface setting.................................................38

2-3.6 CPU Vcore adjustment (VJ1).................................38

2-3.7 CMOS Clearing (JP5)...........................................39

2-3.8 Power On..............................................................40

2-3.9 Quick BIOS Setup .................................................41

2-3.10 Troubleshooting at First Start..............................42

2-3.11 Power Off...........................................................45

CHAPTER 3 BIOS SETUP UTILITY................................................46

3-1 SOYO COMBO SETUP.................................................49

Table of Contents SY-K7ADA

3-2 ADVANCED BIOS FEATURES.....................................54

3-3 ADVANCED CHIPSET FEATURES..............................59

3-4 INTEGRATED PERIPHERALS.....................................62

3-5 POWER MANAGEMENT SETUP ................................66

3-6 PNP/PCI CONFIGURATION SETUP.............................70

3-7 PC HEALTH STATUS....................................................73

3-8 LOAD FAIL-SAFE DEFAULTS.....................................75

3-9 LOAD OPTIMIZED DEFAULTS...................................76

3-10 SUPERVISOR PASSWORD...........................................77

3-11 USER PASSWORD........................................................78

3-12 IDE HDD AUTO DETECTION .....................................79

3-13 BOOT MENU................................................................80

CHAPTER 4 DRIVER INSTALLATION...........................................81

Motherboard Description SY-K7ADA

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-K7ADA AGP/PCI Motherboard is a high-performance Socket

462 ATX form-factor system board. Using ALI Chipset technology. This

Motherboard is fully compatible with industry standards and adds many

technical enhancements.

1-2 KEY FEATURES

ØCPU SUPPORT

The SY-K7ADA supports THE FOLLOWING AMD® CPUs:

nSupports 200MHz Front Side Bus DDR(Double Data Rate) transfer

on Athlon(750MHz~1.2GHz)/ Duron(600MHz~850MHz)

nSupports 266MHz Front Side Bus DDR (Double Data Rate) transfer

on Athlon(1GHz~1.2GHz)

New released AMD Socket 462 CPUs will very likely be supported by the

SY-K7ADA as well.

ØCPU SETTINGS

The SY-K7ADA provides the user with a very complete and convenient

CPU setting environment. The CPU settings are all adjusted through the

DIP switch.

nCPU Frequency

The SY-K7ADA supports an incredible wide range of CPU frequency

settings:

600,650,700,750,800,850,900,950,1000+MHz.

This gives the SY-K7ADA an overwhelming overclocking potential.

Motherboard Description SY-K7ADA

nCPU Multiplier

ØEXPANDABILITY

The SY-K7ADA provides all the standard expansion slots, and many more

additional expansion features:

uExpansion slots

n1 x 32-bit bus master AGP slot

n5 x 32-bit bus master PCI slots

uEnhanced IO

nFloppy disk controller

n2x EIDE controllers with support for up to 4 Ultra DMA

33/66/100 devices

nStandard/EPP/ECP parallel port

n2x 16550 compatible serial ports

nIrDA compatible infrared port

n6x USB (Universal Serial Bus) connectors

nPS/2 mouse connector

nPS/2 keyboard connector

Motherboard Description SY-K7ADA

ØADVANCED FUNCTIONS

The SY-K7ADA supports advanced functions such as:

nWake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is

provided by the SY-K7ADA to support this function).

nMultiple boot

The SY-K7ADA supports booting from devices such as CD-ROM,

FLOPPY DRIVE & HDD, LS120, SCSI, ZIP.

nPower on by modem or alarm

If the SY-K7ADA system is in suspend mode, it can be switched

back on through the modem or RTC alarm function. This opens a lot

of possibilities, such as remote access that switches the system on

only after the modem receives a call.

ØFAIL SAFE

The SY-K7ADA comes with added functionality to make managing the

system easy and safe

uHardware Monitor

The integrated Hardware Monitor IC and Hardware doctor software

enables the user to monitor system voltages, temperatures and FAN speeds.

This makes sure that the user is in full control of the system

ØSOYO Bonus Pack CD-ROM

ØCOMPLIANCE

The SY-K7ADA complies with all important industry standards. The

following underlines the reliability of the SY-K7ADA, a motherboard to

trust.

nPC99, ACPI compliant

ØUSER FRIENDLY

nSOYO Combo Setup

nJumperless design

nYou can set up the following options trough the BIOS setting

Motherboard Description SY-K7ADA

CPU FSB frequency

PCI clock

AGP Clock

SDRAM Clock

ØHANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-K7ADA

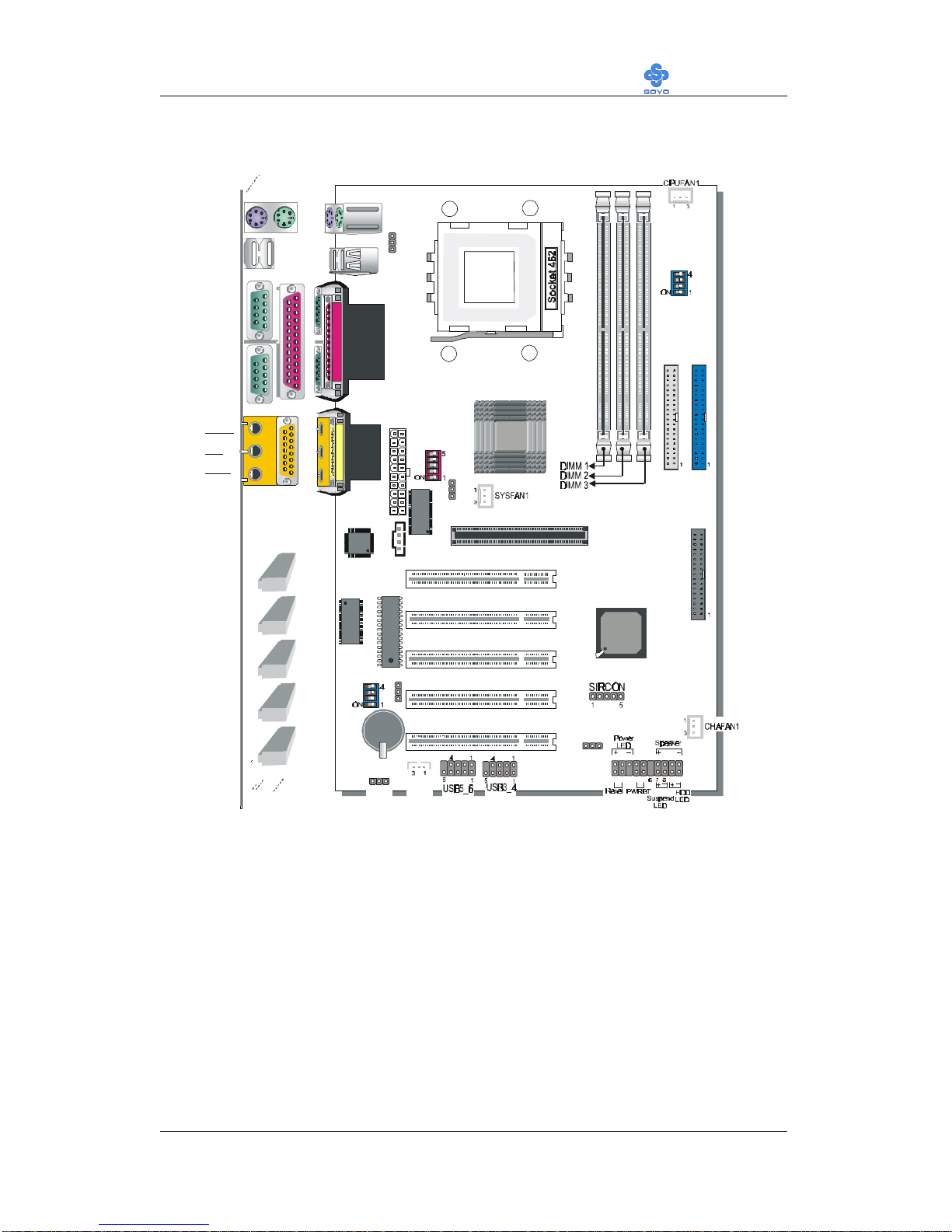

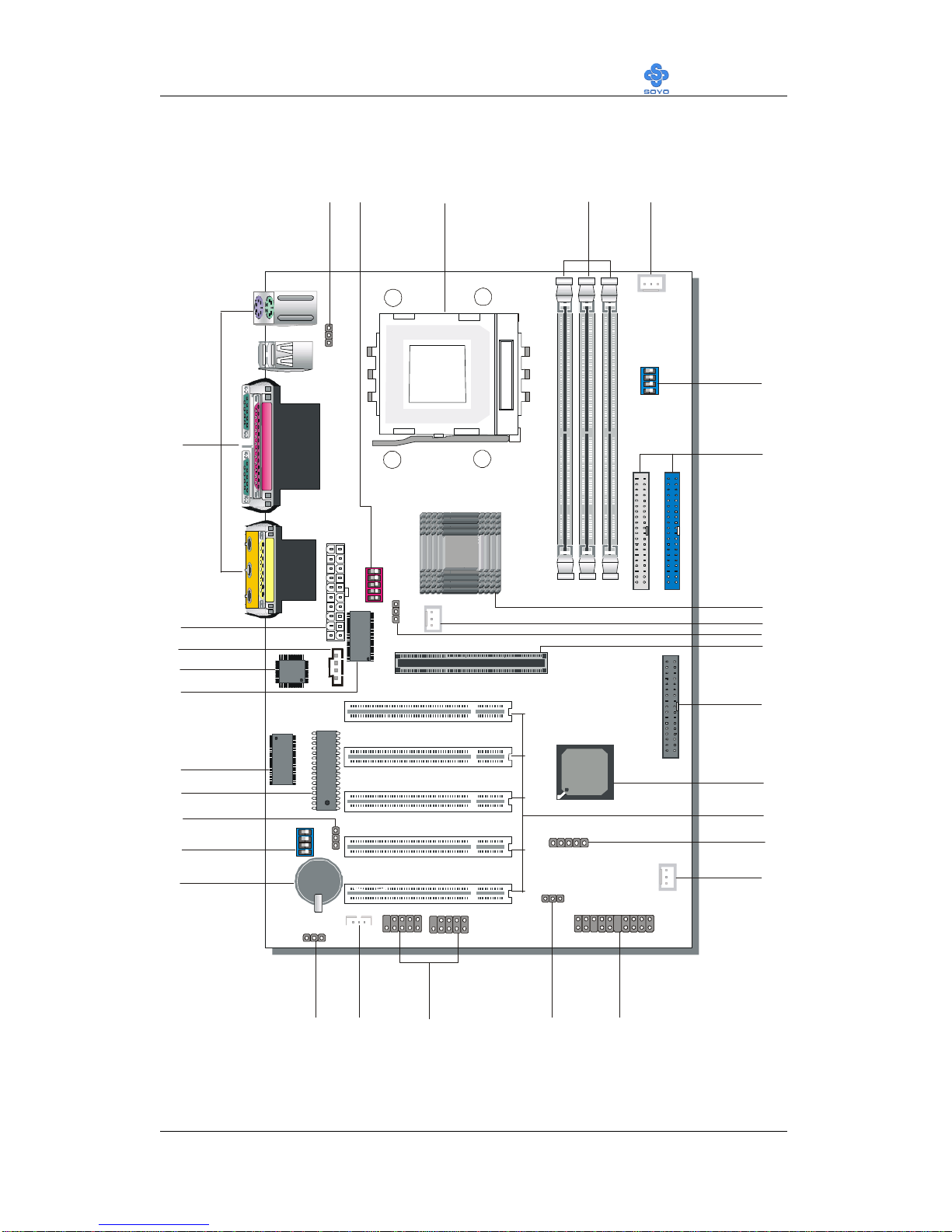

1-4 SY-K7ADA MOTHERBOARD LAYOUT

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

ATX Power

AOUT

AIN

AMIC

AGAME

COMA

COMB

USB 1_2

SDRAM

M1647

AGP Slot

Lithium

Battery

JP1

RJ2

RJ3

CDIN1

PCI Slot #5

Flash BIOS

PCI Slot #1

PCI Slot #4

PCI Slot #3

PCI Slot #2

FLP

IDE 1

IDE 2

M1535D+

FJ1

RJ1

VJ2

VJ1

ALi

JP5

JP10

WOL

Header

Sigmatel

STAC9700

ALi

M5879

ALi

M5819

Back Panel SY-K7ADA Platform

Motherboard Description SY-K7ADA

1-5 SY-K7ADA MOTHERBOARD COMPONENTS

SDRAM

Autres manuels pour SY-K7ADA

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO 82430 HX/P54C Manuel d'utilisation et d'entretien

SOYO

SOYO Motherboard SY-6ZB Manuel utilisateur

SOYO

SOYO SY-6IZM Manuel utilisateur

SOYO

SOYO 82430 TX P54C Manuel d'utilisation et d'entretien

SOYO

SOYO 80486 Manuel utilisateur

SOYO

SOYO SY-D6IBA2 Manuel utilisateur

SOYO

SOYO SY-KT600 DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7VCA-E Manuel utilisateur

SOYO

SOYO SY-P4I845PE Manuel utilisateur

SOYO

SOYO Pentium SiS 551x Manuel d'utilisation et d'entretien

SOYO

SOYO SY-5EMA+ Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K7VEMPRO Manuel utilisateur

SOYO

SOYO SY-P4VSA Manuel utilisateur

SOYO

SOYO SY-P4X400 DRAGON Lite Manuel utilisateur

SOYO

SOYO 82440 FX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7IWM Manuel utilisateur

SOYO

SOYO 6KME Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7IZB+N Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7VBA133U Manuel utilisateur

SOYO

SOYO SY-P4X400 DRAGON Lite Manuel utilisateur

SOYO

SOYO 6KB 82440 LX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K7VTA-B Manuel utilisateur

SOYO

SOYO SY-P4I845GE Manuel utilisateur

SOYO

SOYO SY-K7VIA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
