SOYO SY-K7VEMPRO Manuel utilisateur

SY-K7VEMPRO

Motherboard

****************************************************

AMD®Athlon/Duron

Processor supported

VIA VT8361 AGP/PCI Motherboard

200/266 MHz Front Side Bus supported

Micro-ATX Form Factor

****************************************************

User's Manual

SOYO™ SY-K7VEMPRO

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: November 2001

Version 1.0

K7VEMPRO SERIAL

CTest ed To Co mpl y

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-K7VEMPRO

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION...............................1

1-1 INTRODUCTION..............................................................1

1-2 KEY FEATURES ...............................................................1

1-3 HANDLING THE MOTHERBOARD ..............................3

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS.........3

1-5 SY-K7VEMPRO MOTHERBOARD LAYOUT................4

1-6 SY-K7VEMPRO MOTHERBOARD COMPONENTS.....5

1-7 MICROPROCESSOR........................................................7

1-8 MEMORY ..........................................................................8

1-9 CHIPSET............................................................................9

1-10 I/O INTERFACE CONTROLLER...................................12

1-11 HARDWARE MONITOR................................................15

1-12 WAKE ON LAN TECHNOLOGY ..................................16

CHAPTER 2 HARDWARE INSTALLATION ...................................17

2-1 PREPARATIONS.............................................................17

2-2 UNPACKING THE MOTHERBOARD ..........................18

2-3 INSTALLATION GUIDE ................................................19

2-3.1 CPU Installation ........................................................... 20

2-3.2 SDRAM Memory Module Installation ......................... 26

2-3.3 Motherboard Connector.............................................. 28

2-3.4 CPU FSB Setting (JP3) ................................................. 41

2-3.5 CMOS Clearing (JP5)................................................... 41

2-3.6 Power On ...................................................................... 42

2-3.7 Quick BIOS Setup.......................................................... 43

2-3.8 Troubleshooting at First Start ....................................... 44

2-3.9 Power Off ...................................................................... 46

CHAPTER 3 BIOS SETUP UTILITY.................................................47

Table of Contents SY-K7VEMPRO

3-1 STANDARD CMOS SETUP..........................................50

3-2 ADVANCED BIOS FEATURES ......................................54

3-3 ADVANCED CHIPSET FEATURES ...............................59

3-4 INTEGRATED PERIPHERALS.......................................64

3-5 POWER MANAGEMENT SETUP ..................................69

3-6 PNP/PCI CONFIGURATION SETUP..............................73

3-7 PC HEALTH STATUS ......................................................76

3-8 LOAD FAIL-SAFE DEFAULTS ......................................78

3-9 LOAD OPTIMIZED DEFAULTS.....................................79

3-10 SUPERVISOR PASSWORD ............................................80

3-11 USER PASSWORD ..........................................................81

3-12 BOOT MENU ...................................................................82

CHAPTER 4 DRIVERS INSTALLATION ..........................................83

CHAPTER 5 REALTEK LAN DRIVER INSTALLATION ...............88

Motherboard Description SY-K7VEMPRO

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-K7VEMPRO AGP/PCI Motherboard is a high-performance

Socket 462 Micro-ATX form-factor system board. The SY-K7VEMPRO

uses VIA Chipset technology and supports Socket 462 class processors.

This Motherboard is fully compatible with industry standards and adds

many technical enhancements.

1-2 KEY FEATURES

 CPU SUPPORT

The SY-K7VEMPRO supports a wide range of AMD CPUs:

 Supports 200MHz Front Side Bus on Athlon(750MHz~1.3GHz)/

Duron(600MHz~950MHz)

 Supports 266MHz Front Side Bus on Athlon(1GHz~1.33GHz)

New released AMD Socket 462 CPUs will very likely be supported by the

SY-K7VEMPRO as well.

 CPU SETTINGS

 CPU FSB Frequency

The SY-K7VEMPRO supports 100/133 MHz FSB CPU.

 EXPANDABILITY

The SY-K7VEMPRO provides all the standard expansion slots, and many

more additional expansion features:

 Expansion slots

 3 x 32-bit bus master PCI slots

 1 x 16-bit ISA slot

 Enhanced IO

 Floppy disk controller

 2x EIDE controllers with support for up to 4 Ultra DMA

33/66/100 devices

Motherboard Description SY-K7VEMPRO

 Standard/EPP/ECP parallel port

 1x 16550 compatible serial ports

 IrDA compatible infrared port

 2x USB (Universal Serial Bus) connectors

 PS/2 mouse connector

 PS/2 keyboard connector

 ADVANCED FUNCTIONS

The SY-K7VEMPRO supports advanced functions such as:

 Wake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is

provided by the SY-K7VEMPRO to support this function).

 Multiple boot

The SY-K7VEMPRO supports booting from devices such as

CD-ROM.

 Power on by modem or alarm

If the SY-K7VEMPRO system is in suspend mode, it can be switched

back on through the modem or RTC alarm through this function. This

opens a lot of possibilities, such as remote access that switches the

system on only after the modem receives a call.

 FAIL SAFE

The SY-K7VEMPRO comes with added functionality to make managing

the system easy and safe

 Hardware Monitor

The integrated VIA Hardware Monitor IC and Hardware doctor software

enables the user to monitor system voltages, temperatures and FAN speeds.

This makes sure that the user is full control of the system

 SOYO Bonus Pack CD-ROM

 COMPLIANCE

The SY-K7VEMPRO complies with all important industry standards. The

following underlines the reliability of the SY-K7VEMPRO, a motherboard

to trust.

Motherboard Description SY-K7VEMPRO

 PC99, ACPI compliant

 USER FRIENDLY

 Jumperless design

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

 Before handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

 Remove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

 Check the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

 Do not remove the anti-static packaging until you are ready to install.

 Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

 Frequently ground yourself while working or use a grounding strap.

 Handle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-K7VEMPRO

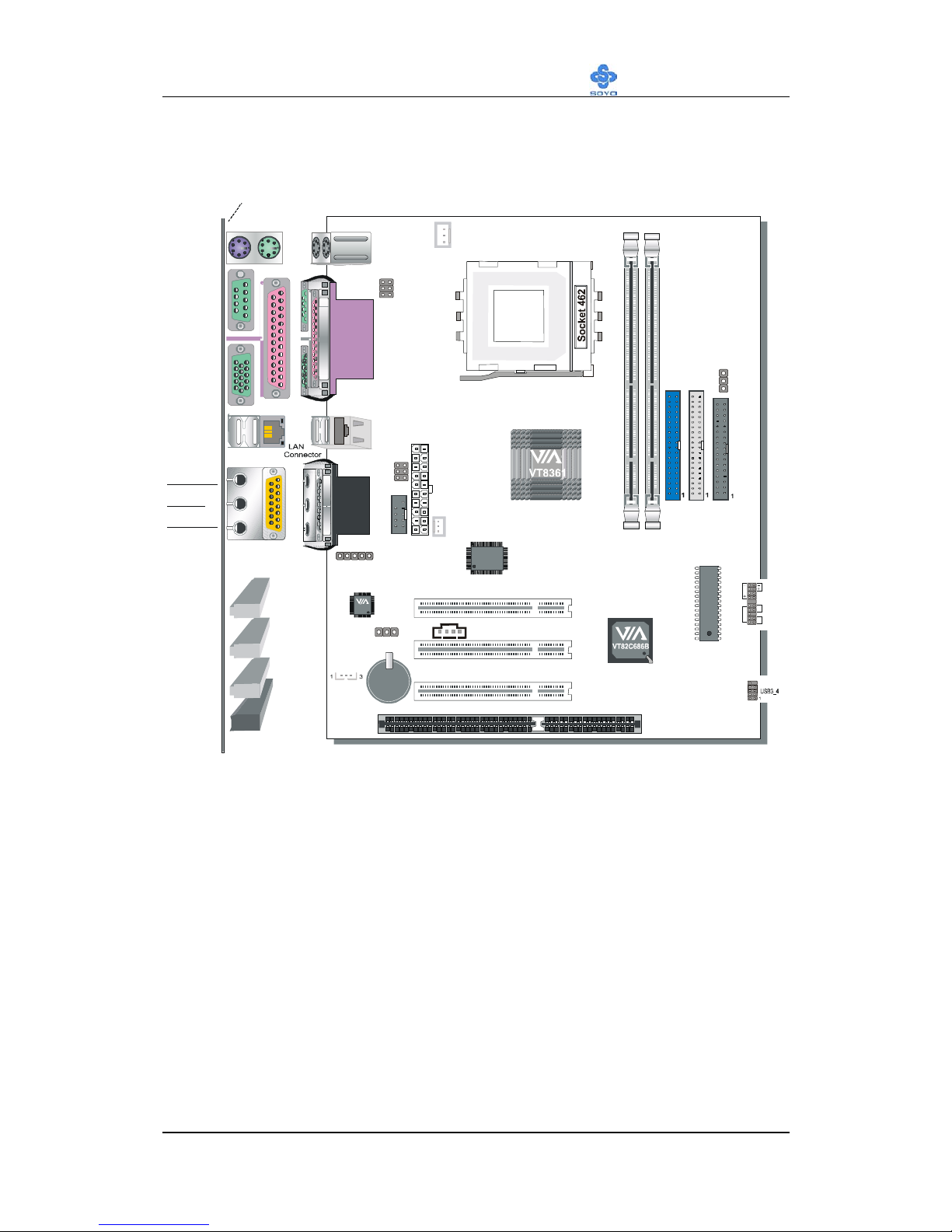

1-5 SY-K7VEMPRO MOTHERBOARD LAYOUT

Back Panel SY-K7VEMPRO Platform

PS/2 KB

ConnectorPS/2 MousePS/2 Mouse

Connector

Lithium

Battery

IDE 1 IDE 2

ATX Power

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

VGA

CHIPFAN

CPUFAN1

COM 1

JP3

JP5

J30

J28

CDIN1

SIRCON1

DIMM1

DIMM2

FDC1

JP44

RTL8139C

USB 1_2

COM2

ISA Slot #1

PCI Slot #3

PCI Slot #2

PCI Slot #1

Speaker

Power /

ACPI

LED

HDD

LED

Reset

PWRB T

VT1611A

Flash BIOS

Motherboard Description SY-K7VEMPRO

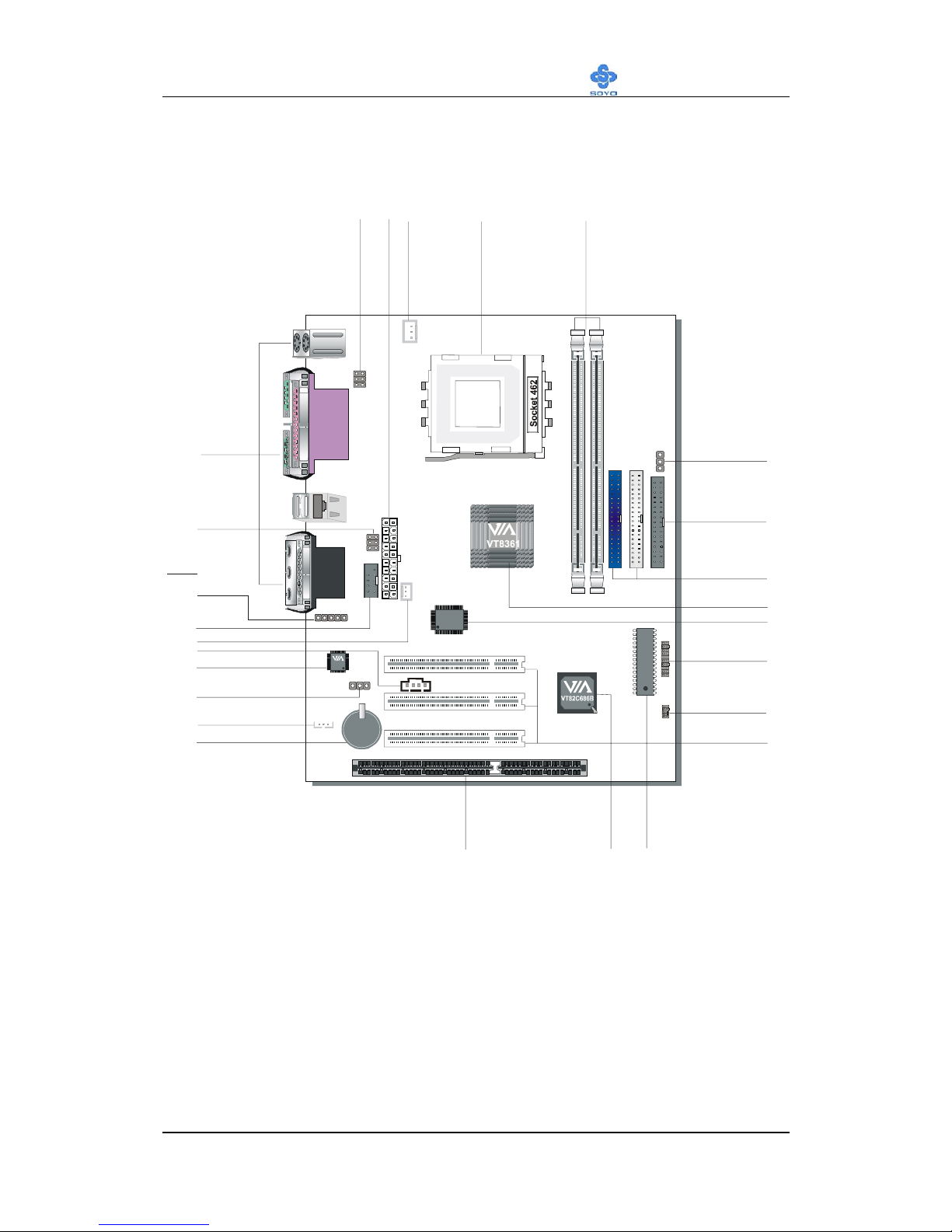

1-6 SY-K7VEMPRO MOTHERBOARD COMPONENTS

Lithium

Battery

RTL8139C

VT1611A

Flash BIOS

BC D E

NOP

Motherboard Description SY-K7VEMPRO

AKeyboard & Mouse Front Panel Header

B ATX Power Supply Connector

C CPU Cooling Fan Connector

D Socket 462 Connector

E DIMM Banks

F CPU FSB Selection Jumper

G Floppy Disk Drive (FDD) Port

H Bus Mastering E-IDE/ATAPI Ports

I VIA VT8361 North Bridge chip

J Realtek RTL8139C Ethernet LAN chip

K Front panel connectors

L USB Port3, Port4

M 32-bit PCI Mastering Slots

N Flash BIOS

O VIA 82C686B South Bridge chip

P 16-bit ISA Slot

Q 3V Lithium Battery

R Wake-On-LAN (WOL) Header

S CMOS Clear Jumper

T AC97 Codec Chip

U CD In Connector

V Chipset Fan Connector

W COM2 Serial Port

X Serial Infrared (IrDa) Device Header

Y Audio Mic & Earphone Front Panel Header

Z VGA Connector

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-K7V DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-K7VIA Manuel utilisateur

SOYO

SOYO 82430 TX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K7ADA Manuel utilisateur

SOYO

SOYO SY-6BE+ Manuel utilisateur

SOYO

SOYO SY-5SSM Manuel utilisateur

SOYO

SOYO ATX 12V Manuel utilisateur

SOYO

SOYO SY-K7VLM-B Manuel utilisateur

SOYO

SOYO 82440 FX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7IZM Manuel utilisateur

SOYO

SOYO SY-7VEM Manuel utilisateur

SOYO

SOYO Pentium P54C Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7SBB Manuel utilisateur

SOYO

SOYO SY-7VCA Manuel utilisateur

SOYO

SOYO SY-P4VTE Manuel utilisateur

SOYO

SOYO SY-7IWB Manuel utilisateur

SOYO

SOYO DRAGON Lite SY-KT333 Manuel utilisateur

SOYO

SOYO 82430 HX/P54C Manuel d'utilisation et d'entretien

SOYO

SOYO SY-D6IBA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-5EMA+ Manuel d'utilisation et d'entretien

SOYO

SOYO Motherboard SY-6ZB Manuel utilisateur

SOYO

SOYO 6KD Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7ISA plus Manuel utilisateur

SOYO

SOYO SY-7IZB+N Manuel d'utilisation et d'entretien

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
