SY-6BE

Mainboard

Quick Start Guide

For Assembly Version 1.0

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-6BE Mainboard

Pentium

II processor

82440 BX AGP/PCI Mainboard

66&100MHz Front Side Bus supported

ATX Form Factor

Trademarks:

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their

owners.

Product Rights:

Product and corporate names mentioned in this publication are used for identification purposes

only and may be registered trademarks or copyrights of their respective companies.

transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to revise the manual or make changes in the specifications of the

product described within it at any time without notice and without obligation to notify any

person of such revision or change. The information contained in this manual is provided for

general use by our customers. Our customers should be aware that the personal computer field is

the subject of many patents. Our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights

of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide is for assisting system manufacturers and end users in setting up and

installing the mainboard. Information in this guide has been carefully checked for reliability;

however, no guarantee is given as to the correctness of the contents. The information in this

document is subject to change without notice.

If you need any further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

6BE Serial - Version 1.0 - Edition: August 1998

*Thesespecificationsaresubjecttochangewithoutnotice

SY-6BE

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-6BE

Mainboard.ThisQuickStartGuide

describesthestepsforinstallingandsettingupyournewmainboard.

Thisguideisdesignedforalluserstoprovidethebasicstepsofmainboardsettingand

operation.Forfurtherinformation, pleasereferto SY-6BEMainboardUser'sGuideand

TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyourmainboard.

Unpacking

*Ifyourboardcomeswithadriverdiscandapapermanual,theQuickStartGuideandtheCD-ROMarenotincludedinthepackage.

Whenunpackingthemainboard,checkforthefollowingitems:

TheSY-6BE82440BXAGP/PCI Mainboard

ThisQuickStartGuide

TheInstallation CD-ROM

TheCPURetentionSet

OneIDEDeviceFlat Cable

OneFloppyDiskDriveFlatCable

SY-6BE Quick Start Guide

Introduction

SY-6BE Mainboard Layout

Key Features

SupportsIntelPentium

IIprocessor

(233-550MHz)

Auto-detectCPUvoltage

PC97,ACPI,UltraDMA/33MHz

Power-onbymodemoralarm

SupportsWake-On-LAN(WOL)

Supportsonboardhardware

monitoringandincludesHardware

Doctor™utility

SupportsCreativeSB-LINK™for

PCIaudiocard

1x32-bitAGPslot

4x32-bitbusmasteringPCIslots

2xUSBportsonboard

1xIrDAport

Supportsmultiple-bootfunction

DMIutility

COM 1

COM 2

PRT

USB 1USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector JP10

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

ISA Slot #2

ISA Slot #1

ISA Slot #3

JP5

JP44

Intel

82371 EB

SB-LINK

Intel

82443 BX

IR1

CPUFAN

Ultra

I/O Chipset

CHAFAN

IDE 1

IDE 2

FDC

Slot 1 for

PentiumIIProcessor

AGP Slot

ATX

Power

DIMM 1

DIMM 2

DIMM 3

Speaker

Keylock

Power

LED

Reset

PWRBT

Turbo

LED

HDD LED

BIOS Flash

SW1

Wake on

LAN

SY-6BE

Quick Start Guide

Hardware

Installation

Toavoiddamagetoyourmainboard,followthesesimpleruleswhile

handlingthisequipment:

Beforehandlingthemainboard,groundyourselfbygraspinganunpaintedportionof

thesystem'smetalchassis.

Removethemainboardfromitsanti-staticpackaging.Holditbytheedgesandavoid

touchingitscomponents.

Checkthemainboardfordamage.Ifanychipappearsloose,presscarefullytoseatit

firmlyinitssocket.

Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect

installationofyournew

SY-6BE

Mainboard.Fordetailedinformation,pleaserefer to SY-6BE

MainboardUser'sguideandTechnical Reference onlinemanualincludedontheCD-ROM

packedwithyourmainboard.

PREPARATIONS

Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation

successfully:

Pentium

processorwithbuilt-inCPUcoolingfan(boxedtype)

SDRAMmodule

Computercaseandchassiswithadequatepowersupplyunit

Monitor

PS/2Keyboard

PointingDevice(PS/2mouse)

VGACard

SoundCard(optional)

Speaker(s)(optional)

DiskDrives:HDD,CD-ROM,Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem-(optional)

InternalPeripherals:ModemandLANcards(optional)

SY-6BE Quick Start Guide

Hardware

Installation

Install the Mainboard

Followthestepsbelowinordertoperformtheinstallationofyournew

SY-6BE

Mainboard.

Step 1. Install the CPU

Mark your CPU Frequency:

RecordtheworkingfrequencyofyourCPU

thatshouldbeclearlymarkedontheCPUcover.

233MHz(66 x3.5) 300MHz(66 x4.5) 350MHz (100 x 3.5) 450MHz (100x 4.5)

266MHz(66 x4.0) 333MHz(66 x5.0) 400MHz (100 x 4.0) 500MHz (100x 5.0)

550MHz(100 x5.5)

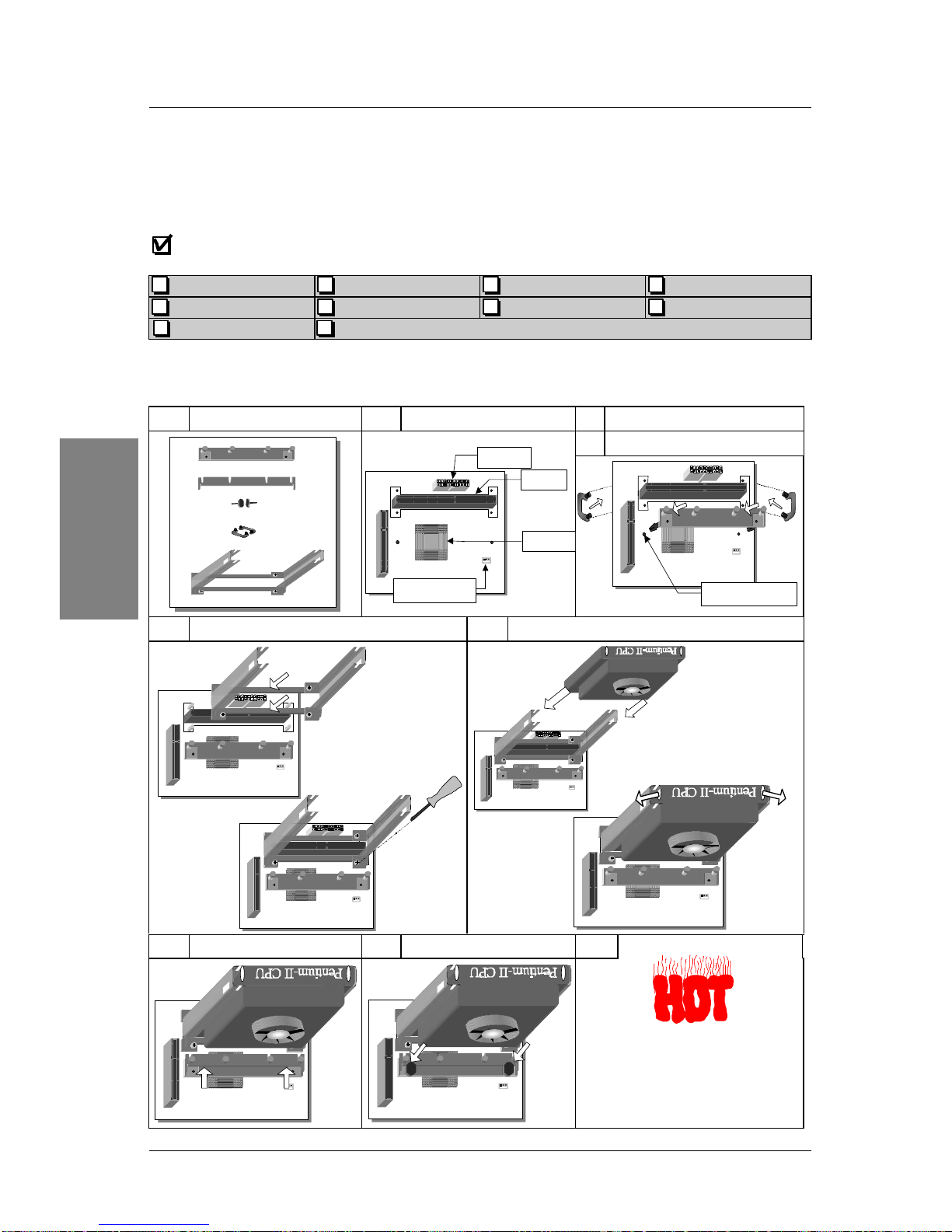

CPU Mount Procedure:

TomountthePentium

IIprocessorthatyouhave

purchasedseparately,followthese instructions.

Unpack the Retention Kit 2

Position the Mainboard 3

Insert the Screws

Install the Supporting Base

Install the Retention Clip 6

Install the CPU

Install the Support Clip 8

Insert the Latches 9

Remember to connect the CPU

Cooling Fan to the CPUFAN

power connector on the

mainboard.

Supporting Base

Support Clip

Screws (x2)

Retention Clip

Latches (x2)

ATX Power

Heat Sink

Slot 1

CPUFAN Power Larger Pinhole

SY-6BE

Quick Start Guide

Hardware

Installation

Step 2. Make Connections to the Mainboard

Thissectiontellshowtoconnectinternalperipheralsandpowersupplytothemainboard.

InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis Fan,

FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock

Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-6BE

Mainboard,pleasereferto SY-6BE MainboardUser'sGuideandTechnical Reference online

manualonCD-ROM.

Connectors and Plug-ins

PCI Audio Card Header: SB-Link™Wake-On-LAN Header: JP44

Connect the SB-Link™cable from your

creative sound blaster PCI audio card to

this header.

Connect the WOL cable from your LAN

card to JP44.

CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN

Connect the CPU cooling fan cable to the

CPUFAN power connector. Connect the case cooling fan cable to the

CHAFAN power connector.

USB TB LED SPK

Plug your USB devices

to this connector.

Connect your Turbo LED

cable to this header.

Connect the speaker cable to

this header.

RESET IDE LED KB-LOCK

Connect the reset button

to this heder.

Connect the IDE device

LED to this header.

Connect the Power LED and the

KB Lock switch to this header.

IrDA (Infrared Device

Header): IR1 ATX Power On/Off: PWRBT ATX Power Supply:

ATX PW

Connect the cable from

your IrDA device to this

header.

Connect your power switch to this

header (momentary switch type).

To turn off the system, please

press this switch and hold down

for longer than 4 seconds.

Attach the ATX Power

cable to this connector.

SY-6BE Quick Start Guide

Hardware

Installation

Step 3. Configure Memory

YourboardcomeswithfourDIMMsockets,providingsupportforupto768MBofmain

memoryusingDIMMmodulesfrom8MBto256MB.For66MHzfrontsidebusCPUsuse

12nsorfastermemory;for100MHzfrontsidebusCPUsuse8ns(100MHz,PC100

compliant)memory.

Memory Configuration Table

Number of

Memory Modules DIMM 1 DIMM 2 DIMM 3

11st

22nd 1st

33rd 2nd 1st

RAM Type SDRAM

Memory Module

Size (MB) 8/16/32/64/128/256 Mbytes

Note:(1) 256 MB memory modules only available on PC registered DIMM.

(2) Always install memory modules in the order prescribed in this table.

(3) Do not install unbuffered and registered memory modules together.

Important:

ItisofprimeimportancethatyouinstallDIMMmodulesasoutlinedinthetable

aboveinordertopreservesignalintegrityon100MHzfrontsidebussystems.

Step 4. Set SW1 for AGP bus clock

SW1isusedtosettheAGPbusclockfrequency.ThedefaultsettingforSW1isopen.

SW1hastobeclosedbyajumpercapwhenyousettheCPUHost(FSB)clockto66,68or

75MHz.

SW1

CPUFSBClock AGP Clock

66 66

68 68

SW1

AGPClock =

CPUFSBCLK

75 75

83 55.3

100 66.6

103 68.6

112 74.6

SW1

AGPClock =

CPUFSBCLK

1.5

133 88.6

Note: The specification of maximum AGP bus clock frequency is 66.6MHz.

SY-6BE

Quick Start Guide

Hardware

Installation

Step 5. Set the CPU Frequency

ThismainboarddoesnotuseanyjumperstosettheCPUfrequency,CPUsettingare

changedthroughtheBIOS[ChipsetFeaturesSetup].RefertoChapter3 “QuickBIOS

Setup”fordetailsonhowtosetthePentium



IIprocessorfrequency.

Enable/Disable Power-On by Keyboard (JP10)

YoucanchoosetoenablethePower-OnbyKeyboardfunctionbyshortingpin1-2onjumper

JP10,otherwise,shortpin2-3todisablethisfunction.

Power-On by

Keyboard Enable Disable* (*Default)

JP10 Setting Short pin 1-2 to enable the

Power-On by Keyboard function. Short pin 2-3 to disable the

Power-On by Keyboard function.

Important: When using the Power-On by Keyboard function, please make sure the

ATX power supply can take at least 700mAmp load on the 5V Standby lead (5VSB) to

meet the standard ATX specification.

Clear CMOS Data (JP5)

CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5foratleast5

seconds,andthenbyshortingpin1-2toretainnewsettings. Thisjumpercanbeeasily

identifiedbyitswhitecoloredcap.

CMOS Clearing Clear CMOS Data Retain CMOS Data (Default)

JP5 Setting Short pin 2-3 for

at least 5 seconds

to clear the CMOS.

Short pin 1-2

to retain the

new settings.

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

SY-6BE Quick Start Guide

Quick BIOS

Setup

Quick BIOS Setup

Afterthehardwareinstallationiscomplete,turnthepowerswitchon,thenpressthe

<DEL>

keyduringthesystemdiagnosticcheckstoentertheAwardBIOSSetupprogram.The

CMOSSETUPUTILITYwilldisplayonscreen.OK,followthesestepstocompletethequick

BIOSsetup.

Step 1. Select [LOAD SETUP DEFAULT]

Selectthe“LOADSETUPDEFAULT”menuandtype “Y”attheprompttoloadtheBIOS

optimalsetup.

Step 2. Select [STANDARD CMOS SETUP]

Set[Date/Time]and[Floppydrivetype],thenset[Hard DiskType]to “Auto”.

Step 3. Select [CHIPSET FEATURES SETUP]

Movethecursortothe

[CPUFrequency]

fieldtosettheCPUfrequency.

Available[CPUFrequency]settingsonyourSY-6BE Mainboardaredetailedinthefollowing

table.Ifyousetthisfieldto[Manual],youarethenrequiredtofillinthenexttwoconsecutive

fields:(1)theCPUHostClockSelect,and(2)theCPURatio.

CPU Frequency

233MHz (66 x 3.5) 400MHz (100 x 4.0)

266MHz (66 x 4.0) 450MHz (100 x 4.5)

300MHz (66 x 4.5) 500MHz (100 x 5.0)

333MHz (66 x 5.0) 550MHz (100 x 5.0)

350MHz (100 x 3.5)

Select the working frequency of

your Pentium®

II processor among

these preset values.

Note: Mark the checkbox that

corresponds to the working

frequency of your Pentium®

processor in case the CMOS

configuration should be lost.

Step 1. Select [SAVE & EXIT SETUP]

Press

<Enter>

tosavethenewconfigurationtotheCMOSmemory,andcontinuetheboot

sequence.

Autres manuels pour SY-6BE

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO DRAGON Lite SY-KT333 Manuel utilisateur

SOYO

SOYO SC-5EH5 Manuel d'utilisation et d'entretien

SOYO

SOYO SY-5SSM Manuel utilisateur

SOYO

SOYO SY-6IWM Manuel utilisateur

SOYO

SOYO SY-P4VSA Manuel utilisateur

SOYO

SOYO SY-6KE Manuel utilisateur

SOYO

SOYO SY-K7VTA PRO Manuel utilisateur

SOYO

SOYO 6KB 82440 LX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-5EMM Manuel d'utilisation et d'entretien

SOYO

SOYO 6KB Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K7VTA-B Manuel utilisateur

SOYO

SOYO SY-K7AIA Manuel utilisateur

SOYO

SOYO SY-D6IBA Manuel utilisateur

SOYO

SOYO SY-P4VTP Manuel utilisateur

SOYO

SOYO SY-K7VTA-B Manuel utilisateur

SOYO

SOYO SY-7IWM Manuel utilisateur

SOYO

SOYO 5XAE5 Manuel d'utilisation et d'entretien

SOYO

SOYO 82440 FX Manuel utilisateur

SOYO

SOYO 5ehm Manuel utilisateur

SOYO

SOYO SY-KT333 DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-D6IBA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6BA+ Manuel utilisateur

SOYO

SOYO 6KD Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K7VEMPRO Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
