SOYO SY-5EMA+ Manuel utilisateur

SY-5EMA+

Super 7™

Mainboard

Quick Start Guide

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

The SOYO CD

Installation

Introduction

Quick BIOS Setup

SOYO™

SY-5EMA+

Super7

™

Mainboard

Pentium®

Class CPU supported

ETEQ82C663 PCI/AGP Mainboard

ATX Form Factor

Trademarks:

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their

owners.

Product Rights:

Product and corporate names mentioned in this publication are used for identification purposes

only and may be registered trademarks or copyrights of their respective companies.

transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to revise the manual or make changes in the specifications of the

product described within it at any time without notice and without obligation to notify any

person of such revision or change. The information contained in this manual is provided for

general use by our customers. Our customers should be aware that the personal computer field is

the subject of many patents. Our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights

of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide is for assisting system manufacturers and end users in setting up and

installing the mainboard. Information in this guide has been carefully checked for reliability;

however, no guarantee is given as to the correctness of the contents. The information in this

document is subject to change without notice.

If you need any further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

* These specifications are subject to change without notice.

Version 1.1 Edition: September 1998

SY-5EMA+

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-5EMA+

PCI/AGPMainboard.ThisQuickStart

Guidedescribesthestepsforinstallingandsettingupyournew mainboard.

Thisguideisdesignedforalluserstoprovidethebasicstepsof mainboardsettingand

operation.Forfurther information,pleasereferto SY-5EMA+ MainboardUser'sGuideand

TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyour Mainboard.

Unpacking

Whenunpackingthe Mainboard,checkforthefollowingitems:

TheSY-5EMA+ Mainboard

ThisQuickStartGuide

TheInstallationCD-ROM

OneIDE DeviceFlatCable

OneFloppyDiskDrive FlatCable

SY-5EMA+ Quick Start Guide

Introduction

SY-5EMA+ Mainboard Layout

Key Features

Super7

Platform

512KByte/1MByteL2cache

SupportsCPUvoltagefrom2.0vto3.5v

in0.1vincrements

PC97,ACPI,UltraDMA/33MHz

Power-onbymodemorRTCalarm

SupportsWake OnLAN(WOL)

Fan-offinSuspendmode

5x32-bitbusmasteringPCIslots

2xUSBports,1xIrDAport

Supportsmultiple-bootfunction

DMIutility

Flash BIOS

JP44

JP5

AGP Slot

ISA Slot #1

Lithium

Battery

ETEQ

EQ82C6629

RST

PW2

SPK

Keylock

Power

LED

Turbo

LED

HDDLED

ETEQ

EQ82C6638

P.B. SRAM

64Kx64

P.B. SRAM

64Kx64

TAG 32Kx8

JP10

JP9

JP8

IDE 2

FDC

IDE 1

DIMM 1

DIMM 2

DIMM3

SMC

FDC37C669Q

CPUFAN

CHAFAN

PCI Slot #2

PCI Slot #3

PCI Slot #4

PCI Slot #5

JP30

JP1

JP2

PCI Slot #1

ISA Slot #2

IR 5

SW1

USB1USB2

PS/2 Mouse

Connector

PS/2 KB

Connector

ATX Power

(Optional)

WOL

Header

SY-5EMA+

Quick Start Guide

Installation

Toavoid damagetoyour Mainboard,followthesesimpleruleswhilehandling

thisequipment:

Beforehandlingthe Mainboard,groundyourselfbygraspinganunpaintedportionof

thesystem'smetalchassis.

Remove the Mainboardfromitsanti-staticpackaging.Holditbytheedgesandavoid

touchingitscomponents.

Check the Mainboardfordamage.Ifanychipappearsloose,presscarefullytoseatit

firmlyinitssocket.

Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect

installationofyournew

SY-5EMA+

Super 7

™Mainboard.Fordetailedinformation,please

refertoSY-5EMA+ Mainboard User'sguideandTechnicalReference onlinemanual

includedonthe CD-ROMpackedwithyour Mainboard.

PREPARATIONS

Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation

successfully:

Pentium

classprocessorwithcoolingfan

DRAMmemorymodules

Computercaseandchassiswithadequatepowersupplyunit

Monitor

Keyboard

PointingDevice(PS/2mouse)

VGACard

SoundCard(optional)

Speaker(s)(optional)

DiskDrives:HDD,CD-ROM, Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem-(optional)

SY-5EMA+ Quick Start Guide

Installation

Install the Mainboard

Followthestepsbelowinordertoperformtheinstallationofyournew

SY-5EMA+

Super

™Mainboard.

Step 1. Install the CPU

TomountthePentium

classprocessorthatyouhavepurchasedseparately,followthese

instructions.

CPU Mount Procedure

Liftthesockethandleuptoaverticalposition.

AlignthebluntedgeoftheCPUwiththematchingpinholedistinctiveedgeonthe

socket.

Seattheprocessorinthesocketcompletelyandwithoutforcing.

ThenclosethesockethandletosecuretheCPUinplace.

RemembertoconnecttheCPUCoolingFantotheappropriatepower

connectoronthe Mainboard.Thefanisakeycomponentthatwillensure

systemstability.Thefanpreventsoverheating,thereforeprolongingthelifeof

yourCPU.

3 4

SY-5EMA+

Quick Start Guide

Installation

Step 2. Set JP30 ,JP1 and JP2 for CPU Voltage

JP30isusedtosettheCPUcorevoltage,JP1andJP2areusedtoselecttheCPUvoltage

typesinglevoltageordualvoltage.

Pleaseverifythecorrectvoltagesettingswithyourdealerbeforeinstallation.Usethe

followingtabletosetJP30,JP1andJP2tothepropervoltagevalueaccordingtothe

specificationsmarkedonyourCPU:

Voltage Setting:

JP30

Processor Voltage

1-2 3-4 5-6 7-8

JP1 JP2

3.5 V

close close close close close

open

AMD K5 PR100

AMD K5 PR133

AMD K5 PR166

The AMD K5 and K6 come in several versions with different voltages.

Please verify the correct voltage settings with your dealer before

installation. The most common K5 runs on 3.52V.

AMD K6 166

AMD K6 200 2.9 V

open open

open

AMD K6 233 3.2 V

open open

close close

open

AMD K6 266

AMD K6 300

AMD K6-2 266

AMD K6-2 300

AMD K6-2 333

AMD K6-2 350

2.2 V

open

open open open

Cyrix 6x86(L) PR166+

Cyrix 6x86(L) PR200+

The Cyrix 6X86(L) and M

¢º

come in several versions with different

voltages. Please ask your dealer for the correct voltage.

Cyrix 6x86MX PR166

Cyrix 6x86MX PR200

Cyrix 6x86MX PR233

Cyrix 6x86MX PR266

Cyrix MII 300

Cyrix MII 333

Cyrix MII 350

2.9 V

open open

open

3.3 V

open

close close close

open

Intel P54C P100

Intel P54C P133

Intel P54C P166

Intel P54C P200

The P54C (standard Pentium®) comes in several versions with different

voltages. Please ask your dealer for the correct voltage. The most

common P54C runs on 3.3V.

2.8 V

open open open

open

Intel P55C P166

Intel P55C P200

Intel P55C P233

The P55C (MMX) processors have the same voltage setting.

SY-5EMA+ Quick Start Guide

Installation

Step 3. Set SW1 for CPU Frequency

TheDIPswitchSW1enableyoutoassigntheMultiplierandBusClock,asshowninthe

followingtable:

Frequency Setting:

SW1

Processor Multiplier CPU

Bus

Clock JP10 JP8 JP9

123456

AMD K5 PR100 1.5x 66MHz 1-2 2-3 2-3

off off off off off off

AMD K5 PR133 2.0x 66MHz 1-2 2-3 2-3

on off off off off off

AMD K5 PR166 2.5x 66MHz 1-2 2-3 2-3

on on off off off off

AMD K6 166 2.5x 66MHz 1-2 2-3 2-3

on on off off off off

AMD K6 200 3x 66MHz 1-2 2-3 2-3

off on off off off off

AMD K6 233 3.5x 66MHz 1-2 2-3 2-3

off off off off off off

AMD K6 266 4.0x 66MHz 1-2 2-3 2-3

on off on off off off

AMD K6 300 4.5x 66MHz 1-2 2-3 2-3

on on on off off off

AMD K6-2 266 4.0x 66MHz 1-2 2-3 2-3

on off on off off off

AMD K6-2 300 3x 100MHz 1-2 1-2 2-3

off on off off off on

AMD K6-2 333 3.5x 95MHz 1-2 1-2 2-3

off off off on off on

AMD K6-2 350 3.5x 100MHz 1-2 1-2 2-3

off off off off off on

Cyrix 6x86 MX PR 166+

2.0x 66MHz 1-2 2-3 2-3

on off off off off off

Cyrix 6x86 PR MX 200+

2.0x 75MHz 1-2 2-3 2-3

on off off off on off

Cyrix 6x86 MX PR 166

2.0x 66MHz 1-2 2-3 2-3

on off off off off off

2.5x 66MHz 1-2 2-3 2-3

on on off off off off

Cyrix 6x86 MX PR 200

2.0x 75MHz 1-2 2-3 2-3

on off off off on off

Cyrix 6x86 MX PR 233

2.5x 75MHz 1-2 2-3 2-3

on on off off on off

Cyrix 6x86 MX PR 266

2.5x 83MHz 1-2 1-2 2-3

on on off on on off

3.5x 66MHz 1-2 2-3 2-3

off off off off off off

Cyrix MII 300 3x 75MHz 1-2 2-3 2-3

off on off off on off

4.0x 66MHz 1-2 2-3 2-3

on off on off off off

3.5x 75MHz 1-2 2-3 2-3

off off off off on off

3x 83MHz 1-2 1-2 2-3

off on off on on off

Cyrix MII 333

2.5x 100MHz 1-2 1-2 2-3

on on off off off on

Cyrix MII 350 3x 100MHz 1-2 1-2 2-3

off on off off off on

P54C P100 1.5x 66MHz 1-2 2-3 2-3

off off off off off off

P54C P133 2.0x 66MHz 1-2 2-3 2-3

on off off off off off

P54C/P55C P166 2.5x 66MHz 1-2 2-3 2-3

on on off off off off

P54C/P55C P200 3x 66MHz 1-2 2-3 2-3

off on off off off off

P55C P233 3.5x 66MHz 1-2 2-3 2-3

off off off off off off

This main board supports various CPU multiplier and host bus frequency settings.

Please select the proper frequency setting based on specifications of the CPU you have

purchased. System stability or components damage, in case of over-specification setting, is

not guaranteed.

SY-5EMA+

Quick Start Guide

Installation

JP8isusedtoindicatethefrequencyoftheCPUbusclocktotheETEQchipset.

JP9andJP10areusedtodeterminethattheSDRAMisrunningatthefrequencyofthe

CPUbusclockortheAGPclock.

CPU BUS

Clock AGPBUS

Clock PCI Clock JP10 JP8 JP9 SDRAM

Clock

66MHz 66MHz 33MHz 1-2 2-3 2-3 66MHz

75MHz 75MHz 37.5MHz 1-2 2-3 2-3 75MHz

2-3 1-2 1-2 55MHz

83MHz 55MHz 27.5MHz 1-2 1-2 2-3 83MHz

2-3 1-2 1-2 63.4MHz

95MHz 63.4MHz 31.7MHz 1-2 1-2 2-3 95MHz

2-3 1-2 1-2 66MHz

100MHz 66MHz 33MHz 1-2 1-2 2-3 100MHz

2-3 1-2 1-2 75MHz

112MHz 75MHz 37.5MHz 1-2 1-2 2-3 112MHz

2-3 1-2 1-2 82.6MHz

124MHz 82.6MHz 41.3MHz 1-2 1-2 2-3 124MHz

Note:

Use 8ns or faster SDRAM modules (for PC100) when SDRAM is set to run at

the frequency of 95/100MHz.

Step 4. Configure Memory

YourboardcomeswiththreeDIMMsockets,providingsupportforupto768MBofmain

memoryusingDIMMmodulesfrom8MBto256MB.For66MHzhostbusCPUsuse12nsor

fasterDIMMmodules;for83MHzhostbusCPUsuse8nsmodules.

Memory Configuration Table

DIMM BanksMEMORY

CONFIGURATION DIMM 1 DIMM 2 DIMM 3

RAM Type FPM/EDO/SDRAM FPM/EDO/SDRAM FPM/EDO/SDRAM

Single RAM

Module Size (MB) 8/16/32/64/128/256 8/16/32/64/128/256 8/16/32/64/128/256

Note: Do not use FPM or EDO type of SIMM/DIMM if you already use SDRAM.

SY-5EMA+ Quick Start Guide

Installation

Step 5. Attach Connectors

Thissectiontellshowtoconnectinternalperipheralsandpowersupplytothe Mainboard.

InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,ChassisFan,

FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock

Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-5EMA+

Super7™Mainboard,please referto SY-5EMA+ MainboardUser'sGuideandTechnical

ReferenceonlinemanualonCD-ROM.

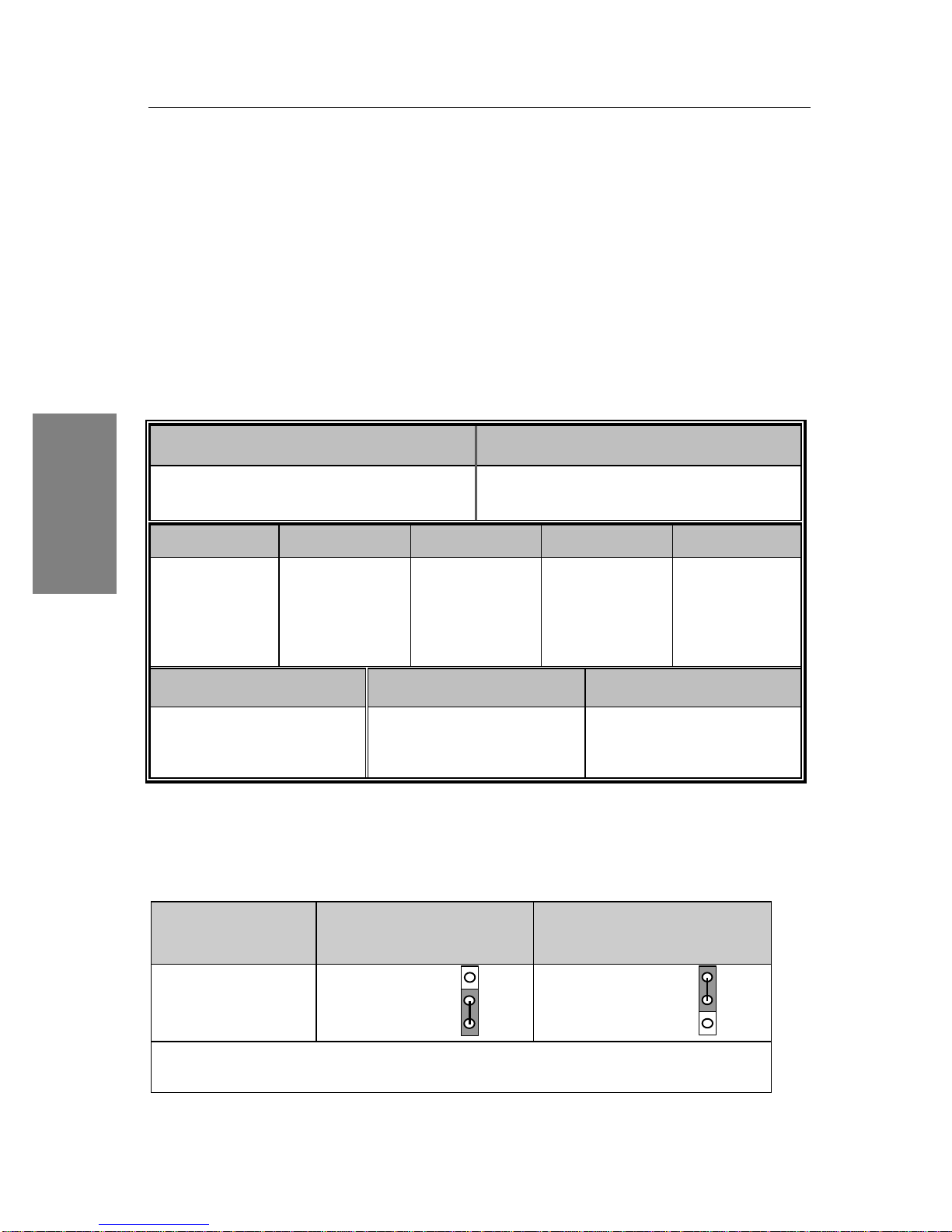

Connectors and Plug-ins

Wake-On-LAN Jumper: JP44 CPU Cooling Fan : CPUFAN

Chassis Cooling Fan : CHAFAN

Connect the WOL cable from your LAN card to

JP44. Connect you cooling Fan cable to this connector

TB LED SPK RESET IDE LED KB-LOCK

Connect your

Turbo LED to this

jumper

Connect the

speaker cable to

this jumper

Connect the reset

button to this

jumper

Connect the IDE

device LED to this

jumper

Connect the

Power LED and

the KB Lock

switch to this

jumper

IrDA (Infrared Device

Connector): IR ATX Power On/Off: PWRBT ATX Power Cable : ATX PW

Connect your IrDA device to this

connector Connect your power switch to

this jumper (momentary switch

type)

Attach the ATX Power cable to

this connector

CMOS Clear

CleartheCMOSmemorybyshortingpin2-3onjumperJP5,andthenbyshortingpin1-2to

retainnewsettings. Thisjumpercanbeeasilyidentifiedbyitswhitecoloredcap.

CMOS Clearing Clear CMOS Data Retain CMOS Data (Default)

JP5 Setting short pin 2-3 to

clear the CMOS Short pin 1-2 to

retain new settings

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

Autres manuels pour SY-5EMA+

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-7VCM Manuel utilisateur

SOYO

SOYO 486 PCI/VESA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7VCM Manuel utilisateur

SOYO

SOYO 82430 TX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7IWA-F Manuel utilisateur

SOYO

SOYO SY-6VBA 133 Manuel utilisateur

SOYO

SOYO DRAGON Lite SY-KT333 Manuel utilisateur

SOYO

SOYO 5EAS5 Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7VEM Manuel utilisateur

SOYO

SOYO SY-K7VTA-B Manuel utilisateur

SOYO

SOYO SY-K7ADA Manuel utilisateur

SOYO

SOYO SY-7IZM Manuel utilisateur

SOYO

SOYO 82430 VX PCI Manuel utilisateur

SOYO

SOYO SY-5EHM Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6IZM/3 Manuel utilisateur

SOYO

SOYO 82440 FX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7SBB Manuel utilisateur

SOYO

SOYO SY-7VBA133U Manuel utilisateur

SOYO

SOYO SY-6VZA Manuel utilisateur

SOYO

SOYO SY-7VBA133U Manuel utilisateur

SOYO

SOYO SY-KT600 DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7VEM Manuel utilisateur

SOYO

SOYO SY-5EMA+ Manuel utilisateur

SOYO

SOYO Super 7 V1.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
