Sony SDT 11000 - DDS Tape Drive Manuel utilisateur

3-866-090-04(1)

1998 Sony Corporation

DDS Tape Drive

SDT-10000 Series

SDT-11000 Series

User’s Guide

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for error

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

VORSICHT

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

Contents

Introduction .......................................4

Product Features........................4

Precautions ................................5

Installation .........................................6

SCSI Connection/Setting the

SCSI ID/Option Switches......6

Option Switches (DIP Switch) ..7

Mounting Holes........................8

Remodeling from 5.25" Model

to 3.5" Model .......................10

Orientation...............................11

Operation .........................................12

Location of 3 LEDs .................12

LED Indication for

Drive Status .........................13

Drive Operation.......................14

Emergency Cassette Removal

Procedure .............................15

Interface Implementation.................17

Supported SCSI Messages ......17

Supported SCSI Commands....17

Specification ....................................18

Product Specifications.............18

Third Party Support Contacts

(In the USA) ...............................20

Sony Contacts ..................................22

SDT-10000/SDT-11000 DDS-4

Tape Drive

Congratulation on your purchase of the Sony DDS-4 drive SDT-10000/

SDT-11000.

This drive is a high capacity data storage device using 4mm DAT (Digital

Audio Tape) technology. The SDT-10000/SDT-11000 drive achieves high

data reliability through Read-After-Write, an additional level of Error

Correction Code, and other features.

The Sony SDT-10000/SDT-11000 drive stores data on tape using a

standard format called DDS (Digital Data Storage), DDS-4, DDS-3, DDS-

2, DDS-DC and DCLZ formats. These formats are used by many other

DDS tape drive manufacturers, providing a broad range of compatible tape

drives.

The Sony SDT-10000/SDT-11000 is fully READ and WRITE compatible

with the DDS-4, DDS-3, DDS-2, DDS and DDS-DC format tapes.

Introduction

Product Features

• Supported Formats: DDS-4, DDS-3, DDS-2, DDS, DDS-DC and DCLZ

• High Burst Transfer Rate- 14MB/sec Asynchronous

40MB/sec Synchronous

• Large 10MB Buffer

• 3.5" Standard Height, 5.25" Half Height

• Embedded Wide Ultra SE SCSI Interface (SDT-10000)

• Embedded Wide Ultra LVD/SE SCSI Interface (SDT-11000)

• Supports Variable or Fixed Record Length

• Supports SCSI-2 Sequential-access Devices Command Set

• Read After Write (RAW)

• Frame Rewrite Function

• Three Levels of Error Correction Code (ECC)

• Quick Search (Forward: 115 times / Reverse: 155 times

normal DDS-4 Read / Write speed)

• Random Read

• N-Group Write Option (DDS-2, DDS and DDS-DC only)

• Dual Partition Option

• SCSI Disconnection/Arbitration

* Assuming 2:1 compression. Actual capacity and transfer rate may vary

since compression is depending upon data type.

Data Capacity

Transfer Rate

(sustained)

SDT-10000/SDT-11000

(With Data Compression)

40 GB (typical)*

4.7 MB/sec (typical)*

Precautions

Installation

Avoid placing the drive in a location subject to:

– high humidity

– high temperature

– mechanical shock and vibration

– direct sunlight

Operation

* Do not move the drive while it is operating. Doing so may cause a

malfunction.

* Avoid exposing the drive to sudden changes from low to high in

temperature. This may cause water condensation to collect inside the

drive. If the ambient temperature should suddenly rise while the drive is

turned on, wait at least one hour before turning on the drive. If you

attempt to operate the drive immediately after a sudden increase in

temperature, a malfunction may occur.

* Do not turn off the drive while a tape is inside the drive.

Transportation

* Keep the original packing materials for possible future shipments of the

drive.

* Be sure to remove any tapes from drive prior to transportation. After

removing the drive from the computer, repack the drive into its original

packaging.

Notice of SCSI Termination

This SDT-10000/SDT-11000 conforms to the Microsoft PC97 Hardware

Design Guide which requires the internal drive to be terminated with an

external terminator.

Microsoft PC97 SCSI requirements

SCSI peripherals must not terminate the bus. Both internal cable ends are instead

terminated by plug-in connectors.

Terminator

68p cable

Host Computer Wide SCSI

This drive

Example of SCSI set-up

Installation

SCSI Connection/Setting the SCSI ID/Option Switches

Pin 34

Pin 68

4321

GND GND 12V5V

Power Connector

SCSI ID

P.E.

Parity

Enable

Disable

Note : = CLOSE/Jumper

= OPEN/Jumper not installed

Don’t care

Parity Enable

Reserved

SCSI ID 3

SCSI ID 2

SCSI ID 1

SCSI ID 0

Jumpers

SCSI 68 pin connector (Non-Shielded)

Option Switches (DIP Switch)

UNLOAD

1 Reserved (OFF)

2 Reserved (OFF)

3 Reserved (OFF)

4 Reserved (OFF)

5 Terminator Power (ON)

6 Reserved (OFF)

7 DC Control-1 (ON)

8 DC Control-2 (OFF)

( ) ...default setting

Terminator Power Definition

OFF No provided

ON Provided

DC Control-1 DC Control-2 Definition

OFF OFF Compression disabled at power-on. The host is

allowed to control compression.

OFF ON Compression disabled at power-on. The host is

not allowed to control compression.

ON OFF Compression enabled at power-on. The host is

allowed to control compression.

ON ON Compression enabled at power-on. The host is

not allowed to control compression.

Mounting Holes

For 3.5" Standard Height (SDT-10000, SDT-11000)

(0.83 in)

21±0.3mm (2.36 in)

60±0.3mm

(3.54 in)

90±0.3mm

(0.20 in)

5±0.3mm

(depth 0.12 in)

3-M3 (depth 3mm)

(3.70 in)

94±0.3mm

(4.00 in)

101.6±0.5mm

(1.22 in)

31±0.3mm (1.65 in)

42±0.3mm

(2.76 in)

70±0.3mm (depth 0.12 in)

6-M3 (depth 3mm)

(2.36 in)

60±0.3mm

(3.54 in)

90±0.3mm

(5.75 in)

146±0.5mm

(0.15 in)

3.8±0.5mm

(0.83 in)

21±0.3mm

(0.20 in)

5±0.3mm

(1.62 in)

41.2±0.5mm

(depth 0.12 in)

3-M3 (depth 3mm)

For 5.25" Half Height (SDT-10000/R, SDT-11000/R)

4-M3

(5.75 in)

146±0.5mm

(3.70 in)

94±0.3mm

(1.22 in)

31±0.3mm (1.65 in)

42±0.3mm

(2.76 in)

70±0.3mm

(3.12 in)

79.2±0.3mm

(2.00 in)

50.7±0.3mm

(5.50 in)

139.6±0.4mm

(5.87 in)

149±0.5mm

(depth 0.12 in)

6-M3 (depth 3mm)

4-M3

(3.12 in)

79.2±0.3mm

(1.87 in)

47.5±0.3mm

(0.39 in)

9.9±0.3mm

(0.86 in)

21.8±0.3mm

4-M3

(3.12 in)

79.2±0.3mm

(1.87 in)

47.5±0.3mm

(1.62 in)

41.2±0.5mm

(0.86 in)

21.8±0.3mm

(0.39 in)

9.9±0.3mm

(

0.28 in

)

7±0.3mm

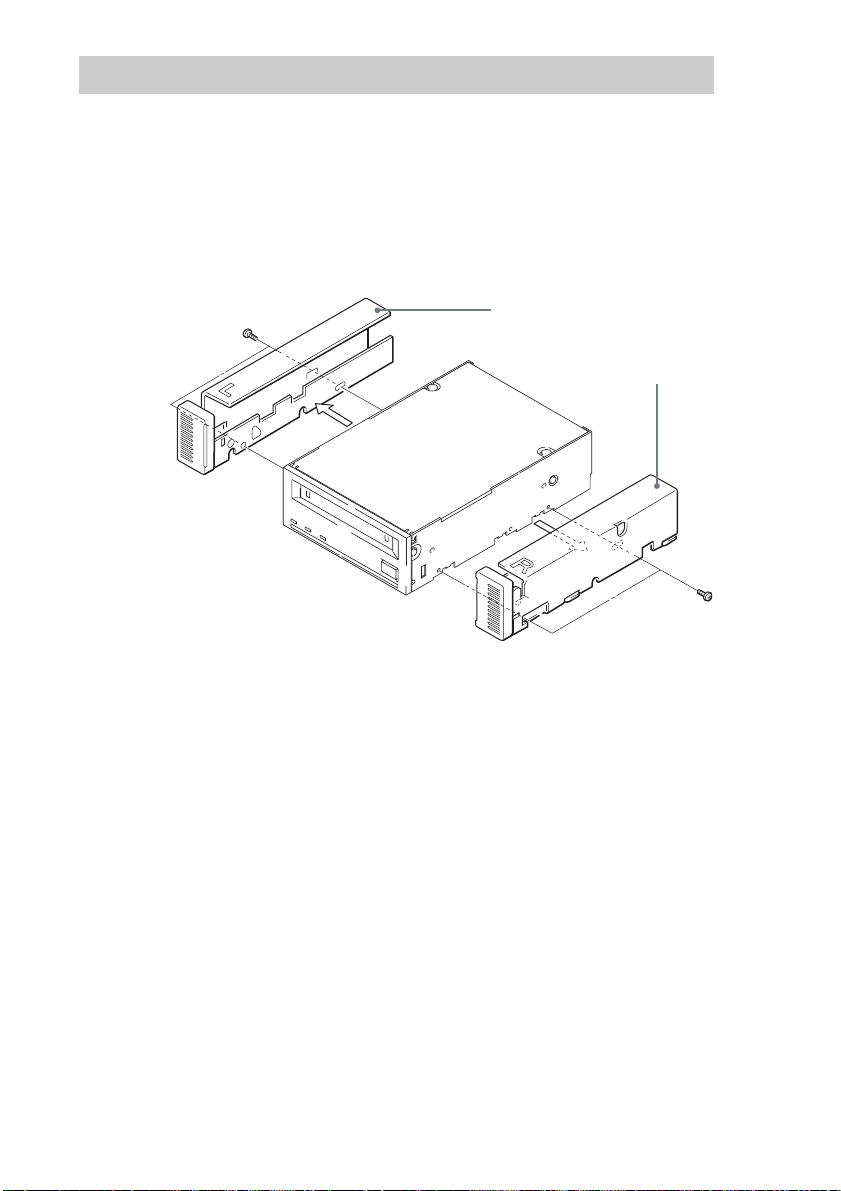

Remodeling from 5.25" Model to 3.5" Model

You can remodel the SDT-10000/R and the SDT-11000/R (5.25" model) to

the SDT-10000 and the SDT-11000 (3.5" model) yourself.

1Remove the 2 screws for each side rail.

2Take the side rail off.

Side Rail (L)

Side Rail (R)
