Sony MSAC-US5 Manuel utilisateur

3-065-562-11 (1)

Memory Stick

Reader/Writer

2000 Sony Corporation

MSAC-US5

Operating Instructions

Mode d’emploi

2-GB

English

Before operating the unit, please read this instructions thoroughly, and

retain it for future reference.

For the customers in U.S.A.

If you have any questions about this product, you may call:

Sony Customer Information Center 1-800-222-SONY(7669)

The number below is for the FCC related matters only

CAUTION

You are cautioned that any changes or modifications not expressly approved

in this manual could void your authority to operate this equipment.

Declaration of Conformity

Trade Name : SONY

Model : MSAC-US5

Responsible Party : Sony Electronics lnc.

Address : 1 Sony Drive, Park Ridge, NJ, 07656 USA

Telephone number : 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions.: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

3-GB

Note:

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

For the customers in Canada

This class B digital apparatus complies with Canadian ICES-003.

For the customers in Germany

Directive:EMC Directive 89/336/EEC.

92/31/EEC

This equipment complies with the EMC regulations when used under the

following circumstances:

• Residential area

• Business district

• Light-industry district

(This equipment complies with the EMC standard regulations EN55022 Class B.)

This unit is the Memory Stick Reader/Writer. This reader/writer has an optical

mouse function.

You can connect this unit to a personal computer so that data in a “Memory

Stick” can be transferred to the personal computer at high speed. You can also

use a “Memory Stick” as a removable disk.

What Is The “Optical Mouse?”

The optical mouse does not use a track ball; it uses an optical sensor. It does not

need a special mouse pad, and can be used even on your lap or clothes.

Maintenance is easy. Just wipe the lens. The screen scroll lever on the optical

mouse allows you scroll or zoom screens with ease.*

This manual describes how to connect this unit, how to install the driver, how to

use the reader/writer and how to use the mouse.

* The scroll and zoom functions are not supported on the Macintosh.

4-GB

PNotes

• When using a Macintosh, you cannot use the scroll function since the mouse

for the Macintosh does not have left and right buttons.

• When accessing the “Memory Stick” on this unit, your personal computer

cannot access other “Memory Stick” devices at the same time. Remove the

“Memory Stick” from this unit or turn off other “Memory Stick” devices.

• Be sure to connect this unit to the USB port on the personal computer.

Operation is not guaranteed if it is connected to the USB jack on the keyboard

or hub.

• Operation is not guaranteed when two or more USB devices are connected to

a single personal computer and a hub is used.

• Do not subject this unit to strong shock.

• This unit uses an optical sensor. So, avoid using it on transparent glass or

glossy surfaces.

• Identification performance drops when the mouse is used on the following

surfaces:

- Reflective or glossy surfaces such as mirrors or glass, or text/graphic/

photographic/colour patterned surfaces that have extreme changes

- Surfaces that have continuous similar patterns, or highly uneven surfaces

• A bright LED is used in operation of the image identification sensor. So, do

not look directly into the light on the rear.

• Do not use this product in the following locations. Doing so might cause

malfunction.

- Locations subject to splashing water

- Locations subject to direct sunlight

- Near hot locations such as heating apparatus

- Near humid or dusty locations

• Prevent fluids or metal objects from falling inside the body. If the body

becomes dirty, wipe with a soft cloth. Never use benzene, alcohol, paint

thinner or other solvents.

• Sometimes condensation forms on the sensor lens due to sudden changes in

temperature, causing operation trouble. If this happens, wipe the sensor lens

and try using again.

• The contents of data cannot be compensated if recording or playing back is not

made due to malfunctions such as “Memory Stick” error.

• Do not touch the terminals on the “Memory Stick” with your fingers or metal

objects.

• To prevent recording or deletion of data on “Memory Stick”s set the “Memory

Stick” write-protect switch to “Lock.”

• The communications state is sometimes not restored even if your personal

computer is restored from a standby state or sleep state.

• Do not optimize “Memory Stick”s.

• Do not compress the data on “Memory Stick”s.

5-GB

“Memory Stick” and are trademarks of Sony Corporation.

Microsoft® and Windows® are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

Macintosh, iMac and Mac OS are trademarks of Apple Computer, Inc.

All other company names and product names mentioned here may be the

trademarks or registered trademarks of their respective companies.

About Formatting “Memory Stick”s

When “Memory Stick”s are shipped from the factory, they are already

formatted to a special standard format. When you format “Memory Stick”s, we

recommend formatting them on the device you are using so that they are

compatible when used on “Memory Stick”-compatible device.

Cautions When Formatting “Memory Stick”s on a Personal Computer

Pay attention to the following points when formatting “Memory Stick”s on the

personal computer, for example, that you are using.

• Operation of “Memory Stick”s formatted on Windows machines is not

guaranteed on “Memory Stick”-compatible device. To use a “Memory Stick”

that has been formatted on a Windows machine, the “Memory Stick” must be

reformatted on “Memory Stick”-compatible device. Note, that, in this case all

data stored on the “Memory Stick” will be lost.

• “Memory Stick” formatted on a Macintosh sometimes cannot be used on

“Memory Stick”-compatible device. Do not format “Memory Stick” on the

Macintosh.

6-GB

Table of Contents

Before You Begin

Checking the accessories ..................................................................................... 7

Parts identification ............................................................................................... 8

Installation

For Windows

Installing the USB driver software ............................................................. 9

Installing the mouse driver software ....................................................... 11

Installing the “Memory Stick” driver software ...................................... 13

For Macintosh

Installing the USB driver software ........................................................... 14

Operation

Using the Reader/Writer

For Windows ............................................................................................... 15

For Macintosh .............................................................................................. 16

For users of SONY digital HandyCam and Cyber-shot ............................... 17

Using the mouse ................................................................................................. 18

Additional Information

Troubleshooting.................................................................................................. 20

Specifications ....................................................................................................... 22

Recommended connections .............................................................................. 23

Before You Begin

7-GB

BBefore You Begin

Checking the accessories

Make sure that you have all the accessories below. If some of the

accessories are missing, contact the store or purchase of a Sony dealer or

local authorized Sony service facility.

•Memory Stick Reader/Writer (1)

•CD-ROM (SPVD-003 USB driver) (1)

(for Windows/Macintosh)

•Manual (1)

•WARRANTY CARD (1)

8-GB

Parts identification

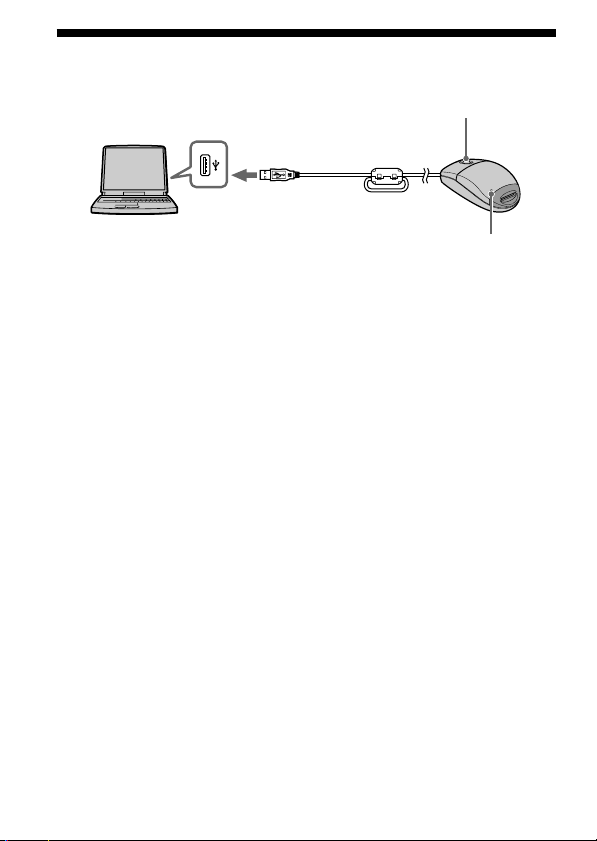

Insert the connector on this unit into the USB port on the personal

computer (into any USB port on the personal computer if the personal

computer has more than one USB port).

PNotes

• The access lamp lights when you access data on “Memory Stick.”

When the access lamp is lit, never remove the “Memory Stick”, turn off the

power of your personal computer or disconnect the connector. Doing so might

damage the data in “Memory Stick.”

• When disconnecting this unit from the personal computer, do not hold it by its

cable; hold it by its connector.

Access lamp

Connector

Scroll button

USB port

Installation

9-GB

For Windows

Follow the procedure below to install the USB driver software.

Do not disconnect the mouse from the personal computer until the

installation is completed. You need the mouse for the installation.

When you disconnect the mouse from the personal computer, the

operation is carried out on the keyboard.

Refer to the operating instructions for the keyboard.

–For Windows 2000–

You must log in using administrator’s privileges.

Installing the USB driver software

The screens shown in the following procedure are examples. Actual

screens differ according to the OS.

Do not connect this unit to the personal computer at this time.

1Turn on your machine to start up Windows, and insert the

USB driver software CD-ROM (supplied) into the CD-ROM

drive.

2Open “My Computer.”

3Open the CD-ROM drive (Sony USB Driver (ex: [D:])).

4Start up Setup.exe.

BInstallation

10-GB

For Windows (continued)

5Click “Next.”

This starts installation of the USB driver.

Follow the on-screen instructions until the end to install the USB

driver software.

6After the USB driver software has been installed, reboot your

personal computer.

Follow the on-screen instructions to reboot your personal computer.

7After your personal computer has rebooted, remove the CD-

ROM.

Table des matières

Langues :

Autres manuels Sony Stockage

Sony

Sony PCV-RZ49 VAIO Mode d’emploi

Sony

Sony HD-EG5 Manuel utilisateur

Sony

Sony Memory Stick PRO Duo MS-MT Series Manuel utilisateur

Sony

Sony MSA-8A Manuel utilisateur

Sony

Sony USM128B Manuel utilisateur

Sony

Sony MicroVault USM1GJ Manuel utilisateur

Sony

Sony StorStation AITe90V-UL Manuel utilisateur

Sony

Sony CSM-200C Manuel utilisateur

Sony

Sony MSG-128A Manuel utilisateur

Sony

Sony HD-B Series Manuel utilisateur

Sony

Sony USM4GM Manuel utilisateur

Sony

Sony SDT-D9000 Manuel

Sony

Sony HDPS-M10 - Data Storage Wallet Manuel utilisateur

Sony

Sony SDT 11000 - DDS Tape Drive Manuel utilisateur

Sony

Sony HXR-FMU128 Manuel utilisateur

Sony

Sony MRW68E/D1/181 - Pro Duo USB Manuel d'utilisation et d'entretien

Sony

Sony HD-P Series Manuel utilisateur

Sony

Sony VGP-UHDM25 Manuel utilisateur

Sony

Sony VGN-CS320J Manuel utilisateur

Sony

Sony SDX-D250V Manuel

Sony

Sony Memory Stick PRO MSX-4GN Manuel utilisateur

Sony

Sony WALKMAN CKL-NWE020 Manuel utilisateur

Sony

Sony USM128DS Manuel utilisateur

Sony

Sony MSG-M64A Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
