Sony SU-B463S Manuel utilisateur

Printed in China

4-416-701-12(1)

SU-B553S

SU-B463S

Instructions

Mode d’emploi

Instrucciones

Instruções

Lea este manual antes de usar el producto

TV Stand/Soporte para

Televisor con bocinas pasivas

2US

Thank you for purchasing this product.

Products by Sony are designed with safety in

mind.

This instructions manual shows the correct handling

of the product and important precautions necessary to

prevent accidents. Be sure to read this manual

thoroughly and use the product correctly. Keep this

manual available for future reference.

Specified products

This TV Stand is designed for use with the specified

product only. If you install equipment other than

specified, it may fall or break, and cause injury.

Illustrations used in this manual show of the KDL-

46HX85x, unless otherwise stated.

* In the actual model names, the “x” indicates

numbers and/or characters specific to each model.

Be sure to secure the TV.

Secure the TV to the TV Stand using the supplied

screws. If the TV is not installed securely, it may fall,

or the TV Stand may topple over, and cause injury.

Notes on installation

Do not allow the TV Stand to be installed at an angle

or incline. To avoid this, observe the following

precautions.

• If you install the TV Stand on a soft surface such

as a mat or a carpet, lay a board over the

designated location beforehand.

Note on use

Cleaning

To keep the TV Stand clean, occasionally wipe it with

a dry soft cloth. Stubborn stains may be removed by

wiping with a cloth slightly dampened with mild

soap. Be sure to dry the area afterwards with a dry

soft cloth. Do not use chemicals, such as thinner or

benzine, as they damage the finish of the TV Stand.

Do not modify the TV Stand.

It may fall and cause injury.

Be sure to install the TV securely

following the instructions.

Tighten the screws securely. If the TV is not installed

securely, it may fall and cause injury.

Be careful not to injure your hands

or fingers while assembling.

• Be careful not to hurt your fingers or hands when

installing the TV.

Owner’s Record

The model and serial numbers are located at the rear

of the TV Stand. Record these numbers in the

spaces provided below.

Refer to them whenever you call upon your Sony

dealer regarding this TV Stand.

Model Name

Serial No.

On Safety

CAUTION

LCD TV

SU-B553S KDL-55HX85x

SU-B463S KDL-46HX85x

3US

Before assembling

• Be sure to have a Phillips screwdriver that fits the screws

prior to the assembly.

• When using an electric

screwdriver, set the torque

setting to approximately

1.5 N·m {15 kgf·cm}.

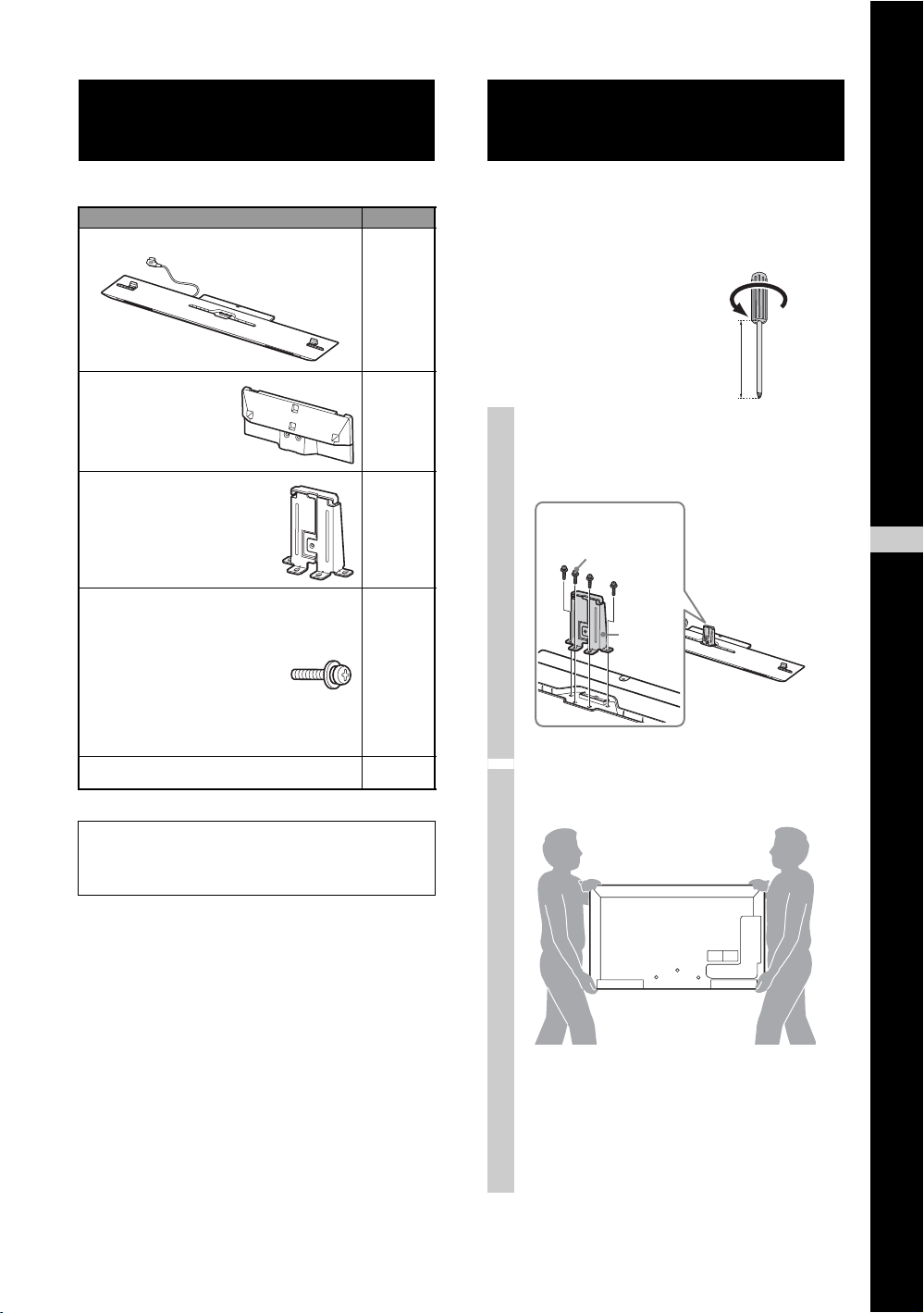

Step 1:

Checking the parts

Name

Quantity

Stand

Joint

Neck

TV Stand Neck Attachment

Screw

(PSW5 × 16) (× 3)

Joint Screw

(PSW5 × 16) (× 3)

Neck Screw

(PSW5 × 16) (× 4)

Instructions manual 1

Refer to the operating instructions supplied with

your TV for information on how to remove the

Table-Top Stand from the TV.

Step 2:

Installing the TV

1Attach the Neck to the TV Stand

with the four Neck Screws

(PSW5 × 16) (supplied).

2Prepare the TV.

When moving the TV, be sure that two or more

persons install the TV on the TV Stand as

shown in the illustration. If one person does

the installation work alone, this may result in

an accident or injury.

12 cm ~

Neck

Neck Screw

(PSW5 × 16) US

English

(Continued)

4US

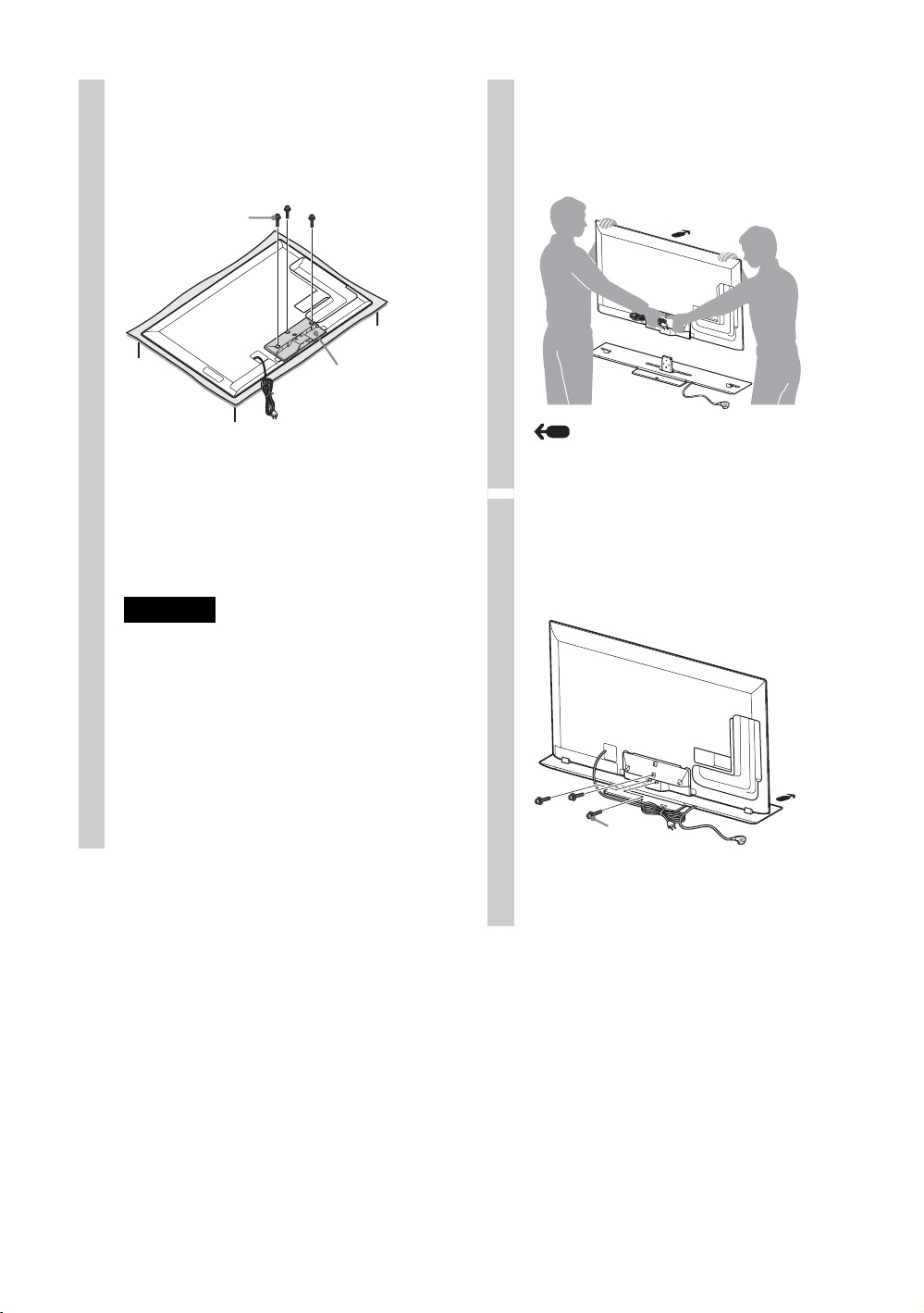

3Attach the supplied Joint to the

rear of the TV with the three

screws (PSW5 × 16) (supplied).

Slide the supplied Joint up to attach.

• Make sure to keep the removed screws.

• When removing the Table-Top Stand from the

Display, lay the display face down on a stable

work surface that is larger than the Display.

• To prevent damaging the surface of the LCD

display, make sure to place a soft cloth on the

work surface.

• If pressure or shock is applied to the surface of the

Display, the LCD display may break or become

damaged.

• Lay the display face down on a stable and level

surface with the Table-Top Stand hanging over the

edge of the surface.

Having the display face and the base of the Table-

Top Stand on the same level surface will create an

unstable working condition and can damage the

Display.

Joint

Joint Screw

(PSW5 × 16)

CAUTION

4Install the TV onto the TV Stand.

When installing the TV on the TV Stand, hold

the TV as shown in the illustration and install

it on the two brackets of the TV Stand.

Arrow direction shows front of the TV

Stand.

5Secure the TV and the TV Stand

with the three TV Stand Neck

Attachment Screws (PSW5 × 16)

(supplied).

TV Stand Neck

Attachment Screw

(PSW5 × 16)

5US

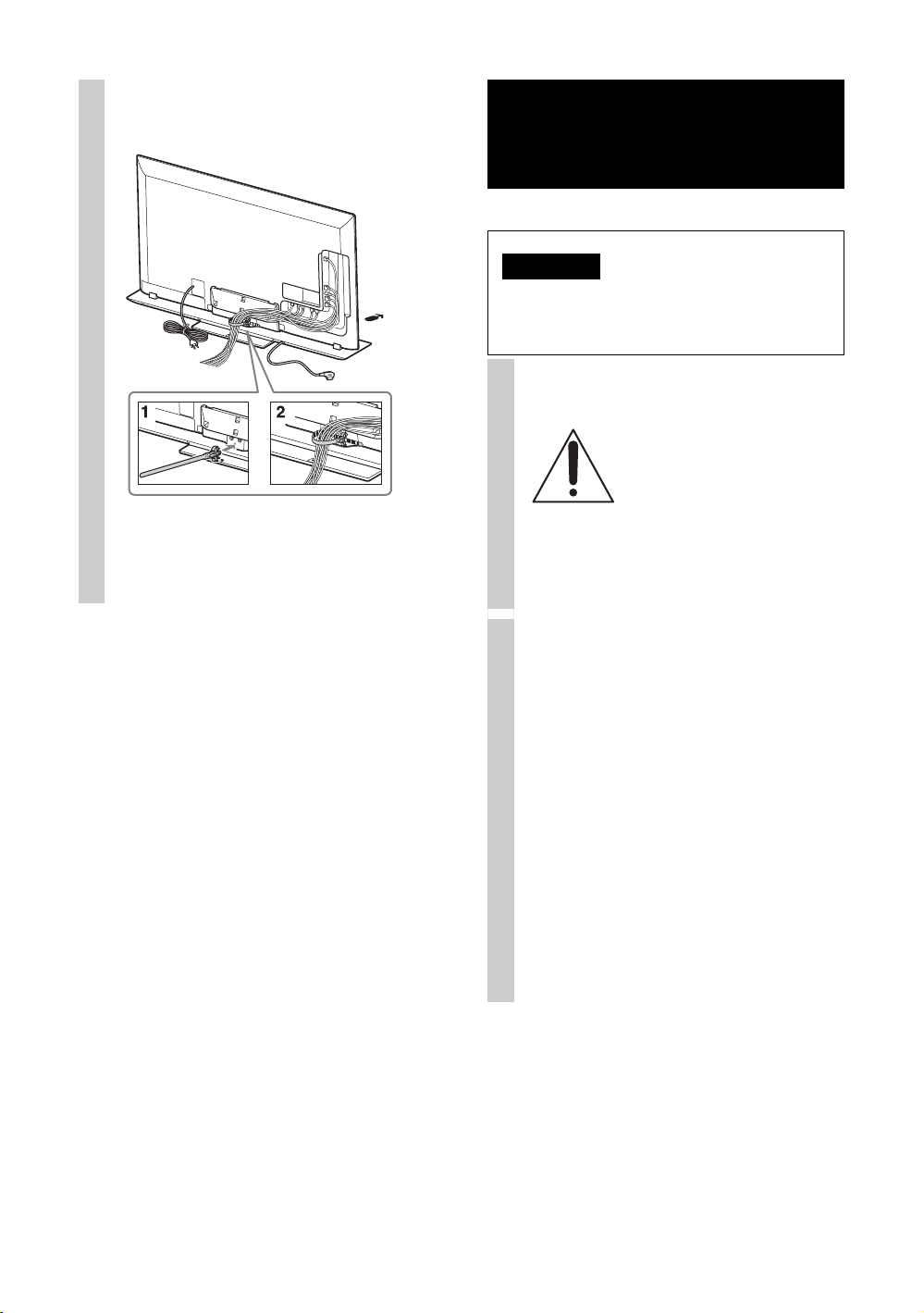

6Bundling the cables.

Use the cable clamper supplied with the TV.

• Do not bundle the AC power cord together with

other cables.

Step 3:

Safety measures to

prevent toppling over

WARNING

Be sure to take measures to prevent the TV Stand

from toppling over, and causing possible injury

and damage.

Securing the TV and the TV

Stand

Sony strongly recommends

taking measures to prevent the

TV from toppling over.

Unsecured TVs may topple

and result in property damage,

serious bodily injury or even

death.

Preventing the TV and the TV

Stand from toppling

• Secure the TV to a wall and/or board.

• Do not allow children to play or climb on

furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on:

– slippery, unstable and/or uneven

surfaces.

– furniture that can easily be used as steps,

such as a chest of drawers.

• Install the TV where it cannot be pulled,

pushed, or knocked over.

• Route all AC power cords and connecting

cables so that they are not accessible to

curious children.

(Continued)

6US

Recommended measures to

secure the TV and the TV Stand

Consider the following measures when

securing your TV to a board (not supplied).

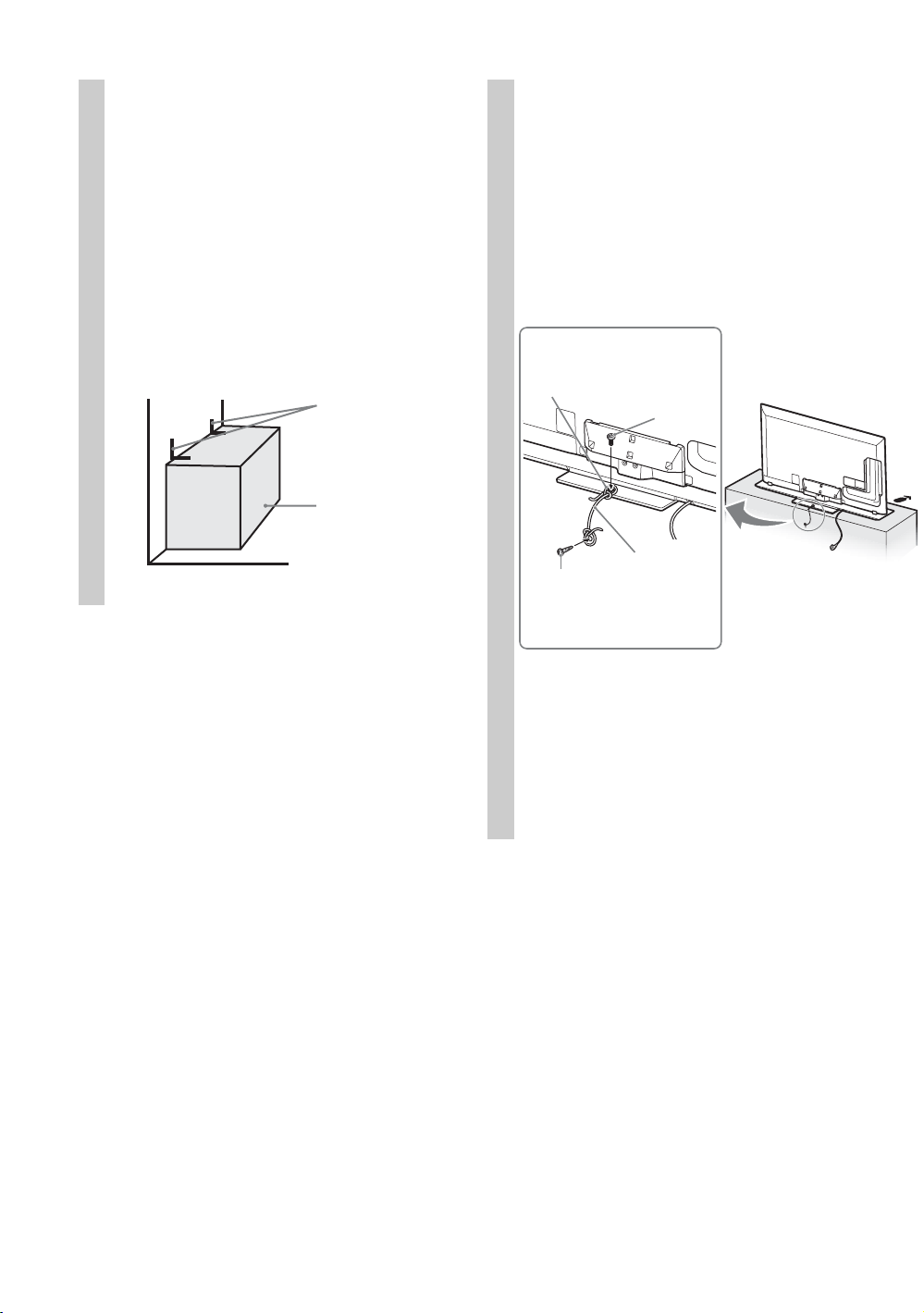

1Secure the board for the TV.

Make sure the board can adequately

support the weight of the TV. Use two

angle braces (not supplied) to secure the

board. For each angle brace use the

appropriate hardware to:

• Attach one side of the angle brace to the

wall stud.

• Attach the other side to the board.

Board

Angle brace

(not supplied)

2Secure the TV to the board.

Use the optional hardware listed below

(not supplied):

• M4 × 12 machine screw (screwed into the

TV Stand)

• A screw or similar (attach it to the board)

• Rope or chain (strong enough to support the

weight of the TV). Make sure that there is

no excess slack in the rope or chain.

An alternative way to secure the TV is with an

optional Sony Support Belt Kit.

Contact Sony Customer Support to obtain the

optional Support Belt Kit by providing your

TV Stand model name (SU-B553S/B463S).

• For United States call: 1-800-488-7669 or visit:

www.sony.com/accessories

• For Canada call: 1-877-899-7669

M4 × 12

machine

screw (not

supplied)

Screw

(not supplied)

Screw hole

on the TV

Stand

Rope or

chain (not

supplied)

7US

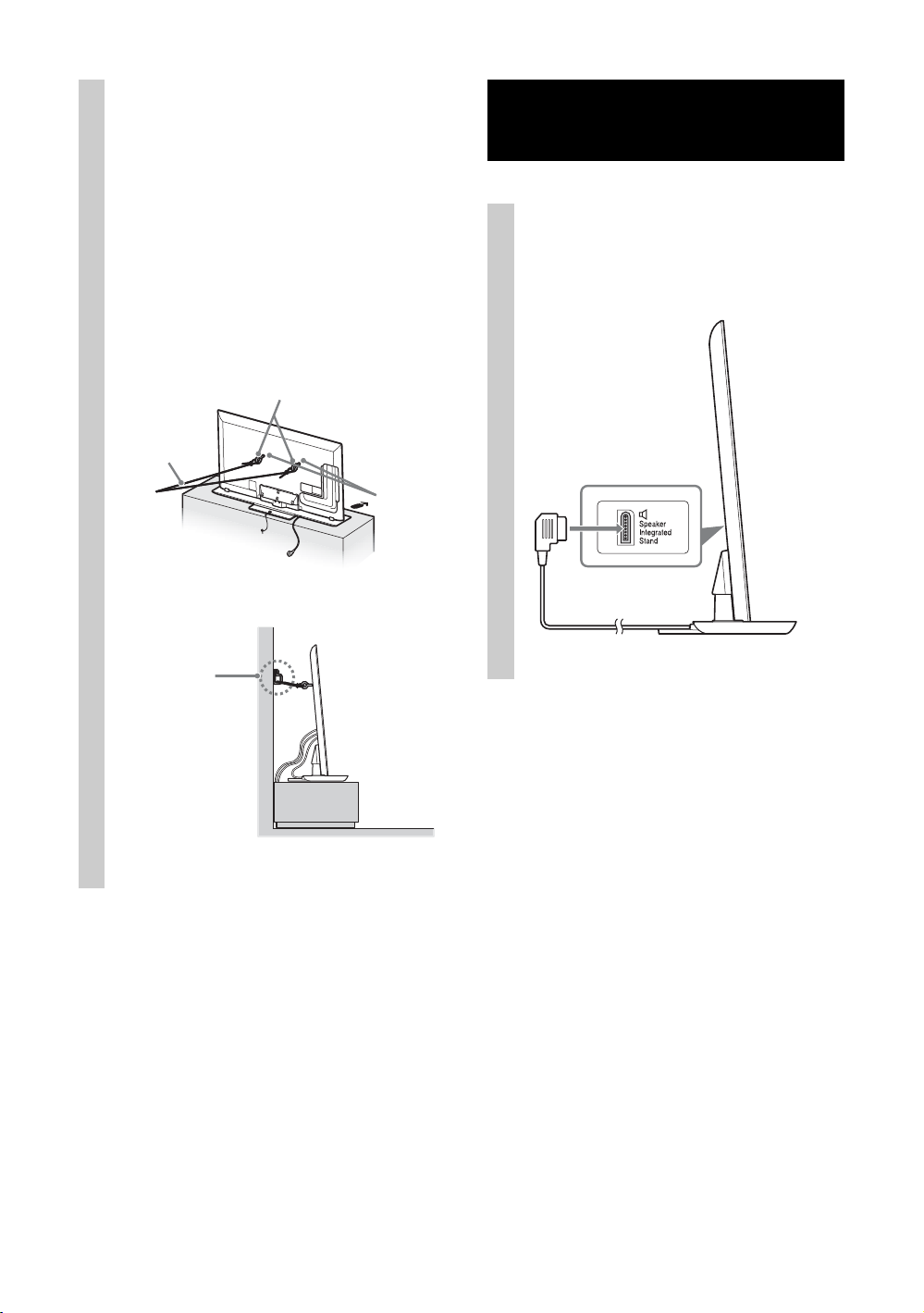

3Anchor the TV to the Wall.

Anchor the TV to the wall by using bolts,

wall anchor and chain (or rope).

• TV SET is shipped with screws attached to the

rear of the TV. (They are fastened in the screw

holes for wall mounting.) Be sure to remove the

upper two screws prior to anchoring the TV on a

wall.

• Securing the TV to the board without securing the

TV and the board to the wall provides minimum

protection against the TV toppling over. For

further protection, be sure to follow the three

measures recommended.

Anchor bolts (M6, not supplied)

Wall-

mount

holes

Rope or chain

(not supplied)

Wall-anchor

(not supplied)

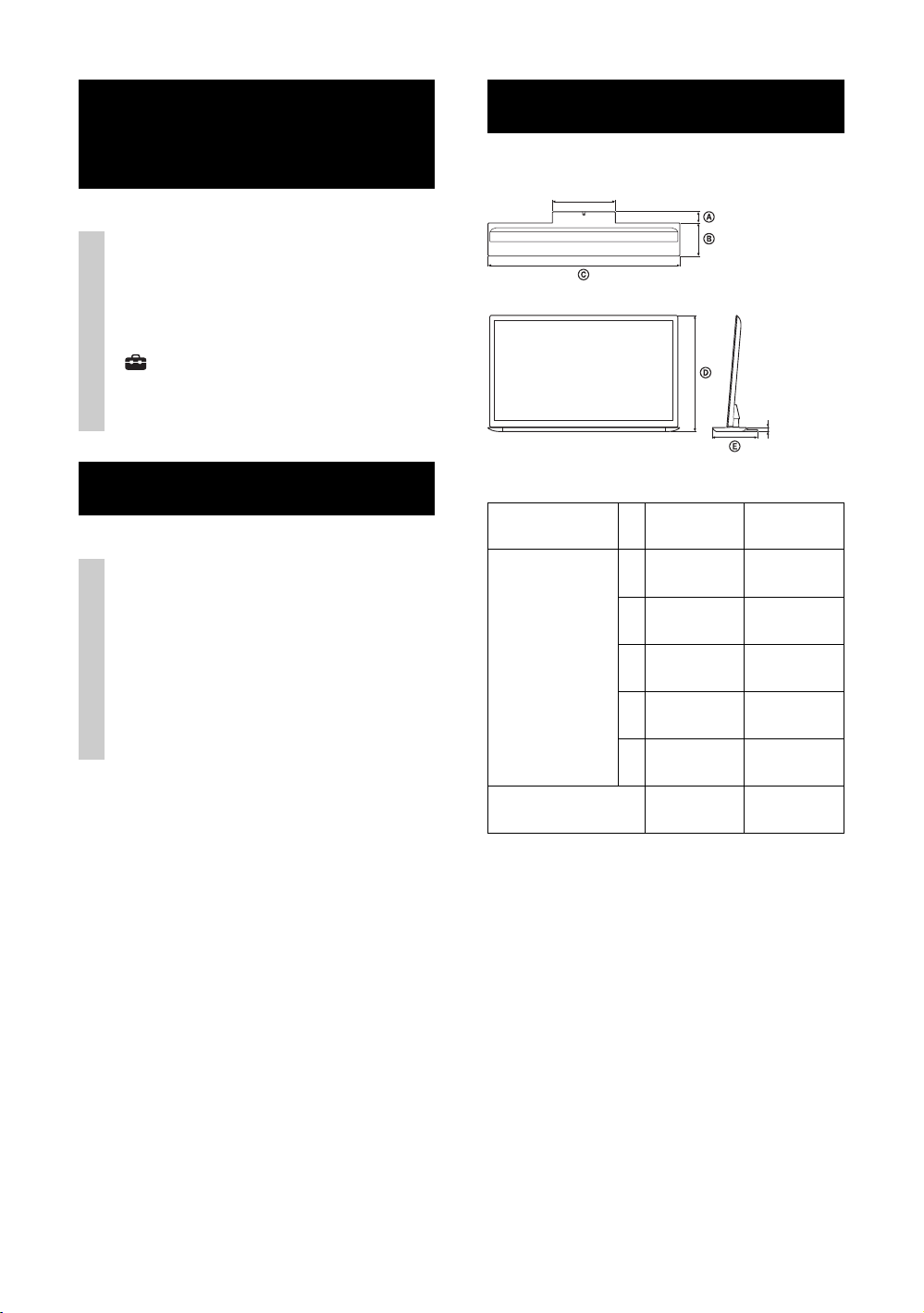

Step 4:

Connecting the TV

Connect the TV with a Speaker

Integrated Stand to the TV

Stand using the cable of the TV

Stand.

8US

Speakers

Full Range (2)

Design and specifications are subject to change

without notice.

Step 5:

Performing the TV

settings

Set to “Speaker Integrated Stand” in

“TV Position” menu.

Press the HOME button of the remote of the

TV and select the menu as follows:

Settings > Sound > TV Position > Speaker

Integrated Stand

Troubleshooting

Sound

No sound from the TV Stand:

• Check the cable connection.

Abnormal sound:

• Check the sound setting.

Set “TV Position” to “Speaker Integrated

Stand” in the “Sound” setting.

Specifications

SU-B553S SU-B463S

Dimensions: mm

(inches) A72 (2 7/8) 65 (2 5/8)

B223 (8 7/8) 190 (7 1/2)

C1,294 (51) 1,097 (43 1/4)

D772 (30 3/8) 663 (26 1/8)

E295 (11 5/8) 255 (10 1/8)

Stand Weight: 6.4 kg

(14.2 lb) 5.3 kg

(11.7 lb)

24 mm

(15/16

inches)

361 mm

(

14 1

)

2FR

Merci d’avoir acheté ce produit.

Les produits fabriqués par Sony sont conçus

pour être sécuritaires.

Le présent manuel d’instruction illustre la façon

correcte de manipuler ce produit ainsi que les

mesures à prendre nécessaires en vue d’éviter les

accidents. Lisez attentivement ce manuel et utilisez le

produit correctement. Conservez ce manuel pour le

consulter dans l’avenir.

Produits

Ce support TV est conçu pour être utilisé uniquement

avec l’appareil spécifié. Si vous installez un appareil

autre que celui spécifié, ce dernier peut tomber ou se

briser et provoquer des blessures. À moins

d’indications contraires, les illustrations utilisées

dans le présent manuel montrent le modèle KDL-

46HX85x.

* Dans les noms de modèle actuels, le « x » indique

les chiffres et/ou caractères spécifiques à chaque

modèle.

Assurez-vous de bien fixer le

téléviseur.

Fixez le téléviseur au support TV à l’aide des vis

fournies. Si le téléviseur est mal fixé, il peut tomber

ou le support TV peut basculer et provoquer des

blessures.

Installation

N’installez pas le support TV à un angle ou sur un

plan incliné. Pour éviter cela, observez les mesures

suivantes.

• Si vous installez le support TV sur une surface

souple comme un tapis ou une moquette, placez

d’abord une planche sur l’emplacement désigné.

Utilisation

Nettoyage

Pour conserver le support TV propre, essuyez-le de

temps à autres avec un chiffon doux et sec. Les taches

tenaces peuvent être enlevées à l’aide d’un chiffon

légèrement imbibé d’un savon doux. Assurez-vous

ensuite de sécher l’endroit à l’aide d’un chiffon doux

et sec. N’utilisez pas de produits chimiques comme

un diluant ou du benzène car ils endommagent la

surface du support TV.

Ne modifiez pas le support TV.

Il pourrait tomber et entraîner des blessures.

Assurez-vous de bien installer le

téléviseur en suivant les

instructions.

Serrez bien les vis. Si le téléviseur n’est pas installé

correctement, il peut tomber et entraîner des

blessures.

Assurez-vous de ne pas vous

blesser aux mains ou aux doigts lors

de l’assemblage.

• Assurez-vous de ne pas vous blesser aux doigts ou

aux mains lors de l’installation du téléviseur.

Fiche d’identification

Les numéros de modèle et de série sont indiqués à

l’arrière du téléviseur. Inscrivez ces numéros dans

les espaces ci-dessous.

Faites-y référence chaque fois que vous appelez

votre détaillant Sony au sujet de ce support TV.

N° de modèle

N° de série

Sécurité

ATTENTION

TV ACL

SU-B553S KDL-55HX85x

SU-B463S KDL-46HX85x

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Support et étagère

Sony

Sony RMM-131 Manuel utilisateur

Sony

Sony SU-WH500 Manuel utilisateur

Sony

Sony Bravia Theatre Sync RHT-G800 Manuel d'utilisation et d'entretien

Sony

Sony SU-B461S Fiche technique

Sony

Sony KV-36FS100 Instructions: TV stand (primary... Manuel utilisateur

Sony

Sony PROFORMA PROFORMAWM46 Manuel utilisateur

Sony

Sony SU-W200 Manuel utilisateur

Sony

Sony SU-PF1 Manuel utilisateur

Sony

Sony SU-560 Manuel utilisateur

Sony

Sony WS-FL7 Manuel utilisateur

Sony

Sony SU-WL450 Manuel de service

Sony

Sony UNI-MDB3 Manuel utilisateur

Sony

Sony Operating Instructions SU-EF41 Manuel utilisateur

Sony

Sony SU-560 Manuel utilisateur

Sony

Sony SU-B400S Manuel utilisateur

Sony

Sony SU-WL450 Manuel de service

Sony

Sony SU-PF2 Manuel utilisateur

Sony

Sony SU-WL51 Manuel utilisateur

Sony

Sony SFM2 Manuel utilisateur

Sony

Sony SU-B553S Manuel utilisateur

Sony

Sony PROFORMA460AB Manuel utilisateur

Sony

Sony SU-PF2 Manuel utilisateur

Sony

Sony SU-XFQ005 Manuel utilisateur

Sony

Sony SU-MD1 Instructions d'utilisation et d'entretien

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
