Sony SFM2 Manuel utilisateur

IN-SFM2.R1

INSTALLATION MANUAL

SFM2

Sony Electronics, Inc.

16540 West Bernardo Drive

San Diego, CA 92127

www.sony.com

SFM2

Page - 2 - Installation Manual

Table of Contents

WARNING STATEMENTS....................................................................................................................................... - 3 -

PARTS LIST ............................................................................................................................................................. - 4 -

INSTALLATION TOOLS .......................................................................................................................................... - 4 -

INSTALLATION PROCEDURES .............................................................................................................................. - 5 -

SINGLE STUD INSTALLATION .............................................................................................................................. - 5 -

SOLID STRUCTURE INSTALLATION ..................................................................................................................... - 6 -

ATTACHING THE ADAPTER PLATE AND THE BACKPLATE COVER ................................................................. - 7 -

ATTACHING THE ADAPTER PLATE /BACKPLATE COVER TO THE DISPLAY ................................................... - 9 -

ATTACHING THE DISPLAY TO THE BACKPLATE ............................................................................................. - 10 -

TECHNICAL SPECIFICATIONS ............................................................................................................................. - 11 -

WARRANTY ........................................................................................................................................................... - 12 -

CUSTOMER SUPPORT ......................................................................................................................................... - 12 -

NOTES ................................................................................................................................................................... - 12 -

SFM2

Installation Manual Page - 3 -

Warning Statements

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE (5) TIMES THE

WEIGHT OF THE DISPLAY. IF NOT, THE WALL STRUCTURE MUST BE REINFORCED. PROPER

INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE

INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT

IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF

THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION

PROCEDURE TO PREVENT PERSONAL INJURY.

WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS

SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS

MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE

INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

Indicates that the power plug is to be

disconnected from the power outlet.

Contact Sony Electronics with any

questions.

Safety precautions must be taken at all

times.

Warning and Caution statements.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to

do so could result in damage to the display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct

heat energy. Failure to do so may result in damage to the display and could increase the risk of

fire.

At least two qualified people should perform the installation procedure. Injury and/or damage can

result from dropping or mishandling the plasma display.

Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be

installed on any surface other than wooden studs, use suitable hardware (which is commercially

available).

SFM2

Page - 4 - Installation Manual

Parts List

NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that

none of these parts are missing and/or damaged before beginning installation. If there are parts

missing and/or damaged, please stop the installation and contact Sony Electronics

(877) 350-3477.

Adapter Plate

(Qty 1)

Ultra Flat Mount

(Qty 1)

M4 x 10mm

Phillips Pan

Head Screw

(Qty 4)

#10 x 1-1/4” Wood

Screws (Qty 4)

M6 x 12mm

Security Screws

(Qty 2)

6/32” x 1” Slotted

Screw (Qty 2)

M6 x 10mm

Phillips Head

Screws (Qty 4)

#10 Anchors

(Qty 4)

For use with the following Sony models:

SONY

FWD-32LX1

FWD-32LX1R

NOTE: Prior to installing the SFM2, the quick release sleeves (located on the back of the display) must

be removed. After removing them, please store them in a safe location for possible future re-use.

Installation Tools

Phillips Head Screw Driver Portable Drill ¼” Drill Bit Level (Supplied)

Soft Material/ Blanket Pencil Tape Measure Wrench with ½” Drive Socket

SFM2

Installation Manual Page - 5 -

Installation Procedures

Check that you have all the hardware listed in the parts list (Page 5). If any of the hardware described is

missing, do not continue. Contact Sony Electronics immediately at (877) 350-3477.

Separate the plates and choose the location for the monitor and follow any precautions listed in the LCD

owners’ manual.

Single Stud Installation

1. For single wood studs, use the two middle mounting points found on the back plate (Figure 1).

2. Locate the center of the wood stud behind the wall, mark the height and desired location.

3. Drill two 1/4 " pilot holes on the marked wall.

4. Secure the back plate to the center of the wood stud by using two (2) #10 wood screws (Figure 1).

NOTE: Four wood screws will be used when mounting the backplate to a solid structure (Page 7).

Also, all electrical wiring should be done at this time. Use the two (2) 6/32" x 1" handy box

screws (supplied) for your installation needs.

Figure 1

Wooden Stud

Frontplate

#10 Wood

Screws

#10 Wood

Screw

Electrical

Opening

SFM2

Page - 6 - Installation Manual

Solid Structure Installation

1. Use the four mounting points on the back plate (Figure 2).

2. Choose the wall where the monitor will be located.

3. Level and mark with a pencil the four (4) mounting points found on the back plate.

4. Drill four (4) 1/4" pilot holes for the plastic anchors then secure the wall bracket with the four (4) #10 x

1¼" screws (supplied) to the anchors.

NOTE: All electrical wiring should be done at this time. Use the two (2) 6/32" x 1" handy box screws

(supplied) for your installation needs.

Figure 2

#10 Wood

Screws

#10 Wood

Screws

#10 Wood

Screws

#10 Wood

Screws

Electrical

Opening Frontplate

Solid

Structure

SFM2

Installation Manual Page - 7 -

Attaching the Adapter Plate and the Backplate Cover

1. Line up the mounting points (Figure 3).

2. Attach the frontplate to the adapter plate using four (4) M4 x 10mm Phillips Head screws (Figure 4).

3. Do not tighten the screws until all four are inserted.

4. Once the screws are inserted, tighten the screws down.

CAUTION: Do not over tighten the M4 screws to the monitor. Failure to do so could result in

damaging the threads and monitor.

5. At this time, loosely install the two (2) M6 x 12mm Security Screws (Figure 4).

Figure 3. Mounting Box/ Adapter Plate Combination

Adapter Plate

Frontplate

SFM2

Page - 8 - Installation Instructions

Figure 4

M4 x 10mm Phillips

Head Screws

M4 x 10mm Phillips

Head Screws

M6 x 12mm Phillips

Head Security Screws

Adapter Plate

Frontplate

SFM2

Installation Instructions Page - 9 -

Attaching the Adapter Plate /Backplate Cover to the Display

1. Place the display on a flat and soft surface and locate the four mounting points (Figure 5).

2. Attach the Adapter Plate to the back of the display using four (4) M6 x 10mm Phillips Head screws

(Figure 6). Do not overtighten the screws.

CAUTION:DO NOT OVERTIGHTEN THE SCREWS.

Figure 5. Installing the Adapter Plate/ Mounting Box

Figure 6. Installation Complete

Ultra Flat

Mount

dapter

Plate

SFM2

Page - 10 - Installation Manual

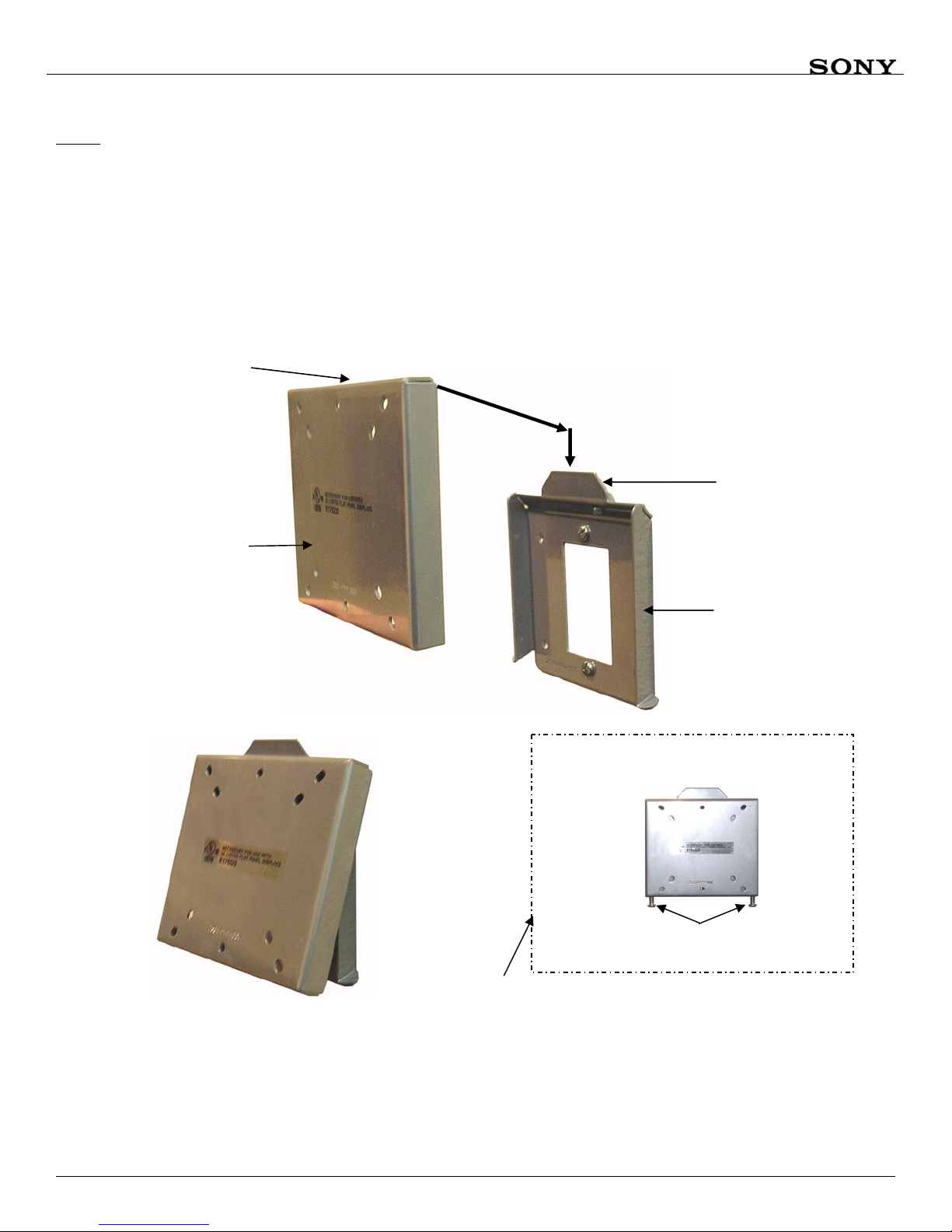

Attaching the Display to the Backplate

NOTE: For clarity purposes, the following illustrations will be shown without the adapter plate and display

attached. This must be done to show how the positioning of the backplate cover and the backplate

relate to each other (connection-wise).

1. The flange opening must be facing up.

2. Raise the flat panel with the front plate attached and slide the top flange opening to the flange on the

backplate (Figure 7).

3. Slide the monitor down slowly. Make sure the backplate flange captures the frontplate top flange opening

before letting go of the monitor. Slide down and push in (Figure 8).

4. To secure the two plates, tighten the two (2) M6 x 12 (mm) security screws using a long Phillip head

screwdriver (Figure 9).

Figure 7

Figure 8 Figure 9

Flange

Frontplate

Backplate

Flange Opening

(Slot opening

on top of

frontplate)

Simulated Display

M6 x 12mm

Security Screws
