Sonoff ZigBee DIY BASICZBR3 Manuel utilisateur

ZigBee DIY Smart Switch

User manual V1.2

· 中文 ---------------------- 1-5

· Deutsch ---------------- 11-16

· Français----------------- 23-28

· Русский язык----------35-40

· English--------------------6-10

· Español-----------------17-22

· Italiano---------------- 29-34

· Português--------------41-46

· FCC Warning----------------47

BASICZBR3

SONOFF TECHNOLOGIES CO., LTD. 中⽂

本设备需连接SONOFFZigBee󶶘关进⾏智能操作。

设备⽀持其他⽆线协议为ZigBee3.0的⽹关，具体以实际产品为准。

使⽤说明

1.断电

ON OF F

设备安装、故障维修请由专业资质电⼯操作，以免发⽣触电危险！设备在正常使⽤的情况下

不可触碰到。

拆下保护盖，先接线再安装压线柱。

2.接线

安装保护盖时确保保护盖上的标识和设备上的标识对⻬，否则⽆法合上。

吸顶灯接线⽰意：

100-240V AC

LED

Driver

L In

N In

L Out

N Out

SONOFF TECHNOLOGIES CO., LTD. 中⽂

确保零⽕线接⼊⽆误。

单⽕线输出接线⽰意:

L In

N In

L Out

100-240V AC

3.下载“易微联”APP

易微联

eWeLink

Android™ & iOS

4.上电

通电后，设备⾸次使⽤，默认进⼊配对状态，ZigBee信号指⽰灯呈“闪烁”状态。

如⻓时间未进⾏下⼀步操作，设备可能退出配对模式，如需再次进⼊，⻓按配对按钮5秒

直到ZigBee信号指⽰灯“闪烁”即可。

SONOFF TECHNOLOGIES CO., LTD. 中⽂

5.添󱶨⼦设备

ZBB ri dge

已添加设备:0

暂无子设备，请添加

添加

打开eWeLinkAPP，选择需要连接的⽹关，点击󾖶添加󾖶⼦设备，等待搜索添加设备。

如添加失败，请将设备移近⽹关后再重新添加。

添加设备

正在连接

请让设备尽量靠近网关

25s

找到设备

1个设备已找到

添加⼦设备前，请先连接SONOFF⽹关。

SONOFFZigBee⽹关⽀持同时连接多个⼦设备

添加设备

正在连接

请让设备尽量靠近网关

15s

找到设备

3个设备已找到

先将⽹关通电，设置让所需配对的⼦设备进⼊配对状态，然后打开eWeLinkAPP⽹关⻚⾯，

点击“添加”，等待搜索添加设备。

ZBB ri dge

已添加设备:0

暂无子设备，请添加

添加

SONOFF TECHNOLOGIES CO., LTD. 中⽂

EchoStudio

EchoPlus(型󱿟:ZE39KL)

2ndGenEchoShow(型󱿟:DW84JL)

2ndGenEchoPlus(型󱿟:L9D29R)

SamsungSmartThingshub

1.参照⽹关使⽤说明书下载相应APP和连接⽹关。

2.将设备设置到配对模式.

3.根据⽹关对应的APP提⽰添加设备，添加过程中选择eWeLink或SONOFF品牌。

如添加失败，请将设备移近⽹关后再重新添加。

添加说明：

更多APP应⽤平台及⽹关推荐

Amazon Alexa

SmartThings

本设备除⽀持SONOFFZigBee󶶘关外，还⽀持以下⽹关：

产品参数

型号

输⼊

输󱲠

⽀持平台

材料

产品规格

BASICZBR3

100-240V AC 50/60Hz 10A Max

PC V0

91x43x25mm

Android & iOS

100-240V AC 50/60Hz 10A Max

⼯作温度 -10℃~40℃

ZigBee IEEE 802.15.4

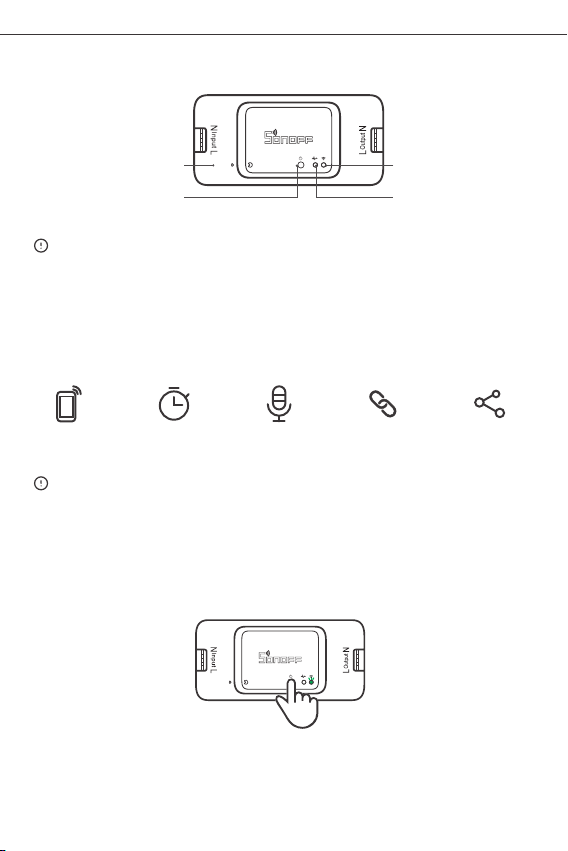

产品介绍

设备重量＜1Kg，建议安装⾼度＜2⽶。

保护盖

配对按钮/⼿动开关开关指⽰灯(红⾊)

ZigBee信号指⽰灯(绿⾊)

SONOFF TECHNOLOGIES CO., LTD. 中⽂

产品特点

SONOFF智能开关(ZigBee版)基于ZigBee󴀝线通讯协议，通过连接ZigBee⽹关实现远程控制、

设置定时开/关、设备智能场景联动等功能。

远程控制智能定时/延时语⾳控制智能场景控制

以上功能特点取决于ZigBee⽹关的功能。

分享功能

恢复出⼚设置

在eWeLinkapp端“删除设备”，设备即恢复出⼚设置。

更换设备⽹络

设备更换新的⽹络环境使⽤时，需⻓按设备配对󳬝钮5󶋒󵸌󱳬ZigBee指⽰灯󲁢闪烁状态，

󴋀开，此时设备进⼊快速配⽹模式，即可再󴤣添加。

SONOFF TECHNOLOGIES CO., LTD.

ON OF F

100-240V AC

LED

Driver

L In

N In

L Out

N Out

English

The device can be operated intelligently via working with the SONOFF ZigBee Bridge.

The device can work with other gateways supporting ZigBee 3.0 wireless

protocol. Detailed information is in accordance with the ﬁnal product.

Operating Instruction

1. Power oﬀ

To avoid electric shocks, please consult the dealer or a qualiﬁed professional for

help when installing and repairing! Please do not touch the switch during use.

2. Wiring instruction

Remove the Protective cover, then connect wires before fixing the wire fastener.

To make sure a full installation, please align“ ” with “ ” when securing the

protective cover.

Ceiling lamp wiring instruction：

SONOFF TECHNOLOGIES CO., LTD.

English

L In

N In

L Out

100-240V AC

One live wire wiring instruction:

Make sure the neutral wire and live wire connection is correct.

3. Download APP

4. Power on

After powering on, the device will enter the pairing mode during the ﬁrst use and the

ZigBee LED signal indicator ﬂashes.

The device will exit the pairing mode if no next operation for a long time. If enter

again, please long press the pairing button for 5s until the ZigBee LED signal

indicator ﬂashes and release.

eWeLink

Android™ & iOS

SONOFF TECHNOLOGIES CO., LTD.

English

5.Add sub-devices

Access eWeLink APP, select the Bridge that you want to connect, and tap “Add” to

add a sub-device, and be patient until pairing completes.

If the addition failed, move the sub-device closer to the Bridge and try again.

Connect in g

Kee p the d evi ce cl ose

eno ugh t o the hub.

25s

Add Devic e

Loo king f or dev ice

1 devices Found

ZBB ri dge

Add ed: 0

No ch ild d evice ,plea se add .

Add

Connect the SONOFF ZBBridge before adding the sub-device.

SONOFF ZigBee Bridge supports connecting

multiple sub-devices at the same time.

Connect in g

Kee p the d evi ce cl ose

eno ugh t o the hub.

25s

Add Devic e

Loo king f or dev ice

3 devices Found

ZBB ri dge

Add ed: 0

No ch ild d evice ,plea se add .

Add

Power the Bridge on, set the sub-device to the pairing mode. Then access the Bridge

page in the eWeLink APP to tap “Add”, and be patient until the pairing completes.

SONOFF TECHNOLOGIES CO., LTD.

English

BASICZBR3

100-240V AC 50/60Hz 10A Max

PC V0

91x43x25mm

Android & iOS

100-240V AC 50/60Hz 10A Max

-10℃~40℃

ZigBee IEEE 802.15.4

This device supports the following gateways besides SONOFF ZigBee：

Echo Studio

Echo Plus (model: ZE39KL)

2nd Gen Echo Show (model: DW84JL)

2nd Gen Echo Plus (model: L9D29R)

Samsung SmartThings hub

More APP application platforms and gateway

recommendations

Gateway adding instruction:

1. Refer to the gateway user manual to download the matched APP and get it paired.

2. Set ZBMINI to the pairing mode.

3. Add ZBMINI according to the prompt of APP. You should select eWeLink or SONOFF

when adding.

If the addition failed, move the sub-device closer to the Bridge and try again.

Amazon Alexa

SmartThings

Specifications

Material

Dimension

Operating systems

Model

Input

Working temperature

Output
