SonicWALL ESA 4300 Manuel utilisateur

Getting Started Guide

SonicWALL Email Security Appliances

EMAIL SECURITY

ES 4300

SonicWALL ESA 4300 Getting Started Guide Page i

SonicWALL ESA 4300

Getting Started Guide

This Getting Started Guide provides instructions for basic

installation and configuration of the SonicWALL Email Security

4300 appliance into an existing or new network.

SonicWALL ESA 4300 provides effective, high-performance,

and easy-to-use inbound and outbound email threat protection.

Ideal for any size business, this self-running, self-updating

appliance delivers powerful protection. Combining anti-spam,

anti-phishing, content filtering, policy management and content

compliance capabilities in a single seamlessly integrated

solution, SonicWALL Email Security provides powerful

protection without complexity.

Please read this entire Getting Started Guide before setting up

your SonicWALL ESA 4300. For more detailed technical

documentation, refer to the SonicWALL Email Security

Appliance Administrator Guide at:

<http://www.sonicwall.com/us/support>

Steps

Step Procedure

Pre-Configuration Tasks - page 1

Setting Up the SonicWALL - page 5

Preparing for First Use - page 11

Support and Training Options - page 19

Safety and Regulatory Information - page 25

Page ii Overview of the SonicWALL ESA 4300

Overview of the SonicWALL ESA 4300

The graphic below is an overview of the Front and Rear panels of the SonicWALL ESA 4300 appliance.

ES 4300

Email Security Appliance

Console Port

USB Ports (2)

Reset Button

LED Indicators (left to right)

Hard Disk Drives (ES 4300 Only)

AC Power Supply

Access the Command Line Interface (CLI)

using the DB9 -> RJ45 cable

For future feature extensions with SonicWALL

approved modules

Ethernet Port

Provides 10/100/1000 Ethernet connectivity

Press and hold for several

seconds to manually reset

the appliance

AC power connection for use

with the supplied power cable

Power Switch

Switch to power the SonicWALL

appliance On (I) and Off (o)

ALM Minor/major alarm

ETH1 Ethernet 1 port is in use

ETH0 Ethernet 0 port is in use

HD Indicates data transfer to and from the hard disk drive

PWR Indicates the appliance is powered on

Two (2) hot-pluggable hard disk

drive modules

SonicWALL ESA 4300 Getting Started Guide Page 1

Pre-Configuration Tasks

In this Section:

This chapter provides pre-configuration information. Review this section before setting up your SonicWALL ESA 4300.

•Checking ESA 4300 Package Contents - page 2

•What You Need to Begin - page 3

•Obtaining Configuration Information - page 3

Page 2 Checking ESA 4300 Package Contents

Checking ESA 4300 Package Contents

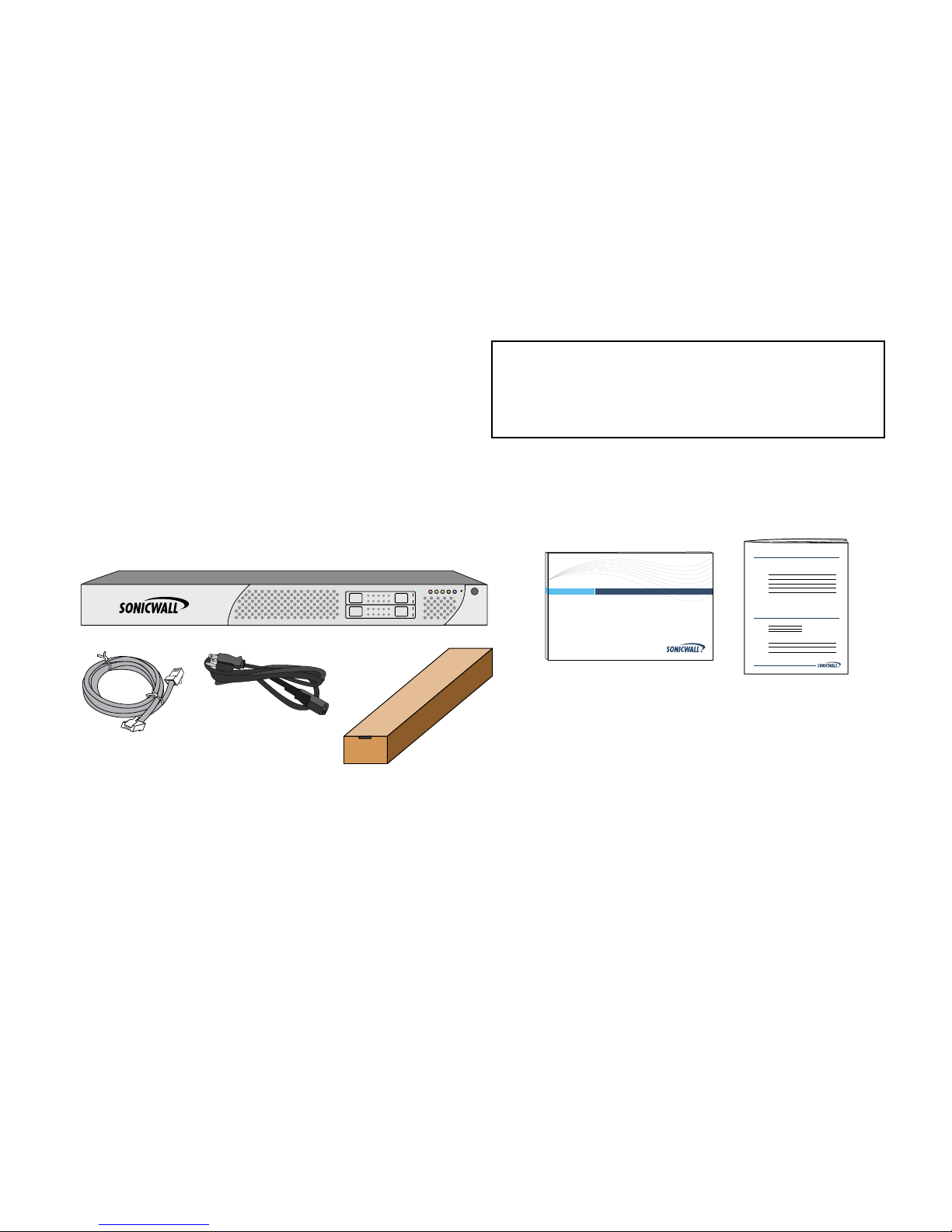

Before setting up your SonicWALL ESA, verify that your

package contains the following parts:

• SonicWALL Email Security 4300 Appliance

• Getting Started Guide

• Release Notes

• Ethernet Cable

• Standard Power Cord

• Rack Mounting Kit

Any Items Missing?

If any items are missing from your package,

please contact SonicWALL support.

A listing of the most current support documents are available online

at: <http://www.sonicwall.com/us/support.html>

*The pictured power cord is intended for use in North America only.

Release Notes

Contents

ESA 4300

Getting Started Guide

SonicWALL Email Security Appliances

EMAIL SECURITY ES 4300

SonicWALL ESA 4300 Getting Started Guide Page 3

What You Need to Begin

To configure a SonicWALL ESA 4300, you must have a

computer that meets or exceeds the following requirements:

• An Internet connection

• A computer to use as a management station for initial

configuration of SonicWALL Email Security software

• A Web browser supporting Java Script and HTTP uploads.

Supported browsers include the following:

For the latest list of supported Windows operating systems and

service packs, refer to the SonicWALL Email Security Release

Notes and the following web page:

<http://www.sonicwall.com/us/products/email_security_anti-

spam_67.html>

Obtaining Configuration Information

Record the following configuration information to configure your

SonicWALL ESA 4300:

Networking Information

Accepted Browser Browser Number Version

Internet Explorer 7.0 or higher

Firefox 3.0 or higher

Opera 9.10 or higher for Windows

Chrome 4.0 or higher

Safari 3.0 or higher for MacOS

Email Security IP

Address:

__________________

Select a free static IP address in

the range of your local subnet.

Email Security Subnet

Mask

__________________

Enter the subnet mask for the local

subnet.

Gateway IP Address

_________________

Record the IP address of your

network’s gateway device (such as

your perimeter firewall/router).

DNS Server 1

__________________

DNS Server 2 (optional)

__________________

Record your DNS server

information.

Host Name

__________________

Record the fully qualified domain

name within your network for your

SonicWALL ESA 4300 (maximum

32 characters).

Page 4 Obtaining Configuration Information

General Information

LDAP Server IP

__________________

Record the IP address or hostname

of your directory services server,

such as LDAP or Microsoft Active

Directory.

Server Name:

__________________

Select a friendly name for your

SonicWALL ESA 4300 (maximum

32 characters).

Password:

__________________

Select a password for your

SonicWALL ESA 4300 (default is

password).

Serial Number:

__________________

Record the serial number found

on the label of your SonicWALL

appliance.

Registration Code:

__________________

Record the registration code that

is generated in mysonicwall.com.

See Registering Your SonicWALL

ESA 4300 Appliance section, on

page 6.

SonicWALL ESA 4300 Getting Started Guide Page 5

Setting Up the SonicWALL

In this Section:

This chapter contains instructions for connecting and registering your SonicWALL ESA 4300 appliance.

•Registering Your SonicWALL ESA 4300 Appliance - page 6

•Connecting the SonicWALL ESA 4300 Appliance to Your Network - page 9

•Activating Your SonicWALL ESA 4300 Appliance - page 10

Note: Registration is an important part of the setup process and is necessary to receive the benefits of SonicWALL security services,

firmware updates, and technical support.

Page 6 Registering Your SonicWALL ESA 4300 Appliance

Registering Your SonicWALL ESA 4300

Appliance

The SonicWALL SonicWALL ESA 4300 appliance must be

registered with the firmware license key before first use.

Perform the following steps to register your SonicWALL

appliance:

1. Supply power to your appliance by connecting the power

cord into the back of the SonicWALL ESA 4300 and the

other end into an appropriate power outlet.

2. Turn on the power switch of the appliance.

The Power LED on the front panel is green when you

power on the appliance. The HDD LED may blink while the

appliance performs a series of diagnostic tests. When the

HDD LED is no longer lit, the SonicWALL Email Security

appliance is ready for configuration.

If the alert light stays lit, ensure that the power supply is

properly plugged in.

3. Open a Web browser on the computer you are using to

manage the SonicWALL ESA 4300. Navigate to:

<http://www.mysonicwall.com>.

4. Enter your MySonicWALL account username and

password in the appropriate fields and click Submit.

Note: You must have a MySonicWALL account to

5. Under the Quick Register section of your MySonicWALL

account, enter the Activation Key or Serial Number of the

appliance.

6. Confirm your Serial Number, enter a Friendly Name for

your appliance, and enter your Authentication Code in the

Quick Register > Add New Product section.

7. Click Register. Follow the online prompts to fill out the

survey and complete the registration process. A

confirmation window displays when you havce successfully

completed the registration process.

Configuring Appliance Settings

Specific appliance settings must be configured for your

appliance to communicate with your network. The following

procedures configure local time zone settings and network

settings on your appliance.

This section contains the following subsections:

•Logging Into the Web Management Interface - page 7

•Configuring Local Time Zone Settings - page 7

•Configuring Static IP Address - page 8

•Configuring Default Gateway Address - page 9

•Configuring Domain Name Server Address - page 9

SonicWALL ESA 4300 Getting Started Guide Page 7

Logging Into the Web Management Interface

The SonicWALL Email Security appliance comes pre-

configured with an IP address of 192.168.168.169. Set the

administration computer to have a static IP address on the

192.168.168.168.0/24 subnet.

To configure a static IP address on your computer, refer to

Configuring a Static IP Address section, on page 18.

1. Connect the Ethernet cable from the LAN (eth 1) port on

the SonicWALL to the Ethernet port of the computer.

Note: One or more security warnings may display while

connecting to the Email Security Web management

interface. Accept the certificates in order to log in to the

SonicWALL Email Security appliance.

2. Open a Web browser and enter http://192.168.168.169

(the default IP address of the appliance) in the Location or

Address bar.

3. On the SonicWALL ESA 4300 Web management login

screen, enter “admin” in the Name field and “password” in

the Password field, select your language from the

Language drop-down menu, and click Login.

Configuring Local Time Zone Settings

1. Navigate to System > Host Configuration in the left

navigation menu.

2. Scroll down to the More Settings section, and click Set

Date and Time.

eth 1

http://192.168.168.169/

http://192.168.168.168/

SonicWALL LAN IP

Table des matières

Autres manuels SonicWALL Pare-feu

SonicWALL

SonicWALL NSA 240 Manuel utilisateur

SonicWALL

SonicWALL SonicOS Enhanced 2.2 Manuel de service

SonicWALL

SonicWALL NSA 2400 Manuel utilisateur

SonicWALL

SonicWALL SSL-IA Instructions d'installation

SonicWALL

SonicWALL PRO 200 Manuel utilisateur

SonicWALL

SonicWALL NSA E7500 Manuel utilisateur

SonicWALL

SonicWALL TZ 180 Manuel utilisateur

SonicWALL

SonicWALL Internet Security Manuel utilisateur

SonicWALL

SonicWALL 1RK53-116 Manuel du propriétaire

SonicWALL

SonicWALL TZ 100 Series Manuel utilisateur

SonicWALL

SonicWALL SuperMassive 9800 Manuel utilisateur

SonicWALL

SonicWALL 1RK33-0D9 Manuel du propriétaire

SonicWALL

SonicWALL Email Security 6000 Manuel utilisateur

SonicWALL

SonicWALL TZ600 Manuel utilisateur

SonicWALL

SonicWALL TZ270 Manuel utilisateur

SonicWALL

SonicWALL PRO 2040 Manuel utilisateur

SonicWALL

SonicWALL TZ500 Manuel utilisateur

SonicWALL

SonicWALL CSa 1000 Manuel d'utilisation et d'entretien

SonicWALL

SonicWALL TZ 150 Wireless Manuel utilisateur

SonicWALL

SonicWALL TZ 170 SP Manuel utilisateur

SonicWALL

SonicWALL NSA 250M series Manuel utilisateur

SonicWALL

SonicWALL CDP 6.0 Manuel de service

SonicWALL

SonicWALL SMA 210 Guide de référence rapide

SonicWALL

SonicWALL TZ670 Manuel utilisateur

Manuels Pare-feu populaires d'autres marques

Cisco

Cisco S190 Manuel utilisateur

Fortinet

Fortinet FortiGate Voice Series Manuel utilisateur

ADTRAN

ADTRAN NetVanta 2300 Manuel utilisateur

SecureLogix

SecureLogix ETM System Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVX538 Manuel utilisateur

Lanner

Lanner FW-8877 Manuel utilisateur

Huawei

Huawei USG6000 Series Manuel d'installation et d'exploitation

H3C

H3C SecPath F5000-AI-15 Manuel utilisateur

Nexcom

Nexcom DNA 1150 Manuel utilisateur

Fortinet

Fortinet FortiGate-60 series Manuel utilisateur

Cisco

Cisco 3110 Manuel

Draytek

Draytek Vigor2860 Series Manuel utilisateur

Lanner electronics

Lanner electronics FW-7650 Series Manuel utilisateur

Swisscom

Swisscom Internet Backup Manuel utilisateur

DPtech

DPtech FW1000 SERIES Manuel utilisateur

FEITIAN

FEITIAN MultiPass FIDO Manuel utilisateur

EBLOCKER

EBLOCKER PRO Manuel utilisateur

GTA

GTA GB-200 Manuel utilisateur
