SonicWALL TZ 180 Wireless Getting Started Guide Page 1
SonicWALL TZ 180 Wireless
Getting Started Guide
Thank you for your purchase of the SonicWALL TZ 180 Wireless, the ultimate
security platform for home and small office deployments.
Note: To ensure optimal performance, please visit
<https://www.mysonicwall.com> to register your new
appliance, download the latest version of SonicOS firmware,
and view the online product documentation library.
With integrated support for SonicWALL's Gateway Anti-Virus, the SonicWALL
TZ 180 Wireless delivers powerful, yet easy-to-use protection against hackers
and viruses. The SonicWALL TZ 180 Wireless also provides support for
SonicWALL's Content Filtering Service to provide enhanced productivity and
network utilization.
This guide is intended to get you started with the SonicWALL TZ 180 Wireless.
For more advanced setups and configurations, please
refer to the SonicOS Standard Administrator’s Guide.
Page 2 The Front Panel
The Front Panel
Feature Description
Power LED Indicates the SonicWALL TZ 180 Wireless is powered on.
Test LED Solid: Indicates the unit is in test mode.
Blinking: The unit is booting up or restarting. This can also
indicate that the unit is in safe mode.
WLAN (WiFiSec): Indicates WiFiSec wireless security is operational.
(on/act): Solid indicates the wireless radio is powered on. Blinking
indicates wireless activity.
OPT The OPT port can be configured as a DMZ or an additional LAN or
WAN port.
WAN Indicates a device link and activity on your WAN port.
LAN (1-5) Indicates a device link, activity, and connection speed on individual
LAN ports (numbered 1-5).
Link/ACT Solid: Indicates a device is connected to the specified port(s).
Blinking: Indicates activity on the specified port(s).
10/100 Green: Indicates 10M connection on the specified port(s).
Amber: Indicates 100M connection on the specified port(s).
link/act
10/100
wan opt 12345
on/act
WiFiSec
wlan
TZ 180
wireless
SonicWALL TZ 180 Wireless Getting Started Guide Page 3

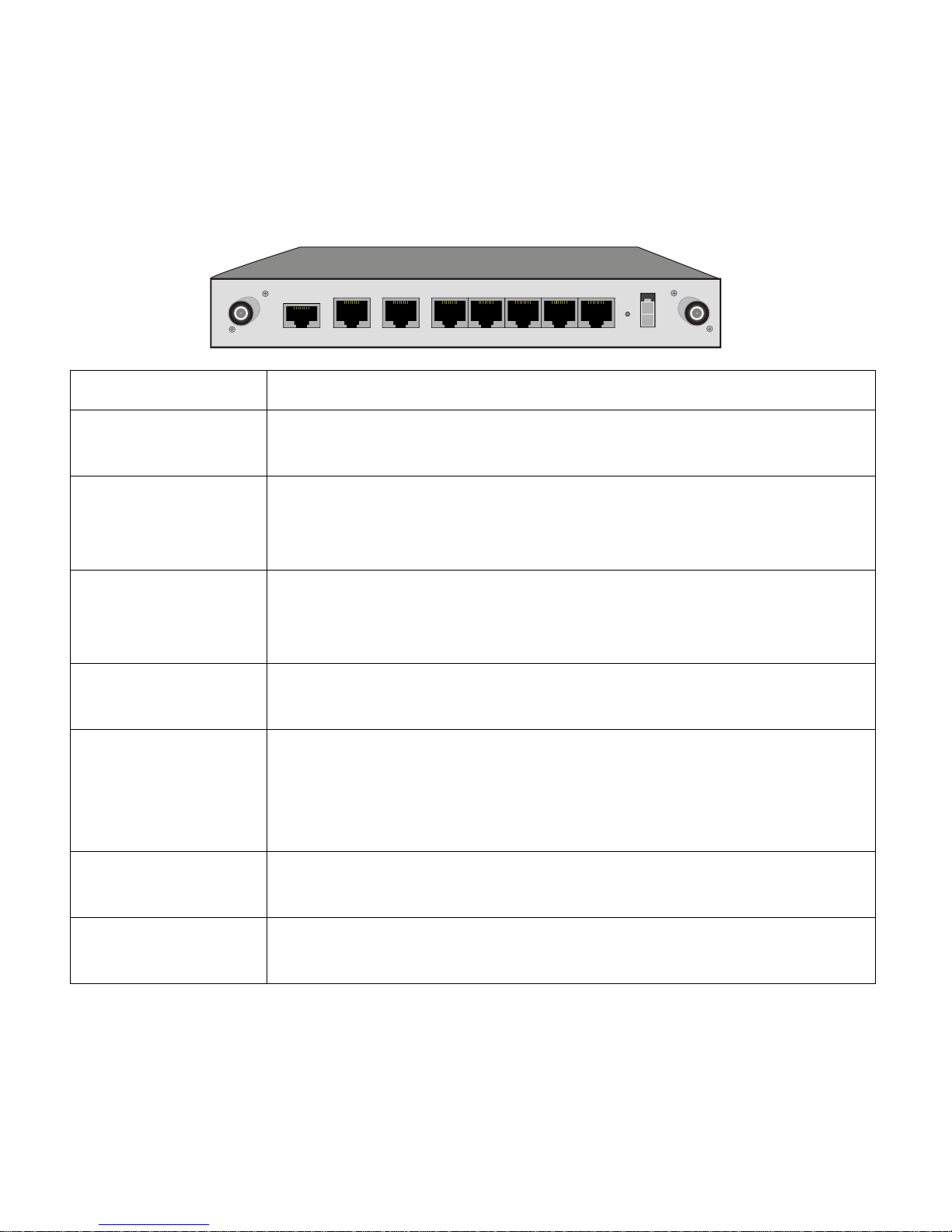

The Back Panel
Feature Description
Antenna
Connections Provides (2) connection points for the included wireless
antennas.
Console Port Provides a console connection to the SonicWALL
appliance. This feature is not supported on the SonicWALL
TZ 180 Wireless.
WAN Port Provides a connection between your SonicWALL TZ 180
Wireless and the Internet, usually connecting through a
modem or router.
OPT Port The OPT port can be configured as a DMZ or an additional
LAN or WAN port.
LAN Ports (1-5) Provides 5 fully-configurable ports for connection between
your SonicWALL TZ 180 Wireless and the devices on your
network. These ports can be connected directly to a
computer, or to a network switch or hub.
Reset Button Provides the capability to reboot your SonicWALL TZ 180
Wireless to a special diagnostic “safe-mode.”
Power Provides a power connection using the supplied AC
adaptor.
Console WAN OPT 5 4 3 2 1 Power
Page 4 The Back Panel
Document Contents
This document contains the following sections:
Completing Pre-Configuration Tasks - page 5
Registering Your SonicWALL - page 11
Connecting for Initial Setup - page 15
Running the Setup Wizard - page 21
Verifying Your Connection - page 25
Appendix
Appendix A: Configuring DHCP IP Addressing - page 31
Appendix B: Troubleshooting Internet Connectivity - page 32
Appendix C: Global Support Services - page 33
Appendix D: Safety Instructions and Regulatory Information - page 39
1
2
3
4
5
SonicWALL TZ 180 Wireless Getting Started Guide Page 5
Completing Pre-Configuration Tasks
In this Section:
This section provides pre-configuration information. It is necessary to review
this section before setting up your SonicWALL TZ 180 Wireless.
•System Requirements, on page 6
•Check Package Contents, on page 7
•Obtain Configuration Information, on page 8
•Obtain Internet Service Provider (ISP) Information, on page 9
1
Page 6 System Requirements
System Requirements
Before you begin the setup process, ensure you have a computer that meets
the following requirements. This computer is used to manage your SonicWALL
TZ 180 Wireless during the setup process.
• Windows Vista, Windows XP, Windows 2000, or Windows NT
• 40MB of disk space available
• One available 10/100 Ethernet (LAN) port
• A Web browser supporting Java and HTTP uploads. Internet Explorer 6.0
or higher, Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher are
recommended
• LAN interface set to obtain an IP address automatically (DHCP addressing
enabled)
Note: In order to connect to the SonicWALL TZ 180 Wireless, your
computer must be set to obtain an IP address automatically
using DHCP. For more information on configuring DHCP on
your computer, turn to Appendix A: Configuring DHCP IP
Addressing, on page 29.
SonicWALL TZ 180 Wireless Getting Started Guide Page 7
Check Package Contents
SonicWALL TZ 180 Wireless
Standard power adaptor
DB9 -> RJ45 (CLI) cable
Wireless antenna pair
Ethernet cable
Getting Started Guide
Release Notes document
1
2
3
4
5
6
7
Any Items Missing?
If any items are missing from your
package, please contact SonicWALL
support.
A listing of the most current support
options is available online at:
<http://www.sonicwall.com/us/support.html>
*The included power cordis intended for use
in North America only. For European Union
(EU) customers, a power cord is not
included.
1
2
45
link/act
10/100
wan opt 12345
on/act
WiFiSec
wlan
TZ 180
wireless
SonicOS Release Notes
Contents
67
SonicWALL
Getting Started Guide
COMPREHENSIVE INTERNET SECURITY
3
Getting Started
Guide
SonicWALL Security Appliances
UTM APPLIANCE
TZ Series
Page 8 Obtain Configuration Information
Obtain Configuration Information
Record and keep for future reference the following setup information:
Registration Information
Networking Information
Administrator Information
Serial Number:
Record the serial number found on the bottom panel of
your SonicWALL appliance.
Authentication Code:
Record the authentication code found on the bottom panel
of your SonicWALL appliance.
LAN IP Address:
. . .
Select a static IP address for your SonicWALL appliance
that is within the range of your local subnet. If you are
unsure, you can use the default IP address
(192.168.168.168).
Subnet Mask:
. . .
Record the subnet mask for the local subnet where you are
installing your SonicWALL appliance.
Ethernet WAN IP Address:
. . .
Select a static IP address for your Ethernet WAN. This
setting only applies if you are already using an ISP that
assigns a static IP address.
Admin Name:
Select an administrator account name.
(default is admin)
Admin Password:
Select an administrator password.
(default is password)
SonicWALL TZ 180 Wireless Getting Started Guide Page 9
Obtain Internet Service Provider (ISP) Information
Record the following information about your current Internet service:
If you connect via You likely use Please record
Cable modem,
DSL with a router DHCP No Internet connection information is usually
required, although some service providers
require a host name.
Host Name:
Home DSL PPPoE User Name:
Password:
Note: Your ISP may require your user name in
the format: name@ISP.com
T1/E1,
Static broadband,
Cable or DSL with
a static IP
Static IP IP Address: . . .
Subnet Mask: . . .
Default Gateway
(Router IP Address): . . .
Primary DNS: . . .
Secondary DNS
(optional): . . .
Dial-in to a server PPTP Server Address:
User Name:
Password:
