ASSEMBLY GUIDE

MAKE SOMETHING WONDERFUL

| Ray

01

10

50

82

88

Before You Start

Assembling the Machine

Initial Setup

Assembling the Enclosure

Installing the Air Assist Pump

CONTENTS

Note: If you have purchased the Ray bundle with the 20W/40W Laser Module and

Enclosure, please assemble in the above order. If you have purchased other bundles, skip

the steps that include items you do not have.

Quick Start Guide | 1

BEFORE

YOU

START

2|

Before You Start

1.1 Parts List

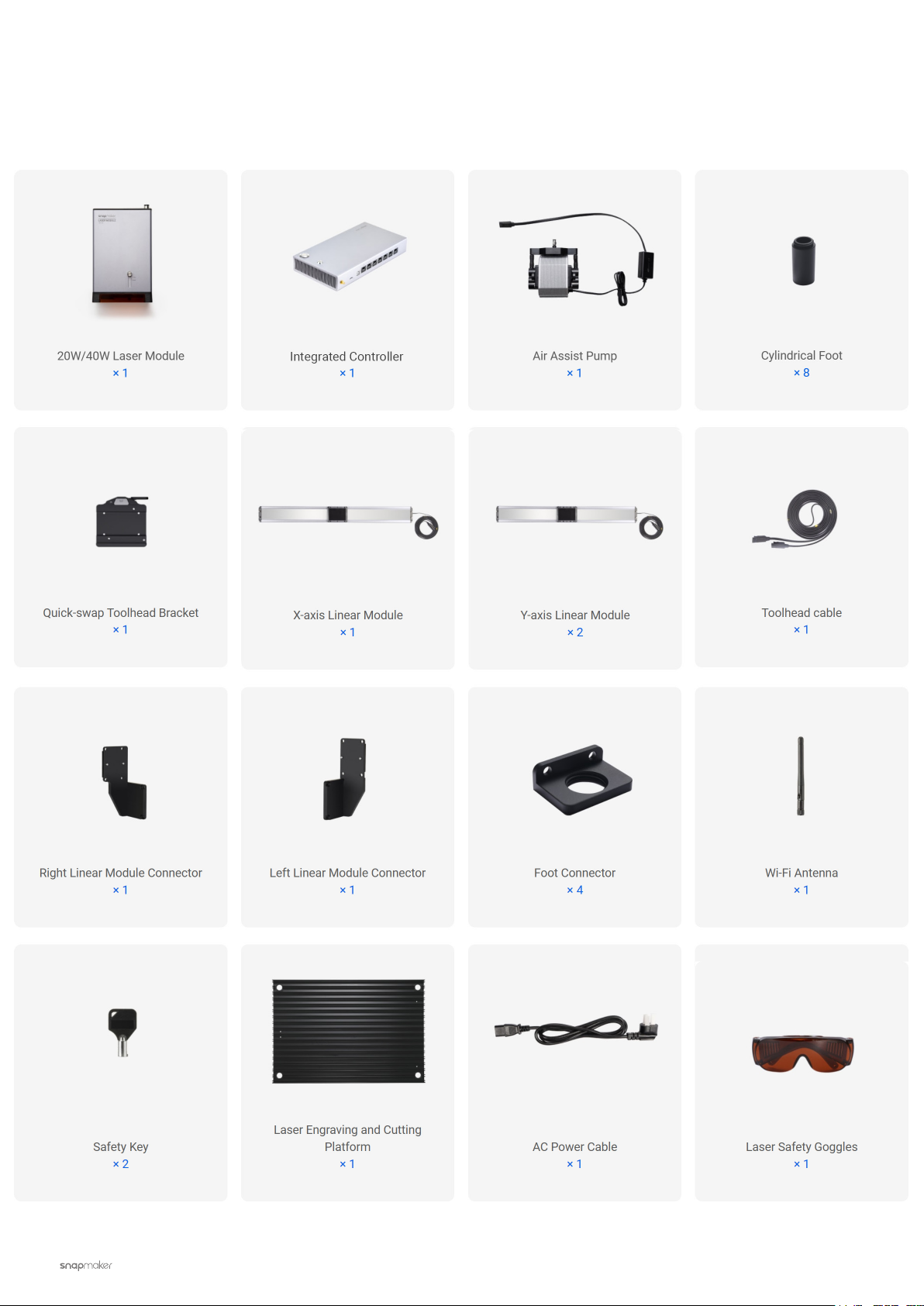

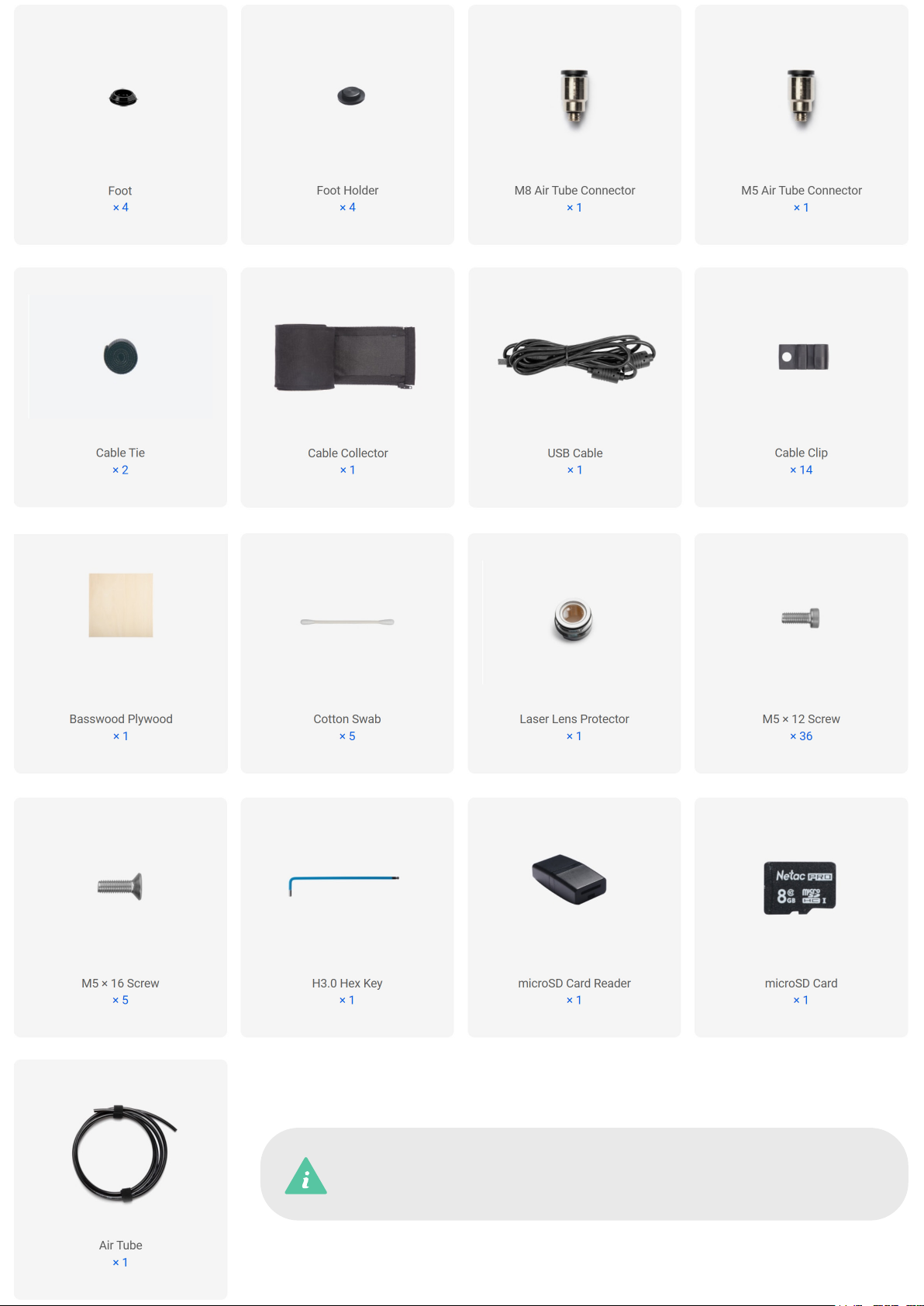

1.1.1 Parts List of the Machine Body

Quick Start Guide | 3

The Laser Module and the Air Assist Pump are not included

if you purchase the Ray Machine Body separately.

4|

Before You Start

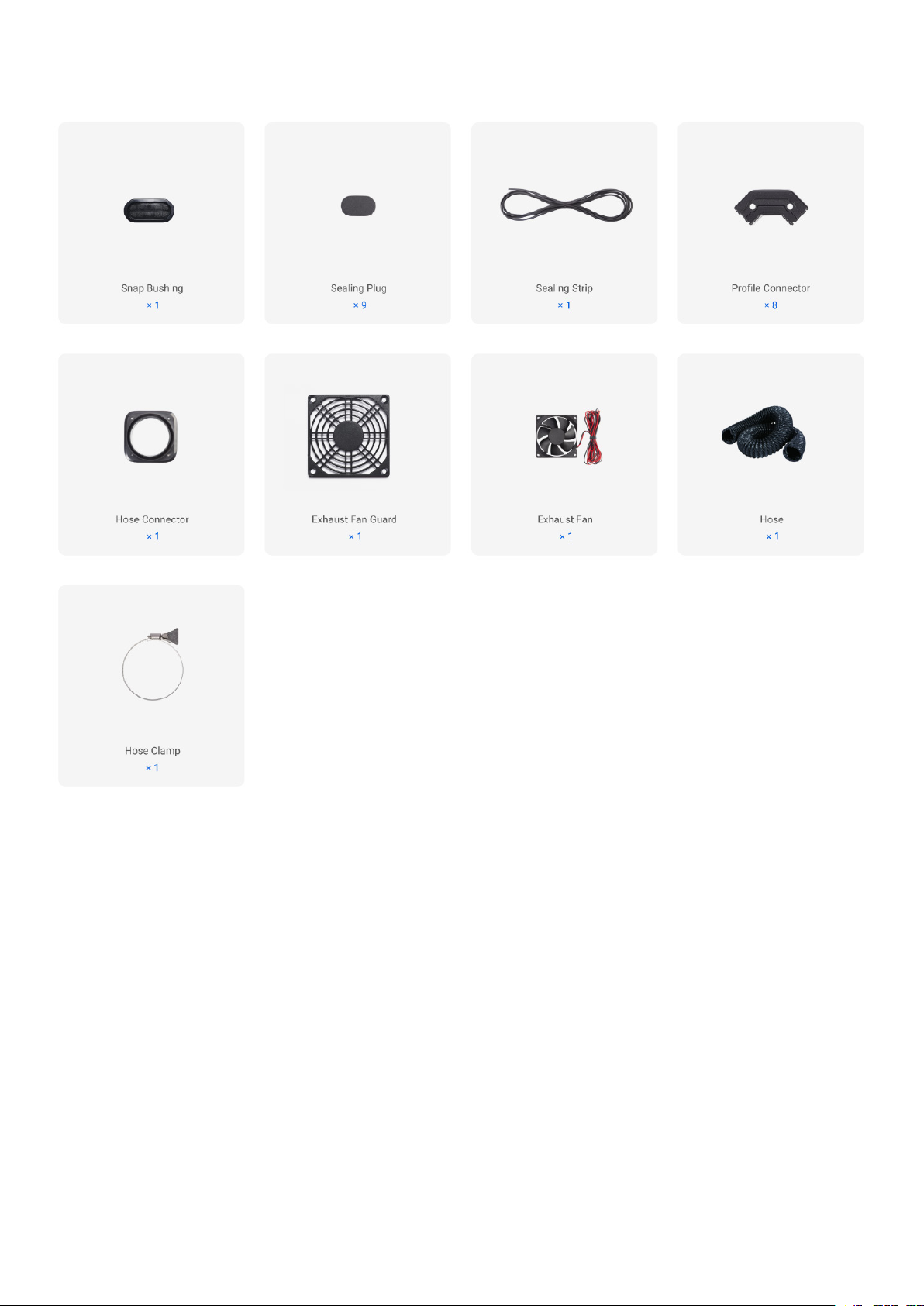

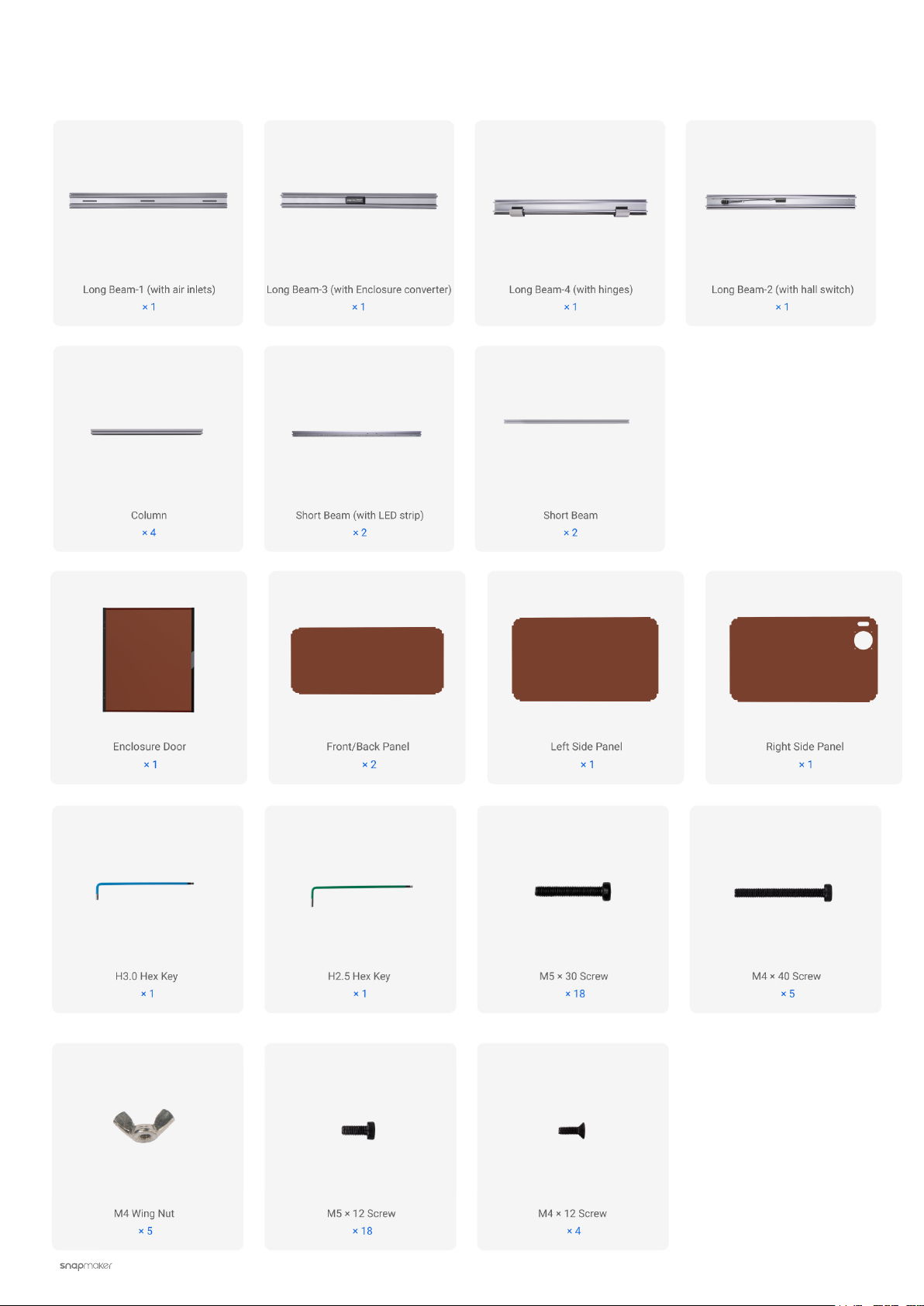

1.1.2 Parts List of the Enclosure

Quick Start Guide | 5

6|

Before You Start

The Snapmaker Enclosure helps

prevent the risk of laser leakage

during the laser process by

effectively filtering laser radiation.

Enclosure

An air purifier should be used

depending on the type and

constituent of the materials you

use, as some materials may release

hazardous and toxic fumes when

laser engraved or cut.

Air Purifier

Solid Horizontal Table

Always operate this machine

indoors on a solid horizontal table or

workbench.

Ensure that there are no flammable

and explosive materials within the

work area or around the machine

during operation, as they may cause

a fire.

Fire Extinguisher

Smoke Detector

Exhaust Venting

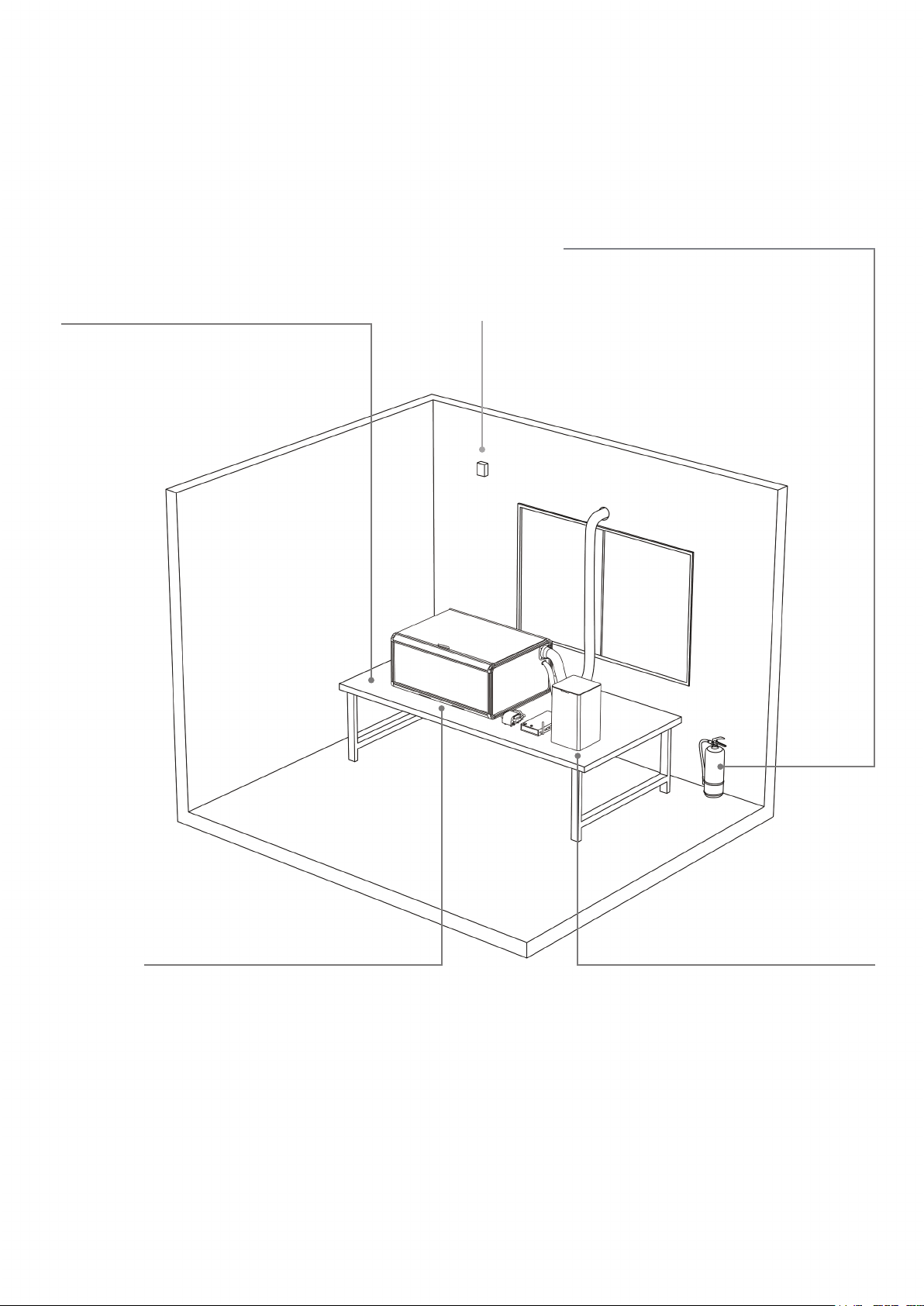

1.2 Environment Requirements

Quick Start Guide | 7

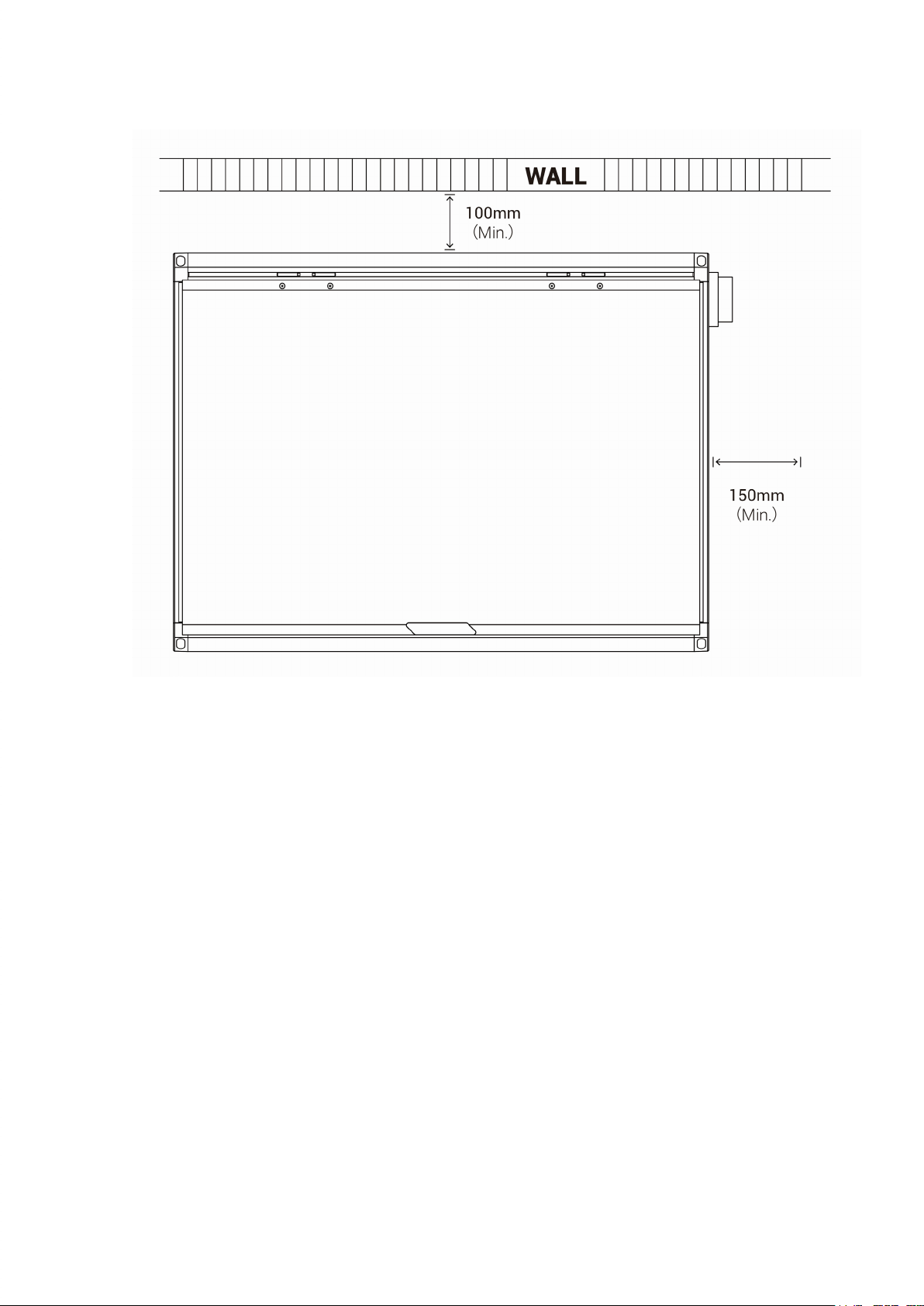

1.3 Space Requirements

8|

Before You Start

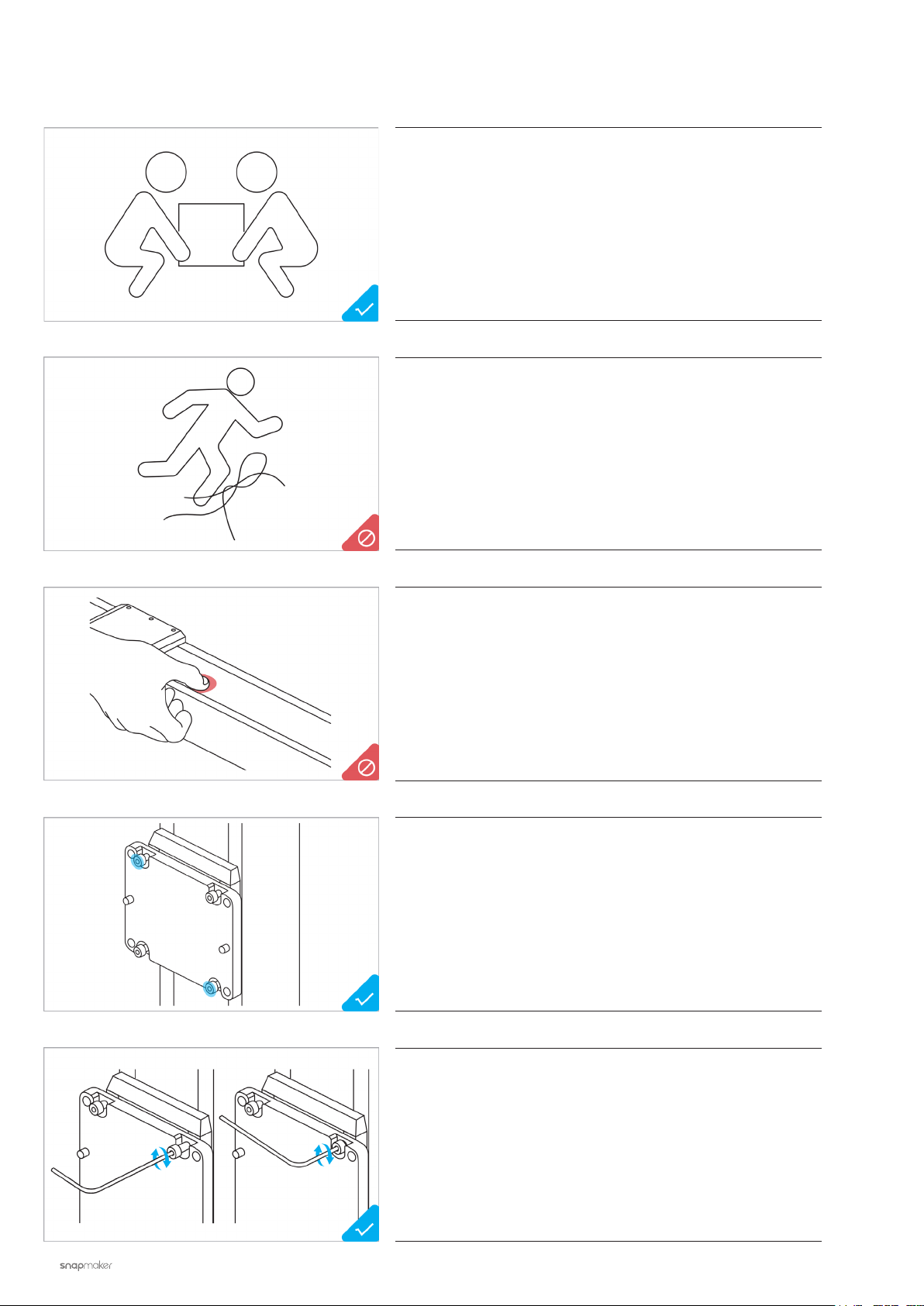

1.4 Tips and Notes for Assembly

It is recommended that at least two people lift the

machine and the Enclosure.

Collect and sort the cables in time lest anyone

should trip over them.

Do NOT press the steel strip.

To install multiple screws in one step:

1. Pre-tighten the screws at the outermost corner;

2. Pre-tighten the remaining screws;

3. Tighten all the screws in the pre-tightening

order.

* Pre-tighten: To screw the screw into the hole, yet not

fully tighten it.

To install screws with the provided hex key:

1. Screw the screw into the hole with the long

handle;

2. Tighten the screw with the short handle.
