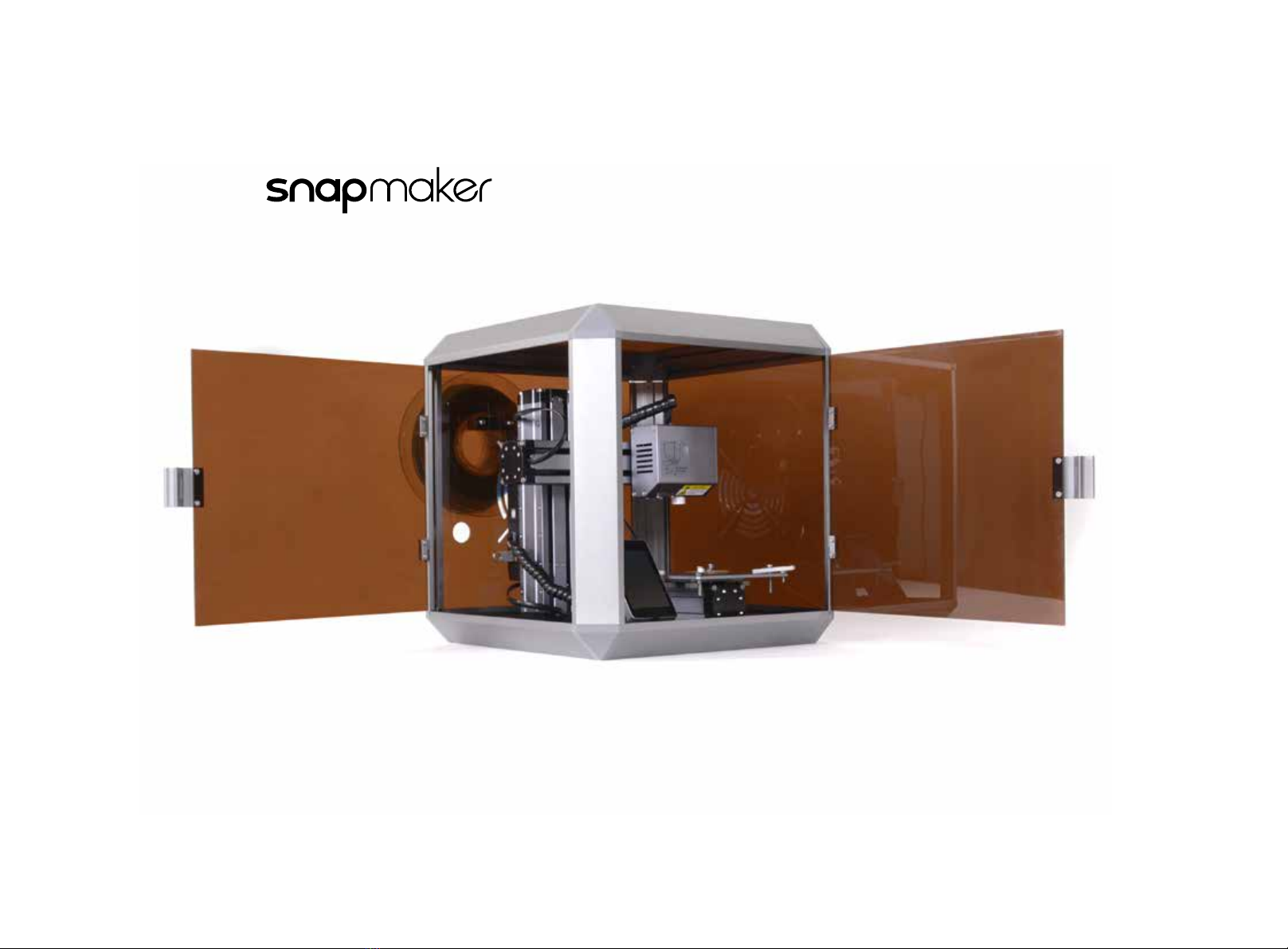

Snapmaker Enclosure Manuel utilisateur

| Enclosure Installation Guide

Assemble the Enclosure

Parts List

Before You Start

Put the 3D Printer into the Enclosure

Before You Start

Get Started

Support

Content

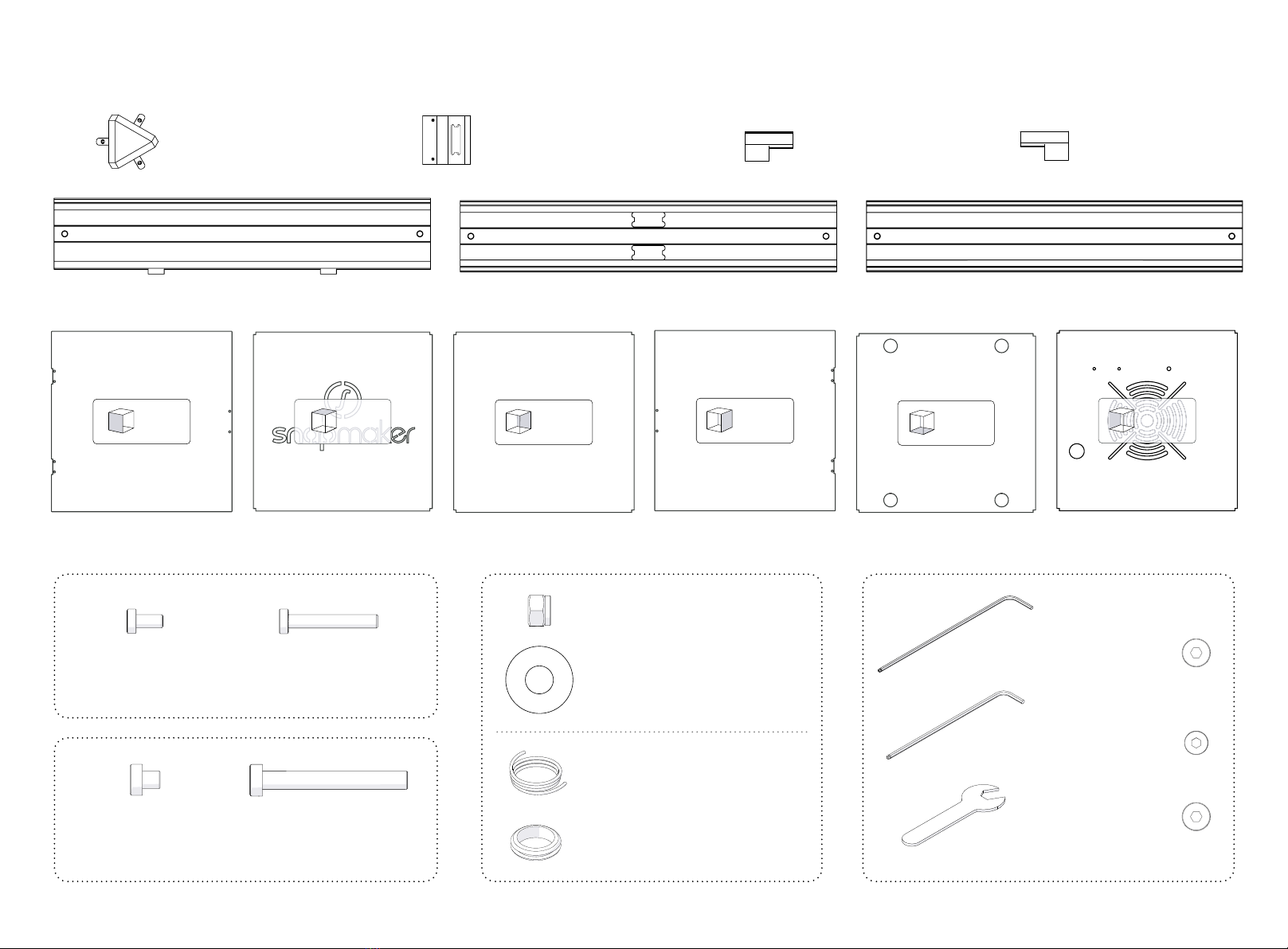

Parts List

M3 x 20 Screw

M4 x 32 Screw

M3 x 6 Screw

x12

M4 x 4 Screw

x24

M4 Locknut x 2 2.5mm Hex Key Wrench

for M4 Screws

2.0mm Hex Key Wrench

for M3 Screws

Spanner

for M4 Locknuts

Left Side Plate x 1

1:1 1:1

1:1

Top Plate x 1 Right Side Plate x 1 Front Plate x 1 Base Plate x 1 Back Plate x 1

Frame Piece with Magnets x 1Frame Piece with Bulges x 2 Frame Piece x 9

Corner Bracket x 8 Door Handle x 2 Hinge A x 2 Hinge B x 2

M4x15x1 Nylon Spacer x 2

Protective Ring x 2

2 x 3 x 40 Teon Tube x 1

Base

TopFront

Right

LeftBack

Guide for Enclosure

Before You Start

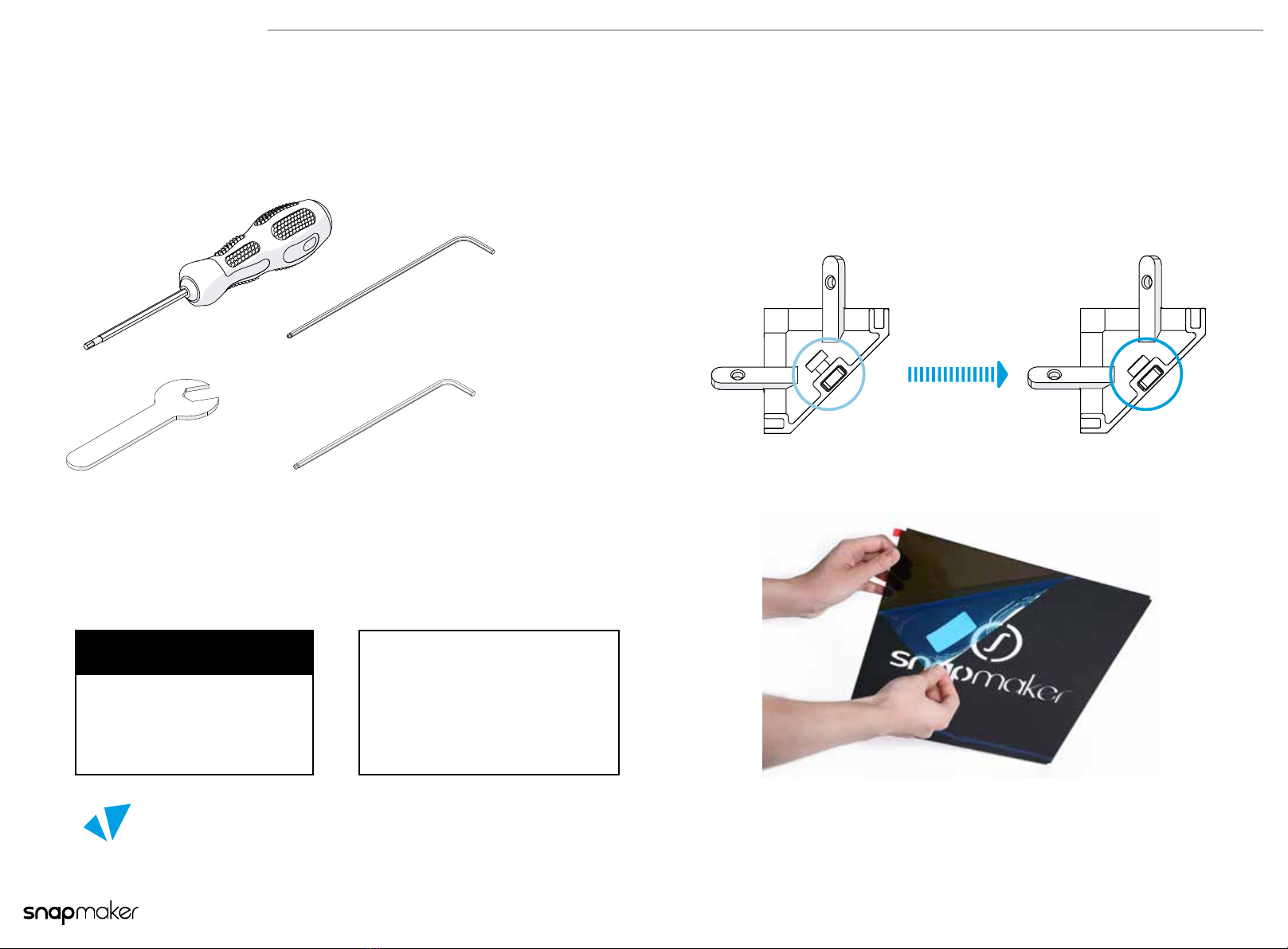

Get the Tools Ready Useful tips for assembling

You don’t need to tighten all the screws until the last step, so that you

can adjust every interface to be perfectly matched.

Please tear off the membranes on the plates before you assemble them.

Used Symbols

Tips

Notice

Make sure that the highlighted part is facing the right way.

Details you should be aware of

throughout the process.

Tips offer you convenient

operations and additional options.

2.5mm Hex Key Wrench

for M4 Screws

2.0mm Hex Key Wrench

for M3 Screws

Spanner

for M4 Locknuts

After Assembling

All the Parts

Assemble the Enclosure

Guide for Enclosure

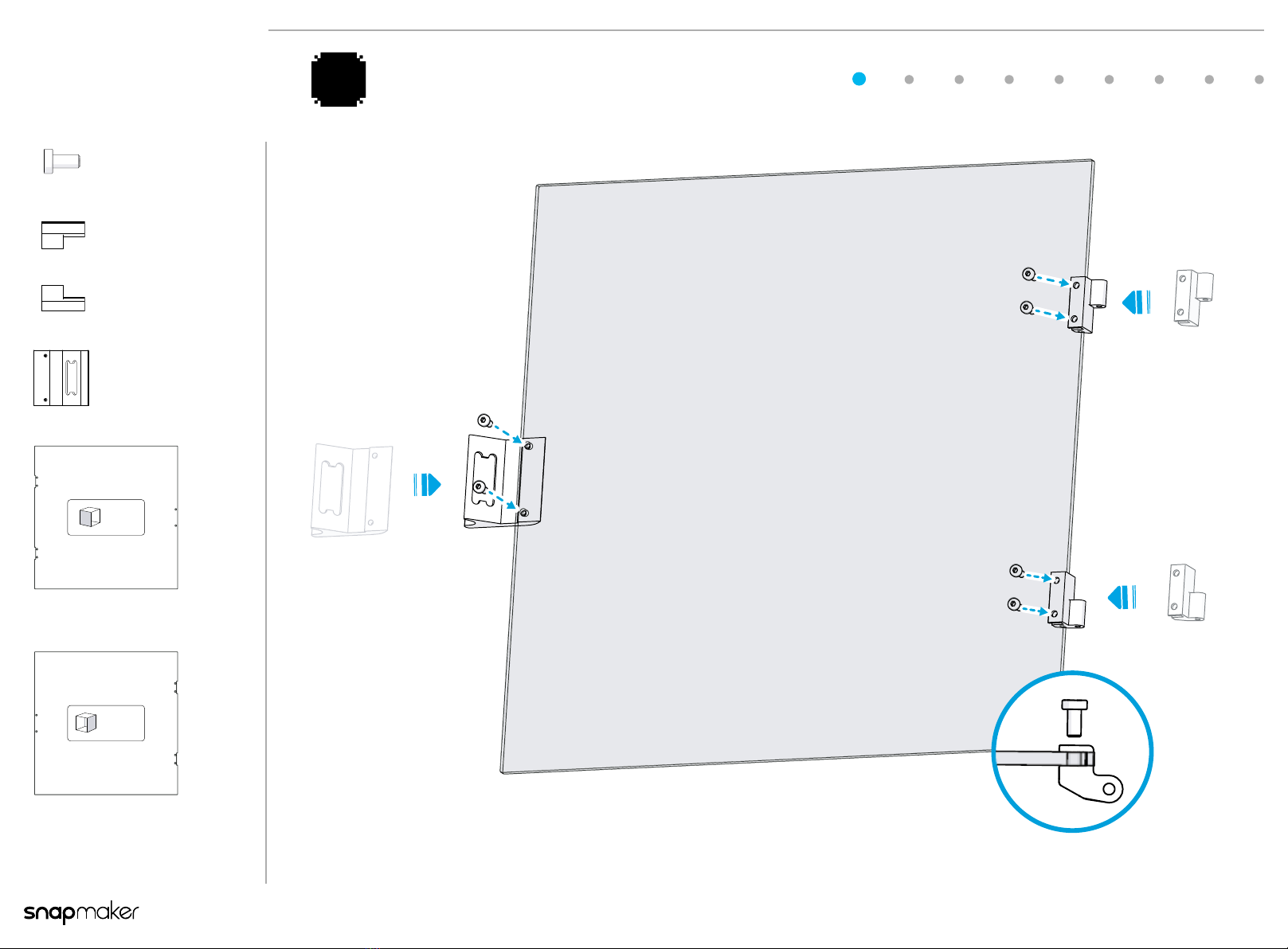

Get the front plate and the left side plate ready

Hinge A

x 2

Hinge B

x 2

Door Handle

x 2

M3 x 6 Screw

x 12

Left Side Plate x 1

Front Plate x 1

Front

Left

1:1

Assemble the Enclosure

Guide for Enclosure

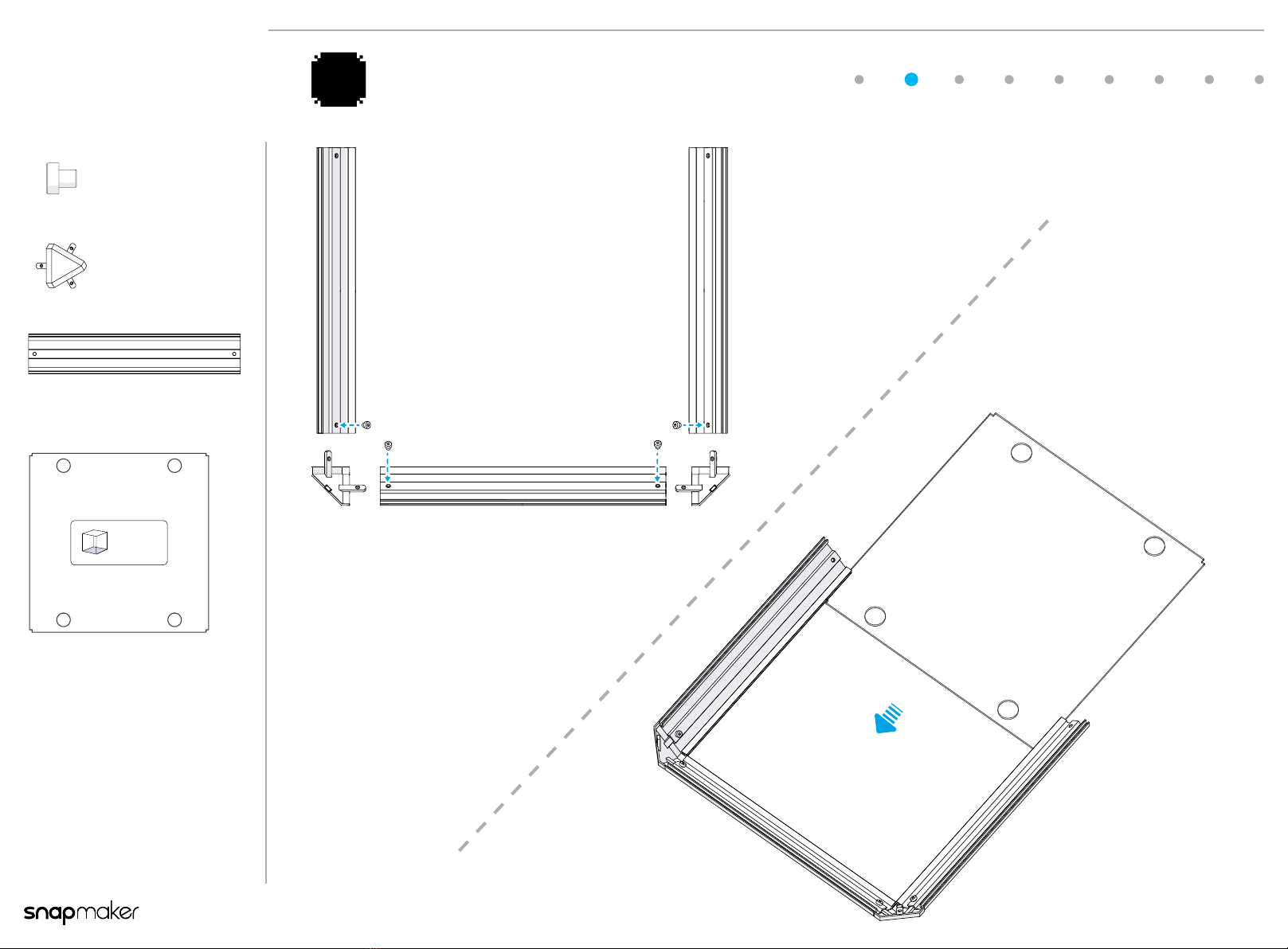

Assemble the Bottom

A. Build three sides of the bottom

with three frame pieces and two

corner brackets

B. Slide the Base Plate into

the U shape framework

Base Plate x 1

Frame Piece x 3

Corner Bracket

x 2

M4 x 4 Screw

x 4

Base

1:1

Assemble the Enclosure

Guide for Enclosure

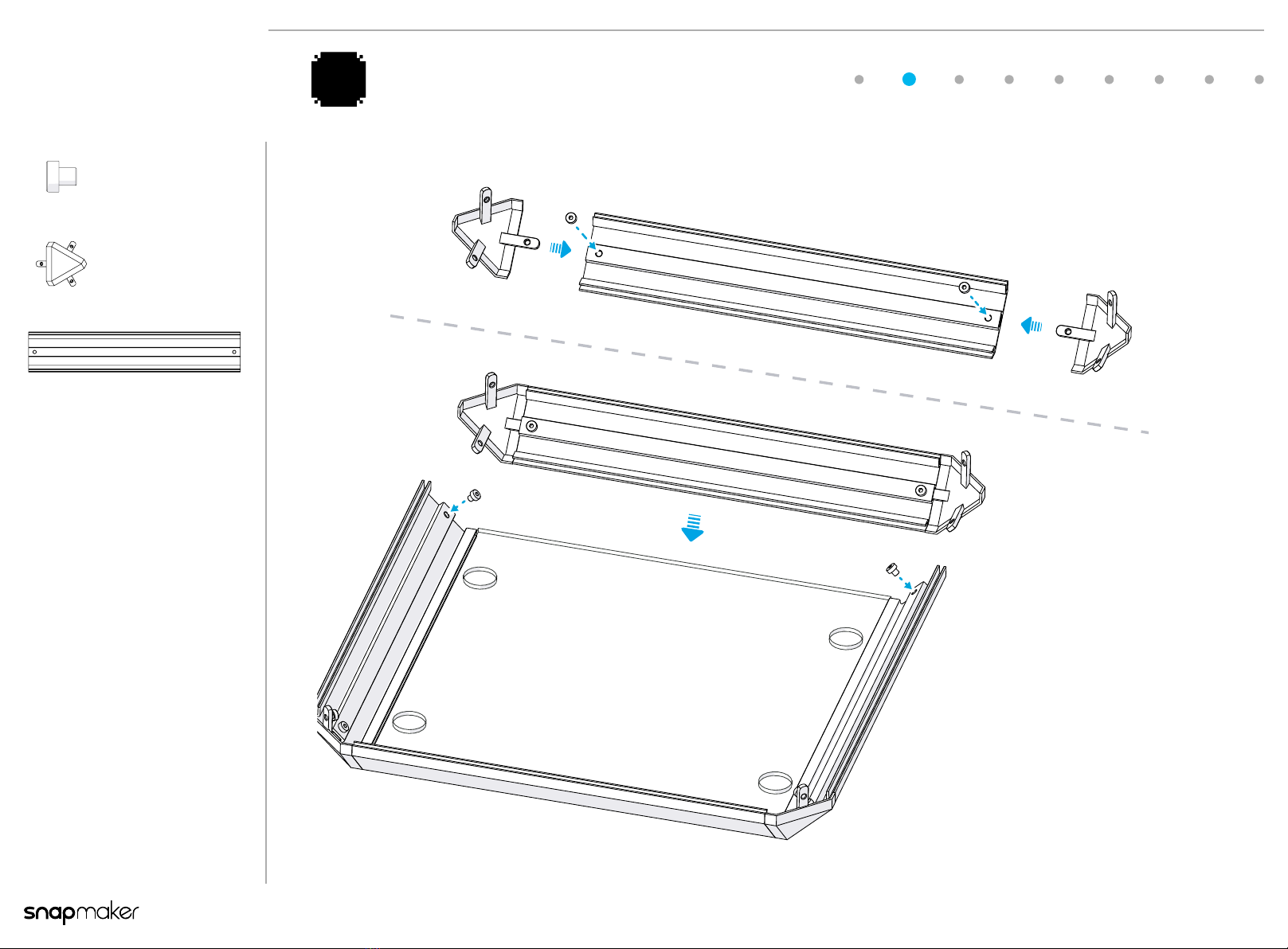

Assemble the Bottom

C. Attach two corner brackets to a frame

piece to build the fourth side of the bottom

D. Attach the fourth side to

the part set up in step B

Frame Piece x 1

Corner Bracket

x 2

M4 x 4 Screw

x 4

1:1

Assemble the Enclosure

Guide for Enclosure

Top

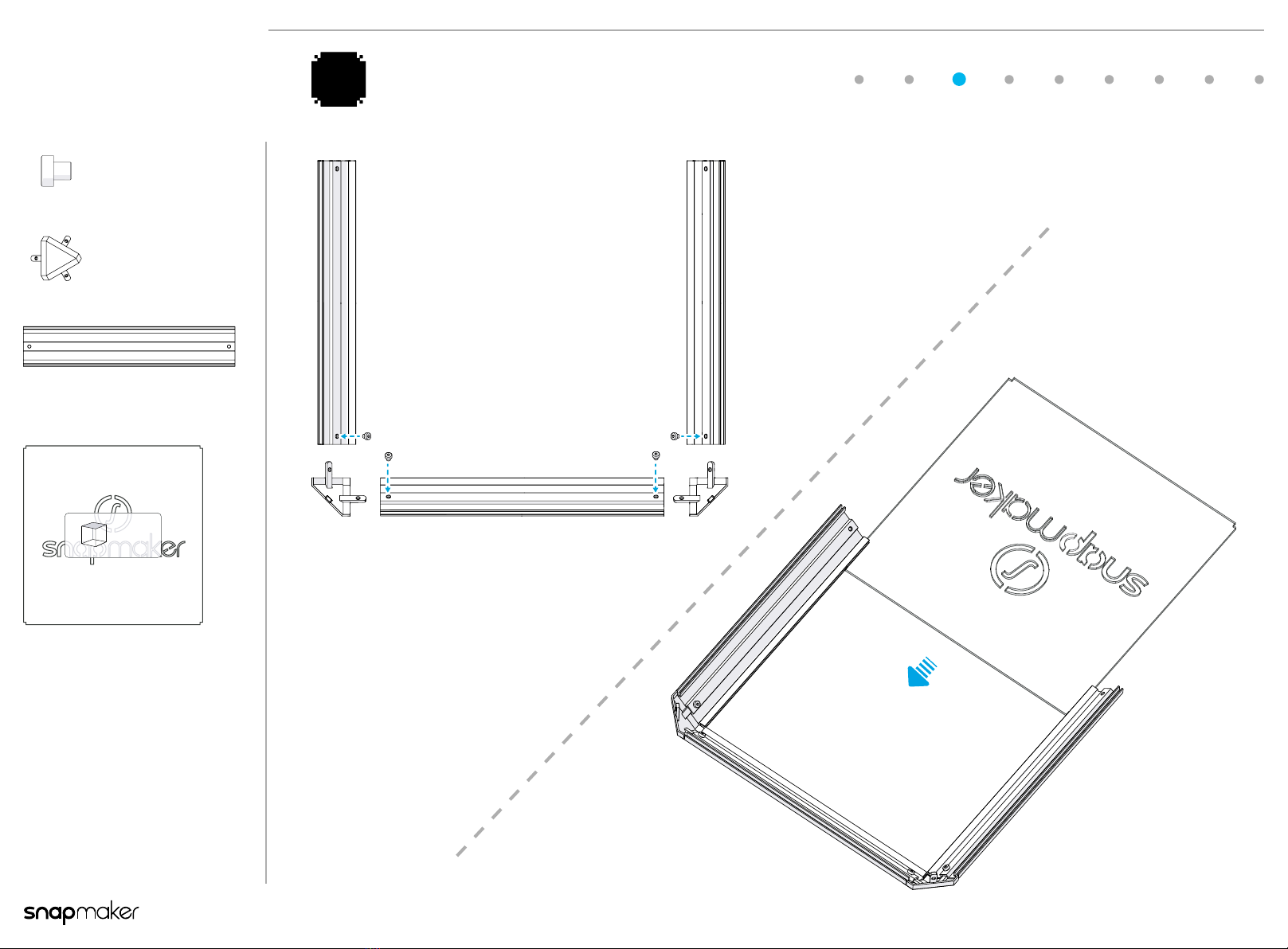

Assemble the Top

A. Build three sides of the top with

three frame pieces and two corner

brackets B. Slide the Top Plate into

the U shape framework

Top Plate x 1

Frame Piece x 3

Corner Bracket

x 2

M4 x 4 Screw

x 4

1:1

Assemble the Enclosure

Guide for Enclosure

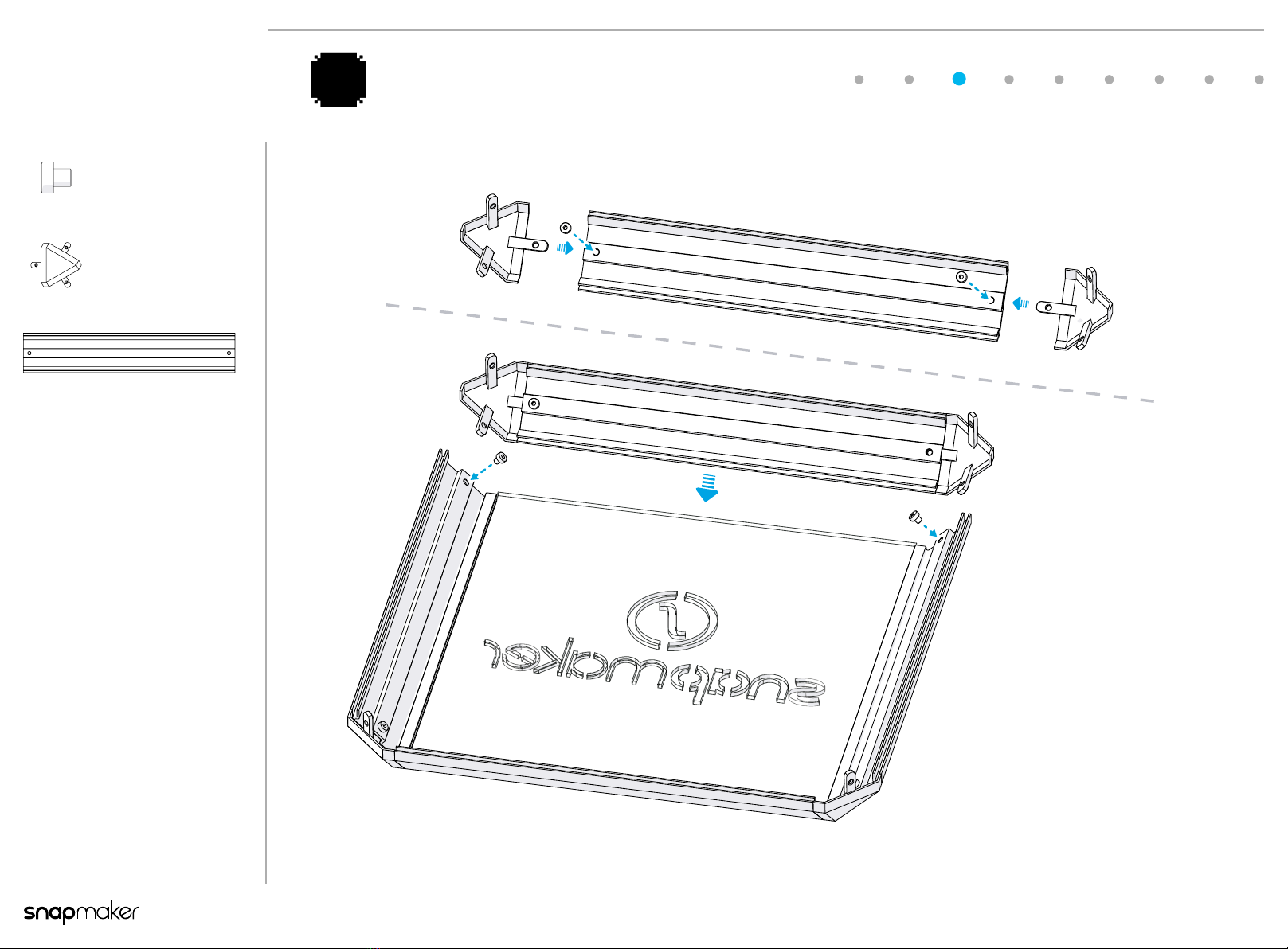

Assemble the Top

C. Attach two corner brackets to a frame

piece to build the fourth side of the top

D. Attach the fourth side to

the part set up in step B

Frame Piece x 1

Corner Bracket

x 2

M4 x 4 Screw

x 4

1:1

Assemble the Enclosure

Guide for Enclosure

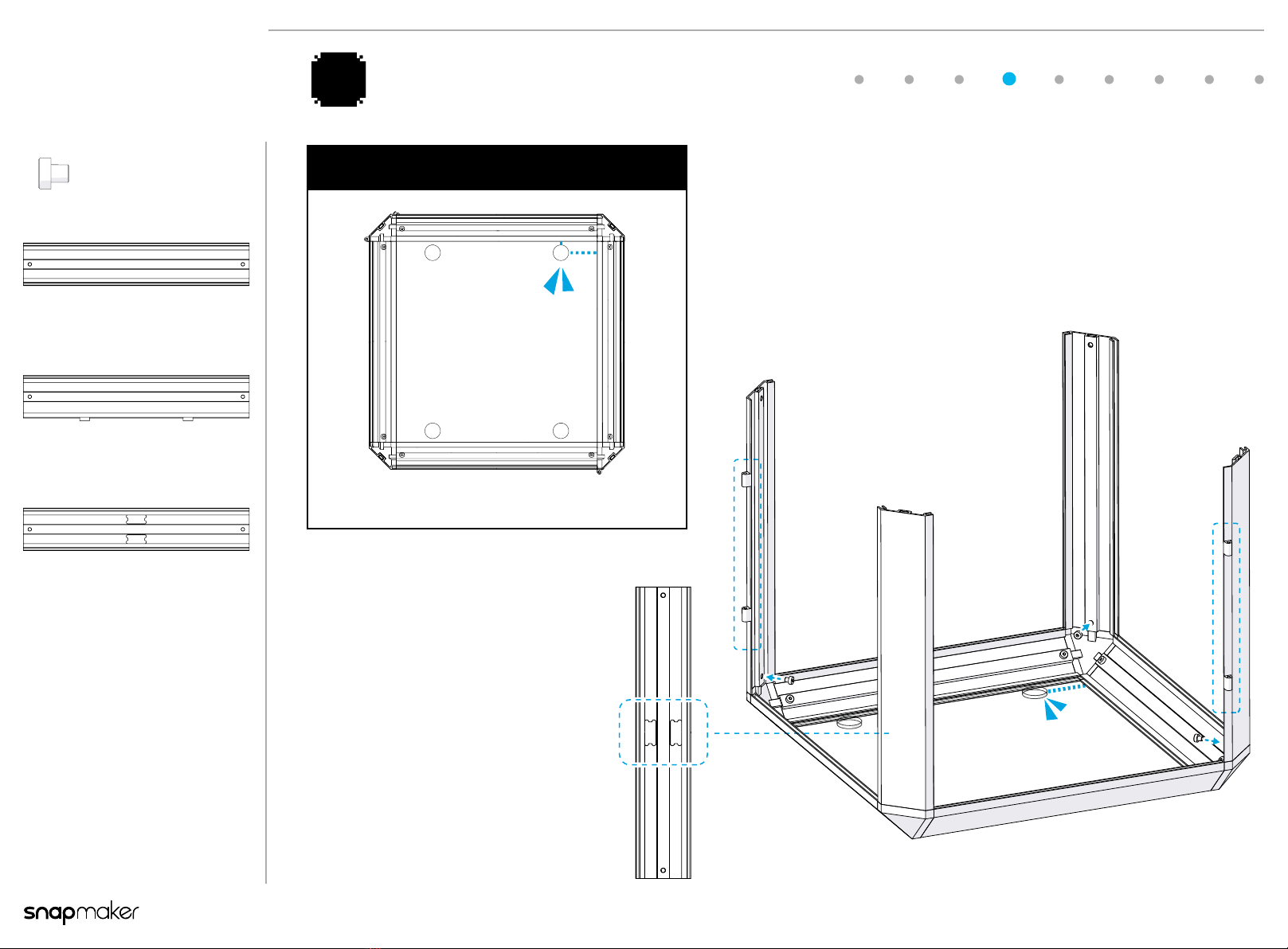

Connect the four frame pieces to the corner

brackets of the bottom as illustrated

Take 2 frame pieces with bulges and attach them to

corners 1 and 3. Attach the frame piece with magnets to

corner 4 and the last piece to corner 2.

Notice

Position the assembled part as illustrated.

Frame Piece x 1

M4 x 4 Screw

x 4

Frame Piece with Magnets x 1

Frame Piece with Bulges x 2

Frame Piece with Magnets

1:1
