Smeg SA301W-5 Manuel utilisateur

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4

2. INSTALLATION __________________________________________ 6

3. DESCRIPTION OF CONTROLS _____________________________ 8

4. USE OF THE OVEN______________________________________ 18

5. AVAILABLE ACCESSORIES _______________________________ 19

6. COOKING HINTS________________________________________ 20

7. CLEANING AND MAINTENANCE ___________________________ 26

8. ADDITIONAL MAINTENANCE______________________________ 28

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the controls and the correct procedures for cleaning and

maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS

THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE

REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC

USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE

APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING

FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES

ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE EARTHED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OUTLETS AND HEAT DISPERSAL SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

Introduction

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY CATCH LIGHT AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN. TO AVOID BURNS

AND SCALDS CHILDREN SHOULD BE KEPT AWAY

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NOT BE REMOVED.

THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT

BE USED AS A SPACE HEATER.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT

IS IN OPERATION.

THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN

TO GO NEAR OR PLAY WITH IT. IT’S NOT INTENDED FOR USE BY YOUNG

CHILDREN OR INFIRM PERSONS WITHOUT SUPERVISION.

REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE

COLLECTION CENTRE.

WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN

CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidlines or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION

2.1 Electrical connection

Check that the mains voltage and power cable ratings are as per the

information provided on the label attached to the oven door frame.

This label must never be removed.

It is obligatory for the electrical system to be earthed according to the

methods required by safety rules.

If a plug and socket connection is being used make sure that the plug

and socket are compatible. Avoid use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used fit cable line with an omnipolar circuit

breaker with a contact opening gap equal to or greater than 3 mm in an

easily accessible position in proximity to the oven.

For operation on 230V

∼

:use an H05RR-F

/ H05RN-F type three-core cable (3 x 1.5

mm2).

The cable end to be connected to the

appliance must be provided with an earth

wire (yellow-green) at least 20 mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidelines or by

interference with any part of the appliance.

Instructions for the installer

2.2 Installing the oven

The oven is designed for installation into any piece of furniture as long as it is heat-

resistant. Proceed according to the dimensions shown in Figures 1, 2and 3. For

installing under a work top, follow the dimensions given in Figure 3. For installing

under a work top beneath a hob with controls connected to the oven, ensure a

minimum clearance from any side walls of at least 110 mm as shown in Figure 1.

For installing in a column, follow the dimensions given in Figure 2allowing for a

clearance of 80 to 90 mm at the top and sides of the column. Tighten the four

screws (ref.A) inside the frame to secure (Fig. 1).

For installing beneath a separate hob, allow for a rear and bottom clearance as

shown in Figure 1(ref. B). See relevant instructions for fitting and securing the hob.

Never use the oven door to lever the oven into place

when fitting.

Avoid exerting too much pressure on the oven door

when open.

Instructions for the user

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the oven controls are grouped together on the front panel.

Before using the oven check that the electronic programmer is showing

the symbol (see paragraph “3.2 Electronic programmer”.

Instructions for the user

The user has only to press the central key for 1 - 2 seconds to

enable use of the oven on first use or after a power blackout.

THERMOSTAT CONTROL KNOB

Cooking temperature is selected by turning the

knob clockwise to the desired setting, between

50° and 250°C.

FUNCTION CONTROL KNOB

Rotate the knob in either direction to select desired function from the

following:

NO FUNCTION SET

LOWER HEATING

ELEMENT + VENTILATED

HEATING ELEMENT

DEFROSTING

UPPER AND LOWER

HEATING ELEMENT +

VENTILATION

UPPER AND LOWER

HEATING ELEMENT

FULL GRILL ELEMENT +

VENTILATION

WIDE GRILL ELEMENT

VENTILATED

HEATING ELEMENT

GRILL ELEMENT

GRILL ELEMENT +

VENTILATION

LOWER HEATING

ELEMENT

LOWER HEATING

ELEMENT +

VENTILATION

UPPER AND LOWER

HEATING ELEMENT +

VENTILATED HEATING

ELEMENT

Instructions for the user

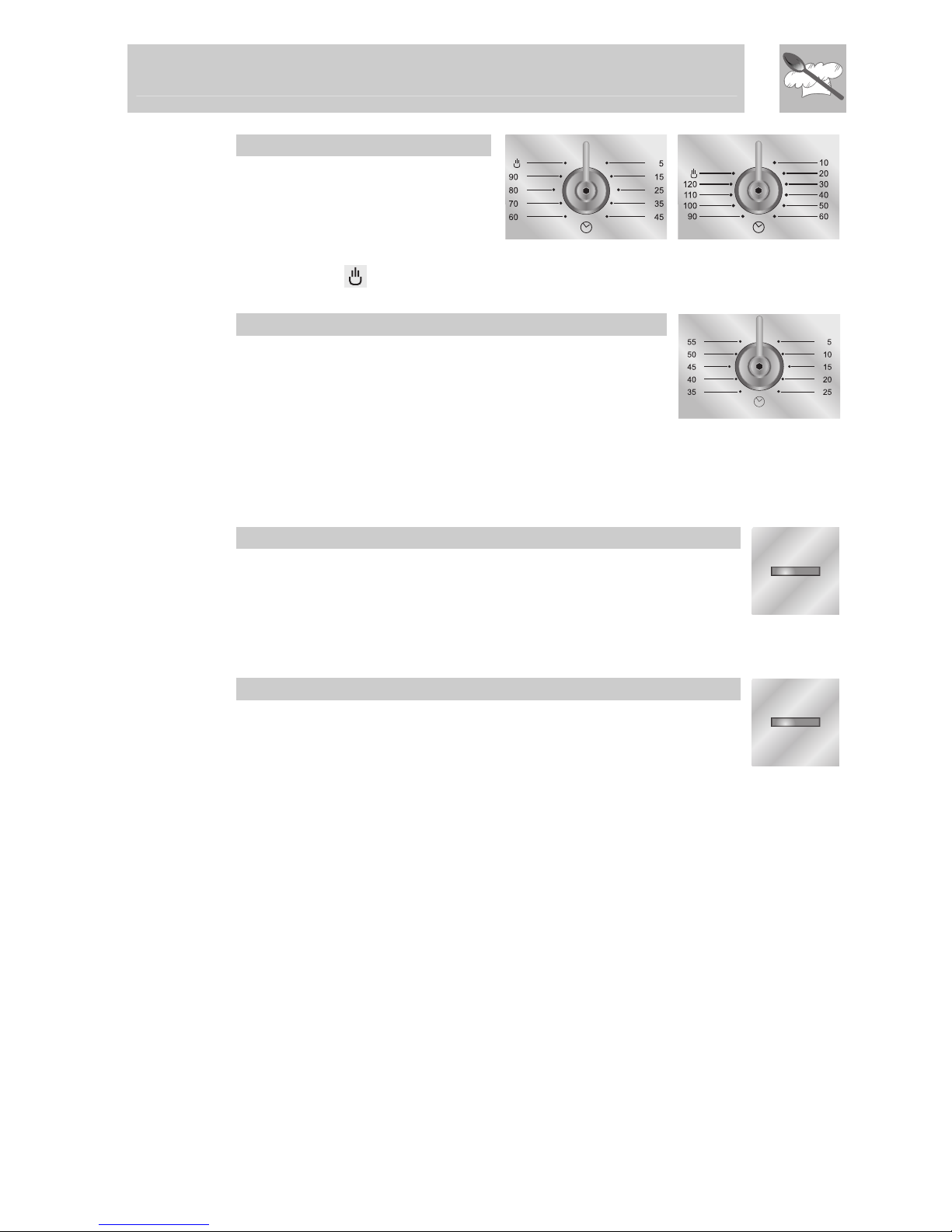

TIMER KNOB

Lets you choose manual

cooking or the timer with

automatic turn-off of the oven

when done.

For manual control of cooking time, turn the knob anticlockwise to

the symbol .

MINUTE COUNTER KNOB

Turn the knob clockwise to the desired time.

Time is expressed in minutes (maximum 55

minutes).

Adjustment is continuous so that intermediate times between markings

can also be set. Alarm activation at end of pre-set time does not turn off

the oven (no end of cooking).

THERMOSTAT INDICATOR LIGHT (ORANGE)

When this light comes on, the oven is heating up.

When this light goes out, the preset heating temperature

has been reached.

When the light flashes, the temperature inside the oven is

steady.

PILOT LIGHT (GREEN)

This light comes on when any of the oven elements is

receiving power.

Instructions for the user

3.2 Electronic Analogue Clock

LIST OF FUNCTIONS

MINUTE-MINDER BUTTON

AUTOMATIC SWITCH-OFF TIMING BUTTON

TIME SETTING AND RESET

VALUE DECREASE BUTTON

VALUE INCREASE BUTTON

3.2.1 Setting the time

When the oven is used for the first time, or after a power blackout, the

display flashes on and off at regular intervals. Press the key for 1/2

seconds to stop the display flashing and start setting of the current time.

Press the value modification keys or to increase or decrease by

one minute for each time a key is pressed.

Press one of the two value modification keys until the current time

appears. The clock will start from the time set 6/7 seconds after the last

key is pressed.

At the end of each programmed cooking operation, the clock gives 8

beeps, repeated 3/4 times at intervals of about 1 and a half minutes.

The beeps can be stopped at any moment by pressing any key.

Instructions for the user

3.2.2 Minute-minder

This function does not stop cooking but just triggers the beeps.

-When the key is pressed the display

illuminates, appearing as shown in figure 1;

-Press the or keys within 6/7 seconds to

set the minute-minder. Whenever a key is

pressed, 1 outside segment, representing 1

cooking minute will light up (figure 2 shows 10

cooking minutes).

-The countdown will start 6/7 seconds after the

last key is pressed; at the end of it, you will hear

the beeps.

-During cooking with countdown, the current

time can be displayed by pressing the key

once; press again to return to the minute-

minder display.

-At the end of the countdown, the oven has

to be switched off by hand, by turning the

thermostat and the function selector to 0.
