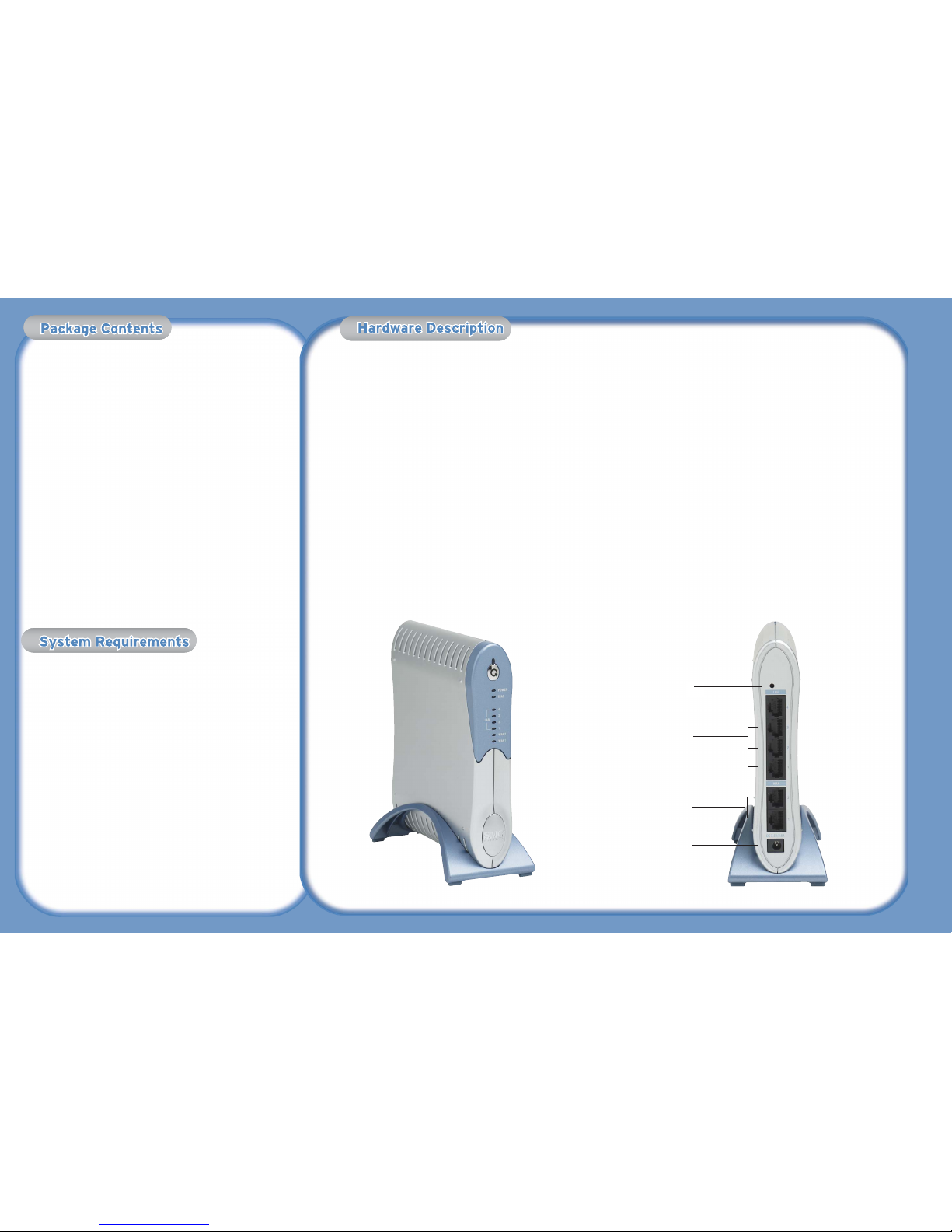

The SMCBR24Q Router is equipped with:

•2 Auto-Sensing 10/100 Mbps RJ-45 WAN connections.

•4 Auto-Sensing 10/100 Mbps RJ-45 LAN connections.

•1 DC 3.3V/2.5A power connection.

•1 Reset button.

•1 QoS hot button

Front Panel LED Indicators

•Power - Green On: Power On

•DIAG - Orange On: System not ready

Orange Off: System ready

•Q-button - Green On: Button On

•1~2 WAN Ports - Green On: Ethernet Link

Green Blinking: Activity

•1~4 LAN Ports - Green On: Ethernet Link

Green Blinking: Activity

Back

1. Reset - You can restart the unit by pressing the reset button and releasing it

immediately. If, for any reason, you need to reset the unit to factory defaults

and cannot access the user interface (e.g. if you have changed and forgotten

the password), press the reset button for 10 seconds. Note that you will lose all

your configuration changes when you reset the router to factory defaults.

2. LAN Ports (1, 2, 3 and 4) - There are four Ethernet LAN ports for connection to

PCs, network printers or similar devices. Note the labelling; one LAN LED on the front

panel is associated with one port on the rear panel. Port 1 is associated with the LAN1

LED, port 2 with LAN2 and so on. If a device is not correctly connected, using a

suitable Ethernet cable, the associated LED will not turn on.

3. WAN Ports (1 and 2) - There are 2 Ethernet WAN ports used to connect to a cable

or ADSL line. Note the labeling; one WAN LED on the front panel is associated with

one port on the rear panel. WAN port 1 is associated with the WAN1 LED, WAN port

2 is associated with WAN2. If a device is not correctly connected, using a suitable

Ethernet cable, the associated LED will not turn on.

4. Power - Connect the supplied, 3.3 / 2.5A power adapter to this socket.

After unpacking the SMCBR24Q, please check the contents of the box to be

sure you have received the following components.

•1 SMCBR24Q four port router

•SMC EZ Installation and Documentation CD.

•Quick Installation Guide

•1 Ethernet Cable

•1 Power 3.3V/2.5A Power Supply

Immediately inform your dealer in the event of any incorrect, missing or

damaged parts. If possible, please retain the carton and original packing

materials in case there is a need to return the product.

Please register this product and upgrade the product warranty at the SMC Web

site: www.smc.com

To install and connect to the SMCBR24Q, you must have:

•A PC running Windows 9x/Me/2000/XP, MAC OS 8.x or higher, or

Linux/Unix.

•Each PC should have a wired network adapter correctly installed.

•Internet Explorer/Netscape Navigator 5.0 or higer.

•An external Cable or DSL modem.

•A CD-ROM drive

NOTE: A CD-ROM is only required if you want to use the EZ Installation CD

application to configure your router. The process can be completed

manually through the web interface.

For technical support etc---driver updates, Europe tech support

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada

(24 hours a day, 7 days a week)

(800) SMC-4-YOU; Phn: (949) 679-8000;

Fax: (949) 679-1481

From Europe : Contact details can be found

on www.smc.com

INTERNET

E-mail addresses:

[email protected]

Driver updates:

http://www.smc.com/index.cfm?action=tech

support drivers downloads

World Wide Web:

http://www.smc.com/

If you are looking for further contact

information, please visit

www.smc.com .

38 Tesla

Irvine, CA 92618

Phone: (949) 679-8000

Model Number: SMCBR24Q

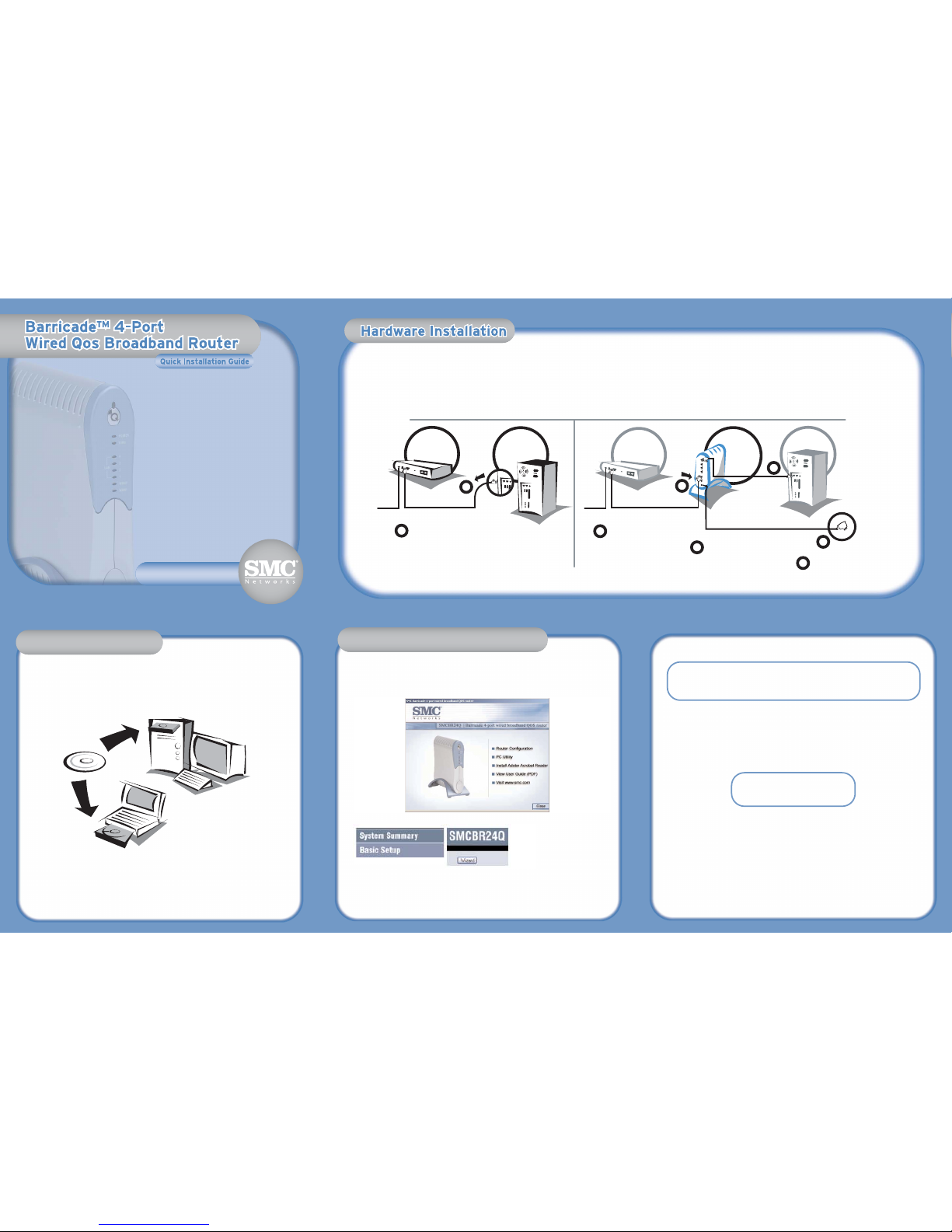

Congratulations on your purchase of the SMCBR24Q 4 port wired QoS Router. This Quick Installation Guide will guide you through a simple process to get your new router online.

For additional information and advanced settings configurations please refer to the User Guide included on the CD-ROM.

Before you can use the EZ Installation CD you need to connect your new SMCBR24Q Router to a DSL or Cable modem to WAN 1. You will need to connect at least one computer to one of the

LAN ports to set up the router. To setup your initial network, follow the steps below.

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Hardware Installation

Using The Installation CD

SMCBR24QSMCBR24QSMCBR24QSMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility

is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties, which may result

from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves

the right to change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc.

Other product and company names are trademarks or registered trademarks of their respective holders.

Macintosh / Linux Users!

If you are setting up this Router in a non-Windows network environment, please refer

the User Guide located in the manual folder on theCD-ROM. The EZ Installation CD

is not compatible with the Mac or Linux OS.

SMCBR24Q Web Management:

You can access the web-based management tools using a java-enabled web browser by

typing http://192.168.2.1 in the browser's address bar.

If you are unable to access the web-based management utility, please refer to the user

guide to confirm that your browser is configured correctly.

Default Settings:

Router IP Address: 192.168.2.1

Router Username: smcadmin

Router Password: smcadmin

BROADBAND

MODEM

Current Setup Barricade Setup

COMPUTER

ETHERNET CABLE

CABLE OR

DSL LINE CABLE OR

DSL LINE

BROADBAND

MODEM

BARRICADE

ROUTER

ETHERNET CABLE

POWER CORD

ETHERNET

CABLE

COMPUTER

4Finally, when you have connected

both your modem and computer to

the Router, connect the power

adapter to an electrical outlet.

Unplug your existing modem's

Ethernet cable from the back

of your computer.

Connect this same Ethernet

cable connector to the WAN 1,

port on the router. If you have

an additional cable or DSL line

you can connect it to WAN 2

at this time. If only one line is

available, connect it to WAN 1

by default.

Using the Ethernet cable

included in the box, connect

one end to LAN port 1 and

connect the other end to the

Ethernet port on the back of

your computer.

When you have completed the network setup outlined in the previous section, put the

SMC Installation and Documentation CD into your CD-ROM drive.

For initial setup, it is recommended that you use the Install Wizard on the computer

that was originally connected to your Broadband Internet connection.

NOTE: The EZ Installation CD only works on a Windows-based computer. If you are

using any other operating system, please configure the SMCBR24Q router through the

web-based interface. See the User Guide for further detail.

The Installation CD should auto-run to display the splash screen below. If it does not,

browse the contents of your CD-ROM drive, double click on the Router icon.

To begin the installation of your new SMCBR24Q Router, click the Router Configuration link

then when prompted enter ssmmccaaddmmiinnfor username and ssmmccaaddmmiinnfor password.

Click on the Basic Setup Link on the left then click on the Wizard Button located at the top

center of the page.

NNOOTTEE::CD also includes PC utility manual.

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Hardware Installation

Using The Installation CDUsing The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD

Hardware Installation

Using The Installation CD

SMCBR24Q

Barricade™ 4-Port

QoS Broadband Router

Installation CD
