SMC Networks BARRICADETM SMCWGBR14-N2 Manuel utilisateur

www.smc.com

POWER TO CONNECT

www.edge-core.com

SWITCHES ADSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

SMCWGBR14-N2

802.11n Wireless 4-Port Gigabit Broadband Router

Key Features and Benefits

Data Storage Accessibility

Share USB storage with all users in the network. Plug in any USB hard drive to the SMCWGBR14-N2 and instantly

create a file sharing and backup facility accessible through a user-friendly web browser interface.

High Level of Security

The SMCWGBR14-N2 features a Network Address Translation (NAT) Firewall with Stateful Packet Inspection (SPI) to

protect internal hosts from hacker attacks.

Wi-Fi Protected SetupTM (WPS)

The SMCWGBR14-N2 includes comprehensive wireless security with WPA/WPA2 PSK and Enterprise support. WPS

makes wireless security setup easy with both push-button and PIN-configuration methods, providing the ultimate

convenience in one-touch secure connectivity.

High Performance

The SMCWGBR14-N2 provides high-speed 300 Mbps wireless connections and Gigabit-speed LAN ports, ideal for HD

video streaming and other high-bandwidth applications.

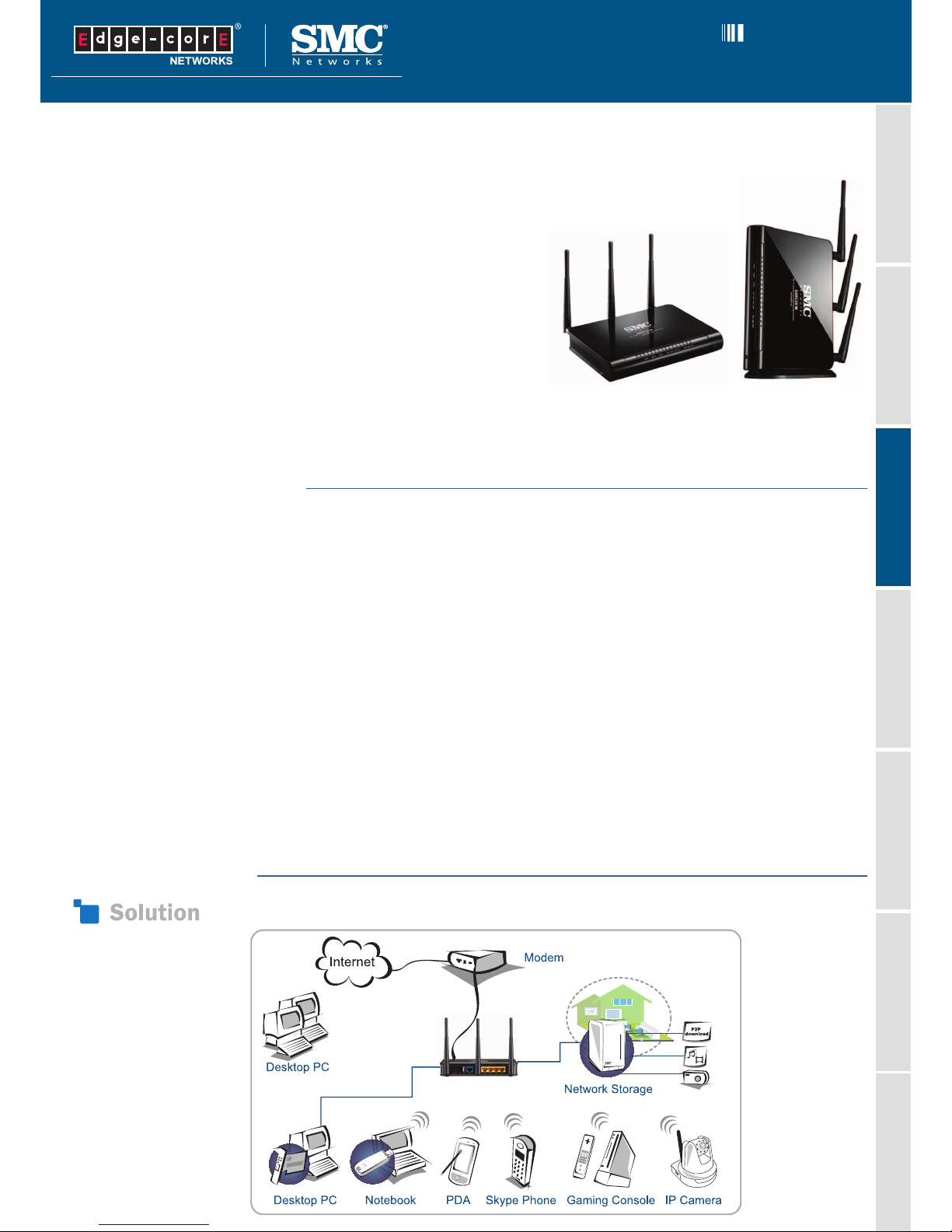

Application Diagram

Product Overview

The SMCWGBR14-N2 is a high-performance 802.11b/g/n wireless

gateway with four Gigabit Ethernet switch ports, designed to provide

a simple and cost-effective Internet access solution for both home and

SOHO users.

With its IEEE 802.11b/g/n wireless LAN, 10/100/1000 Mbps Ethernet

LAN ports, and Ethernet WAN interface, the SMCWGBR14-N2 provides

flexible Internet connection options. The Ethernet WAN interface links

the 802.11b/g/n wireless gateway to the Internet through any DSL or

Cable modem, providing Internet access for users through its built-in

10/100/1000 Mbps Ethernet LAN or WLAN (wireless LAN) interfaces.

SMCWGBR14-N2

www.smc.com

POWER TO CONNECT

www.edge-core.com

SWITCHES ADSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

Ordering Information

Sensitivity

■ 270M: -68 dBm @ 10% PER

■ 130M: -68 dBm @ 10% PER

■ 108M: -68 dBm @ 10% PER

■ 54M: -68 dBm @ 10% PER

■ 11M: -85 dBm @ 8% PER

■ 6M: -88 dBm @ 10% PER

■ 1M: -90 dBm @ 8% PER

Packaging Contents

■ SMCWGBR14-N2

■ AC Power Adapter

■ Ethernet Cable

■ Quick Install Guide

■ EZ Installation Wizard & Documentation CD

■ SMC Warranty Registration Card

■ 3 x 3 dBi detachable Antenna

Weight

■ Device: 324 g

■ Antenna: 23 g

Power Requirment

■ Input: 100 ~ 240 VAC, 50/60 Hz

■ Output: 12 VDC, 1.5 A

Transmit Power

■ 18dBm (max)

Certifications

■ FCC Class B

■ CE Mark

■ RoHS compliant

■ Wi-Fi Certificated

Warranty

Please check www.smc.com for the warranty terms in your

country/region.

Contact

Worldwide Corporate and Sales Headquarters

No. 1 Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Tel: +886 3 5638888 Fax: +886 3 6686111

Singapore

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel: 65-63387667 Fax: 65-63387767

Check www.smc-asia.com for your local country contact

information

Europe/Africa

C/Fructuós Gelabert 6-8 2º, 2ª,

Edificio Conata II,

08970 Sant Joan Despí

Barcelona - Spain

Phone: +34 93 477 4920

Check www.smc.com for your local country contact information

Networks. Other trademarks or registered trademarks are the

property of their respective owners. Information is subject to

Features

Physical Interface

■ One 10/100/1000 Mbps WAN port

■ 4-port 10/100/1000 Mbps LAN switch

■ Three external detachable antennas

■ WPS button

■ Reset button

■ One USB port

Management Features

■ EZ Installation Wizard

■ Web based management interface (HTTP)

■ Remote management

■ SNTP time synchronization

Security Features

■ NAT firewall with SPI

■ Access control

■ MAC filter

■ ALG management

■ DMZ host

■ SSID broadcast disable

■ Wireless MAC address filtering

■ WEP 64-/128-bit encryption

■ WPA-/WPA2-PSK (Pre-Shared Key)

■ Wi-Fi Protected Setup (WPS)

Router Features

■ Share your high-speed cable/xDSL Internet connection

■ 4-port 10/100/1000 LAN switch with auto MDI-MDIX

■ Built-in Wireless-N access point

■ Static route

■ NAT with ALGs

■ 802.11e WMM

■ IGMP Proxy

■ Multiple SSIDs (Up to 4)

Standards

■ Wired:

IEEE 802.3 (10BASE-T),

IEEE 802.3u (100BASE-TX)

■ Wireless:

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Operating Frequency

■ FCC: 2412~2462 MHz (Ch1~Ch11)

■ ETSI: 2412~2472 MHz (Ch1~Ch13)

■ Japan: 2412~2484 MHz (Ch1~Ch14)

Temperature

■ Operating: 0ºC to 40ºC (32ºF to 104ºF)

■ Storage: -40ºC to 70ºC (-40ºF to 158ºF)

Humidity

■ Operating: 10% - 90% RH, Non-condensing

■ Storage: 5% - 90% RH, Non-condensing

Dimensions

■ (L) 190 x (W) 144 x (H) 33 mm

Upgrade Method

■ Web

SMC-DS-0112-02
