SMCWCB-GM / SMCWPCI-GM

11B/G MIMO

WIRELESS Adapter

User’s Manual

- 1 -

Quick Installation

1. Insert the product’s CD into CD-ROM.

2. Follow the onscreen instructions to install the drivers.

3. Shut down the Computer and insert / plug-in the adapter into the appropriate slot.

4. Boot up the Computer and let the drivers install themselves automatically

FCC Regulatory Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received; including interference that may cause

undesired operation. Federal Communications Commission (FCC) Statement.

This Equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

-Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20

centimeters between the radiator and your body.

- 2 -

Contents

Chapter 1 System Requirements ______________________________ 3

1-1 Hardware ________________________________________________________________ 3

1-2 Software _________________________________________________________________ 3

Chapter 2 Install Driver for Windows Series ____________________ 4

2-1 Set up 11B/G MIMO WIRELESS LAN Card for Windows Series _________________ 4

Chapter 3 Configure MIMO WIRELESS LAN Card_____________ 6

3-1 Install Utility______________________________________________________________ 6

3-2 Use the MIMO WIRELESS LAN Card with Zero Configuration Tool______________ 7

Chapter 4 Configure MIMO WIRELESS LAN Card with “MiMo

Wireless Utility” for Windows 98/ME/2000/XP _________________ 10

4-1 Site Survey Page__________________________________________________________ 10

4-1-1Add/Edit Profile ______________________________________________________ 11

4-2 Authentication & Security _________________________________________________ 14

4-2-1 802.1x Setting________________________________________________________ 15

4-2-2 CA Server ___________________________________________________________ 16

4-3 Profile Page______________________________________________________________ 18

4-4 Link Status Page _________________________________________________________ 19

4-5 Statistics Page____________________________________________________________ 20

4-6 Advance Page____________________________________________________________ 22

4-7 About Page ______________________________________________________________ 24

- 3 -

Chapter 1 System Requirements

Before installing the adapter and related software, make sure the computer system meets the

minimum requirements described below.

1-1 Hardware

The adapter can be installed in any recent-model IBM-type microcomputer with a PCMCIA on

notebook or PCI slot on desktop which support CardBus or PCI interface. The CardBus adapter is a

Type II CardBus card, and can be installed in a Type II or Type III CardBus slot.

1-2 Software

The drivers included with the adapter allow the adapter to be used in Microsoft Windows 98, ME,

2000, and XP.

- 4 -

Chapter 2 Install Driver for Windows

Series

This section describes the installation of the 11B/G MIMO WIRELESS LAN Card driver for the

Windows98/ME/2000 and Windows XP operating systems.

2-1 Set up 11B/G MIMO WIRELESS LAN Card for Windows

Series

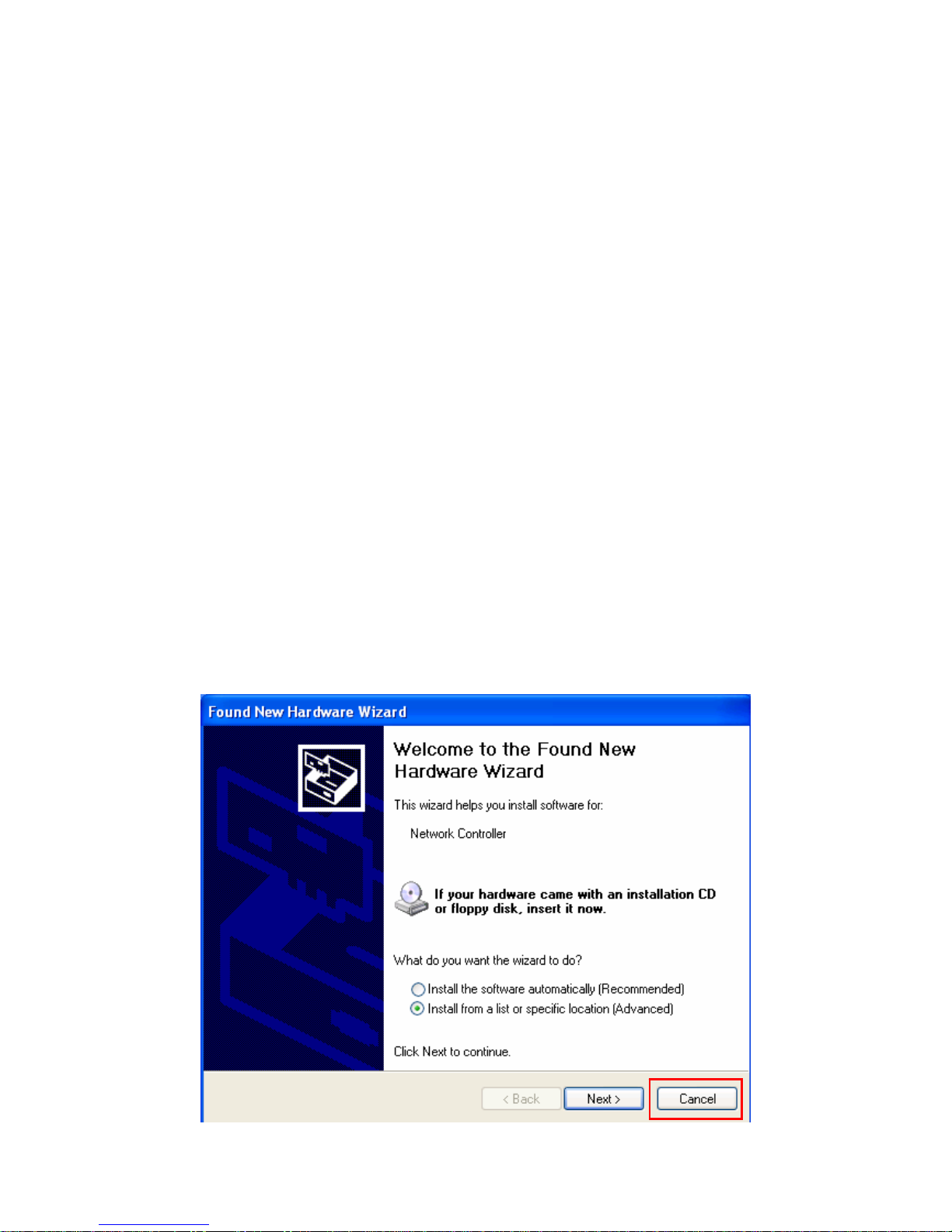

Step 1: After inserting the MIMO WIRELESS LAN Card into the PCMCIA slot on notebook or

PCI slot desktop, the Windows will auto-detect the MOMO WIRELESS LAN Card and a “Found

New Hardware Wizard” window will show up. Select “Cancel” to install the driver from

CD-Rom.

- 5 -

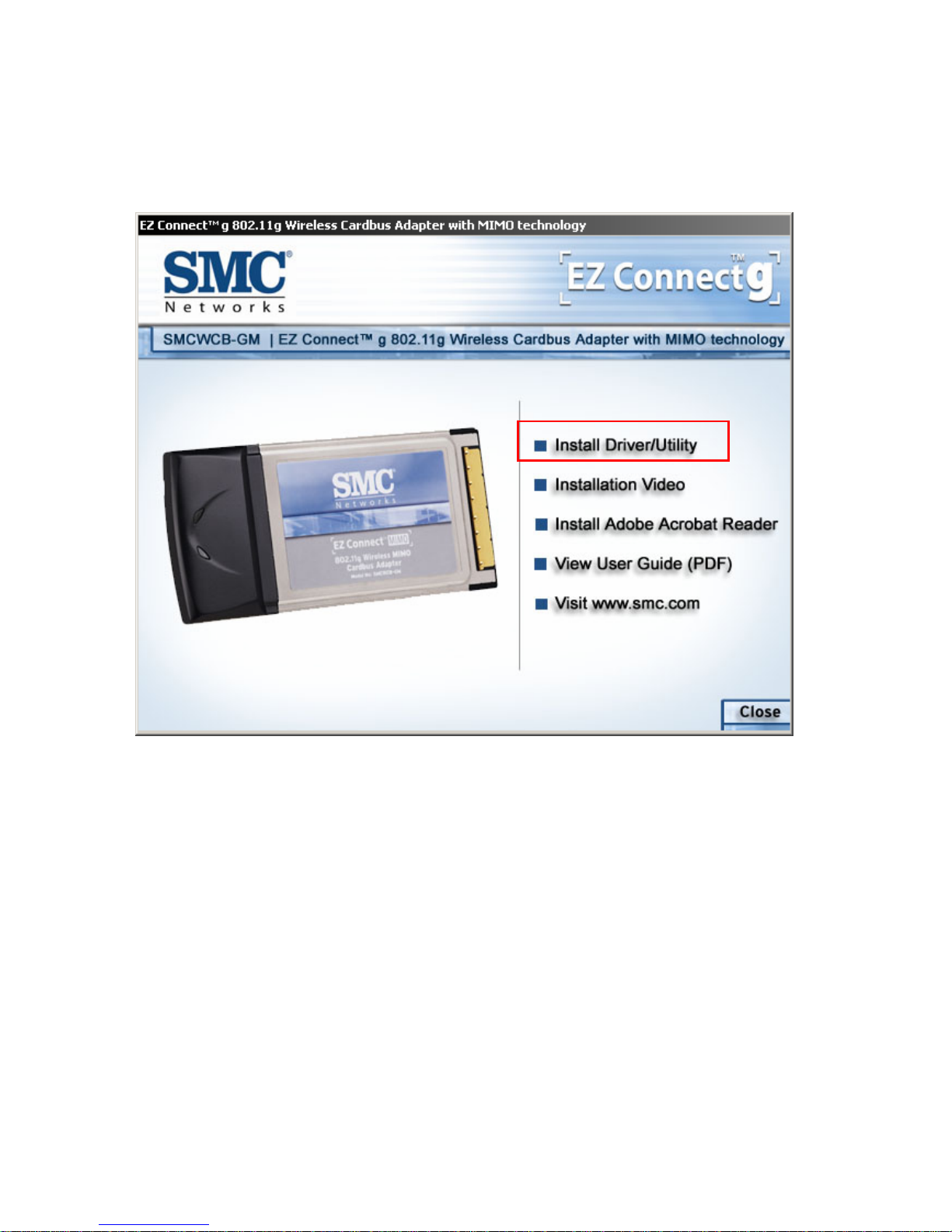

Step 2: Insert the Product CD-ROM into the CD-ROM drive. Select “Driver & Utility” to install

Driver and Utility.

Step 3: After installing the driver, you can check if your device is active in the device management

- 6 -

Chapter 3 Configure MIMO WIRELESS

LAN Card

This chapter will show you how to configure your MIMO WIRELESS LAN Card by using utility

in the Product CD Package under Windows series Operation System

3-1 Configuration Utility

1. After finishing the install process, you can execute the utility from the Start Menu.

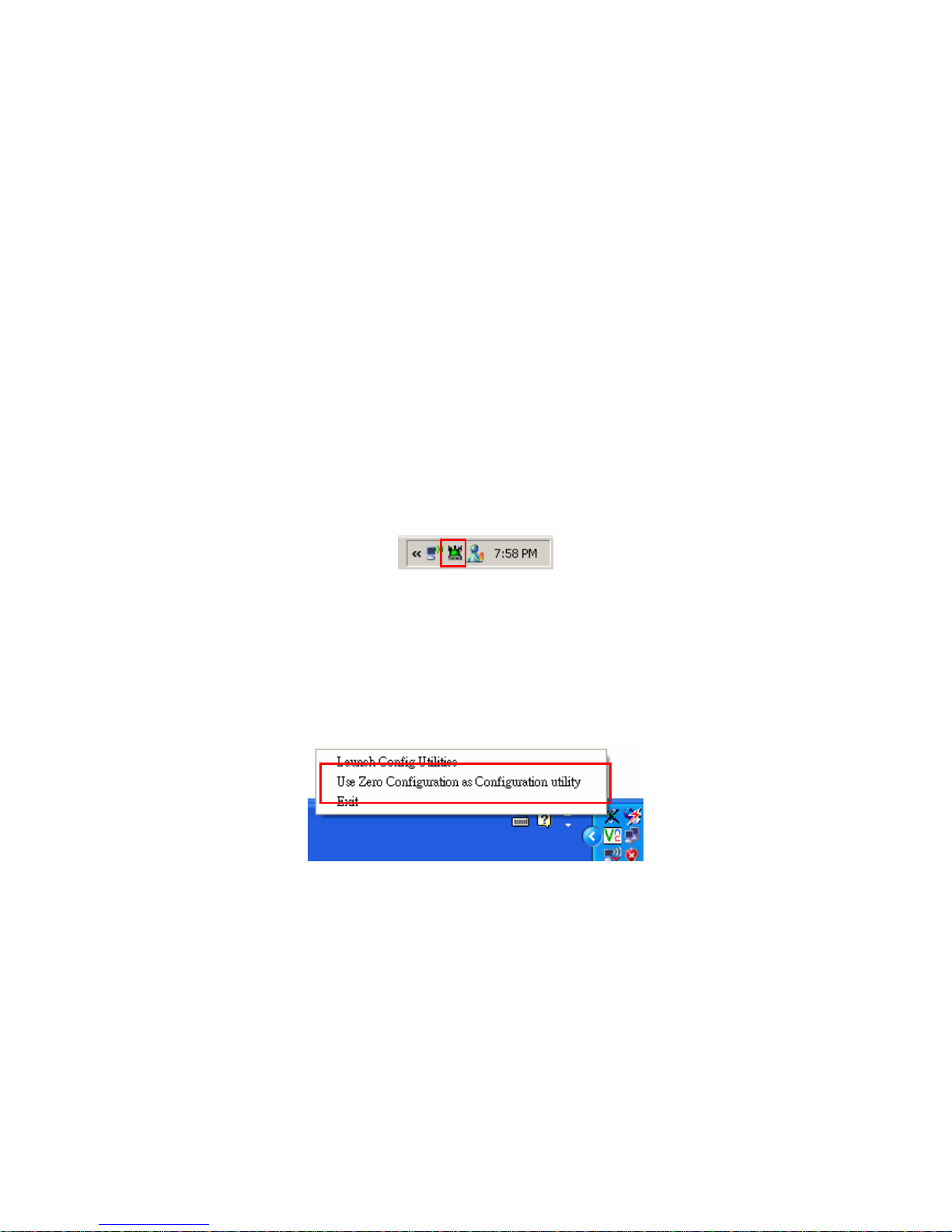

2. You will see the utility icon after you executing program “MiMo Wireless Utility” if your MIMO

WIRELESS Card is alive

3. If your operation system belong to Windows XP and have update to SP1, click the right button

on the icon. You will see the frame below. If you want to configure your MIMO Wireless LAN

Card with “Wireless Zero Configure” supported by XP, you should choose “Use Zero

Configuration as Configuration utility”.

- 7 -

3-2 Use the MIMO WIRELESS LAN Card with Zero

Configuration Tool

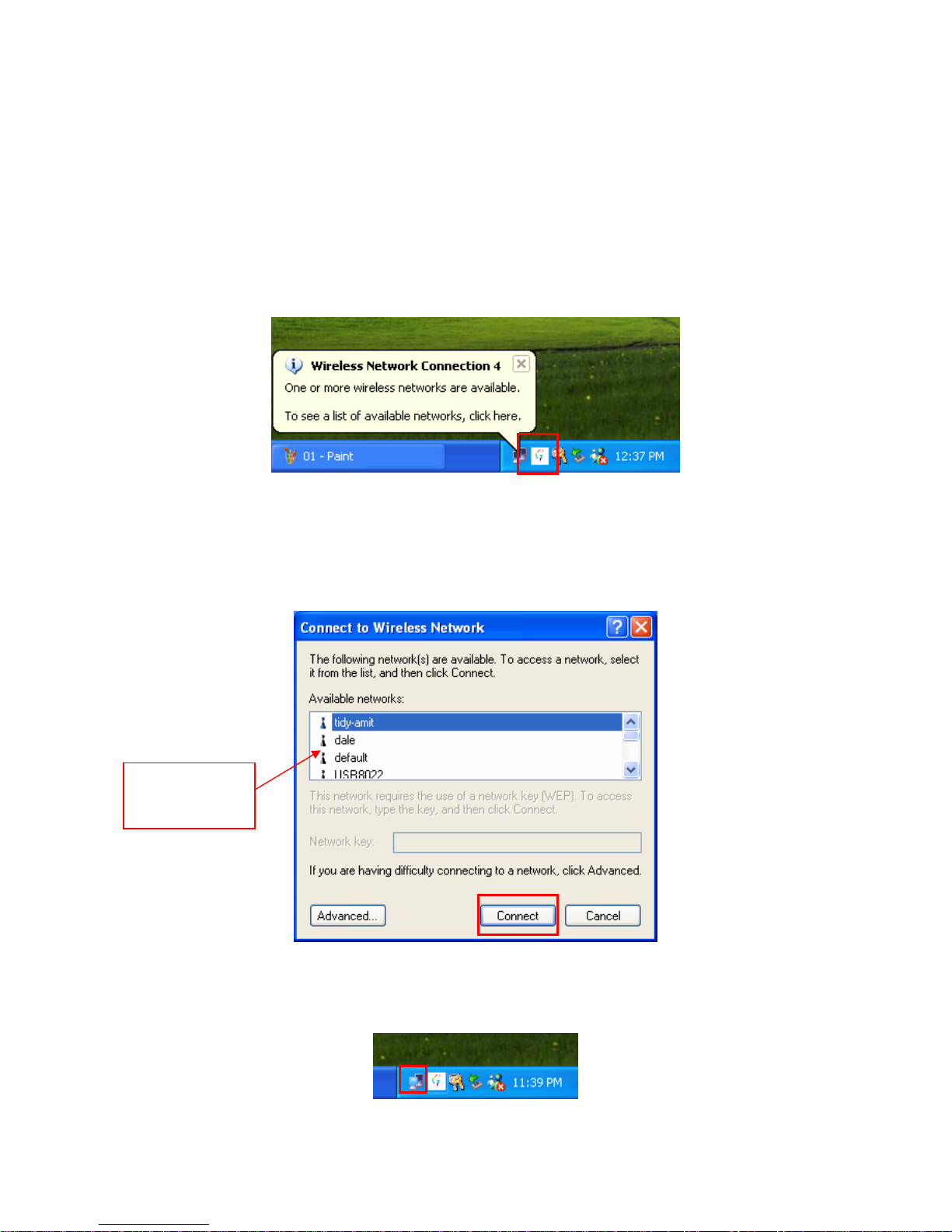

After installing MIMO Wireless LAN Card, the Windows XP will display a “WIRELESS

Network Connection ” message.

Click on the message and the “Automatic WIRELESS Network Configuration” will then appear

automatically and allow users to connect to an available WIRELESS infrastructure network (Access

Point), shown as follows. You may click the Advanced button to make advanced configuration for

the WIRELESS LAN Card, shown as below.

In order to reconfigure you WIRELESS connection, you can deal as follow procedure

1.click left button on the network icon as bellow.

Choose one

suitable server

- 8 -

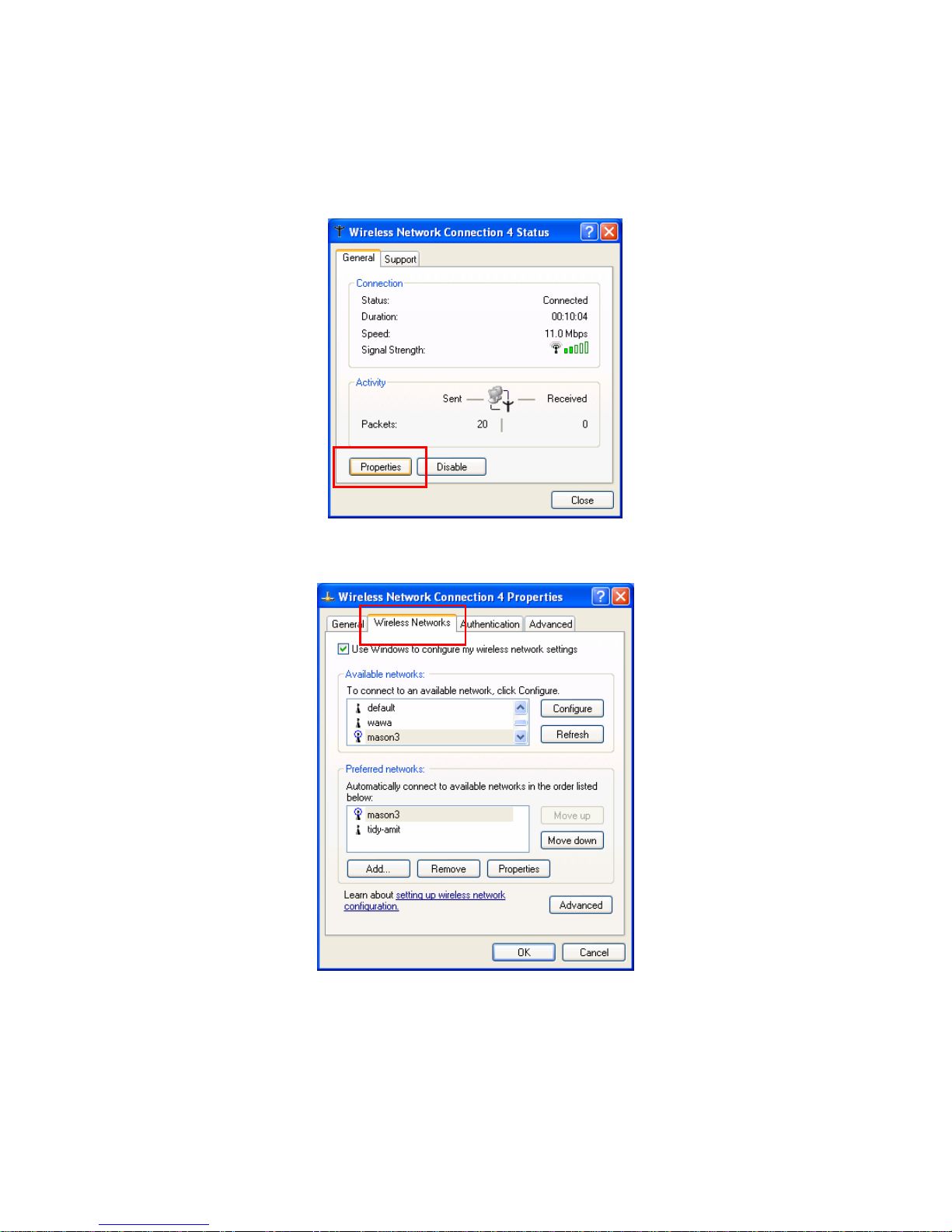

2. Click Properties to continue

3. Click WIRELESS Networks to reconfigure the WIRELESS network connection.

4. If you need a key(WEP) to connect the WIRELESS network, you should keyin the key that

supported by the WIRELESS network router or access point
