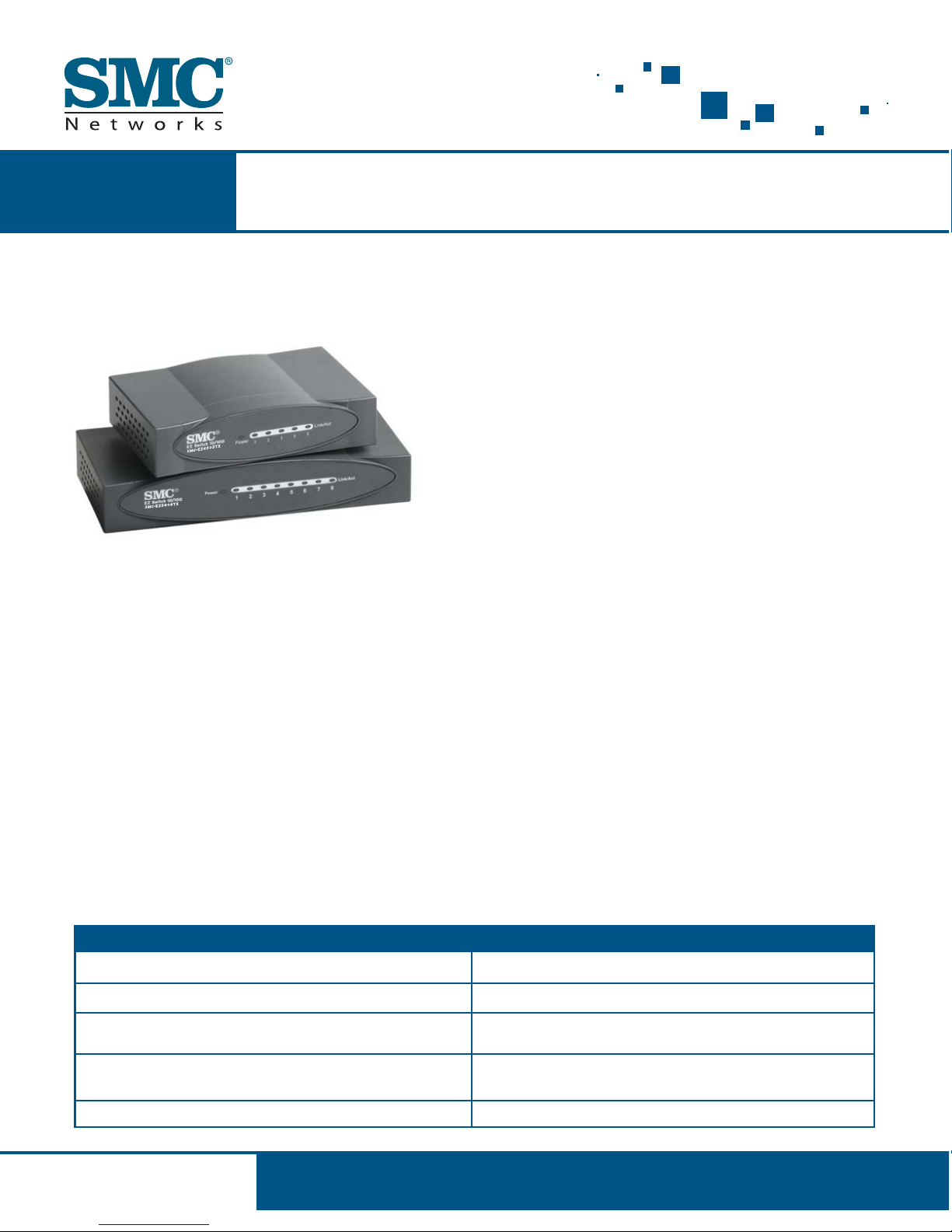

SMC Networks EZ Connect SMC-EZ6505TX Manuel utilisateur

Unmanaged Switch SMC-EZ6505TX / SMC-EZ6508TX

EZ SwitchTM 10/100 Mbps Auto-Sensing Switch

www.smc.com

SMC EZ Switch™ 10/100s are dual-speed desktop network

switches that are as easy to install and use as an ordinary

hub, with the added dimension of dramatically improving

network performance by offering speeds up to 200 Mbps

per port. Moreover, every port features auto MDI/MDIX,

providing added functionality and ease of use.

Designed for easy integration with any SOHO network,

SMC EZ Switches contain added features like Store-and-

Forward and Flow Control to ensure data delivery and

network integrity. Since full bandwidth capability is

achieved on each individual port, the congestion

problems of shared hubs are easily avoided through the

dedicated bandwidth of these switches. Powerful enough

to run your network’s backbone, yet so easy they can be

used in place of your desktop hubs, the EZ Switch™

brings the power of switching to you.

FEATURES

Up to 3.2 Gbps of aggregate bandwidth

Dual-speed 10/100 Mbps with 5, 8 auto-sensing ports

Receives and transmits traffic at full wire speed on all ports

Automatic address learning with a 2K MAC address table

Plug-and-play – no software or switches to configure

At-a-glance LEDs for system and network monitoring

Use any port for a cascade connection to a hub, switch

or computer

Buffered store-and forward switching between

10 and 100 Mbps segments

Fully compatible with Ethernet and Fast Ethernet networks

BENEFITS

OVERVIEW

TECHNICAL SPECIFICATIONS SMC-EZ6505TX / SMC-EZ6508TX

PORTS

• SMC-EZ6505TX / 5 RJ-45 ports

• SMC-EZ6508TX / 8 RJ-45 ports

NETWORK INTERFACE

• 10BASE-T – Categories 3, 4, or 5

• 100BASE-TX – Category 5

LEDs

• Power – One

• Link/Activity – one per port

SWITCHING METHOD

• Store and Forward

MAC ADDRESS TABLE

• 2K entries

MEMORY BUFFER

• 768K per unit

FILTERING/FORWARDING/LEARNING RATES

• Full line rate

TEMPERATURE

• Operating: 32° to 122°F / 0° to 50° C

• Storage: - 40°to 158° F / -40° to 70°C

WARRANTY

• Limited Lifetime

DIMENSIONS

• SMC-EZ6505DS

5.25 x 3.625 x 1.25 in / 13.3 x 9.2 x 3.2 cm

• SMC-EZ6508DS

6.69 x 3.625 x 1.25 in / 17 x 9.2 x 3.2 cm

WEIGHT

• SMC-EZ6505DS / 0.37lbs / 0.167 kg

• SMC-EZ6508DS / 0.794 lbs / 0.36kg

HUMIDITY

• 5% to 95% (non-condensing)

POWER REQUIREMENTS

• DC input

•6V, 1A

POWER CONSUMPTION

• SMC-EZ6505DS: 4.6 Watts

• SMC-EZ6508DS: 4.6 Watts

HEAT DISSIPATION

• SMC-EZ6505DS: 15.7 BTU/hr

• SMC-EZ6508DS: 15.7 BTU/hr

MAXIMUM CURRENT

• SMC-EZ6505DS: 0.76A @ 6VDC

• SMC-EZ6508DS: 0.76A @ 6VDC

STANDARDS

• IEEE802.3

• IEEE802.3u

CERTIFICATIONS

• CE Mark

EMISSIONS

• FCC Class B

• EN55022 (CISPR 22) Class B

• C-Tick – AS/NZS 3548 (1995) Class B

• EN61000-3-2/3

IMMUNITY

• EN6100-4-2/3/4/5/6/8/11

SAFETY

• CSA/NRTL (22.2.950, UL 1950)

• TUV/GS (EN60950)

• CB (IEC60950)

North America

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/ Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local

country contact information

www.smc.com

Contact
