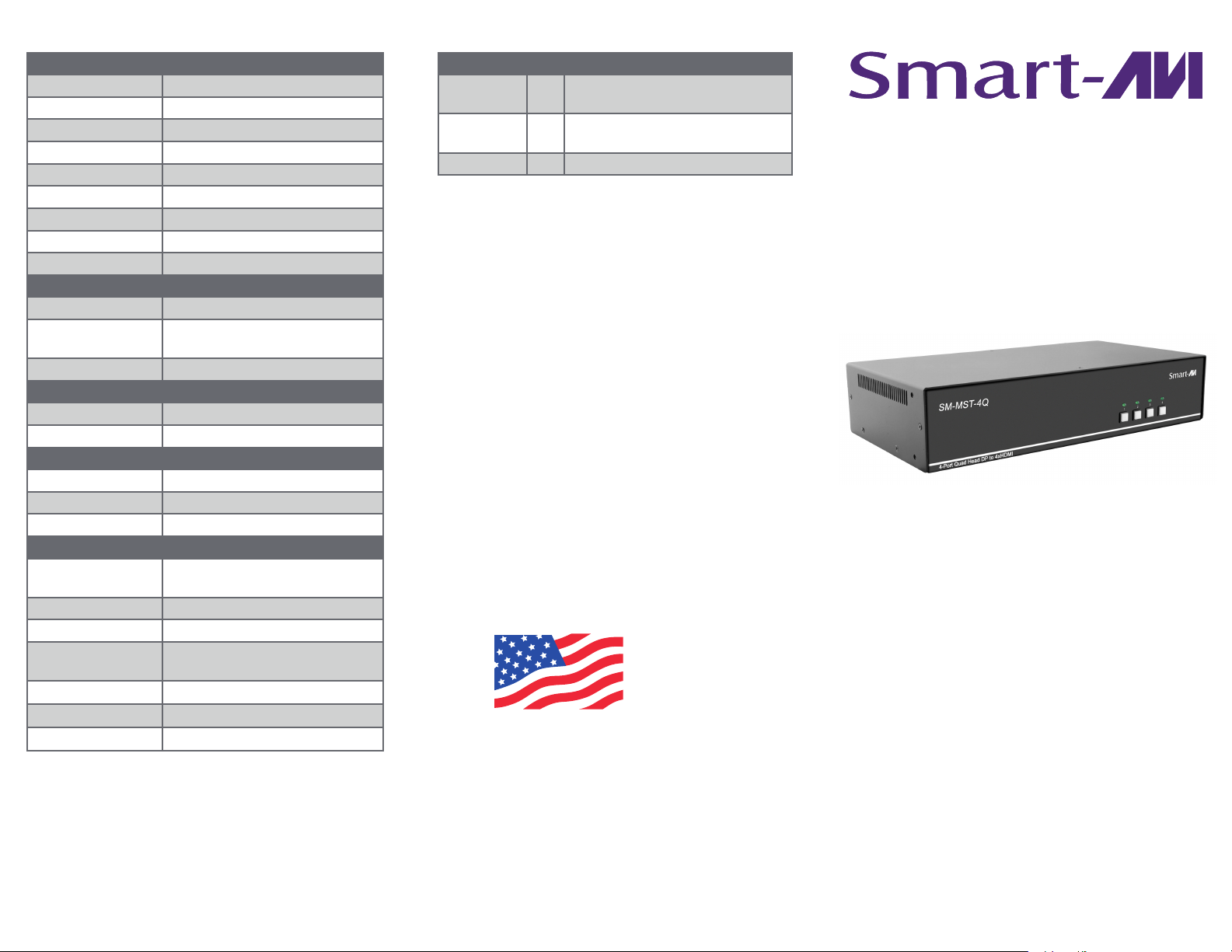

SMART-AVI SM-MST-4Q Manuel utilisateur

TECHNICAL SPECIFICATIONS WHAT’S IN THE BOX

VIDEO

Fornat DisplayPort1.2a

Input Interface (8) DisplayPort

Output Interface (4) HDMI

Input Resolution Up to 4K (3840 x 2160 @ 60 Hz)

Output Resolution Up to 4K (3840 x 2160 @30 Hz)

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft

Output Cable Length Up to 20 ft

USB

Input Interface (4) USB Type B

Output Interface (2) USB 1.1 Type A for KM Devices

(2) USB 2.0 Type A Transparent

Emulation USB 1.1 and USB 2.0 Compatible

AUDIO

Audio Input (4) 3.5mm stereo audio

Audio Output (1) 3.5mm stereo audio

CONTROL

Front Panel Push Buttons with LED indicators

RS-232 Via Serial @ 115200 bps

Hot Keys Via Keyboard

OTHER

Power External 100-240 VAC/ 12VDC2A

@ 24W

Dimensions 8.8” W x 2.63” H x 6.69” D

Weight 3.85 lbs

Approvals NIAP PP 3.0, UL, CE,

ROHS Compliant

Operating Temp. 32 to +104°F (0 to +40°C)

Storage Temp. -4 to 140°F (-20 to +60°C)

Humidity Up to 80% (no condensation)

PART NO. QTY DESCRIPTION

SM-MST-4Q 1 4 port KVM MST

with Quad 4K HDMI Out

PS12VDC2A 112-VDC, 2-A power adapter with

center-pin positive polarity.

1Quick Start Guide

DESIGNED

AND MADE

IN THE USA

NOTICE

The information contained in this document

is subject to change without notice. iPGARD

makes no warranty of any kind with regard

to this material, including but not limited to,

implied warranties of merchantability and

tness for a particular purpose. iPGARD

will not be liable for errors contained

herein, or for incidental or consequential

damages in connection with the furnishing,

performance, or use of this material. No

part of this document may be photocopied,

reproduced, or translated into another

language without the prior written consent

from iPGARD, Inc.

20170518

Toll Free: (888)-994-7427

Phone: (702) 800-0005

Fax: (702)-441-5590

WWW.iPGARD.COM

A full manual can be downloaded from

www.ipgard.com/documentation/

SM-MST-4Q

4-Port Dual Head DP to 4 x HDMI Switch

4 Port KVM DP MST

with Quad 4K HDMI Out

Quick Start Guide

There are three ways to control

the KVM Switch: Keyboard HotKeys, RS-232

Serial Commands, and Front Panel Buttons.

The settings for the serial connection are as

follows: Baud rate: 115200; Data Bits: 8;

Parity: None; Stop Bits: 1; Flow Control: None.

The following commands can be used:

Users are able to customize the keys that

trigger Hotkeys. The following keys are

allowed: CT (Left/Right), Alt, Shift (Left/

Right), Caps Lock, Scroll Lock, F1-F12

Change HK Trigger

HK + HK + X + desired hotkey

View Current HK Trigger

Use the RS-232 command: //??<CR>

Default HotKey Trigger

CT (Left)

Chart Key

[CT] = Ctrl

<CR> = Carriage Return (Enter Key)

[HK] = Current Hot Key Trigger

Command Hotkey RS-232

Switch KVM [CT][CT][#]<CR> //m[#]<CR>

Audio Only [CT][CT]a[#]<CR> //a[#]<CR>

KM Only [CT][CT]c[#]<CR> //c[#]<CR>

USB Only [CT][CT]u[#]<CR> //u[#]<CR>

Trigger Hotplug [CT][CT]h<CR> //h<CR>

Restore Factory Defaults [CT][CT]f<CR> //f<CR>

Reset Software [CT][CT]r//r<CR>

Get Port Status N/A //??<CR>

SYSTEM CONTROL

CUSTOM HOTKEY TRIGGERS

DP IN

HDMI OUT

USB IN

USB K/M OUT

USB 2.0 OUT

AUDIO IN

AUDIO OUT

12VDC2.0A

USB

RS232

K/M

AUDIO AUDIO

USB

OUT IN-1

AUDIO

USB

AUDIO

USB

IN-2

AUDIO

USB

DPA

IN-1

DPA

HDMIOUTA

DPB

HDMIOUTB

HDMIOUTA

HDMIOUTB

HARDWARE INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use Dispay Port cables to connect the Display Port output ports from each computer to the

corresponding Display Port in ports of the unit.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the

respective USB ports of the unit.

4. Optionally, connect a stereo audio cable (3.5 mm to 3.5 mm) to connect the audio output of

the computer(s) to the audio in ports of the unit.

5. Connect monitor(s) to the HDMI out console ports of the unit using HDMI cable(s).

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally, connect stereo speakers to the audio out port of the unit.

8. Finally, power on the secure KVM switch by connecting a 12-VDC power supply to the power

connector, and then turn on all the computers.

Note: You can connect two monitors to the single-head KVM switch and four monitors to the

dual-head KVM switch. The computer connected to port 1 will always be selected by

default after power up.
