SMART-AVI DVN-4DUO Manuel utilisateur

4-Port Dual DVI-D KVM Switch

with USB 2.0 and Audio

ACCESS AND CONTROL 4

DUAL DISPLAY COMPUTERS

USING ONLY ONE

USB KEYBOARD AND

ONE USB MOUSE

Quick Start Guide

VIDEO

Format DVI-D Single Link, DVI 1.0

Maximum Pixel Clock 165 MHz

Input Interface (8) DVI-D 29-pin

Output Interface (2) DVI-D 29-pin

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft

Output Cable Length Up to 20 ft

AUDIO

Input Interface (4) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

Impedance 600 Ohm

Frequency Response 20 Hz to 20 kHz

Nominal Level 0-1.0 V

Common Mode Rejection at 60 dB

USB

Signal Type USB 2.0, 1.1, and 1.0

w/ internal hub

Input Interface (4) USB Type B

Output Interface (2) USB 1.1 Type A for KVM Devices;

(2) USB 2.0 Type A Transparent

CONTROL

Front Panel Tactile Switch,

with Seven Segment Display

RS-232 Via Control @ 115200, N, 8, 1,

No Flow Control

Hot Keys Via Keyboard

OTHER

Power External 100-240 VAC/ 5VDC4A

Dimensions 12.5” W x 2.5” H x 6.4“ D

Weight 3.2 lbs

Approvals UL, CE, ROHS Compliant

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Emulation Keyboard and Mouse

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

DVN-4DUO

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

DVN-4DUO-S 1 4 Port Dual DVI-D, USB 2.0,

Audio Switch

PS5VDC4A 1 PS5VD4A Power Supply

Quick Start Guide 1

1. Ensure that power is disconnected from DVN-Duo.

2. Connect the DVI cables, USB cables (male-A to maleB), and audio cables from the computers to the respective ports on

the DVN-4Duo.

3. Optionally connect RS-232 for control functions.

4. Connect the USB keyboard and mouse on the two USB ports on the right (close to the RS-232 port).

Note: The 2 ports on the right are dedicated for keyboard and mouse emulation. The 2 on the left are for other USB

peripherals (ash drives, printers, etc.)

5. Connect the speakers into the Audio Out port located above the USB ports.

6. Connect 2 display monitors the 2 DVI OUT connector on the DVN-Duo.

7. Power on the DVN-4Duo.

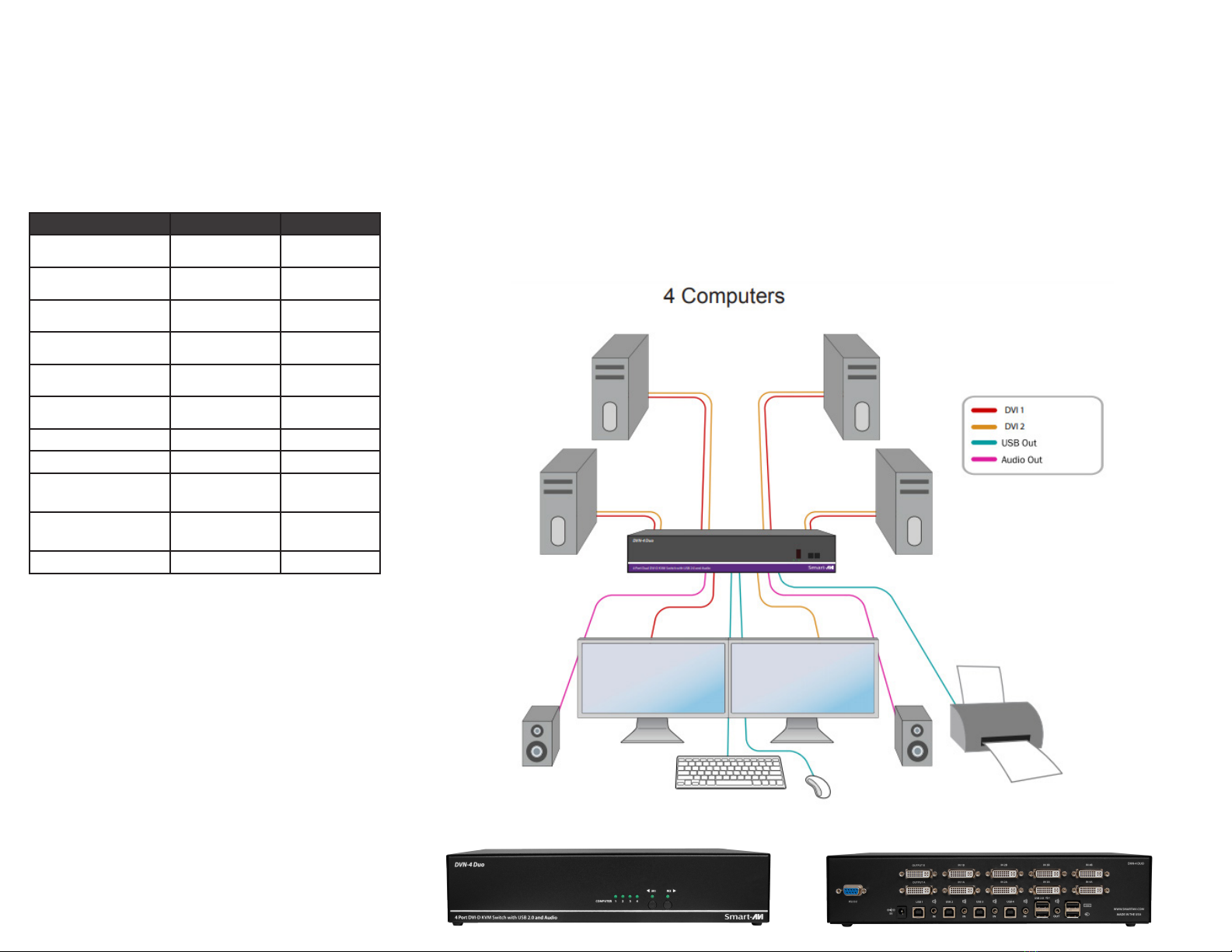

DVN-4DUO FRONT DVN-4DUO BACK

HARDWARE INSTALLATIONSYSTEM CONTROL

CUSTOM HOTKEY TRIGGERS

There are three ways to control the DVN-4DUO: Keyboard

HotKeys, RS-232 Serial Commands, and Front Panel

Buttons.

The settings for the serial connection are as follows:

Baud rate: 115200; Data Bits: 8; Parity: None; Stop Bits: 1;

Flow Control: None.

The following commands can be used:

Users are able to customize the keys that trigger Hotkeys.

The following keys are allowed:

CTRL (Left / Right), ALT, SHIFT (Left / Right),

Caps Lock, Scroll Lock, F1-F12

Change HK Trigger

HK + HK + X + desired hotkey

View Current HK Trigger

Use the RS-232 command: //??[ENTER]

Reset HK Trigger

Run “Factory Defaults” command.

Default HotKey Trigger

CTRL (Left)

Command HotKey RS-232

All USB, audio, video [CTRL][CTRL]

[port#][ENTER]

//m[port#]

[ENTER]

Audio Only [CTRL][CTRL]

a[port#][ENTER]

//a[port#]

[ENTER]

KM Only [CTRL][CTRL]

c[port#][ENTER]

//c[port#]

[ENTER]

USB Only [CTRL][CTRL]

u[port#][ENTER]

//u[port#]

[ENTER]

Learn EDID [CTRL][CTRL]

e[ENTER] //e[ENTER]

Trigger Hotplug [CTRL][CTRL]

h[ENTER] //h[ENTER]

Reset Software [CTRL][CTRL]r//r[ENTER]

Factory Defaults [CTRL][CTRL]f//f[ENTER]

Same as front panel

◄ M1 button [HK][HK]↑ N/A

Same as front panel

M2 ► button [HK][HK]↓N/A

Get Port Status N/A //??[ENTER]
