SMART-AVI D2H-4P Duo Manuel utilisateur

4-Port Dual Head DisplayPort IN

and HDMI Out KVM Switch

DUAL HEAD 4K ULTRA-HD

DISPLAYPORT TO HDMI KVM

SWITCH WITH

USB 2.0 KEYBOARD-MOUSE

AND AUDIO SHARING

Quick Start Guide

VIDEO

Link Rate 5.4 Gbps/lane

Input Interface (8) DisplayPort (female) Version 1.2

Output Interface (2) HDMI (female) Version 1.4

Resolution Up to 4K (3840x2160 @30Hz)

Input Equalization Automatic

Video Bandwidth 10.2 Gbps

HDCP Compliant Yes

Input/Output

Max Cable Length 20 ft (depending on cable quality)

AUDIO

Input Interface (4) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

Frequency Response 20Hz ~ 20KHz

Common Mode Rejection @ 60dB

Nominal Level 0.0 to 1.0 V

USB

Signal Type USB 2.0, 1.1, and 1.0

w/ internal hub

Input Interface (4) USB Type B

Output Interface (2) USB 1.1 Type A for K/M

(2) USB 2.0 Type A Transparent

CONTROL

Front Panel Buttons (SELECT audio/video

source)

RS-232 DB9 Female - 115200, N, 8, 1,

No ow control

Hot Keys Via Keyboard

Emulation Keyboard, Video and Mouse

OTHER

Power External 100-240 VAC/ 5VDC2A

Dimensions 2” H x 5.75” D x 12.75” W

Weight 3.55 lbs

Approvals UL, CE, ROHS Compliant

Operating Temp. 32-131°F (0-55 °C)

Storage Temp. -4-185 °F (-20-85 °C)

Humidity Up to 95%

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

D2H-4P-DUO

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

D2H-4P-DUO-S 1

4-Port Dual Head

DisplayPort In and

HDMI Out KVM Switch

PS5VD2A 1 PS5VD2A Power Supply

Quick Start Guide 1

1. Ensure that power is disconnected from D2H-4P Duo.

2. Connect the DisplayPort cables, Audio and USB cables (male type-A to male type-B ) from the computers to the respective

ports on the D2H-4P Duo.

3. Optionally connect RS-232 for control functions.

4. Connect the USB keyboard and mouse to the two USB ports on the right .

Note: The 2 USB ports on the right are dedicated for keyboard and mouse with full emulation. The 2 on the left are for

other USB peripherals (ash drives, printers, etc.)

5. Connect speakers to the out connector on the D2H-4P Duo.

6. Connect the HDMI Displays to the OUT connector on the D2H-4P Duo.

7. Power on the displays, Computers and other devices. Power on the D2H-4P Duo.

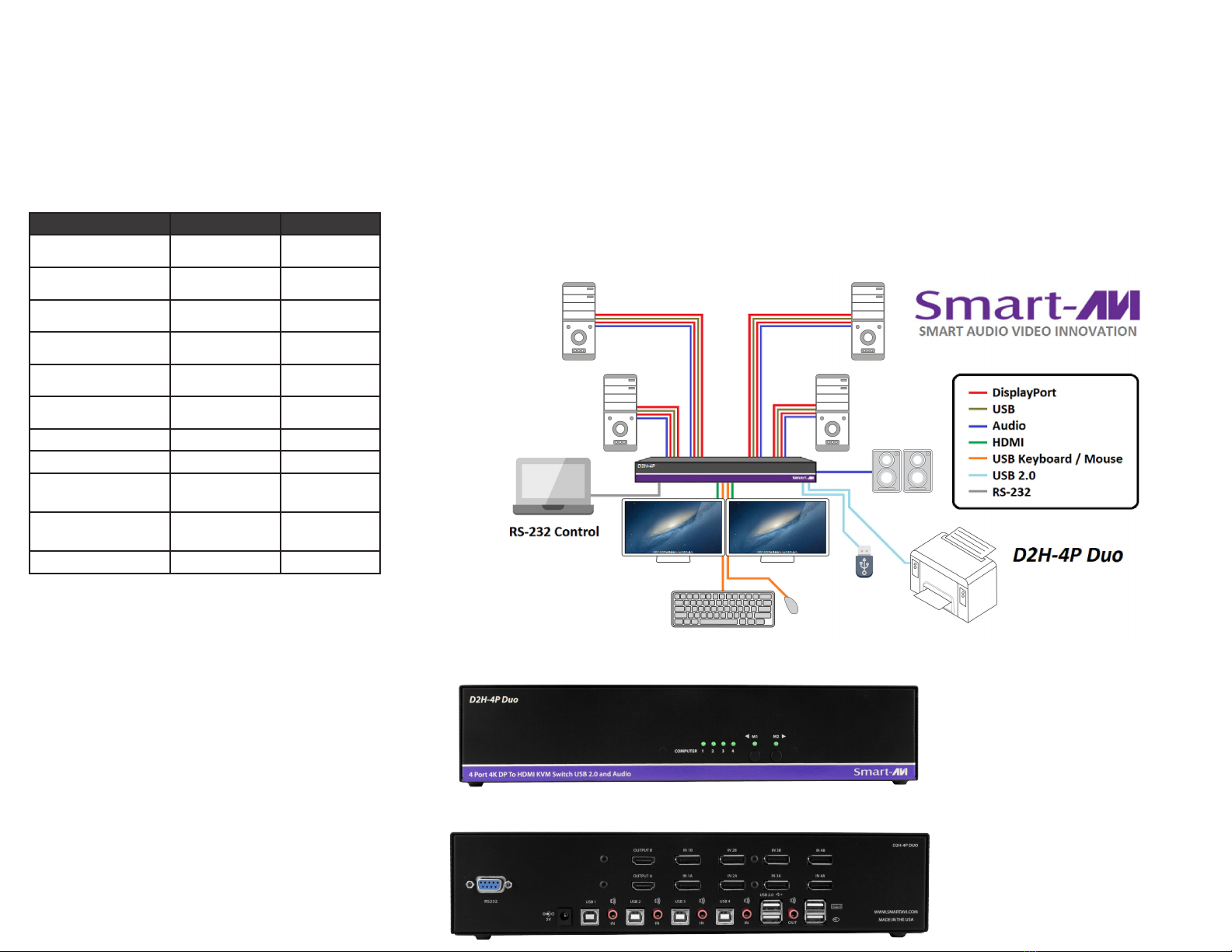

D2H-4P-DUO FRONT

D2H-4P-DUO BACK

HARDWARE INSTALLATIONSYSTEM CONTROL

CUSTOM HOTKEY TRIGGERS

There are three ways to control the D2H-4P-DUO: Keyboard

HotKeys, RS-232 Serial Commands, and Front Panel

Buttons.

The settings for the serial connection are as follows:

Baud rate: 115200; Data Bits: 8; Parity: None; Stop Bits: 1;

Flow Control: None.

The following commands can be used:

Users are able to customize the keys that trigger Hotkeys.

The following keys are allowed:

CTRL (Left / Right), ALT, SHIFT (Left / Right),

Caps Lock, Scroll Lock, F1-F12

Change HK Trigger

HK + HK + X + desired hotkey

View Current HK Trigger

Use the RS-232 command: //??[ENTER]

Reset HK Trigger

Run “Factory Defaults” command.

Default HotKey Trigger

CTRL (Left)

Command HotKey RS-232

All USB, audio, video [CTRL][CTRL]

[port#][ENTER]

//m[port#]

[ENTER]

Audio Only [CTRL][CTRL]

a[port#][ENTER]

//a[port#]

[ENTER]

KM Only [CTRL][CTRL]

c[port#][ENTER]

//c[port#]

[ENTER]

USB Only [CTRL][CTRL]

u[port#][ENTER]

//u[port#]

[ENTER]

Learn EDID [CTRL][CTRL]

e[ENTER] //e[ENTER]

Trigger Hotplug [CTRL][CTRL]

h[ENTER] //h[ENTER]

Reset Software [CTRL][CTRL]r//r[ENTER]

Factory Defaults [CTRL][CTRL]f//f[ENTER]

Same as front panel

◄ M1 button [HK][HK]↑ N/A

Same as front panel

M2 ► button [HK][HK]↓N/A

Get Port Status N/A //??[ENTER]
