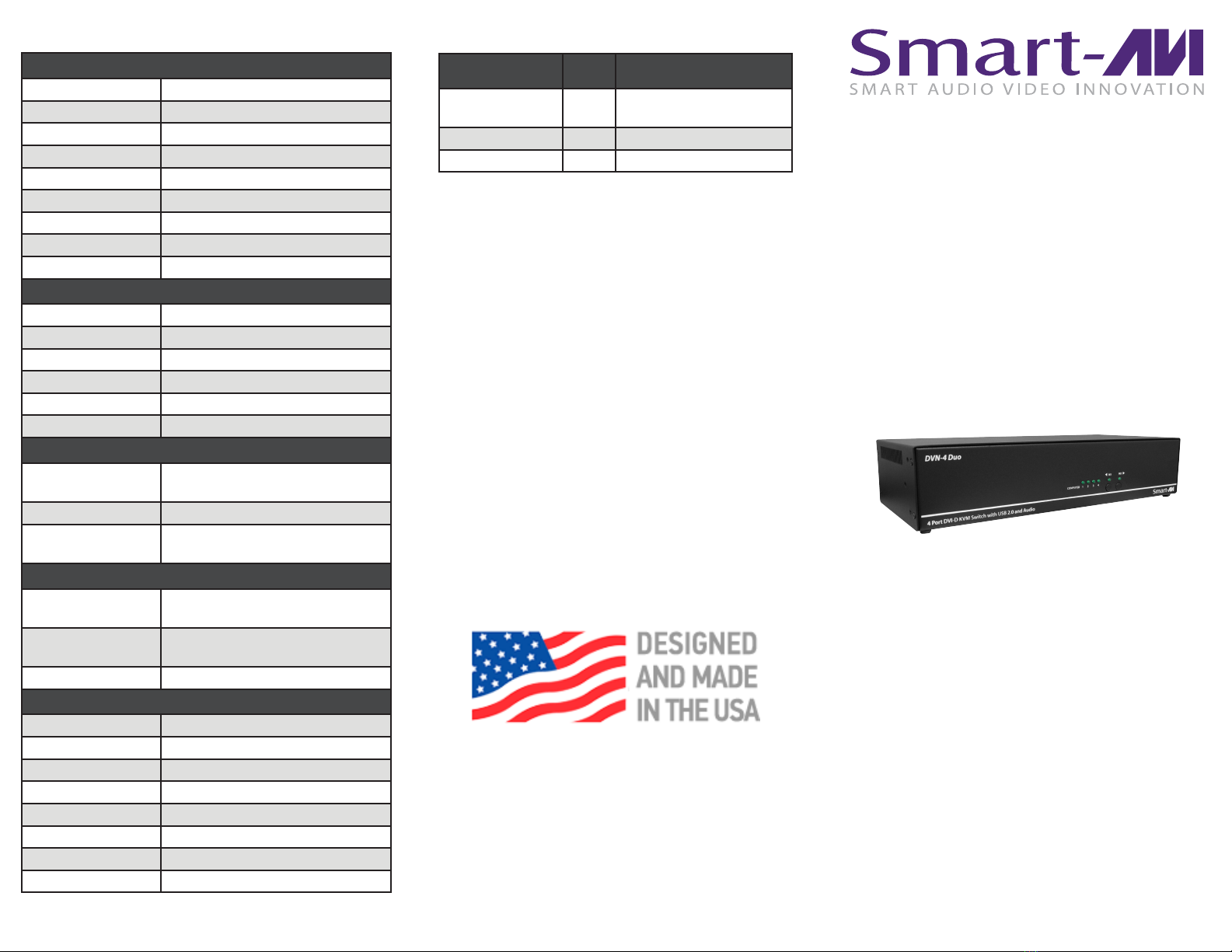

SMART-AVI DVN-4DUO Manuel utilisateur
4-Port Dual DVI-D KVM Switch
with USB 2.0 and Audio
ACCESS AND CONTROL 4
DUAL DISPLAY COMPUTERS
USING ONLY ONE
USB KEYBOARD AND
ONE USB MOUSE
Quick Start Guide
VIDEO
Format DVI-D Single Link, DVI 1.0
Maximum Pixel Clock 165 MHz
Input Interface (8) DVI-D 29-pin
Output Interface (2) DVI-D 29-pin
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
AUDIO
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
Signal Type USB 2.0, 1.1, and 1.0
w/ internal hub
Input Interface (4) USB Type B
Output Interface (2) USB 1.1 Type A for KVM Devices;
(2) USB 2.0 Type A Transparent
CONTROL
Front Panel Tactile Switch,
with Seven Segment Display
RS-232 Via Control @ 9600 bps N,8,1,
No Flow Control
Hot Keys Via Keyboard
OTHER
Power External 100-240 VAC/ 5VDC4A
Dimensions 12.5” W x 2.5” H x 6.4“ D
Weight 3.2 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Emulation Keyboard and Mouse
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
DVN-4DUO
WHAT’S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVN-4DUO-S 1 4 Port Dual DVI-D, USB 2.0,
Audio Switch
PS5VDC4A 1 PS5VD4A Power Supply
Quick Start Guide 1
ABOUT SFX
DVN-4Duo is a dedicated multi-platform KVM switch
capable of managing up to 4 different computers through
two DVI-D monitors, one USB keyboard & mouse, a single
set of speakers and a USB 2.0 Device.
The USB emulation technology utilized by DVN-4Duo
enables immediate hotkey source switching through
a remote USB keyboard and mouse. DVN-4Duo uses
single link connectors providing high resolutions of up
to 1920x1200 with zero pixel loss from TMDS signal
correction.
FEATURES
• Supports Mac, PC, Linux and Sun Mac OS, Sun OS,
Unix
• Supports High Resolution 1920x1200 60Hz WUXGA
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 Devices
• Control Sun, Mac or PC computers from a common
KVM console
• Compatible with all major software including Windows,
Linux, Mac OS, Sun OS, Unix
• Rack mountable in a standard 19 inch rack
• Flash upgradeable rmware
• Front panel keys for selecting users and channels
manually
• Supports USB keyboard and mouse
• Balanced stereo audio output
• RS-232 control for remote control
• Optional TCP/IP control
• Hot-key commands for quick channel selection.
• Independent (asynchronous) switching of KVM and
peripheral USB/audio ports. Users can listen to audio
from one computer while working on the other or scan
a document and save in another computer.
• Complete keyboard emulation for error free booting
• Superior video quality - 1920 x 1200 @ 60 Hz
1. Ensure that power is disconnected from DVN-Duo.
2. Connect the DVI cables, USB cables (male-A to maleB), and audio cables from the computers to the respective ports on
the DVN-4Duo.
3. Optionally connect RS-232 for control functions.
4. Connect the USB keyboard and mouse on the two USB ports on the right (close to the RS-232 port).
Note: The 2 ports on the right are dedicated for keyboard and mouse emulation. The 2 on the left are for other USB
peripherals (ash drives, printers, etc.)
5. Connect the speakers into the Audio Out port located above the USB ports.
6. Connect 2 display monitors the 2 DVI OUT connector on the DVN-Duo.
7. Power on the DVN-4Duo.
DVN-4DUO FRONT DVN-4DUO BACK
HARDWARE INSTALLATION
