INTRODUCTION

The DT302 is from the first generation of Fieldbus Foundation devices. It is a transmitter for

concentration and density measurements. It is based on a field-proven capacitive sensor that

provides reliable operation and high performance. The digital technology used in the DT302 enables

the choice of several types of transfer functions, an easy interface between the field and the control

room and several interesting features that considerably reduce the installation, operation and

maintenance costs.

The Concentration/Density transmitter DT302 (Touché) is a device to measure in continuous mode

the concentration and density of liquids, directly in industrial process.

The DT302 is composed for a probe with two repeater diaphragms into the process fluid. The probe

is connected to a capacitive sensor, extern to the process, through the capillaries. A fill fluid

transmits the process pressure in the two repeater diaphragms to the differential pressure sensor.

A temperature sensor into the probe and between the two repeater diaphragms makes the

automatic compensation of any temperature variation of the process. The factory procedure of the

probe and temperature sensor allow that small process temperature variations be fast informed to

the transmitter, that using a specific software calculates with precision the value of density in the

process.

According to the industrial process, the measured concentration by means DT302 can be expressed

in Density, Relative Density, Brix Degree, Baumé Degree, INPM Degree, Plato Degree, Solid %,

etc.

The DT302 is part of Smar's complete 302 line of Fieldbus Foundation devices.

Some of the advantages of bi-directional digital communications are known from existing smart

transmitter protocols: Higher accuracy, multi-variable access, remote configuration and diagnostics,

and multi-dropping of several devices on a single pair of wires.

The system controls variable sampling, algorithm execution and communication so as to optimize

the usage of the network, not loosing time. Thus, high closed loop performance is achieved. Using

Fieldbus technology, with its capability to interconnect several devices, very large control schemes

can be constructed. In order too be user friendly the function block concept was introduced

The DT302, like the rest of the 302 family, has some Function Blocks built in, like Analog Input

Block.

The need for implementation of Fieldbus in small as well as large systems was considered when

developing the entire 302 line of Fieldbus Foundation devices.

They have common features and can be configured locally using a magnetic tool, eliminating the

need for a configurator or console in many basic applications.

The DT302 is available as a product on its own, but also replaces the circuit board for the DT301.

They use the same sensor board. Refer to the maintenance section of this manual for instructions

on upgrading. The DT302 uses the same hardware and housing for the DT302.

The DT302, like its predecessor DT301, has some built-in blocks, eliminating the need for a

separate control device. The communication requirement is considerably reduced, and that means

less dead-time and tighter control is achieved, not to mention the reduction in cost. They allow

flexibility in control strategy implementation.

ATTENTION

Get the best results of the DT302 by carefully reading these instructions.

This product is protected by US patent numbers: 6,234,019; D439,855 and 5,827,963.

FV524"⁄"Qrgtcvkqp."Ockpvgpcpeg"cpf"Kpuvtwevkqpu"Ocpwcn"

KX"

NOTE

This Manual is compatible with version 3.XX, where 3 denotes software version and XX

software release. The indication 3.XX means that this manual is compatible with any release of

software version 3.

Waiver of responsibility

The contents of this manual abides by the hardware and software used on the current equipment

version. Eventually there may occur divergencies between this manual and the equipment. The

information from this document are periodically reviewed and the necessary or identified corrections

will be included in the following editions. Suggestions for their improvement are welcome.

Warning

For more objectivity and clarity, this manual does not contain all the detailed information on the

product and, in addition, it does not cover every possible mounting, operation or maintenance

cases.

Before installing and utilizing the equipment, check if the model of the acquired equipment complies

with the technical requirements for the application. This checking is the user’s responsibility.

If the user needs more information, or on the event of specific problems not specified or treated in

this manual, the information should be sought from Smar. Furthermore, the user recognizes that the

contents of this manual by no means modify past or present agreements, confirmation or judicial

relationship, in whole or in part.

All of Smar’s obligation result from the purchasing agreement signed between the parties, which

includes the complete and sole valid warranty term. Contractual clauses related to the warranty are

not limited nor extended by virtue of the technical information contained in this manual.

Only qualified personnel are allowed to participate in the activities of mounting, electrical connection,

startup and maintenance of the equipment. Qualified personnel are understood to be the persons

familiar with the mounting, electrical connection, startup and operation of the equipment or othe

similar apparatus that are technically fit for their work. Smar provides specific training to instruct and

qualify such professionals. However, each country must comply with the local safety procedures,

legal provisions and regulations for the mounting and operation of electrical installations, as well as

with the laws and regulations on classified areas, such as intrinsic safety, explosion proof, increased

safety and instrumented safety systems, among others.

The user is responsible for the incorrect or inadequate handling of equipments run with pneumatic

or hydraulic pressure or, still, subject to corrosive, aggressive or combustible products, since thei

utilization may cause severe bodily harm and/or material damages.

The field equipment referred to in this manual, when acquired for classified or hazardous areas, has

its certification void when having its parts replaced or interchanged without functional and approval

tests by Smar or any of Smar authorized dealers, which are the competent companies for certifying

that the equipment in its entirety meets the applicable standards and regulations. The same is true

when converting the equipment of a communication protocol to another. In this case, it is necessary

sending the equipment to Smar or any of its authorized dealer. Moreover, the certificates are

different and the user is responsible for their correct use.

Always respect the instructions provided in the Manual. Smar is not responsible for any losses

and/or damages resulting from the inadequate use of its equipments. It is the user’s responsibility to

know and apply the safety practices in his country.

Vcdng"qh"Eqpvgpvu"

TABLE OF CONTENTS

UGEVKQP"3"/"KPUVCNNCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"303"

GENERAL ................................................................................................................................................................ 1.1

RECOMMENDATION IN USING OF DT302 ........................................................................................................... 1.1

MODELS OF DT302 ................................................................................................................................................ 1.2

FIXATION................................................................................................................................................................. 1.2

A - INDUSTRIAL MODEL TOP MOUNTING - BETWEEN CENTRE OF THE SENSORS 250 MM ....................... 1.3

B – INDUSTRIAL MODEL SIDE MOUNTING ......................................................................................................... 1.4

C – SANITARY MODEL TOP MOUNTING - BETWEEN CENTRE OF THE SENSORS 500 MM ......................... 1.5

D – SANITARY MODEL SIDE MOUNTING............................................................................................................. 1.6

E – INDUSTRIAL MODEL TOP MOUNTING .......................................................................................................... 1.7

F – SANITARY MODEL TOP MOUNTING - BETWEEN CENTRE OF THE SENSORS 800 MM.......................... 1.8

A – TYPICAL INSTALLATION FOR LOW FLOW TANK (INDUSTRIAL MODEL) .................................................. 1.9

B – TYPICAL INSTALLATION FOR LOW FLOW TANK (SANITARY MODEL).................................................... 1.10

C – TYPICAL INSTALLATION FOR HIGH FLOW TANK (INDUSTRIAL MODEL) ............................................... 1.11

D – TYPICAL INSTALLATION IN OVERFLOW TANKS ....................................................................................... 1.12

E – TYPICAL INSTALLATION IN TANK (INDUSTRIAL MODEL) ......................................................................... 1.13

F – TYPICAL INSTALLATION IN TANK (SANITARY MODEL)............................................................................. 1.14

G - TYPICAL INSTALLATION IN TANK WITH DIAPHRAGM PROTECTION (INDUSTRIAL MODEL) ............... 1.15

H - TYPICAL INSTALLATION FOR LOW FLOW TANK (INDUSTRIAL MODEL)................................................. 1.16

I - TYPICAL INSTALLATION IN TANK FOR INTERFACE LEVEL (INDUSTRIAL MODEL)................................. 1.17

J - TYPICAL INSTALLATION IN TANK FOR STAND PIPE INTERFACE LEVEL (INDUSTRIAL MODEL) ......... 1.18

HOUSING ROTATION........................................................................................................................................... 1.19

BUS TOPOLOGY AND NETWORK CONFIGURATION ....................................................................................... 1.20

INTRINSIC SAFETY BARRIER ............................................................................................................................. 1.21

JUMPER CONFIGURATION ................................................................................................................................. 1.21

POWER SUPPLY .................................................................................................................................................. 1.21

INSTALLATION IN HAZARDOUS AREAS ............................................................................................................ 1.22

EXPLOSION/FLAME PROOF................................................................................................................................ 1.22

INTRINSICALLY SAFE .......................................................................................................................................... 1.22

UGEVKQP"4"/"QRGTCVKQP"00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"403"

FUNCTIONAL DESCRIPTION - SENSOR .............................................................................................................. 2.1

FUNCTIONAL DESCRIPTION – ELECTRONICS................................................................................................... 2.2

UGEVKQP"5"/"EQPHKIWTCVKQP"00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"503"

TRANSDUCER BLOCK ........................................................................................................................................... 3.1

TRANSDUCER BLOCK DIAGRAM ......................................................................................................................... 3.1

CONCENTRATION/DENSITY TRANSDUCER BLOCK PARAMETER DESCRIPTION ........................................ 3.2

CONCENTRATION/DENSITY TRANSDUCER BLOCK PARAMETER ATTRIBUTES........................................... 3.4

CONCENTRATION/DENSITY TRANSDUCER BLOCK VIEW OBJECT ................................................................ 3.6

HOW TO CONFIGURE THE TRANSDUCER BLOCK ............................................................................................ 3.7

ENGINEERING UNIT SELECTION ....................................................................................................................... 3.10

HOW TO CONFIGURE THE ANALOG INPUT BLOCK ........................................................................................ 3.11

LOWER AND UPPER CONCENTRATION/ DENSITY CALIBRATION................................................................. 3.12

LOWER AND UPPER CONCENTRATION/ DENSITY SELF-CALIBRATION ...................................................... 3.14

PRESSURE CALIBRATION .................................................................................................................................. 3.15

VIA LOCAL ADJUSTMENT ................................................................................................................................... 3.17

TEMPERATURE CALIBRATION ........................................................................................................................... 3.20

SENSOR DATA READING .................................................................................................................................... 3.20

TRANSDUCER DISPLAY – CONFIGURATION.................................................................................................... 3.21

DISPLAY TRANSDUCER BLOCK......................................................................................................................... 3.21

DEFINITION OF PARAMETERS AND VALUES ................................................................................................... 3.22

CALIBRATING USING LOCAL ADJUSTMENT..................................................................................................... 3.24

J1 JUMPER CONNECTIONS ................................................................................................................................ 3.24

W1 JUMPER CONNECTIONS .............................................................................................................................. 3.25

FV524"⁄"Qrgtcvkqp."Ockpvgpcpeg"cpf"Kpuvtwevkqpu"Ocpwcn"

XK"

UGEVKQP"6"/"OCKPVGPCPEG"RTQEGFWTGU0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"603"

GENERAL ................................................................................................................................................................ 4.1

PROCEDURE TO CHANGE THE DT302 MAIN BOARD........................................................................................ 4.2

DISASSEMBLY PROCEDURE................................................................................................................................ 4.2

GROUP OF THE PROBE (16A, 16B, 19A OR 19B)................................................................................................ 4.2

ELECTRONIC CIRCUIT .......................................................................................................................................... 4.3

REASSEMBLE PROCEDURE................................................................................................................................. 4.3

GROUP OF THE PROBE (16A, 16B, 19A OR 19B)................................................................................................ 4.3

ELECTRONIC CIRCUIT .......................................................................................................................................... 4.3

INTERCHANGEABILITY.......................................................................................................................................... 4.4

UPGRADING DT301 TO DT302.............................................................................................................................. 4.4

RETURNING MATERIALS ...................................................................................................................................... 4.5

UGEVKQP"7"/"VGEJPKECN"EJCTCEVGTKUVKEU"000000000000000000000000000000000000000000000000000000000000000000000000000000000000"703"

FILLING FLUIDS...................................................................................................................................................... 5.1

FUNCTIONAL SPECIFICATIONS ........................................................................................................................... 5.1

PERFORMANCE SPECIFICATIONS ...................................................................................................................... 5.2

PHYSICAL SPECIFICATIONS ................................................................................................................................ 5.2

ORDERING CODE .................................................................................................................................................. 5.3

OPTIONAL ITEMS ................................................................................................................................................... 5.6

CRRGPFKZ"C"⁄"EGTVKHKECVKQPU"KPHQTOCVKQP"00000000000000000000000000000000000000000000000000000000000000000000000000000000"C03"

EUROPEAN DIRECTIVE INFORMATION .............................................................................................................. A.1

OTHER APPROVALS.............................................................................................................................................. A.1

DEVICE REGISTRATION ITK:........................................................................................................................................... A.1

HAZARDOUS LOCATIONS GENERAL INFORMATION ........................................................................................ A.1

HAZARDOUS LOCATIONS CERTIFICATIONS...................................................................................................... A.2

NORTH AMERICAN CERTIFICATIONS ............................................................................................................................ A.2

EUROPEAN CERTIFICATIONS......................................................................................................................................... A.3

SOUTH AMERICAN CERTIFICATIONS ............................................................................................................................ A.3

IDENTIFICATION PLATE AND CONTROL DRAWING .......................................................................................... A.4

IDENTIFICATION PLATE................................................................................................................................................... A.4

CONTROL DRAWING........................................................................................................................................................ A.7

CRRGPFKZ"D"⁄"UTH"⁄"UGTXKEG"TGSWGUV"HQTO"00000000000000000000000000000000000000000000000000000000000000000000000000000000"D03"

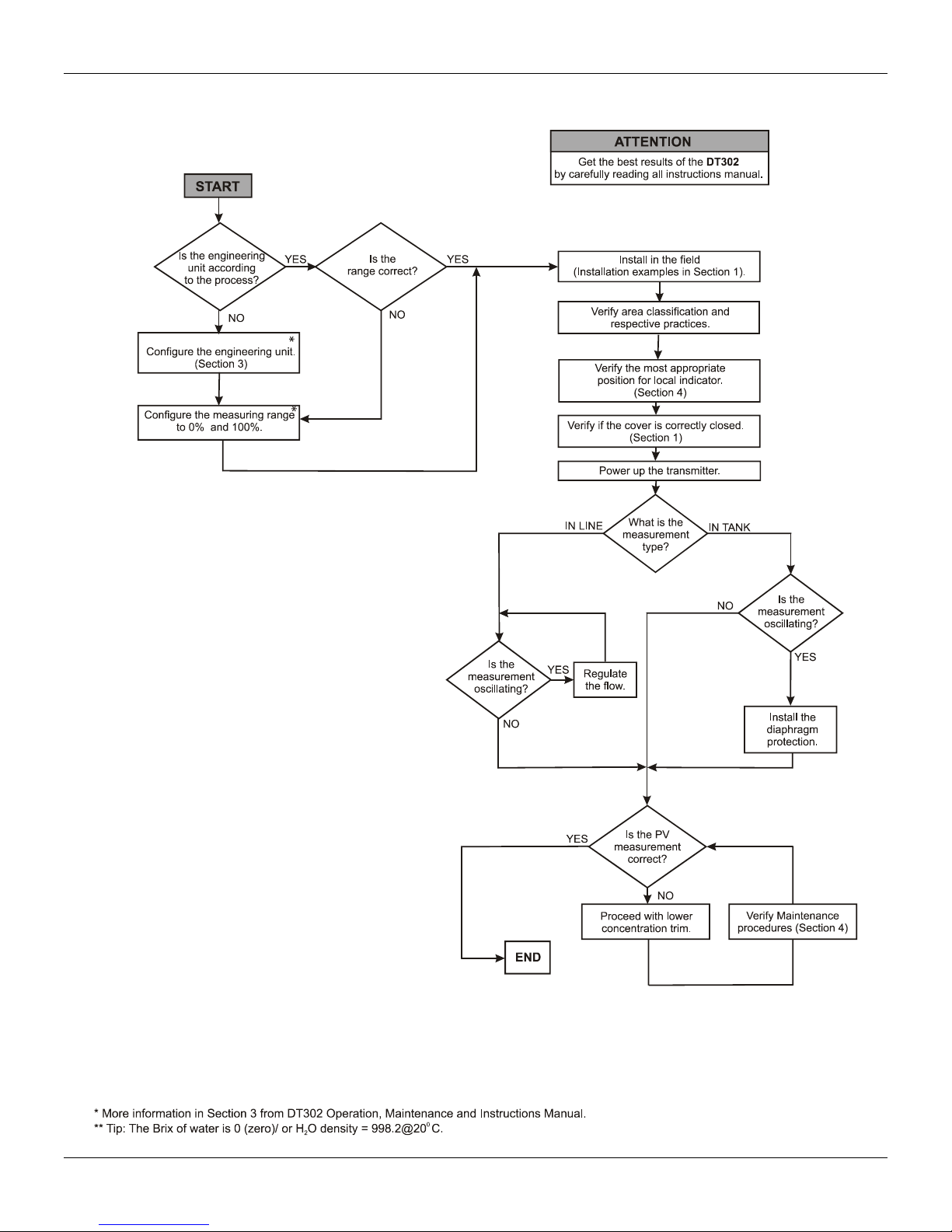

Kpuvcnncvkqp"Hnqyejctv"

XKK"

Kpuvcnncvkqp"Hnqyejctv"

FV524"⁄"Qrgtcvkqp."Ockpvgpcpeg"cpf"Kpuvtwevkqpu"Ocpwcn"

XKKK"

Section 1

1.1

INSTALLATION

The overall accuracy of a density measurement depends on several variables. Although the

transmitter has an outstanding performance, proper installation is essential to maximize its

performance.

Among all factors, which may affect transmitter accuracy, environmental conditions are the most

difficult to control. There are, however, ways of reducing the effects of temperature, humidity and

vibration.

General

The DT302 has a built-in temperature sensor to compensate for temperature variations. At the

factory, each transmitter is submitted to a temperature cycle process, and the characteristics under

different pressures and temperatures are recorded in the transmitter memory. At the field, this

feature minimizes the temperature variation effect.

Locating the transmitter in areas protected from extreme environmental changes can minimize

temperature fluctuation effects.

The transmitter should be installed in such a way as to avoid, as much as possible, direct exposure

to the sun or any source of irradiated heat.

Humidity is fatal for electronic circuits. In areas subjected to high relative humidity, the O-rings for

the electronic housing covers must be correctly placed and the covers must be completely closed by

tightening them by hand until the O-rings are compressed.

Do not use tools to close the covers. Removal of the electronics cover in the field should be reduced

to the minimum necessary, as each time it is removed; the circuits are exposed to the humidity. The

electronic circuit is protected by a humidity proof coating, but frequent exposure to humidity may

affect the protection provided. It is also important to keep the covers tightened in place. Every time

they are removed, the threads are exposed to corrosion, since painting cannot protect these parts.

Although the transmitter is virtually insensitive to vibration, installation close to pumps, turbines or

other vibrating equipment should be avoided.

Recommendation in using of DT302

The process fluid must always cover the two repeater diaphragms.

The maximum process fluid velocity over the two repeater diaphragms must be 0.4m/sec, what

means a flow of 26 m3/h in a piping of 6”. This information is according to fluids which viscosity is

close to that water. For fluids where the viscosity is very different to that water viscosity should be

analyzed. This limitation is due to the losing of load between the diaphragms.

For applications in corrosive fluids, compatible material with the process fluid must be chosen.

Materials that are not in contact with the process, but can be in contact with the corrosive

atmosphere or process residues also must be considered.

Verify if a possible leak of fill fluid (unless than 5ml), due an orifice in the diaphragm can

contaminate the process. If it is not permitted, please, chose a compatible fill fluid.

Verify if the fill fluid does not evaporate in the conditions of limit temperatures and limit pressures of

the process.

DT302 –Operation, Maintenance and Instructions Manual

1.2

Models of DT302

DT302I - Industrial Model, for general use.

DT302S- Sanitary Model, for food, pharmaceutical industries and other applications where is

necessary sanitary conditions.

The industrial model uses flanged connection according to the standard ANSI B16.5 or DIN 2526.

The sanitary model uses tri-clamp connection, allowing a fast connection to the process. The

treatment of wet superficial is made according to the standard of rough 32 Ra. This method is

according to the recommendation of 3A standard that is the sanitary standard largely used by food,

medicines and drink industries.

Fixation

We have two types of fixation:

Top installation (DT302: straight type).

Lateral installation (DT302: side type).

The dimensions of both types for industrial and sanitary models can be seen in the following figures.

The installation can be made in open or pressurized tanks or through an external sampler device

from the process.

Some examples are shown in the following figures.

Choose a place with free access and free mechanical chock to install the device.

Table des matières

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
