Sloan G2 Optima Plus Feuille d'instructions

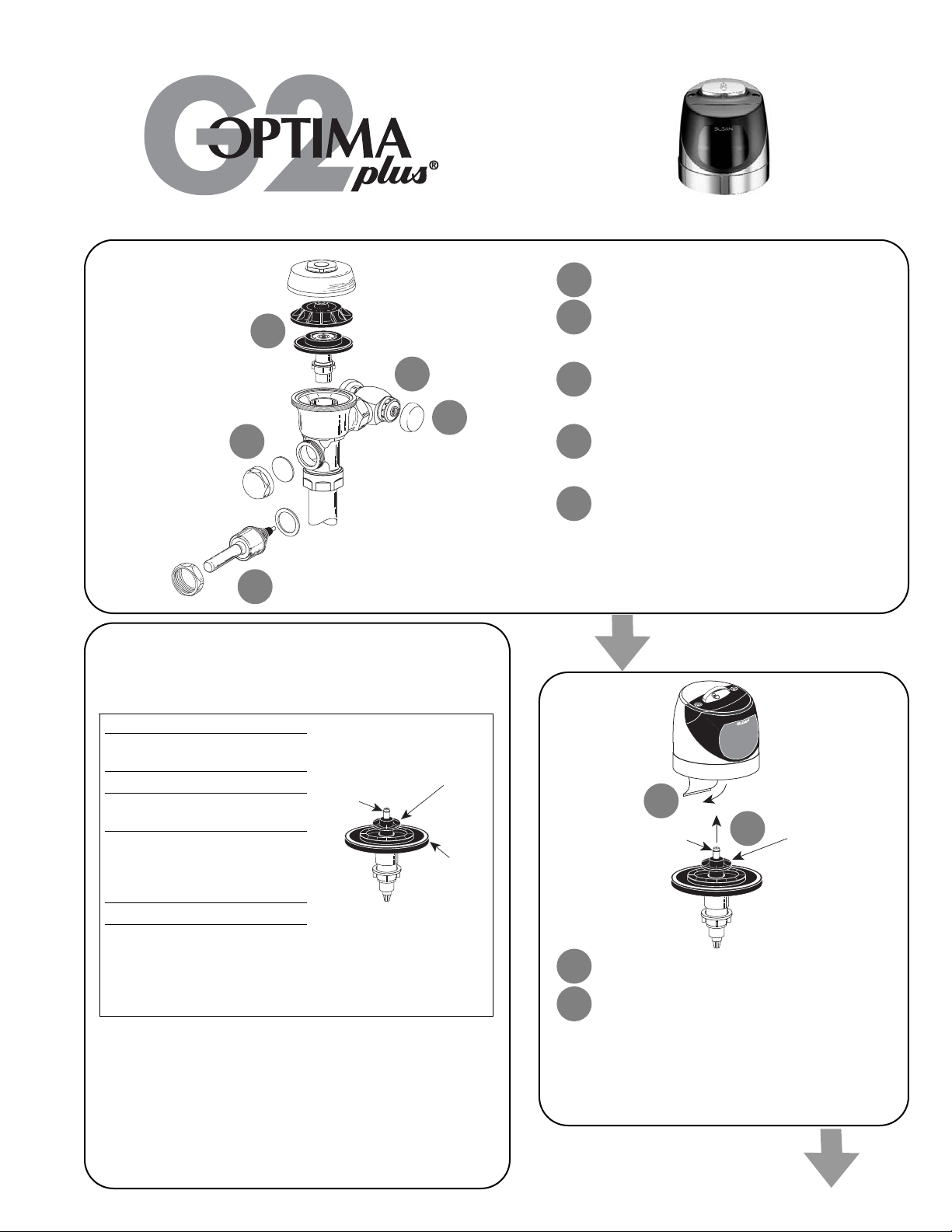

Remove Control Stop Cap.

Turn off water supply at Control Stop.

Push valve Handle to relieve pressure.

Remove Outside and Inside Covers

and old Inside Parts Assembly.

Remove old Handle Assembly and

Gasket.

Install new Handle Seal and Handle

Cap to Flushometer Valve Body.

GG22OOppttiimmaaPPlluussFFlluusshhVVoolluummee

FFoorrRREESSSS-CCaannddRREESSSS-UURReettrrooffiittMMooddeellss

The Flush Volume of the Optima Plus is controlled by the Regulator in

the Flex Tube Diaphragm Kit. Regulators are identified by color.

Reference CChart

Fixture &&FFlush Regulator

Color

0.5 gpf (1.9 Lpf) Urinal Green

1.0 gpf (3.8 Lpf) Urinal Green

1.5 gpf (5.7 Lpf) Urinal Black

1.6 gpf (6.0 Lpf) Closet Green

3.5 gpf (13.2 Lpf) Closet White

4.5 gpf (17.0 Lpf) Closet White

3.5 gpf (13.2 Lpf) Urinal White

2.4 gpf (9.0 Lpf) Closet Blue

NNootteess::For a 4.5 gpf (17.0 Lpf) Water Closet flush, use the EBV-1020-A

kit with the White Regulator. Cut and remove the A-164 Flow Ring from

the Guide.

A 0.5 gpf (1.9 Lpf) Urinal kit can be converted to a 1.0 gpf (3.8 Lpf) by

cutting and removing the smooth A-164 Flow Ring from the Guide.

RESS-C and RESS-U G2 Optima Plus valves are supplied with

multiple Regulators to address multiple flushing applications. The

product is shipped with it’s lowest flush volume configuration. To

convert the flush to a higher flushing volume, simply change the

Regulator.

When installing a new Regulator on a Flex Tube Diaphragm Kit, be

sure to push the Regulator past the O-ring when Installing.

Note: Never use more water than needed. Low Consumption water

closets and urinals will not function properly on excess water.

Remove Tab.

Make sure Flush Volume Regulator is

installed past O-ring. Insert metal end

of Flex Tube Diaphragm Assembly into

hole at the base of the Sensor Module.

O-ring must be fully inserted into hole.

RESS V.I.G. — Rev. 0 (05/03)

Code No. 0816455

VVIISSUUAALLIINNSSTTAALLLLAATTIIOONNGGUUIIDDEELLIINNEESSFFOORRSSLLOOAANN

FFLLUUSSHHOOMMEETTEERRSSRREESSSSUUNNIITTIINNSSTTAALLLLAATTIIOONN

FLUSH VOLUME

REGULATOR

0-RING

REGULATOR

(MUST BE INSTALLED

PAST 0-RING)

FLEX TUBE

DIAPHRAGM

Test Sensor by standing in front of Sensor for Ten (10) Seconds.

Step away from Sensor and listen for "CLICK."

Click

any questions

• We recommend that you review our G2 OPTIMA Plus Installation Instruction Manual and Maintenance Guides for

complete instructions including Rough-in Dimensions, Specifications, Troubleshooting Guide, and Replacement Parts.

• Call our Installation Engineers for additional information at 1-800-9-VALVE-9 or fax them at 1-800-737-3061.

The information contained in this document is subject to change without notice.

Test your Flushometer!

SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131

Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com

15 17

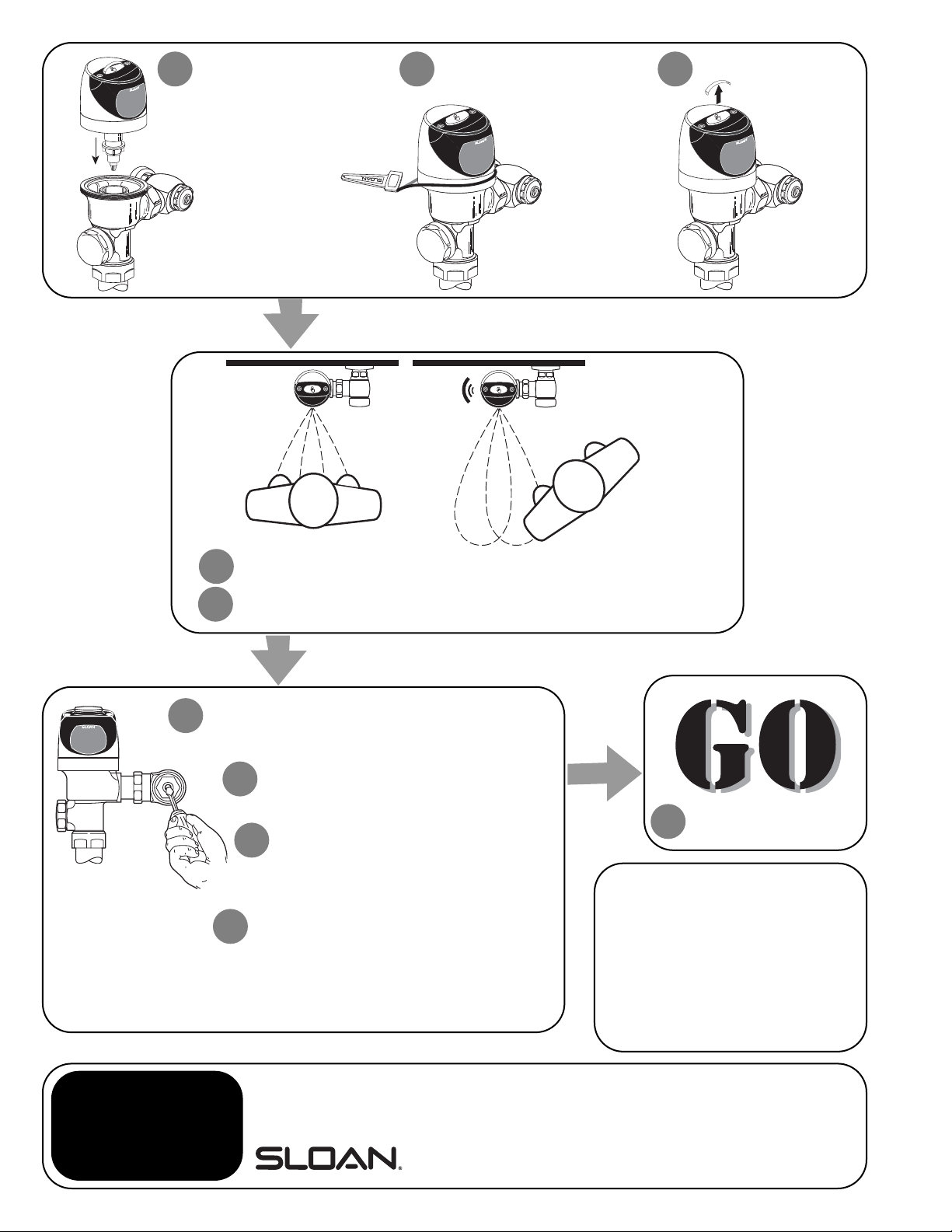

Tighten with Strap Wrench. Pull Tab to activate.

Install Assembly onto

the Flushometer Valve

Body. Lens must face

directly forward.

8 10

Activate Flushometer and adjust Control Stop after each flush until rate of flow delivered

properly cleanses the fixture. The Control Stop should never be opened to the point

where the flow from the valve exceeds the flow capability of the fixture. In the event of a

valve failure, the fixture must be able to accommodate a continuous flow from the valve.

Open Control Stop (counterclockwise) ½ turn

from closed position.

Place hand over lens for 10 seconds

or press override button to activate.

Adjust Control Stop to meet the flow

rate requirement for proper cleansing

of the fixture.

Install Control Stop Cap.

Range adjustment is factory set

and typically does not require

adjustment.

If range adjustment is required,

refer to the Installation

Instructions furnished with the

G2 Optima Plus Flushometer.
