Sloan CX Mode d’emploi

CX Manual Flushometers

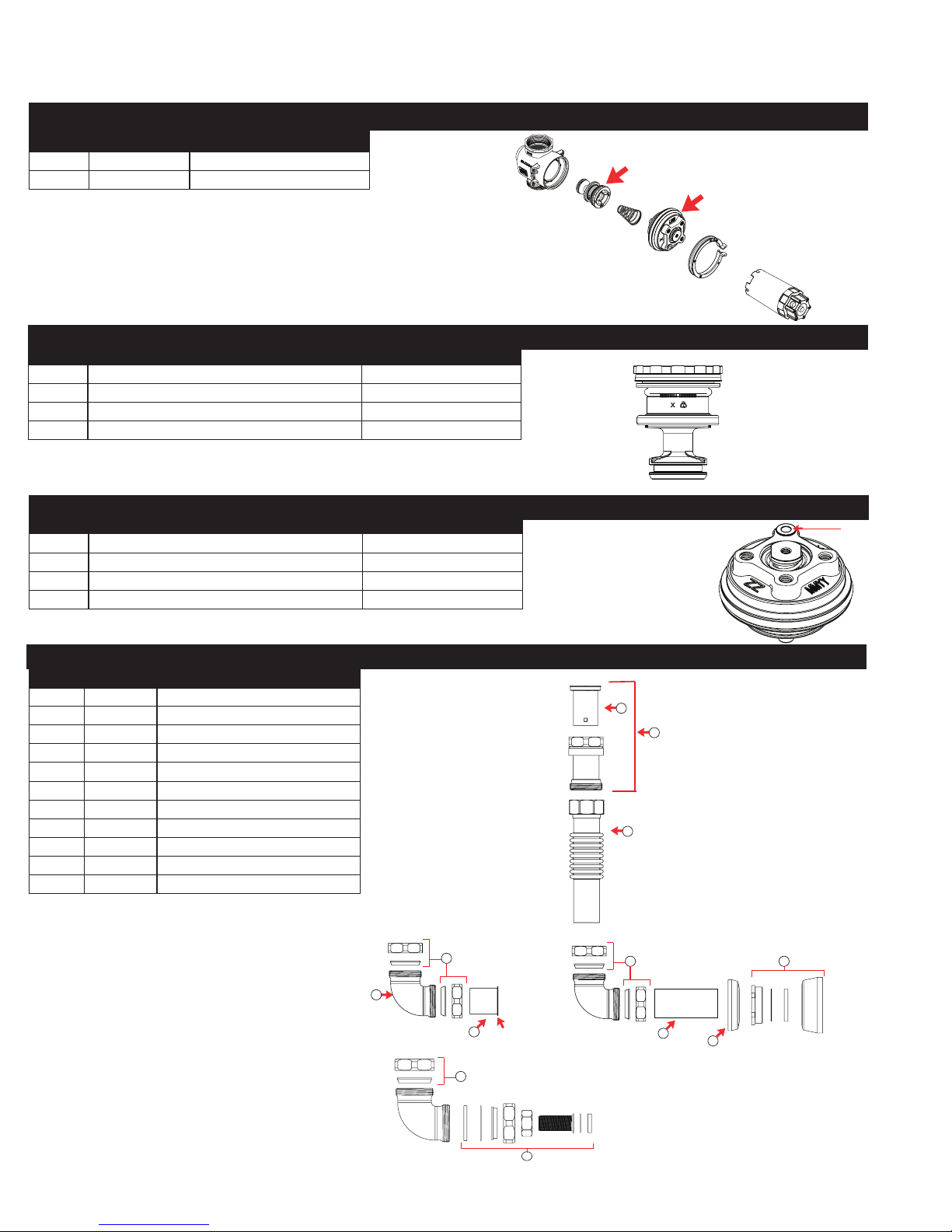

TROUBLESHOOTING GUIDE

Item No. Part No. Description

1See Table Piston Assembly

2See Table Activation Assembly

Code No. Description Plug Color*

3340048 1.6 gpf/6.0 Lpf closet activation assembly Green

3340049 1.28 gpf/4.8 Lpf closet activation assembly Purple

3340051 0.5 gpf/1.9 Lpf urinal activation assembly Red

3340052 0.25 gpf/1.0 Lpf urinal activation assembly Burgundy

ACTIVATION ASSEMBLY SELECTION GUIDE

* Colors may differ. Consult factory to conrm you have the correct piston assembly.

Item Code No. Description

1 0323182 V-651 Vacuum Breaker

2 0323279 Short Vacuum Breaker Tube

3 0306394 Adjustable Tube

4 0306395 Poly Washer Coupling (set of two)

5 0306392PK Elbow

6 3306002 1-1/2" Coupling with S-21 Gasket

7 0306031PO 1 1/2" (38 mm) Flanged outlet tube RB, 6"

8 0396669PK F-102 1-1/2" (38 mm) Outlet Tube CP 8"*

9 0306238PK F-7 Flange CP*

10 0306146PK F-5-A 1-1/2" Spud Coupling Assembly CP*

11 0306396 Urinal Connection

FLUSH CONNECTION PARTS

Plug

The information contained in this document is subject to change without notice.

Manufactured in the U.S.A by Sloan Valve Company under one

or more of the following patents: U.S. Patents. 5,295,655;

5,542,718; 5,558,120; 5,564,460; 5,730,415; 5,865,420;

5,887,848; 5,967,182. Other Patents Pending.

Bak-Chek®, Para-flo®, PERMEX®, Turbo-Flo®

* Consult factory for alternate nish options

410

7Install with

Flange against spud

For Model 158, Wall Hung For Model 158, Floor Mount

For Model 198

Code No. Description Piston Color*

3340053 1.6 gpf/6.0 Lpf closet activation assembly Green

3340054 1.28 gpf/4.8 Lpf closet activation assembly Purple

3340055 0.5 gpf/1.9 Lpf urinal activation assembly Red

3340056 0.25 gpf/1.0 Lpf urinal activation assembly Burgundy

PISTON ASSEMBLY SELECTION GUIDE

CX Manual Flushometers

TROUBLESHOOTING GUIDE

1. Flushometer does not function (no water/ﬂush).

A. Ensure water supply to valve is turned on.

B. Shut off sleeve is in closed position. Turn counterclockwise to open water ow.

C. Plunger screw is not adjusted properly. Adjust screw using depth guide.

2. Volume of water is not sufﬁcient to evacuate the bowl.

A. Shut off sleeve is not open wide enough. Adjust shut off sleeve for desired delivery of water volume.

B. Urinal piston parts installed in a Closet ushometer. Replace piston with proper Closet piston (1.6 gpf/6.0 Lpf or 1.28 gpf/4.8 Lpf)

C. Water supply volume or pressure is inadequate (low). If the xture does not siphon or evacuate the bowl, steps must be taken to increase the

water supply pressure and/or volume. Contact the xture manufacturer for minimum water supply requirements of the xture.

D. Plunger screw is not adjusted properly. Adjust screw using depth guide.

3. Flushometer closes off immediately.

A. Urinal piston parts installed in a Closet ushometer. Replace piston with proper Closet piston (1.6 gpf/6.0 Lpf or 1.28/4.8 Lpf).

B. Piston lip seal may be damaged or worn. Replace with new correct gpf/Lpf piston.

C. Plunger screw not set properly. Adjust screw using depth guide.

4. Length of ﬂush is too short (Short Flush).

A. Incorrect piston is installed in Flushometer; for instance, Urinal assembly inside a Closet Flushometer,

or High Efciency assembly inside a higher consumption xture. Determine the ush volume required by the xture and replace with proper gpf/

Lpf piston. Use valve label and markings on xture for reference.

B. Piston lip seal may be damaged or worn. Replace with new correct gpf/Lpf piston.

C. Plunger screw is not adjusted properly. Adjust screw using depth guide.

5. Length of ﬂush is too long (Long Flush) or continuous.

A. Metering bypass hole in piston is clogged. Remove the piston from the valve, slide o ring off lter, and wash under clean running water.

Reposition o-ring before reinstalling piston. Replace piston if cleaning does not correct the problem.

B. Supply line water pressure has dropped and is not sufcient to close the valve. Close shut off sleeve until pressure is restored.

D. Piston is damaged. Replace with new proper gpf/Lpf piston

E. Incorrect Piston is installed in Flushometer; for instance, Closet assembly inside a Urinal ushometer. Determine the ush volume required by the

xture and replace piston. Use valve label and markings on xture for reference.

6. Chattering noise is heard during ﬂush.

A. Reduce ow pressure by turning shut off sleeve clockwise.

CARE AND CLEANING

DO NOT use abrasive or chemical cleaners (including chlorine bleach) to clean Flushometers that may dull the luster and attack the chrome or special

decorative nishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel. While cleaning the bathroom tile, protect the Flushometer

from any splattering of cleaner. Acids and cleaning uids will discolor or remove chrome plating.
