Skylab F207 Manuel utilisateur

1/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

Real-time tracking | Remote

Training Collar Tracer

Document information

Title

F207 Real-time tracking | Remote Training Collar Tracer

Document type

User manual

Document number

SL-22050244

Revision and date

V1.01 17-May-2022

Disclosure restriction

Public

2/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

Revision History

Version

Description

Make

Date

V1.01

Initial version

Wilson

20220517

Product list

NO.

product name

Amount

Remark

GPS tracker

Magnetic suction USB charging cable

Screwdriver

Operation instruction

Warranty card

Conformity certificate

SKYLAB reserves all rights to this document and the information contained herein. Products, names,

logos and designs described herein may in whole or in part be subject to intellectual property rights.

Reproduction, use, modification or disclosure to third parties of this document or any part thereof without

the express permission of SKYLAB is strictly prohibited.

The information contained herein is provided “as is” and SKYLAB assumes no liability for the use of the

information. No warranty, either express or implied, is given, including but not limited, with respect to the

accuracy, correctness, reliability and fitness for a particular purpose of the information. This document

may be revised by SKYLAB at any time. For most recent documents, visit www.skylab.com.cn.

SKYLAB® is a registered trademark of Skylab M&C Technology Co., Ltd in China

3/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

Contents

1. Product Introduction.............................................................................................................................................. 4

2. Functional Characteristics....................................................................................................................................4

3. Product Parameter................................................................................................................................................ 4

4. LED Indicator Definition........................................................................................................................................5

5. Device Start up.......................................................................................................................................................6

6. APP and SMS instructions................................................................................................................................... 7

7. Download phone APP.........................................................................................................................................11

8. Log in by website and phone APP....................................................................................................................11

8.1 Log in by Phone APP................................................................................................................................11

8.2 App usage introduction............................................................................................................................ 13

8.2.1 Dog training function..................................................................................................................... 14

8.2.2How to use health Oversee interface..........................................................................................15

9. Faults & The solutions........................................................................................................................................ 15

10. Cautions..............................................................................................................................................................16

11. Contact information...........................................................................................................................................16

4/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

1. Product Introduction

This product is based on LTE / GPRS network and GPS satellite positioning system. It is the most

technologically advanced dual positioning of GPS and AGPS. IPX-68 waterproof professional is

designed for individuals and hound. A new pet tracker and activity state 4G GPS locator for pets.

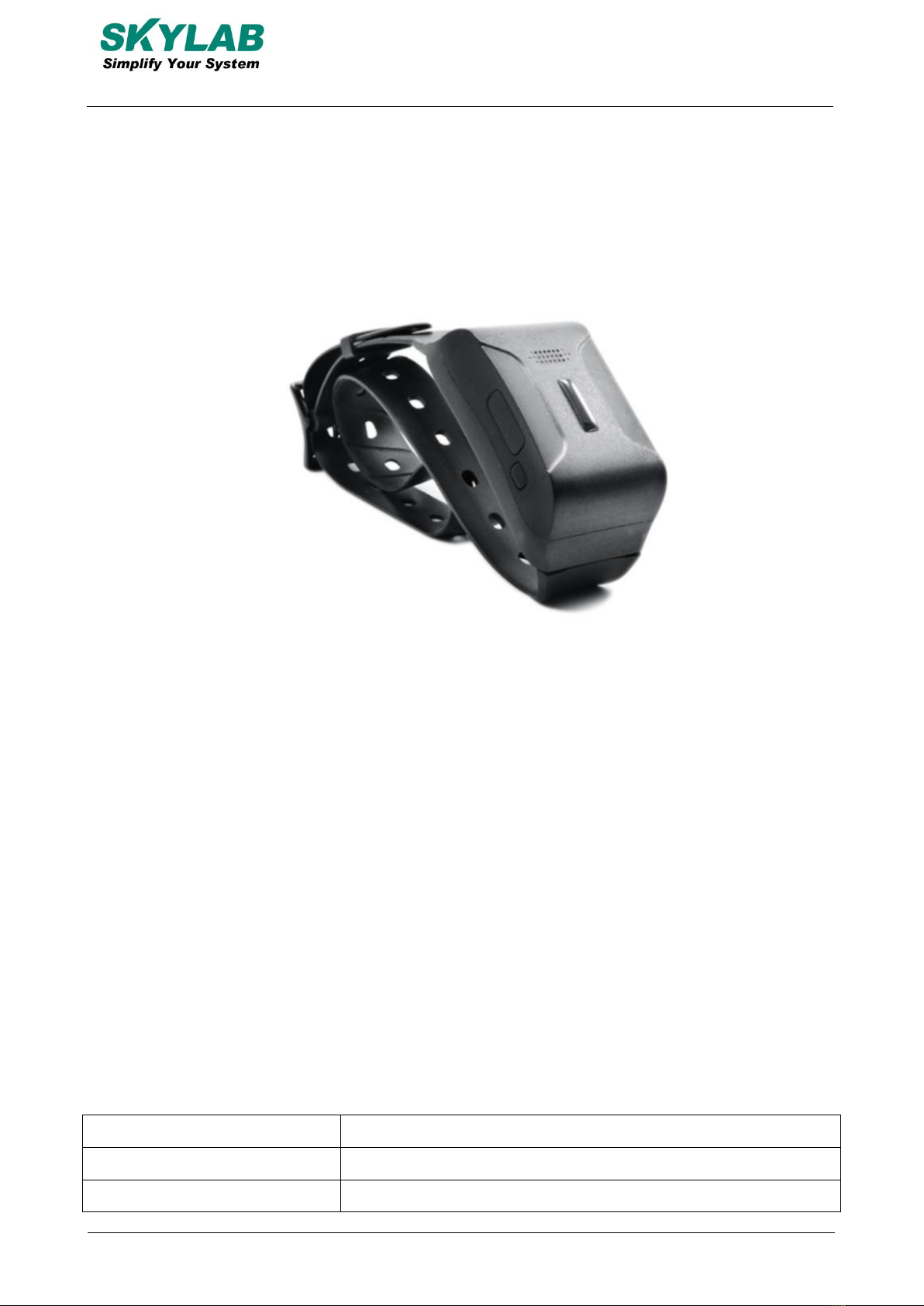

Figure 1 F207 Product picture

2. Functional Characteristics

Real-time tracking / AGPS assisted positioning;

Upload methods: timing, real-time mode;

Vibration dog training in multiple modes, and its own speaker;

Virtual fence / history track playback / displacement / low power alarm etc., alarm data upload to

cloud background;

Real-time health oversee (sleep, step counting);

LED indicator: charging, GPS, communication, dog training status;

3. Product Parameter

Product name

4G Pet（Dog training）GPS Tracker

Model

F207

Suitable Object

Dog and other medium or large-sized animals

5/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

4. LED Indicator Definition

Red indicator - System indicator

Status of indicator

Meaning

Flash

Normal working

4G Bands（Option）

A/North America version A:

LTE-FDD—B2/B4/B12; WCDMA—B2/B5

Europe version E:

LTE-FDD—B1/B3/B5/B7/B8/B20

LTE-TDD—B38/B40/B41

WCDMA—B1/B5/B8;GSM—900/1800MHz

South America SA:

LTE-FDD—B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD—B40

WCDMA—B1/B2/B5/B8;GSM—850/900/1800/1900MHz

Network

GSM/GPRS/LTE

Battery

Polymer lithium battery

Start-up time

Cold start 35s-80s

Hot start 1s

LTE Module GPS accuracy

10m

Sim7600

GPS sensitivity

-159dBm

Operating temperature

-20℃~70℃

Operating humidity

5%-90% Noncondensing

Storage temperature

-40℃ ～85℃

IP grade

Soak in 1.5m water depth

SIM card

Nono-card，self-bouncing card

Dimension

88*44*32mm

Weight

65g

6/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

Not bright

Standby or fault

Green indicator - GSM/LTE signal indicator

Status of indicator

Meaning

Continuously in bright status

Communication initialization

Flash

Communication is normal

Not bright

Standby or fault

Blue light -GPS signal indicator

Status of indicator

Meaning

Continuously in bright status

Searching for GPS signals

Flash

GPS signal is normal

Not bright

Standby or fault

Note: When the device is in power-saving sleep mode, the device will be shut down after 5 minutes

(configurable) if there is no operation indicator.

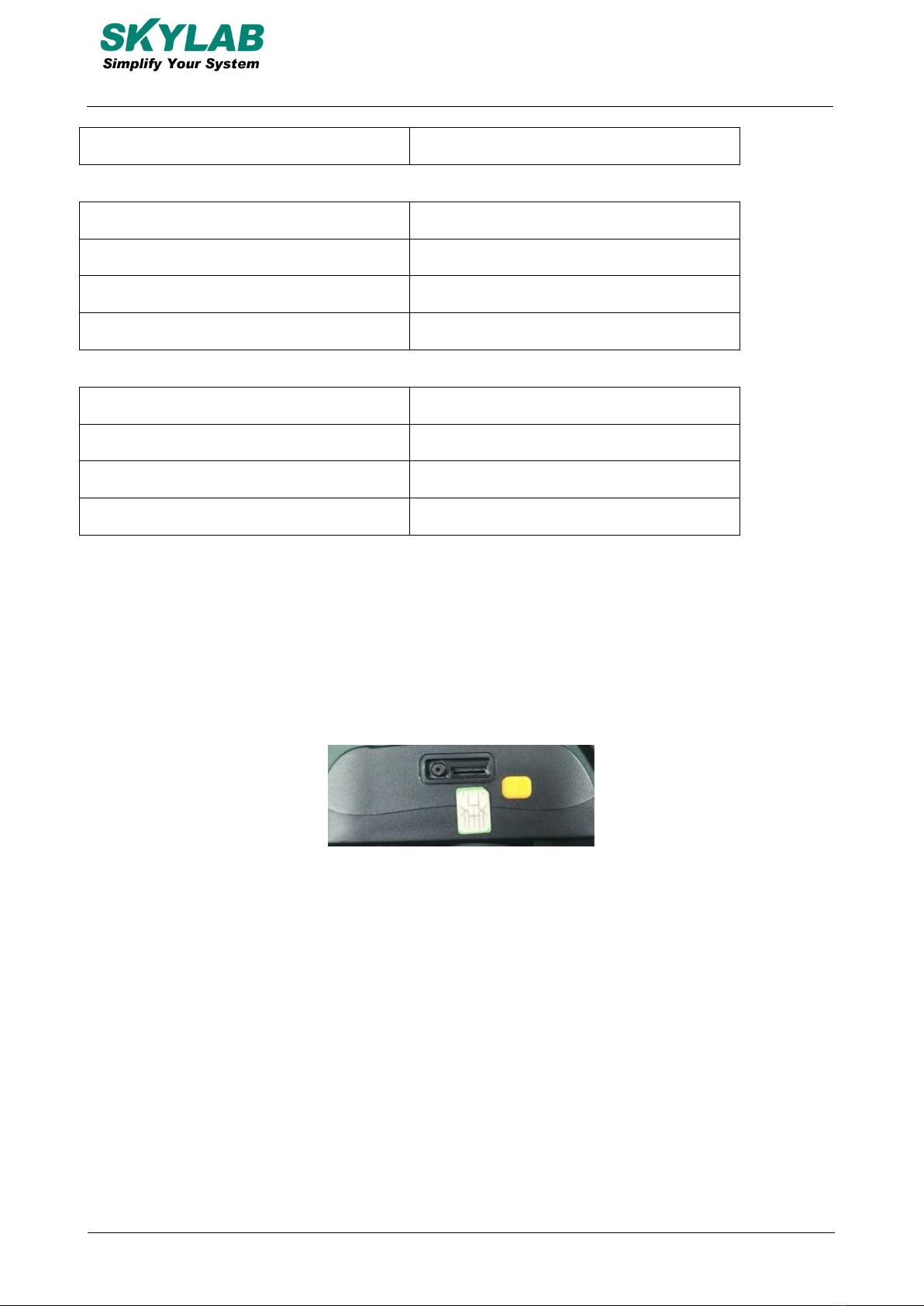

5. Device Start up

1. Open the USB rubber plug by hand, Insert a Nano SIM card support LTE/GSM/GPRS network into

the slot and make sure the chip side is up.

2. Switch the power button,the device would turn on.

3. Set admin number, by sending a SMS command to the SIM card inside device. For example:

admin123456 86132******** (86132********should be your phone number).

4. Set APN: APN123456 CMNET (please use your local APN instead of CMNET, if you do not know the

APN content,you should contact your SIM card supplier)

Or Start up (that to active device)

The three steps to activate the device connection platform are as follows:

1. Open the cover by screwdriver, Insert a nano SIM card support LTE/ GSM/GPRS network into the slot

and make sure the chip side is up.

7/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

2. Turn on the unit outdoors by Pushing the button to“On”the indicator is on. (when the green light and

blue light are both flashing , you can do setting by step as below:)

Set admin number,APN and open GPRS as below:

Step

SMS format for setting

Reply from uni

1.Set admin

admin123456+space+your

phone number

Admin OK

2.Set APN(abroad)

apn123456+ space+local apn

content

APN OK

3.Set IP or domain (Factory

default)

SZCS,123456,DOMAIN=a.lk

gps.net:7700

SET IP OK

4.Query parameters

Param1

Software version, ID, IP address,

port, domain name, and APN

5.Detection signal status

status

BAT: 6; GPRS: 1; GSM: 2; GPS: 1;

ACC: 0; Oil: 0; Power: 1; S: 0

6.Dialing the device

Get latitude and longitude and Google location links to activate the

device

6. APP and SMS instructions

Function

Descriptions

APP

support

SMS

support

Command Format

Master number

Set the mobile phone

number for receiving alarms

YES

admin123456 cell-phone

number

Frequency of

upload

Set the frequency of

uploading device location

and other information(Unit:

second)

YES

Upload123456 frequency

Time zone

Setting the Device Time

Zone

YES

Timezone123456, time zone

Sensitiveness to

shock

Set vibration sensitivity of

equipment

YES

vibxyz123456,3,5,5,5

Power saving

mode

In power-saving mode,

vibration cannot wake up the

YES

sleep123456 time

8/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

device, GPS is off, SMS

phone keys can wake up the

device for 5 minutes

Vibration of

dormancy

In vibration mode, the

vibration can wake up the

device to work for 5 minutes.

If the vibration continues, the

device will work continuously

YES

sleep123456 shock

Electronic fence

Electronic fence can be

edited through the web page

or APP. Warning messages

will be sent when the device

enters or exceeds the

electronic fence

YES

Low battery

alarm

If the built-in battery is less

than 3.7V, the device will

report a low power alarm

YES

LOW,1 ON /LOW, 0 OFF

Time to upload

The device periodically

uploads location and other

information at a set

frequency.(Unit: second)

YES

upload123456,3600

点名/Call the roll

发送点名消息，设备从休眠状

态进入工作状态，工作 5分

钟，上传位置信息/

Send the roll call message,

the device from the sleep

state into the working state,

work for 5 minutes, upload

location information

YES

d123456

Dormancy online

When the device is sleeping,

keep the network connected

to ensure that the APP can

send commands

YES

gprson123456,1

Dormancy offline

When the device is sleeping,

YES

gprson123456,0

9/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

close the network

connection and app cannot

send instructions

To change the

domain name, IP

Example Change the

domain name or IP address

YES

szcs,123456,domain=

a.zg666gps.com:7700

Language

settings

Modify the text reply

language

YES

Lag1 (English)

lag2(Chinese)

APN settings

Example Set the APN of the

device

YES

apn123456, Access Point ;

apn123456, Access Point,

User name ;

apn123456, Access Point,

User name, Password

Factory reset

Restore the factory Settings

of the device

YES

format

Remote restart

Restarting the device

YES

RST

Parameter

Query 1

View software version

number, device ID, domain

name, APN, network signal,

defense status, vibration

sensitivity

YES

param1

Parameter

Query 2

Check the main control

number, SOS number, and

defense parameters

YES

param2

Query status

Check battery, network, GPS

status, etc

YES

status

Do Not Disturb

Set the do not disturb period,

during which the device

enters the flight mode

YES

Turn off do not

disturb mode

Cancel the Do not Disturb

function

YES

Step down the

switch

This feature is not currently

implemented

YES

Weak vibration

When the command is

issued, the equipment will

YES

10/16 F207-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F207 User manual

vibrate 10 times, and the

vibration intensity is weak

Moderate

vibration

Send the command, the

equipment will vibrate 10

times, vibration intensity

YES

Strong vibration

Send the command, the

equipment will vibrate 10

times, vibration intensity is

strong

YES

Voice

When the command is

issued, the device will beep

for 10 consecutive seconds

YES

Finding indicator

light

When the command is

issued, the red light of the

device blinks continuously

YES

Language play

The voice in the APP will be

delivered to the device to

play

YES

Upgrade

instructions

Check whether the software

has a new version. If yes,

the software is automatically

upgraded

YES

CheckUpdate

Table des matières

Autres manuels Skylab Produits de soins pour animaux de compagnie

Skylab

Skylab F206 Manuel utilisateur

Manuels Produits de soins pour animaux de compagnie populaires d'autres marques

Schwinn

Schwinn Rascal Manuel utilisateur

K&H

K&H Small Animal Manuel utilisateur

SHOR-LINE

SHOR-LINE 006.3230.00 Manuel utilisateur

Petsafe

Petsafe Stubborn Dog Receiver Collar Manuel utilisateur

Datamars

Datamars OMNI MAX Manuel utilisateur

Trixie

Trixie 24444 Manuel utilisateur

Roverpet

Roverpet 30DDPP Manuel utilisateur

SportDOG

SportDOG SD-105S-C Manuel utilisateur

Staywell

Staywell 400 Series Magnetic Manuel utilisateur

Dogtek

Dogtek Sonic Birdhouse Manuel utilisateur

Togfit

Togfit Deluxe Trigger Lock Door Gate Manuel utilisateur

Girafus

Girafus 227PA Manuel utilisateur

ubbink

ubbink KoiFeeder Solar Manuel utilisateur

ULTRACOM

ULTRACOM KOIRA-GPS Manuel utilisateur

CADOCA

CADOCA Deuba 106911 Manuel utilisateur

Dogtra

Dogtra RR Deluxe Manuel utilisateur

Carson

Carson CONVERTIBLE PET YARD 2200 Manuel utilisateur

Creative Cedar Designs

Creative Cedar Designs K-9 Kabin Manuel utilisateur
