Skylab F206 Manuel utilisateur

1/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Real-time tracking | Remote

Training Collar Tracer

Document information

Title

F206 Real-time tracking | Remote Training Collar Tracer

Document type

User manual

Document number

SL-22050245

Revision and date

V1.01 17-May-2022

Disclosure restriction

Public

2/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Revision History

Version

Description

Make

Date

V1.01

Initial version

Wilson

20220517

Product list

NO.

product name

Amount

Remark

GPS tracker

Charging cable

Screwdriver

Pedestal

Charger

Operation instruction

Warranty card

Conformity certificate

SKYLAB reserves all rights to this document and the information contained herein. Products, names,

logos and designs described herein may in whole or in part be subject to intellectual property rights.

Reproduction, use, modification or disclosure to third parties of this document or any part thereof without

the express permission of SKYLAB is strictly prohibited.

The information contained herein is provided “as is” and SKYLAB assumes no liability for the use of the

information. No warranty, either express or implied, is given, including but not limited, with respect to the

accuracy, correctness, reliability and fitness for a particular purpose of the information. This document

may be revised by SKYLAB at any time. For most recent documents, visit www.skylab.com.cn.

SKYLAB® is a registered trademark of Skylab M&C Technology Co., Ltd in China

3/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Contents

1. Product Introduction.............................................................................................................................................. 4

2. Functional Characteristics....................................................................................................................................4

3. Product Parameter................................................................................................................................................ 4

4. LED Indicator Definition........................................................................................................................................5

5. Device Start up.......................................................................................................................................................6

6. APP and SMS instructions................................................................................................................................... 7

7. Download phone APP...........................................................................................................................................9

8. Log in by website and phone APP................................................................................................................... 10

8.1 Log in by Phone APP............................................................................................................................... 10

8.2 App App usage introduction.....................................................................................................................11

8.2.1 Dog training function..................................................................................................................... 12

8.2.2 How to use health Oversee interface.........................................................................................13

9. Faults & The solutions........................................................................................................................................ 13

10. Cautions..............................................................................................................................................................14

11. Contact information...........................................................................................................................................14

4/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

1. Product Introduction

This product is based on LTE / GPRS network and GPS satellite positioning system. It is the most

technologically advanced dual positioning of GPS and AGPS. IPX-68 waterproof professional is

designed for individuals and hound. A new pet tracker and activity state 4G GPS locator for pets.

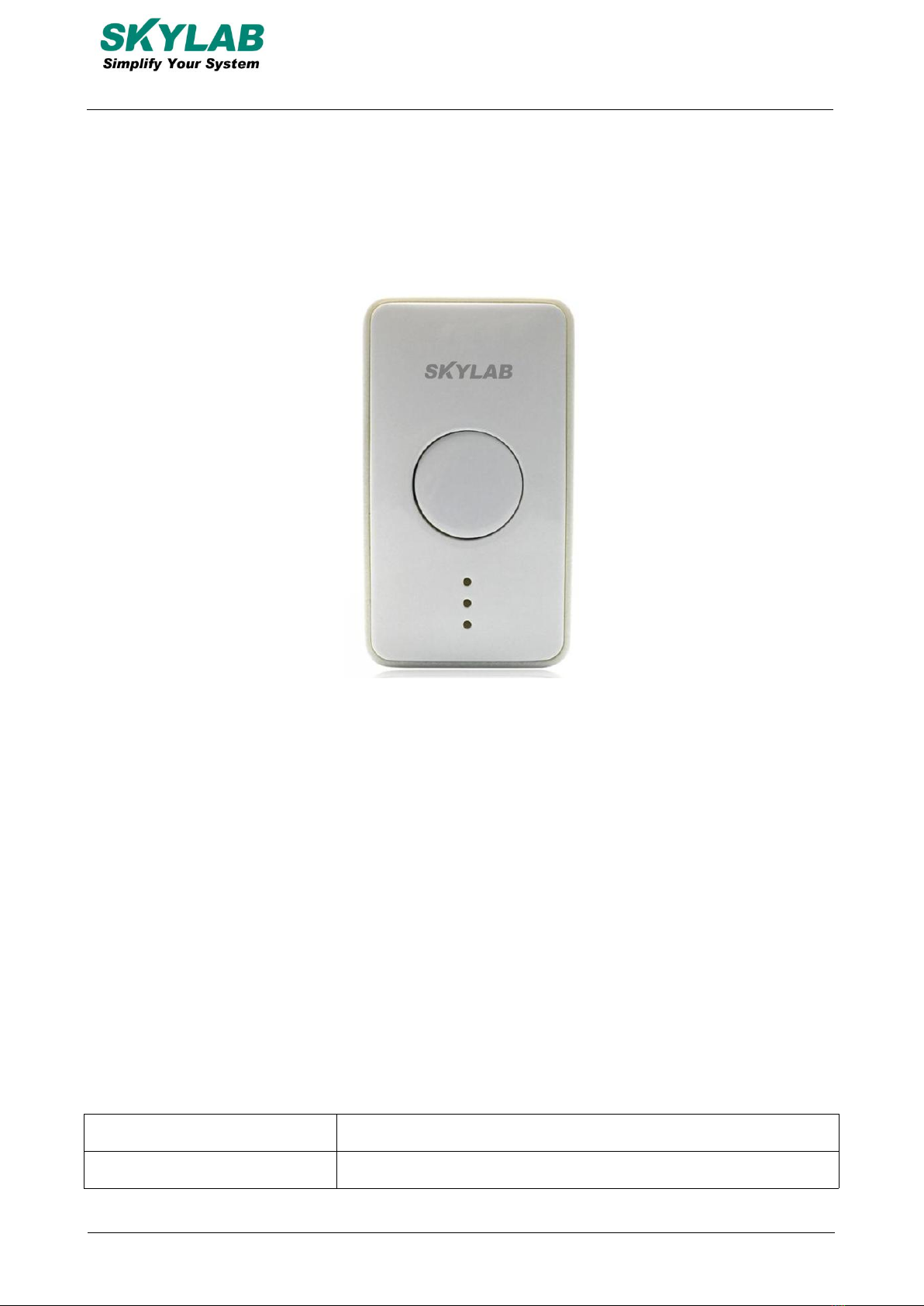

Figure 1 F206 Product picture

2. Functional Characteristics

Real-time tracking / AGPS assisted positioning;

Upload methods: timing, real-time mode;

Vibration dog training in multiple modes, and its own speaker;

Virtual fence / history track playback / displacement / low power alarm etc., alarm data upload to

cloud background;

Real-time health oversee (sleep, step counting);

LED indicator: charging, GPS, communication, dog training status;

Magnetic charging, safe, waterproof and anti-static

3. Product Parameter

Product name

4G Pet（Dog training）GPS Tracker

Model

F206

5/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Suitable Object

Dog and other medium or large-sized animals

Support the spectrum

(Asia/Overseas optional)

FDD-LTE:B1 B2 B3 B4 B5 B7 B8 B12(17) B20 B28

TDD-LTE:B38 B39 B40 B41

WCDMA:B1 B2 B5 B8

GSM:850/900/1800M/1900

Network

GSM/GPRS/LTE

Battery

Polymer lithium battery

Start-up time

Cold start 35s-80s

Hot start 1s

LTE Module GPS accuracy

10m

CPU: SC9820E

GPS sensitivity

-159dBm

Operating temperature

-20℃~70℃

Operating humidity

5%-95% Noncondensing

Storage temperature

-40℃ ～75℃

Power Charge

Magnetic suction 5 v / 1

SIM card

Nono card, self-elastic insert card

Dimension

70*39.5*17mm

Weight

65g

4. LED Indicator Definition

Red Indicator：Power charge and Find dog

Status of indicator

Meaning

Flash

Normal working

Not bright

Standby or fault

Green indicator - GSM/LTE signal indicator

Status of indicator

Meaning

Continuously in bright status

Communication initialization

6/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Flash

Communication is normal

Not bright

Standby or fault

Blue light -GPS signal indicator

Status of indicator

Meaning

Continuously in bright status

Searching for GPS signals

Flash

GPS signal is normal

Not bright

Standby or fault

Note: When the device is in power-saving sleep mode, the device will be shut down after 5 minutes

(configurable) if there is no operation indicator.

5. Device Start up

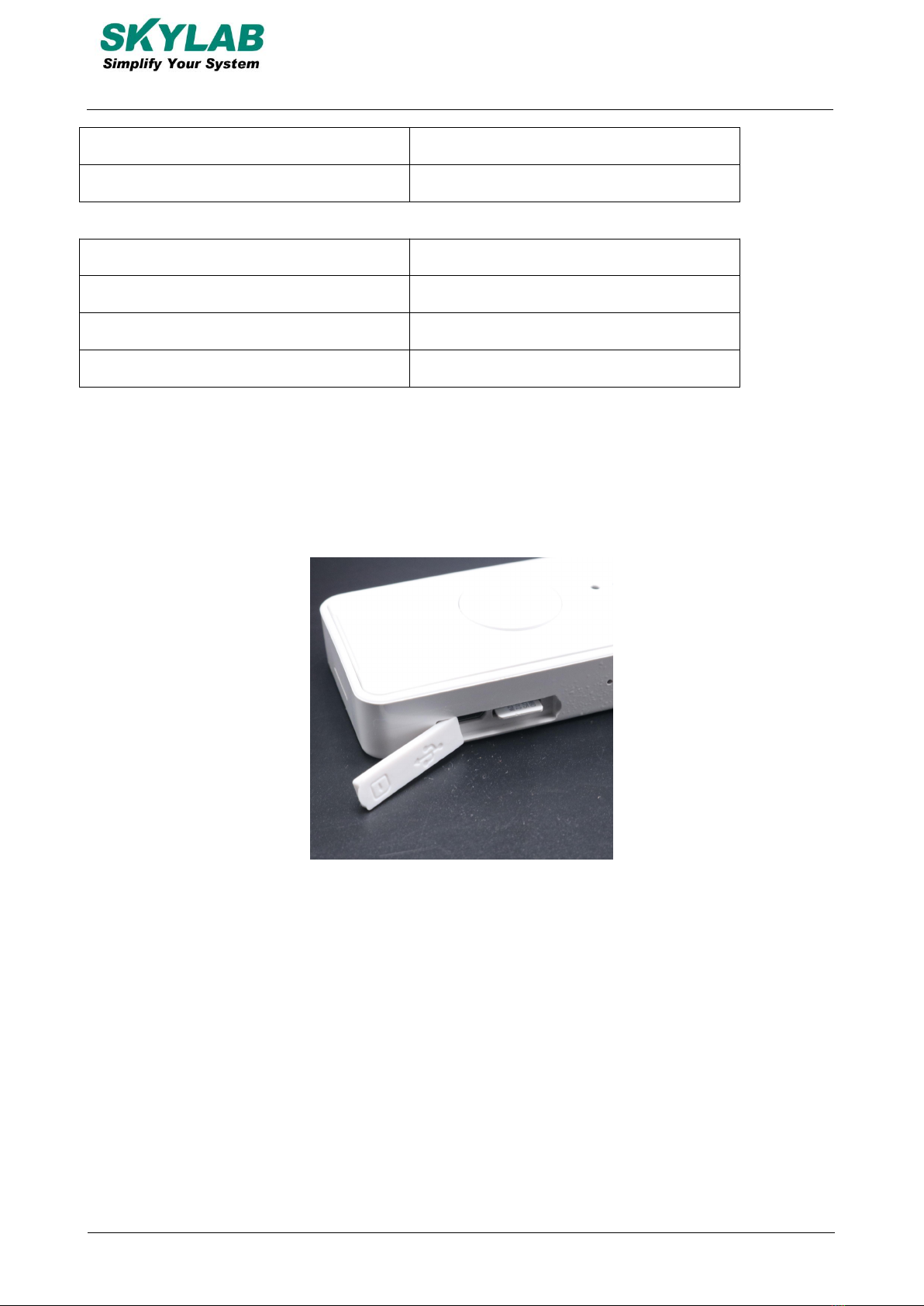

1. Open the USB plug by hand and insert a 4G SIM card with the chip facing down.

2. After holding down the power button for three seconds, the device will start up.

3. Set admin number, by sending a SMS command to the SIM card inside device. For example:

admin123456 86132******** (86132********should be your phone number).

Note：

（1）Charge the battery for 8-12 hours on the first time. Please use the charger and battery that are

configured by the manufacturer. The standard configuration battery is a lithium battery.

（2）The battery of this product is a lithium battery that contains harmful chemical components and may

explode. Please do not force it, puncture it and put it into fire.

（3）Please charge in time to keep the equipment working properly.

7/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

6. APP and SMS instructions

Function

Descriptions

APP

support

SMS

suppor

Command Format

Master

number

Set the mobile phone number for

receiving alarms

YES

admin123456 cell-phone

number

Frequency

of upload

Set the frequency of uploading device

location and other information(Unit:

second)

YES

Upload123456 frequency

Time zone

Setting the Device Time Zone

YES

Timezone123456, time

zone

Sensitivene

ss to shock

Set vibration sensitivity of equipment

YES

vibxyz123456,3,5,5,5

Power

saving

mode

In power-saving mode, vibration

cannot wake up the device, GPS is off,

SMS phone keys can wake up the

device for 5 minutes

YES

sleep123456 time

Vibration of

dormancy

In vibration mode, the vibration can

wake up the device to work for 5

minutes. If the vibration continues, the

device will work continuously

YES

sleep123456 shock

Monitor

You can use your mobile phone to

monitor the sound around the device

YES

Electronic

fence

Electronic fence can be edited through

the web page or APP. Warning

messages will be sent when the device

enters or exceeds the electronic fence

YES

Low battery

alarm

If the built-in battery is less than 3.7V,

the device will report a low power

alarm

YES

LOW,1 开/LOW,0 关

Time to

upload

The device periodically uploads

location and other information at a set

frequency.(Unit: second)

YES

upload123456,3600

Call the roll

Send the roll call message, the device

from the sleep state into the working

state, work for 5 minutes, upload

YES

d123456

8/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

location information

Dormancy

online

When the device is sleeping, keep the

network connected to ensure that the

APP can send commands

YES

gprson123456,1

Dormancy

offline

When the device is sleeping, close the

network connection and app cannot

send instructions

YES

gprson123456,0

To change

the domain

name, IP

Example Change the domain name or

IP address

YES

szcs,123456,domain=

a.zg666gps.com:7700

Language

settings

Modify the text reply language

YES

lag1(English)lag2(Chinese)

APN

settings

Example Set the APN of the device

YES

apn123456, Access Point;

apn123456, Access Point,

User name ;

apn123456, Access Point,

User name, Password.

Factory

reset

Restore the factory Settings of the

device

YES

format

Remote

restart

Restarting the device

YES

RST

Parameter

Query 1

View software version number, device

ID, domain name, APN, network

signal, defense status, vibration

sensitivity

YES

param1

Parameter

Query 2

Check the main control number, SOS

number, and defense parameters

YES

param2

Query

status

Check battery, network, GPS status,

etc

YES

status

Do Not

Disturb

Set the do not disturb period, during

which the device enters the flight mode

YES

Turn off do

not disturb

mode

Cancel the Do not Disturb function

YES

Step down

the switch

This feature is not currently

implemented

YES

9/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

Weak

vibration

When the command is issued, the

equipment will vibrate 10 times, and

the vibration intensity is weak

YES

Moderate

vibration

Send the command, the equipment will

vibrate 10 times, vibration intensity

YES

strong

vibration

Send the command, the equipment will

vibrate 10 times, vibration intensity is

strong

YES

Voice

When the command is issued, the

device will beep for 10 consecutive

seconds

YES

Finding

indicator

light

When the command is issued, the red

light of the device blinks continuously

YES

Language

play

The voice in the APP will be delivered

to the device to play

YES

Upgrade

instructions

Check whether the software has a new

version. If yes, the software is

automatically upgraded

YES

checkUpdate

7. Download phone APP

1. Android mobile phone: Scan above QR to download;

2. Ios: search”LKGPS2” in the app store or Google play store to download.

10/14 F206-UM-005,A/1

Skylab M&C Technology Co.,Ltd.

F206 User manual

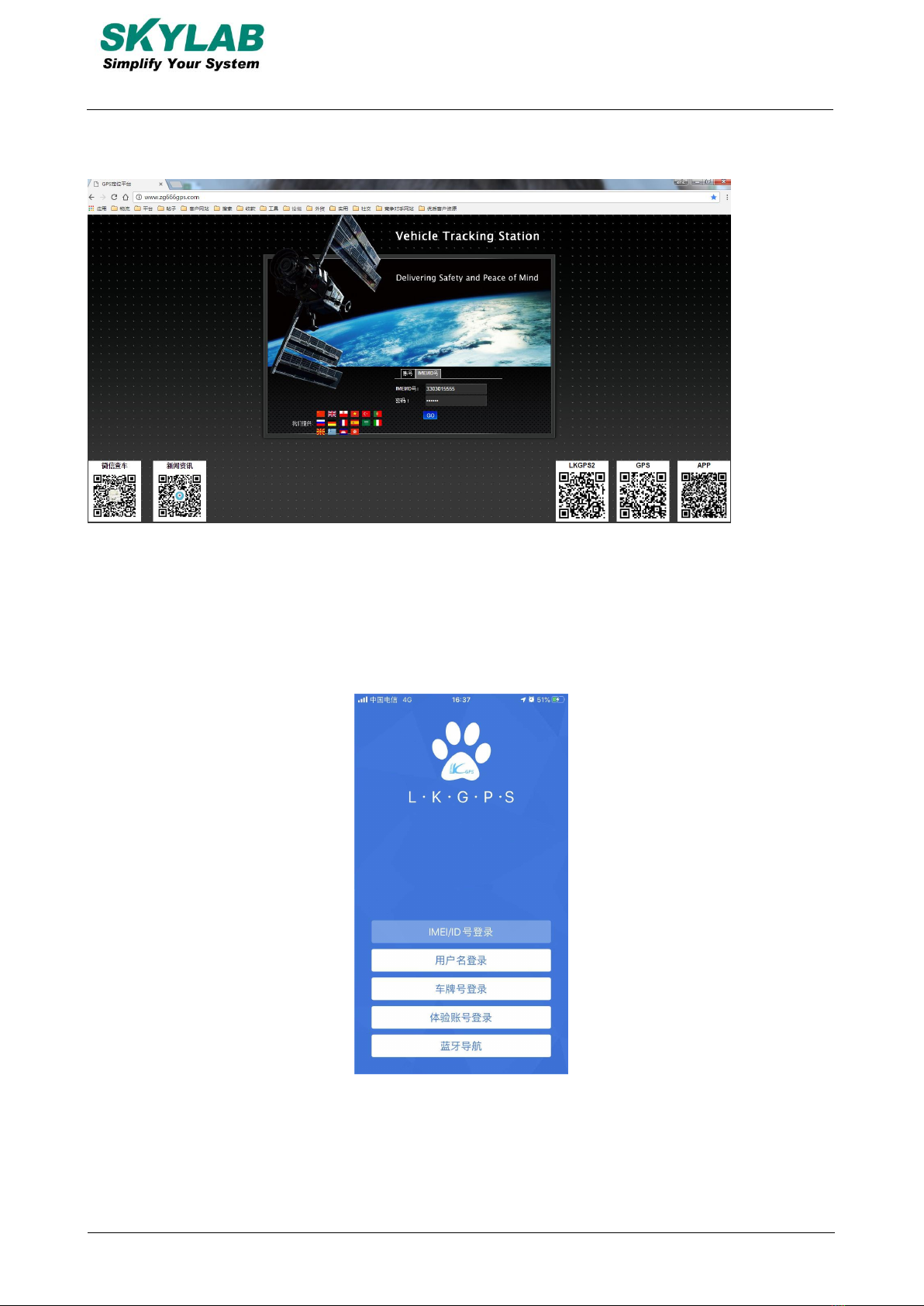

8. Log in by website and phone APP

Type www.zg666gps.com/www.lkgps.net in the browser address bar, click the enter key.

Select IMEI, enter 10 digits of device ID, and the default password is 123456. Click GO to log in.

8.1 Log in by Phone APP

Please refer to the picture below：

Select "IMEI / ID login" for the first login, select "666" for the first column of address, input 10 digits on

the device barcode, and the default password is 123456, Click "log in" to log in. After logging in, set up

and improve the user information, you can use other login methods.

Table des matières

Autres manuels Skylab Produits de soins pour animaux de compagnie

Skylab

Skylab F207 Manuel utilisateur

Manuels Produits de soins pour animaux de compagnie populaires d'autres marques

Schwinn

Schwinn Rascal Manuel utilisateur

K&H

K&H Small Animal Manuel utilisateur

SHOR-LINE

SHOR-LINE 006.3230.00 Manuel utilisateur

Petsafe

Petsafe Stubborn Dog Receiver Collar Manuel utilisateur

Datamars

Datamars OMNI MAX Manuel utilisateur

Trixie

Trixie 24444 Manuel utilisateur

Roverpet

Roverpet 30DDPP Manuel utilisateur

SportDOG

SportDOG SD-105S-C Manuel utilisateur

Staywell

Staywell 400 Series Magnetic Manuel utilisateur

Dogtek

Dogtek Sonic Birdhouse Manuel utilisateur

Togfit

Togfit Deluxe Trigger Lock Door Gate Manuel utilisateur

Girafus

Girafus 227PA Manuel utilisateur

ubbink

ubbink KoiFeeder Solar Manuel utilisateur

ULTRACOM

ULTRACOM KOIRA-GPS Manuel utilisateur

CADOCA

CADOCA Deuba 106911 Manuel utilisateur

Dogtra

Dogtra RR Deluxe Manuel utilisateur

Carson

Carson CONVERTIBLE PET YARD 2200 Manuel utilisateur

Creative Cedar Designs

Creative Cedar Designs K-9 Kabin Manuel utilisateur
