Sirio Antenne TOP-ONE Manuel utilisateur

DESCRIPTION

SPECIFICATIONS

Ground plane base station antenna working on CB and

10m band. Made of anti-corodal aluminium tubes. Its

robust structure ensure wide band and allows perfect

performances and very good connections at long

distances too.

Electrical Data

Type : 1/4 lGround plane

Frequency range : 26.5-28.5 MHz

Impedance : 50 W

Radiation (H-plane) : 360°omnidirectional

Polarization : Vertical

Gain : 0 dBd, 2.15 dBi

Bandwidth @ SWR £1.5 : ³2000 KHz (180 channel)

SWR @ res. freq. : £ 1.1

Max Power : 1000 Watts continuous

3000 Watts short time

Feed system : Gamma match

Connector : UHF-female

Mechanical Data

Materials : Aluminium, Steel, Brass, Nylon

Wind resistance : 130 Km/h

Length (approx.) : 3640 mm

Weigth (approx.) : 3900 gr

Mounting Mast : Æ35-42 mm

DESCRIPTION

SPECIFICATIONS

SIRIO TOP-ONE

CB & 10m band Base Station Antenna

SIRIO TOP-ONE

antenne

SIRIO

SHI-QUALITY ANTENNAS MADE IN ITALY

ID397, pag.1/4

MOUNTING INSTRUCTIONSMOUNTING INSTRUCTIONS

7788

1212

1111

1305mm

991010

Insert limit punching

Top section whip

Bottom section whip

Ø11x13x1300

alu. tube

(cone top side)

Mounting mast

(not supplied)

M6x12 hexagon

head screw

M6 washer

M6 spring

lock washer

Æ3.9x12.7

phillips

tapping

screw

M5x16 hexagon

head screw

M5 hexagonal nut

M5 washer

M4x4 hexagon

socket set screw

cup point

2mm hexagonal key

M6 hexagonal

nut

M6 washer

M6 spring

lock

washer

Aluminium ring

section

PVC cap for Æ8 alu tube

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 23/03/2009 - Cod. ID397, pag. 4/4

HI-QUALITY ANTENNAS MADE IN ITALY

TYPICAL S.W.R. RESPONSE

Model: SIRIO TOP-ONE

S.W.R.

1.0

1.2

1.8

1.4

2.2

1.6

2.0

2.4

2.6

2.8

3.0

25.4 27.4 29.4

f.(MHz)

File: F-01-029

26.5 - 28.5 MHz band

Hose clamp

Ø8x10x1400

alu. tube

(cone bottom side)

Ø6x8x700

alu. tube

ID397, pag.2/4

HI-QUALITY ANTENNAS MADE IN ITALY

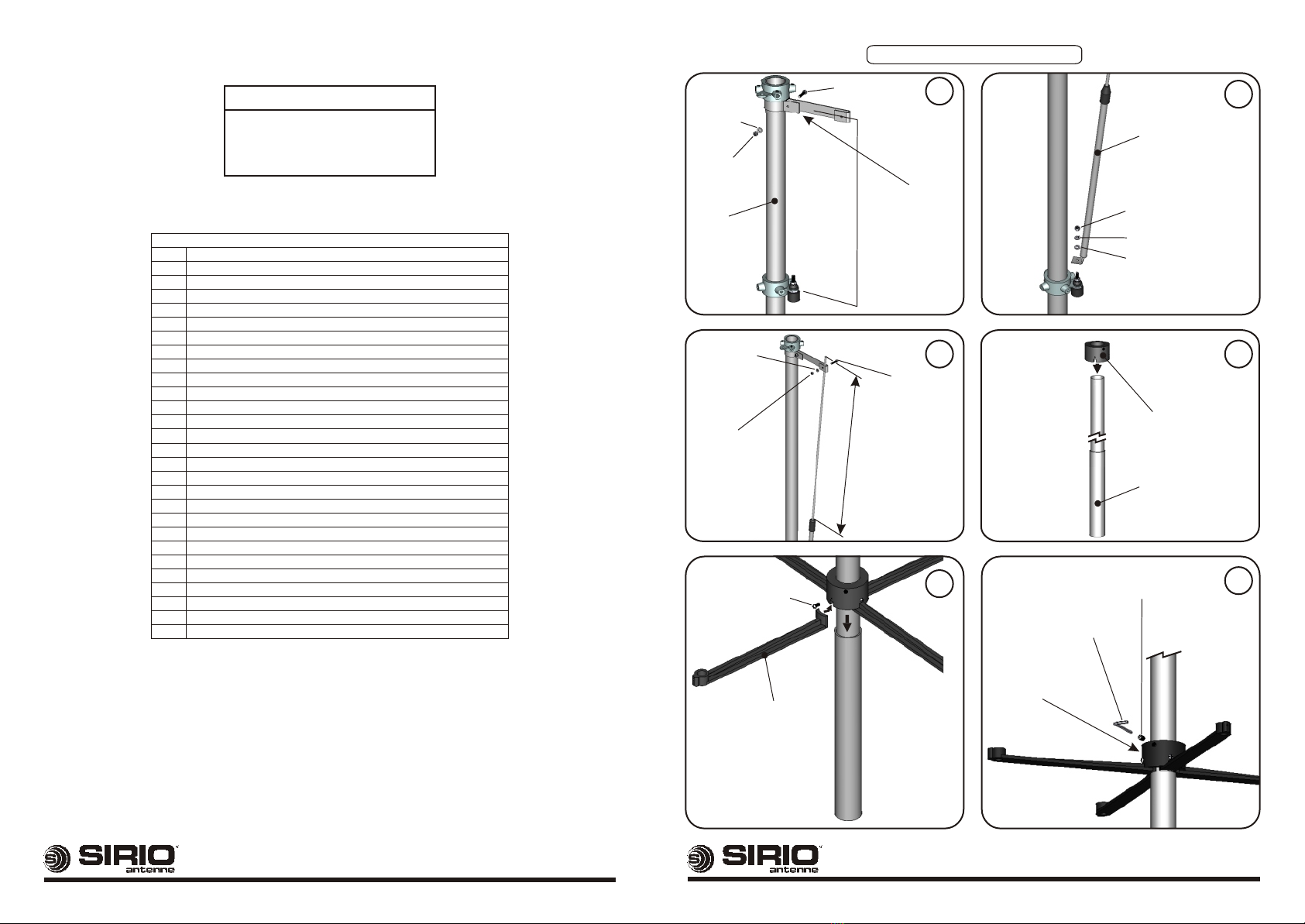

n. 1 tape rules (meter)

n. 1 screwdriver cross point

n. 1 10mm open key

n. 2 8mm open key

Mounting needed tools:

Parts List

REMARK: use a good coax cable like RG-8 or RG-213 as short as possible

to get the best performance and we recommend to mount your antenna as

far as possible from metall roofs, walls, power lines and other antennas.

Description

Top section whip with connector

M5x16 hexagon head screws

M5 washer

M5 hexagonal nuts

gamma match assembly

M6 washer

M6 spring lock washer

M6 hexagonal nuts

Bottom section whip with reinforced side

Æ36-39mm hose clamp

Nylon ring

Nylon arms

Æ 3.9x12.7 tapping screws

M6x10 hexagon socket set screw cup point

3mm hexagonal key

Æ11x13x1300mm alu. tube (cone top side)

M6x12 hexagon head screws

Æ8x10x1400mm alu. tube (cone bottom side)

aluminium ring section

M4x4 hexagon socket set screw cup point

2mm hexagonal key

Æ6x8x700mm alu. tube

PVC cap for Æ8 alu tube

30x65mm steel “V” bracket

30x65mm steel “flat” bracket

M6x240mm U-bolt

Q.ty

to align

1122

3344

Nylon ring placed

in contact to the

edge of external tube

580mm

M5x16 hexagon

head screw

M5 hexagonal

nut

M5 washer

M6 hexagonal nut

M6 washer

M6 spring lock washer

M5x16 hexagon

head screw

M5 hexagonal

nut

M5 washer

Æ3.9x12.7 phillips

tapping screw

M6x10 hexagon socket

set screw cup point

3mm hexagonal key

Top section

whip with

connector

Nylon ring

Bottom section

whip with

reinforced side

Nylon arm

Gamma match

assembly

The aluminium

bracket must be

leant to the ring

MOUNTING INSTRUCTIONSMOUNTING INSTRUCTIONS

ID397, pag.3/4

HI-QUALITY ANTENNAS MADE IN ITALY
