Sirio Antenne HP 2000 Manuel utilisateur

B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 18/06/2015 - Cod. ID100

HI-QUALITY ANTENNAS MADE IN ITALY

antenne

SIRIO

HP 2000 HP 2000 C

VHF 2m Radialess Mobile Antennas

ALTERNATIVE MOUNT TYPE

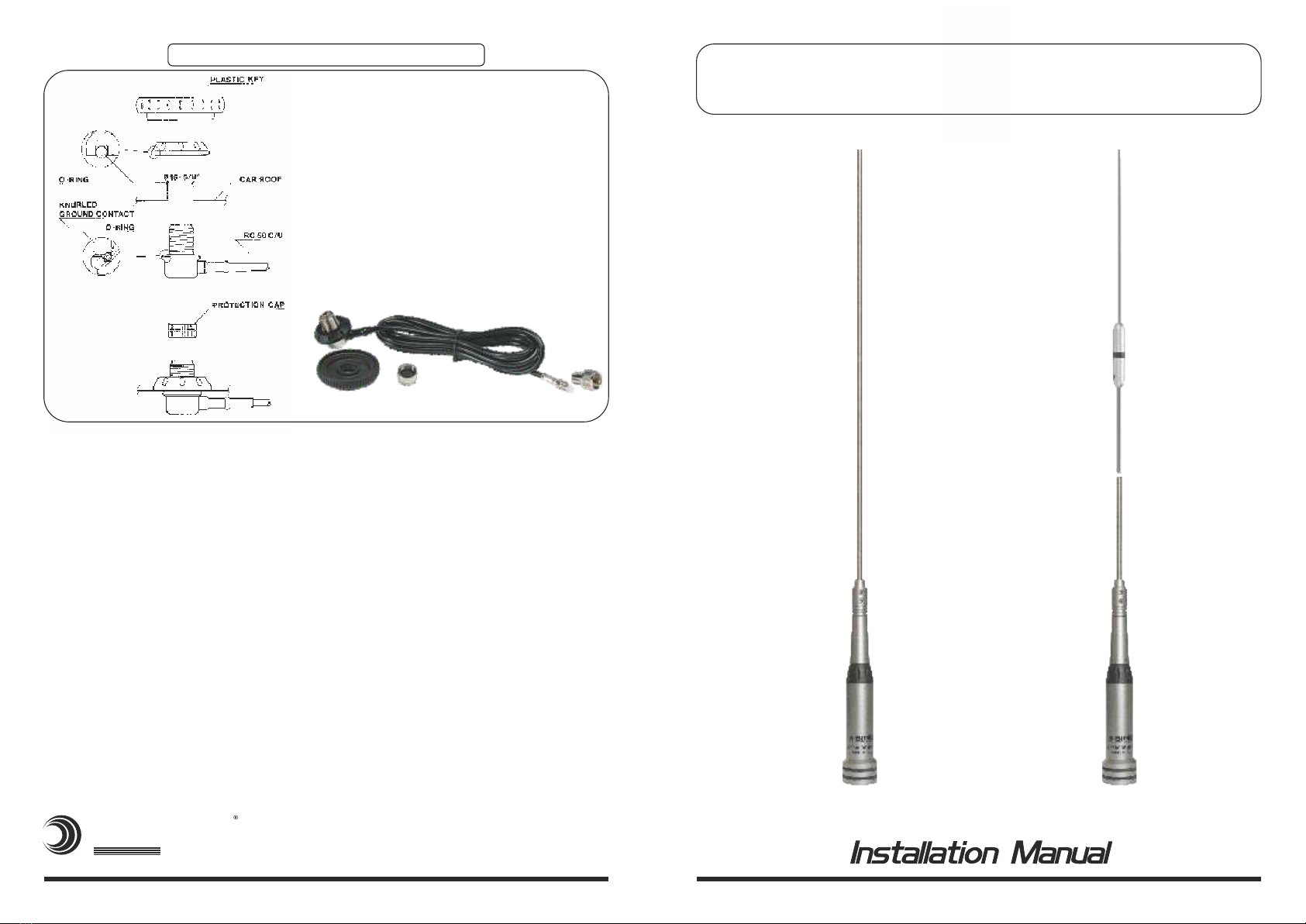

HP-AC/U angular connector:

Frequency Range: from DC to 500 MHz

Overall Size: Ø 41 mm

Mounting Hole: Ø 16 mm

Materials: Brass nichel plated, PTFE insulator,

Gold plated pin

Cable: 5m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male/ UHF-male (PL259)

Antenna connection: UHF-female

P/N 2510805.00 HP-AC/U

HP 2000 HP 2000 C

DESCRIPTION

ID100

VHF radialless vehicular antenna working on 2m band. The very best materials have

been used to guarantee the maximum strength and the best performance. The whip,

made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting

without using keys or tools. Also a particular attention has been paid to the UHF-male

connector with a goldplated center pin, PTFE insulator and silicone rubber gasket for a

perfect waterproofing.

SPECIFICATIONS

HI-QUALITY ANTENNAS MADE IN ITALY

antenne

SIRIO

50 W

320 gr

UHF-male (PL 259)

150 Watts

Linear Vertical

360° Omnidirectional

All metal parts are DC-grounded, inner conductor is coupled capacitively

Stainless steel 17/7 PH, Nylon, Chromed Brass

Electrical Data

Type

Frequency Range

Impedance

Radiation (H-plane)

Polarization

Gain

Materials

Height (approx.)

Weight (approx.)

Grounding Protection

Connector

Mechanical Data

Max Power (CW) @30°C

HP 2000 C

C-Loaded

137 - 157 MHz @ SWR 2£

2 dB ref. to l/4 whip

1410 mm

1/2 l

1.5 dB ref. to l/4 whip

142 - 149 MHz @ SWR 2£

HP 2000

1060 mm

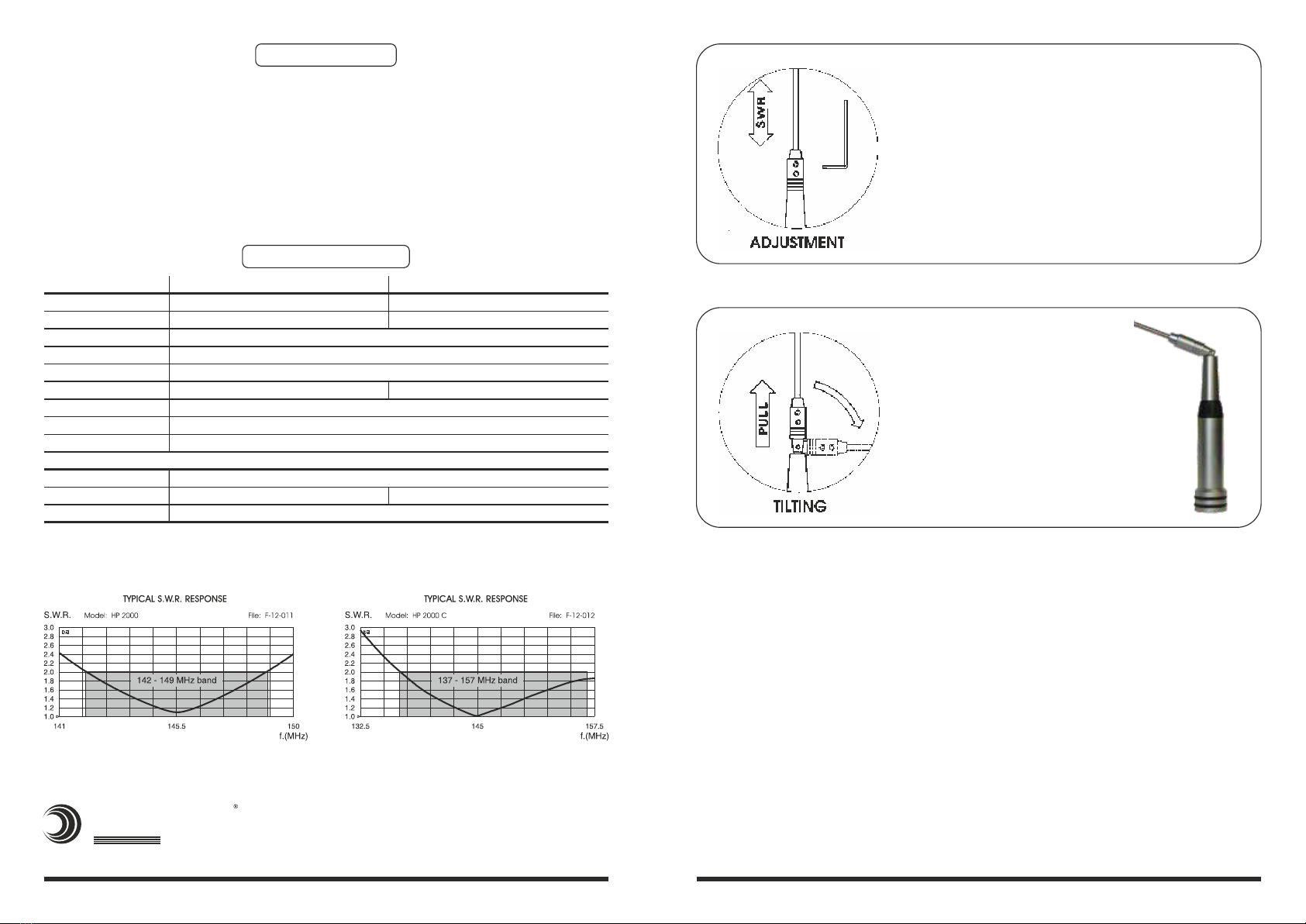

1. Release the allan-screws on the whip using the

supplied key

2. Move the whip in or out as needed to obtain a low

SWR at your prefered frequency rang.

A DJ US T ME NT: all SIRIO HP Antennas are factory

adjusted and no additional tuning is usually required.

However, if the center frequency needs to be changed,

please follow these simple directions:

3. After tuning, re-tighten the allan-screws to lock the

whip.

T I LT I NG: all SIRIO HP Antennas have

an inclination system that allows the

90° tilting without use keys or special

tools.
