Sirio Antenne SD 27 Dipole Manuel utilisateur

SD 27 DipoleSD 27 Dipole

SD 27 Dipole

CB Base Station Antenna (27 MHz)CB Base Station Antenna (27 MHz)

CB Base Station Antenna (27 MHz)

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 09/07/2010 - Cod. ID097

2.0 3 . 0

1.2

3.1

4.0

1.1

DESCRIPTION

1/2 Dipole antenna working on 27 MHz band with Gamma Match System. It has been

completely made of anticorodal aluminium and supplied with Boom and steel bracket for the

fitting on the support mast. The fixing part with rapid mounting system is made of die-cast metal

to get the maximum strength and robustness. The radial whip is earthed and it is supplied with

jointing sleeves of polythene for a perfect water-proofing. Its supplied with UHF Female connector.

SPECIFICATIONS

Dipole

26-28 MHz

50 !

Horizontal mounting Directional

Vertical mounting Omnidirectional

Linear Horizontal

0 dBd - 2.15 dBi

"3780 KHz (340 channel)

#1.1

1000 Watts (CW) continuous,

3000 Watts (CW) short time

UHF-female

Aluminium, Nylon, Steel

80 N at 150 Km/h / 130 Km/h

0.07 m2

5420 x 1380 x 100 mm

1380 mm / $%33 mm

5420 mm

$%8-12-16 mm

3050 mm

2560 gr

$35-50 mm

Electrical Data

Type :

Frequency Range :

Impedance :

Radiation :

Polarization :

Gain :

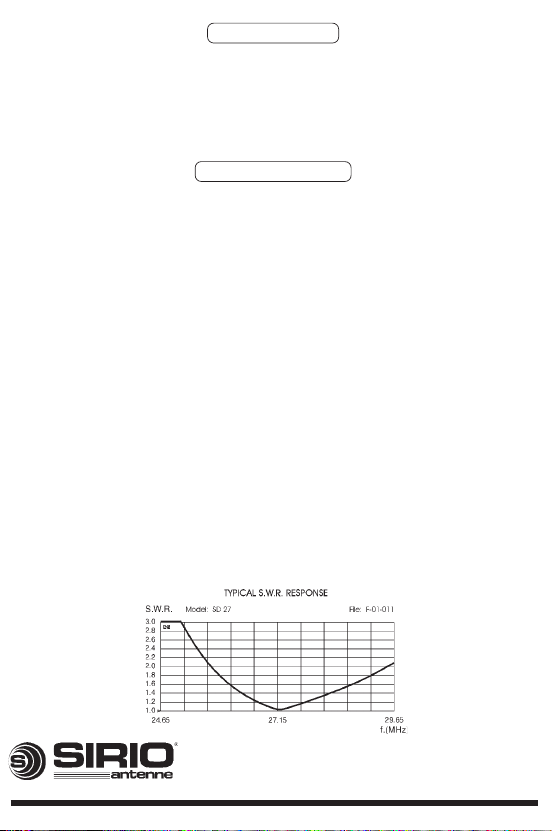

Bandwidth @ SWR #2 :

SWR @ res. freq. :

Max Power :

Connector :

Mechanical Data

Materials :

Wind Load / Resistance :

Wind surface :

Dimensions (approx) :

Boom Length / Diameter :

Max. element lenght :

Element Diameter :

Turning Radius :

Weight (approx.) :

Mounting Mast :

MOUNTING INSTRUCTIONS

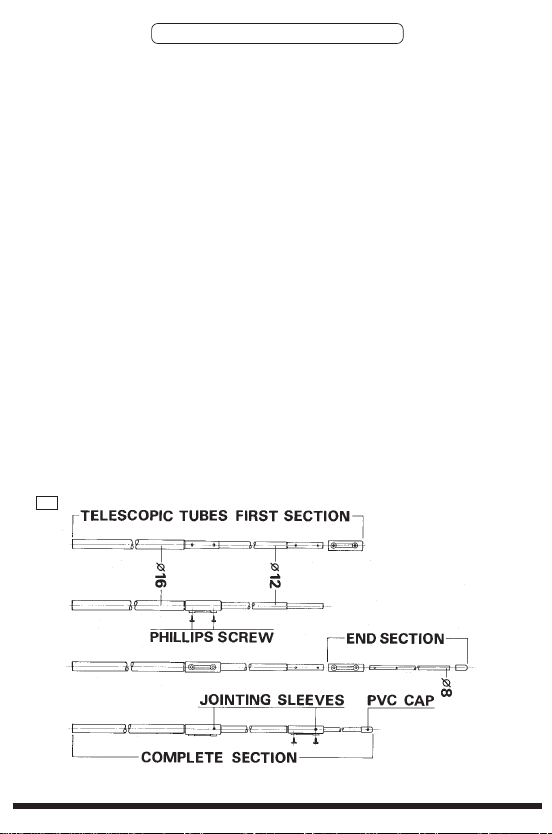

1.0 Assembling of elements

Extract the telescopic elements unstringing the tube $12 and mount the jointing sleeve fixing the first

section by means of the supplied phillips screw. Assemble the second jointing sleeve, string the top tube $

8 together with its PVC cap and fix the end section by your phillips screw.

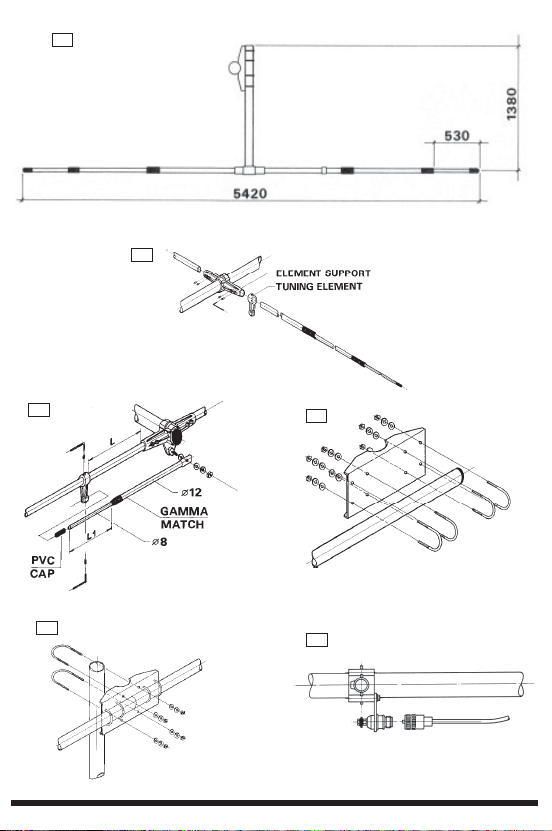

1.1 Placing of elements on the Boom

See the picture.

1.2 Assembling of elements to the Boom

String the tuning element of Gamma Match on one element of the radator dipole, insert the elements into

the metal support and fix them by using the screws and key supplied.

2.0 Assembling of Gamma Match

Extract the final tube of Gamma Match to the length L1=485 mm and fix without locking the flat end

$12 to the connector by using the supplied nut and washer. Move the tuning element towards the Boom

stringing the end part $8 of Gamma Match as far as size L=890 mm. Then fix the tuning element by

means of screw and key. Check once again the sizes L and L1, lock the nut on the flat part of Gamma Match

and mount the PVC protection cap.

3.0 Assembling of bracket to the Boom

See the picture.

PLEASE, PAY ATTENTION. THE GREAT LOCKING TORQUE OF NUTS THAT FIX THE

BOOM CAN CAUSE DAMAGE TO THIS LAST ONE.

3.1 Installation to the support tube

See the picture.

4.0 Cable connection

See the picture.

ID097

1.0

HI-QUALITY ANTENNAS MADE IN ITALY

SD 27 DipoleSD 27 Dipole

SD 27 Dipole

CB Base Station Antenna (27 MHz)CB Base Station Antenna (27 MHz)

CB Base Station Antenna (27 MHz)

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 09/07/2010 - Cod. ID097

2.0 3 . 0

1.2

3.1

4.0

1.1

DESCRIPTION

1/2 Dipole antenna working on 27 MHz band with Gamma Match System. It has been

completely made of anticorodal aluminium and supplied with Boom and steel bracket for the

fitting on the support mast. The fixing part with rapid mounting system is made of die-cast metal

to get the maximum strength and robustness. The radial whip is earthed and it is supplied with

jointing sleeves of polythene for a perfect water-proofing. Its supplied with UHF Female connector.

SPECIFICATIONS

Dipole

26-28 MHz

50 !

Horizontal mounting Directional

Vertical mounting Omnidirectional

Linear Horizontal

0 dBd - 2.15 dBi

"3780 KHz (340 channel)

#1.1

1000 Watts (CW) continuous,

3000 Watts (CW) short time

UHF-female

Aluminium, Nylon, Steel

80 N at 150 Km/h / 130 Km/h

0.07 m2

5420 x 1380 x 100 mm

1380 mm / $%33 mm

5420 mm

$%8-12-16 mm

3050 mm

2560 gr

$35-50 mm

Electrical Data

Type :

Frequency Range :

Impedance :

Radiation :

Polarization :

Gain :

Bandwidth @ SWR #2 :

SWR @ res. freq. :

Max Power :

Connector :

Mechanical Data

Materials :

Wind Load / Resistance :

Wind surface :

Dimensions (approx) :

Boom Length / Diameter :

Max. element lenght :

Element Diameter :

Turning Radius :

Weight (approx.) :

Mounting Mast :

MOUNTING INSTRUCTIONS

1.0 Assembling of elements

Extract the telescopic elements unstringing the tube $12 and mount the jointing sleeve fixing the first

section by means of the supplied phillips screw. Assemble the second jointing sleeve, string the top tube $

8 together with its PVC cap and fix the end section by your phillips screw.

1.1 Placing of elements on the Boom

See the picture.

1.2 Assembling of elements to the Boom

String the tuning element of Gamma Match on one element of the radator dipole, insert the elements into

the metal support and fix them by using the screws and key supplied.

2.0 Assembling of Gamma Match

Extract the final tube of Gamma Match to the length L1=485 mm and fix without locking the flat end

$12 to the connector by using the supplied nut and washer. Move the tuning element towards the Boom

stringing the end part $8 of Gamma Match as far as size L=890 mm. Then fix the tuning element by

means of screw and key. Check once again the sizes L and L1, lock the nut on the flat part of Gamma Match

and mount the PVC protection cap.

3.0 Assembling of bracket to the Boom

See the picture.

PLEASE, PAY ATTENTION. THE GREAT LOCKING TORQUE OF NUTS THAT FIX THE

BOOM CAN CAUSE DAMAGE TO THIS LAST ONE.

3.1 Installation to the support tube

See the picture.

4.0 Cable connection

See the picture.

ID097

1.0

HI-QUALITY ANTENNAS MADE IN ITALY
