Sirio Antenne HP 2000 Manuel utilisateur

HP 2000 HP 2000 CHP 2000 HP 2000 C

HP 2000 HP 2000 C

VHF 2m Radialless Mobile AntennasVHF 2m Radialless Mobile Antennas

VHF 2m Radialless Mobile Antennas

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 24/09/2003 - Cod. ID100

HP 2000 HP 2000 C

HP-AC/U angular connector:

Frequency Range: from DC to 500 MHz

Overall Size: Ø 41 mm

Mounting Hole: Ø 16 mm

Materials: Brass nichel plated, Teflon

insulator, Gold plated pin

Cable: 5m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male/ UHF-male (PL259)

Antenna connection: UHF-female

P/N 2510805.00 HP-AC/U

ALTERNATIVE MOUNT TYPE

HP MAG H 12 PL:

Frequency Range: from DC to 500 MHz

Overall Size: Ø92 mm

Materials: Chromed Brass, Nylon, Teflon

insulator, Gold plated pin

Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male / UHF-male (PL259)

Antenna connection: UHF-female

P/N 2511802.05 HP MAG H 12 PL

HP MAG 125 PL:

Frequency Range: from DC to 500 MHz

Overall Size: Ø 127 mm

Materials: Chromed Brass, Nylon, Teflon i

insulator, Gold plated pin

Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male / UHF-male (PL259)

Antenna connection: UHF-female

P/N 2511202.05 HP MAG 125 PL

DESCRIPTION

VHF radialless vehicular antenna working on 2m band. The very best materials have been used

to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH

stainless steel, has an inclination system that allows the 90otilting without using keys or tools.

Also a particular attention has been paid to the UHF-male connector with a goldplated center

pin, "Teflon" insulator and silicone rubber gasket for a perfect waterproofing.

SPECIFICATIONS

Electrical Data

Type

HP 2000 : 1/2 λ

HP 2000 C : C-loaded

Design Frequency : 145 MHz

Impedance : 50 ΩUnbalanced

Radiation (H-plane) : 360°Omnidirectional

Polarization : Vertical

Gain

HP 2000 : 1.5 dB ref. to λ/4 whip

HP 2000 C : 2 dB ref. to λ/4 whip

Bandwidth at V.S.W.R. 2:1

HP 2000 : 6.9 MHz

HP 2000 C : 20 MHz

V.S.W.R. at res. freq. : ≤1.2:1

Max Power : 150 Watts (CW) at 50°C

Feed System / Position : Transformer DC-Ground / Base

Connector type : UHF-male (PL 259)

Mechanical Data

Materials : Stainless Steel 17/7 PH, Nylon, Chromed Brass

Height (approx.)

HP 2000 : 1050 mm

HP 2000 C : 1410 mm

Weight (approx.) : 320 gr

ID100

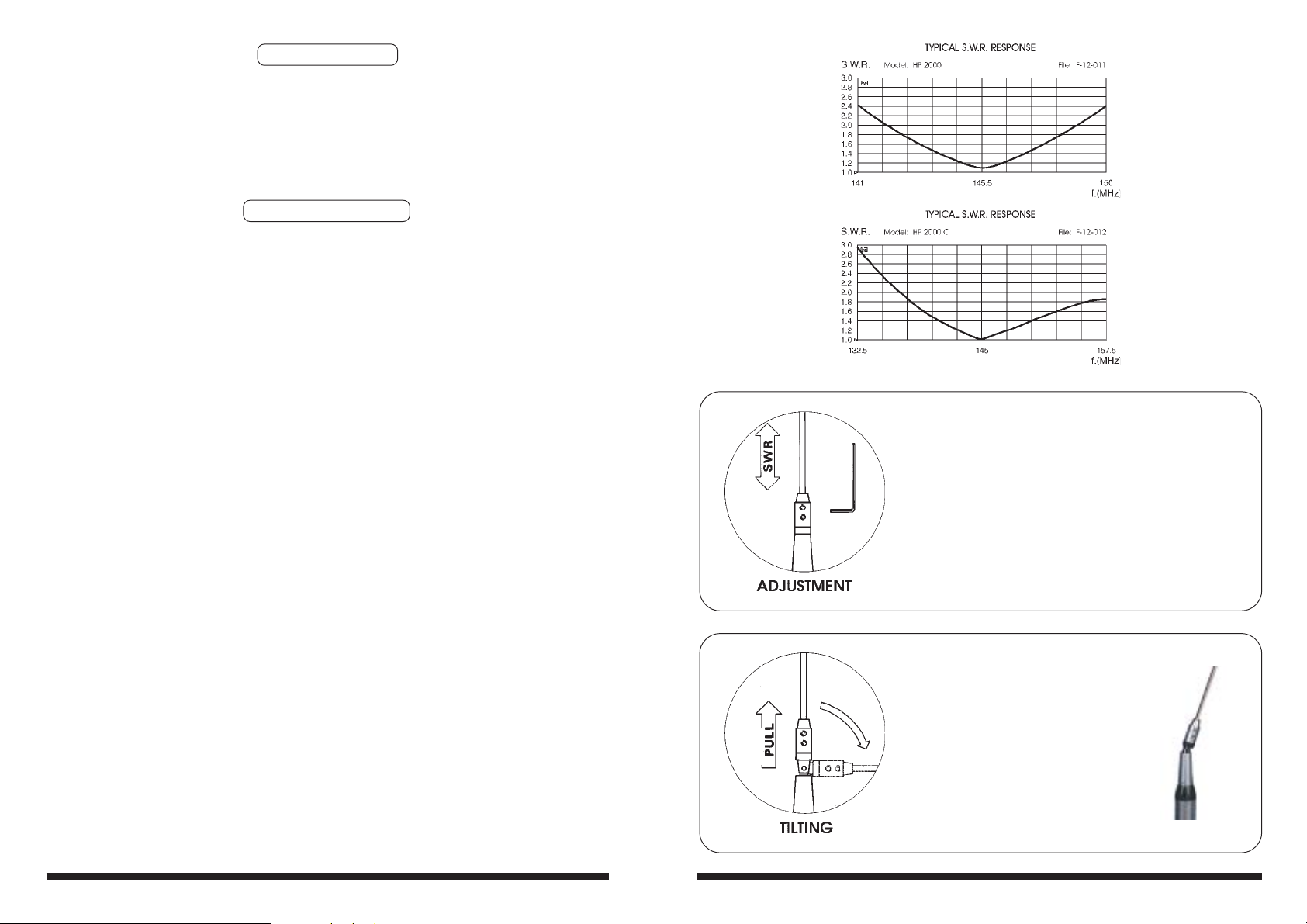

ADJUSTMENT: all SIRIO HP Antennas are factory

adjusted and no additional tuning is usually required.

However, if the center frequency needs to be changed,

please follow these simple directions:

1. Release the allan-screws on the whip using the supplied

key

2. Move the whip in or out as needed to obtain a low

SWR at your prefered frequency range.

3. After tuning, re-tighten the allan-screws to lock the

whip.

TILTING: all SIRIO HP Antennas have

an inclination system that allows the

90°tilting without use keys or special

tools.
