Timer Switch
Digital – for indoors
Introduction
Intended use
The device is intended as a digital weekly
timer switch for use in enclosed, dry rooms
and designed for private use. It is not suita-
ble for commercial use. Only operate the
device individually. Do not connect several
timer switches in series. Any other use is con-
sidered improper. The manufacturer is not
liable for damages due to improper use.
Read the entire instructions for use before
using the device. Keep these instructions for
use. Include the instructions for use when
passing the device on.
9GB/IE/NI

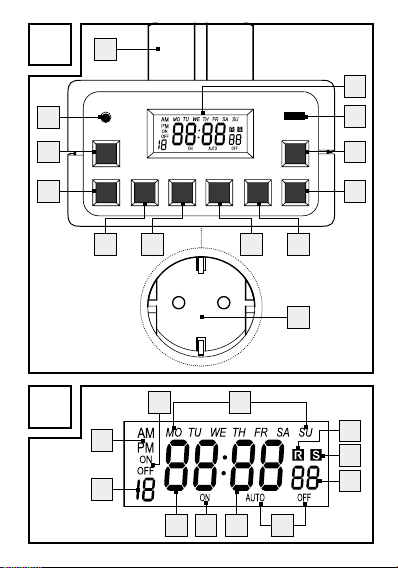

Control elements (Fig. A)
1LC display
2LED status light
3RST/RCL button
4MIN button
5HOUR button
6Socket
7WEEK button
8ON/AUTO /OFF button
9TIMER button
10 CLOCK button
11 RANDOM button
12 MASTERCLEAR button
13 Plug (reverse)
LC display (Fig. B)
14 Weekday display
15 R symbol
16 S symbol
17 Seconds display
10 GB/IE/NI
18 ON – AUTO – OFF
19 Minutes display
20 Hours display
21 Program number
22 AM – PM
23 ON – OFF
Technical data
Model designation: DZKW 20-A DE
3655
Operating voltage: 230V~50Hz
Switched voltage: 230V~16(2) A
Switching capacity: max. 3600 W
Ambient temperature: -10°C to 40°C
-10T40
Time error: ± 1 minute/month
Shorting switching time: 1 minute
Programs: 10 ON/OFF
program sets
